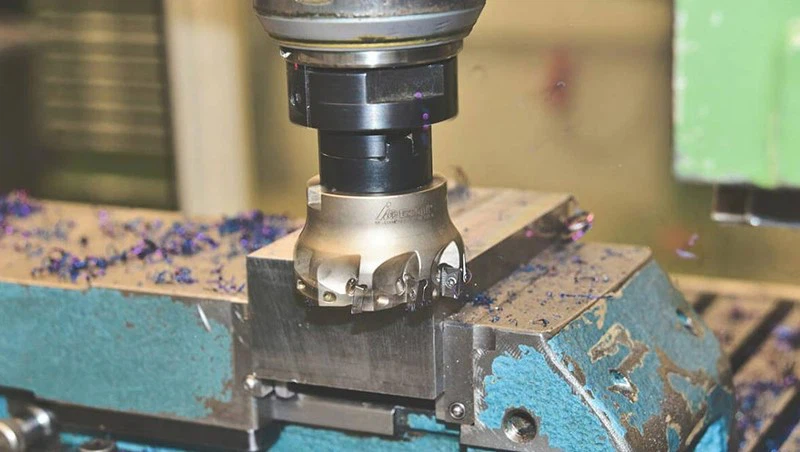

Face Milling Explained: A Guide to the Process, Tools, and Applications

Face milling makes flat and smooth surfaces on metal and other things. Many industries use this process because it gives accurate finishes fast. Face Milling Explained says this method is different from other milling ways. It takes away material from the whole face of a workpiece, not just the edges. The face milling tools market was about USD 2.5 billion in 2023. It is still growing, mostly in aerospace, automotive, and construction.

Face Milling Explained

What Is Face Milling

Face milling helps make flat surfaces on metal and other things. This process uses a big cutter with lots of teeth. The cutter spins fast and takes off material from the top. You can get smooth and even surfaces very quickly. Many companies use face milling for parts like cylinder heads and machine bases.

• Face milling uses a big cutter with many teeth to make flat surfaces.

• You often see this process in jobs that need strong machines and lots of power.

• The cutter stays close to the spindle, so it does not bend much.

• You can use face milling for many jobs, like making engine blocks or transmission parts.

Face Milling Explained shows why this method is special. You use the end of the tool, not the sides. This makes it great for flat surfaces. You get a nice finish in less time.

Key Features

Face milling cutters have special shapes and uses. The tool is flat and wide. It cuts with the end, which is not like other milling tools.

• The cutter is made to cut with its end, so it is good for flat surfaces.

• You get a great surface finish because the cutting edges move sideways.

• The tool is big and flat, so you can finish large areas fast.

• You save time because face milling can cut and finish in one step.

Tip: If you want a smooth finish, pick a face milling cutter with sharp inserts. You can change the inserts for different materials, so your work is flexible.

Here is a table that shows the main good things about face milling compared to other machining ways:

Face Milling Explained gives you the tools and knowledge to make flat surfaces fast and well. You see why many machinists pick this process for important jobs.

Process Overview

How It Works

You begin face milling by setting up your workpiece. Make sure it is tight on the machine table. This keeps it from moving and helps you get a smooth finish. Next, put the milling cutter where you want to work. The spindle axis should be straight up and down for best results.

Here is a simple step-by-step guide for face milling:

1. Set up the workpiece. Clamp it to the table so it does not move. The cutter should reach the whole surface.

2. Get the milling machine ready. Move the cutting tool to set the right depth. Make sure the spindle axis is straight up and down.

3. Pick the feed rate and spindle speed. Choose these based on the material and what you need to cut. This helps stop tool damage and gives a better finish.

4. Start machining. Begin the process by hand or with a CNC machine. Use the speed and feed settings you picked.

Face Milling Explained shows how this process makes flat surfaces fast. The spinning cutter takes off material from the top of the workpiece. You get a smooth and even finish. You can change the surface quality by adjusting the feed rate, spindle speed, and cutter type.

Note: You can get different surface finishes by changing the cutter and machine settings. Sharp cutters and small stepovers make the surface smoother.

Here is a table that shows the usual surface finishes you can get with face milling:

You can also get tight tolerances with face milling. Most CNC machines can keep tolerances of ± 0.005″ (0.13 mm). You often see surface finishes around 125RA in normal jobs.

Face milling works well with many materials. You often machine cast iron, non-ferrous metals, heat-resistant superalloys, and hardened steels. Each material has its own problems. Cast iron wears tools fast and can crack from heat. Non-ferrous metals may smear or stick to the cutter. Superalloys need strong machines and special tools because they get very hot. Hardened steels can wear tools and crack, so you need high speeds and little lubrication for rough cuts.

For more details on milling different materials, you can check resources from Sandvik Coromant.

Typical Applications

Face milling is used in many industries. This process helps make flat surfaces on parts that need tight tolerances and smooth finishes. Here are some common uses:

• Engine blocks

• Transmission valve bodies

• Machine bases

• Suspension components

• Turbine blades

• Structural fittings

You see face milling most in automotive and aerospace work. Here is a table that shows some specific parts:

You can also use face milling for other jobs, like making molds, dies, and big flat plates. The process is fast and accurate, so you finish big projects quicker.

Tip: For the best results, pick the right cutter and settings for your material. This helps stop tool damageand gives a better finish.

Face Milling Explained helps you see why this process is popular. You can use it for many jobs, from small parts to big engine blocks. You get flat surfaces, tight tolerances, and smooth finishes every time.

Tools and Cutters

Types of Cutters

You can choose from many types of face milling cutters. Each cutter has a special design that helps you get the best results for your job. Some cutters work better for small parts, while others handle tough materials or big surfaces.

Here is a table that shows the main types of face milling cutters and what makes each one unique:

Tip: If you want a cutter that lasts longer, pick one with a coating like PVD or a strong material like tungsten carbide.

Selection Criteria

You need to pick the right cutter for your workpiece and job. Face Milling Explained shows that the right choice helps you get a better finish and saves time.

Here are the main things you should think about when you choose a face milling cutter:

1. Workpiece Material: Match the cutter to the metal or material you want to cut. Hard metals need strong cutters.

2. Machining Method: Decide if you want to rough, semi-finish, or finish the surface. Each step may need a different cutter.

3. Cutter Size and Type: Pick a cutter that fits your machine and the size of your workpiece.

4. Cutting Parameters: Make sure the cutter can handle the speed, feed rate, and depth you need.

5. Tool Holder Compatibility: Check that the cutter fits your tool holder for safe and stable cutting.

6. Tool Coating and Material: Choose coatings like TiAlN or AlCrN for better heat and wear resistance.

7. Manufacturer and Quality: Use cutters from trusted brands for better results.

• Coatings like TiAlN and AlCrN help your cutter last longer. They protect against heat and wear.

• Strong materials like tungsten carbide and PCD let you cut hard metals and keep a sharp edge.

• Always check your machine’s power and rigidity before you pick a cutter.

Note: If you want a smooth finish and long tool life, use cutters with advanced coatings and the right size for your job.

Face Milling Explained helps you understand that the right cutter and setup make your work easier and your results better.

Face Milling vs Peripheral Milling

Main Differences

You might ask how face milling and peripheral milling are not the same. Both use spinning cutters, but they work in different ways. Here are the main things that make them different:

• Cutting Action: Face milling cuts with the end of the cutter. It moves straight down onto the surface. Peripheral milling uses the side of the cutter to cut.

• Material Removal: Face milling takes off material from a big area. It can clear wide surfaces fast. Peripheral milling makes thin, careful cuts.

• Surface Finish: Face milling gives a smoother finish. Peripheral milling can leave marks that need more work to fix.

• Tool Engagement: In face milling, a lot of the cutter touches the material. In peripheral milling, only a small part of the tool touches.

• Applications: Face milling is best for flat surfaces. Peripheral milling is good for grooves, slots, and shapes with lots of detail.

Tip: Pick face milling if you want a flat and smooth surface. Use peripheral milling for deep cuts or shapes with lots of details.

When to Use Each

You have to choose the right milling method for your job. The choice depends on the part, the material, and what your machine can do. Here is a table to help you pick:

Use face milling when you need a big, flat surface with a nice finish. This works well for hard materials like hardened steel. It is best if your machine is strong and accurate. Peripheral milling is better for deep cuts, slots, or tricky shapes. It also works well for soft materials and machines that are not as powerful.

Note: Always pick the milling method that fits your project. The right choice helps you save time and get better results.

Process Parameters

Depth of Cut

You can change the depth of cut to control how much material you take off in one pass. Picking the right depth helps you work faster and keep your tool working longer. It also helps you get a better surface finish. For steel, use a depth close to 0.150". Aluminum lets you cut deeper, up to 0.250". If you use a Bridgeport-style machine, stay between 0.050" and 0.100". Heavy milling usually means a depth from 0.100" to 0.200". Lighter cuts can go deeper, sometimes up to 0.250".

Most of the time, heavy milling uses a depth between 0.100" and 0.200". Lighter cuts can go up to 0.250".

Feed Rate and Speed

You set the feed rate and spindle speed to match your material and cutter. These settings change how fast you work and how smooth the finish is. For aluminum, use spindle speeds from 10,000 to 20,000 RPM. Feed rates should be between 500 and 1000 mm/min. Titanium alloys and superalloys need slower speeds, around 800 to 1,500 RPM. Feed rates for these metals are about 0.05 to 0.1 mm/rev.

If you use higher speeds and feed rates, you finish the job faster. You may also get more heat and shaking. Lower speeds help you get a smoother finish and keep your tool safe.

Setting Selection

You pick process settings to stop shaking and vibration. High-performance tools help keep vibration low. You should clamp your workpiece tightly to make your work more accurate and smooth. The width of the cutting layer changes how the vibration moves, so try to lower cutting forces in that direction for stable milling.

• High-performance tools help lower vibration.

• Chatter can happen if you do not set your machine right.

• Tight clamping makes your work more accurate and smooth.

• Stable milling helps you avoid problems and get better results.

Tip: Always check your machine setup and pick settings that match your material and cutter. This helps you get good results and keeps your tools safe.

Advantages and Limitations

Benefits

Face milling has many good points for machining. You can take off a lot of material fast. This helps you finish your work sooner. The process also makes surfaces flat and smooth. This is important for car and airplane parts. You save money because you spend less time on each part. You also need fewer workers for the job.

• High Material Removal Rate: You can take off a lot of material quickly. This is good for roughing and finishing.

• Superior Surface Finish: You get smooth and even surfaces. This is important for jobs that need high quality.

• Cost-Effectiveness: You spend less time and money on each part.

Face milling lets you use many tools and inserts. You can change your setup for each job. You do not waste time changing tools because inserts are easy to swap.

Here is a table that shows how face milling saves time and gives better results:

Challenges

Face milling also has some problems you need to watch for. Hard metals can wear out your tools fast. You need strong cutters like carbide for these jobs. Milling makes heat, which can change your part’s shape. You must use coolants and set the right speed. If your tool or part is not set up right, you may get bad cuts or rough surfaces.

• Tools wear out fast with hard metals, so check and change them often.

• Heat can build up and bend your part, which hurts accuracy.

• If tools are not lined up, you get uneven cuts and bad results.

• Chatter and shaking can make tools break and surfaces rough.

• Hard shapes or tough metals need careful planning and strong machines.

Knowing how hard your part is helps you pick the right settings. Harder parts need more force, so you may need to cut slower or not as deep. The shape of your tool edge matters too. A bigger edge can make the surface rough and cutting harder. You must pick the right tool for each job.

Always check your setup and tools before you start. This helps you avoid problems and get the best results from face milling.

Best Practices

Tool Setup

You can get better face milling results with smart setup steps. A strong setup helps you make accurate cuts every time. Use this table to help you set up your work:

Tip: Always check your fixture and clamps before you begin. A steady setup gives you smoother cuts and fewer errors.

Taking care of your tools helps them last longer and keeps your cuts clean. Try these steps:

• Put oil on cutters while you use them to stop heat and friction.

• Sharpen cutters when they get dull so they cut well again.

• Check your tools often to make sure they are still accurate.

• Keep cutters in dry, clean boxes so they do not rust or break.

• Pick the right cutter for each job and material.

• Use the speeds and feeds that are best for your cutter.

• Change out old cutters to keep your work looking good.

• Teach workers how to use and care for tools the right way.

Safety Tips

You need to be safe when face milling. Dangers include flying chips, sharp edges, and hot parts. Protect yourself and others by doing these things:

• Wear safety glasses and boots with steel toes.

• Use shields and covers on machines to block flying pieces.

• Handle coolants carefully to keep people and machines safe.

• Keep your work area clean so you do not trip or fall.

• Check and fix machines often so they work right.

• Point chips away from people using good methods.

• Wear the right clothes and use face shields if needed.

Studies show that strong shields can cut injuries by up to 40% in heavy machining. One time, a flying bar could have hurt someone badly, but a shield stopped it.

You can make things safer by using good equipment, safe habits, and the right safety gear. Always pay attention and follow safety rules to keep your shop safe.

You now know face milling makes flat and smooth surfaces. The right tools and settings help you do this well. Good tool setup, cutting speeds, and coolant make your work better and faster. New cooling ways and smart systems help you get even better results. You can join classes like Machinist Training Institute or CNC Mastery Program to learn more.

Keep learning new things and use good habits to get better at machining.

FAQ

What is the main purpose of face milling?

You use face milling to make flat and smooth surfaces on metal or other materials. This process helps you get accurate and even finishes quickly.

Can you use face milling on all metals?

You can use face milling on most metals, like steel, aluminum, and cast iron. Some hard metals need special cutters or coatings for the best results.

How do you choose the right face milling cutter?

You pick a cutter based on your material, machine power, and the finish you want. Stronger materials need harder cutters. Always check your machine’s limits before you start.

What safety gear should you wear during face milling?

You should wear safety glasses, gloves, and steel-toe boots. Use machine shields to protect yourself from flying chips. Keep your work area clean for extra safety.

How can you improve the surface finish in face milling?

Tip: Use sharp cutters, set the right speed and feed, and clamp your workpiece tightly. Clean tools and steady setups help you get a smoother finish every time.
