Common CNC Machining Defects and How to Prevent Them

CNC machining defects can hurt your production in many ways. Almost 70% of manufacturing problems start during machining. You might see issues like chatter, tool wear, burrs, thermal damage, dimensional errors, or surface finish problems. These defects often cause more waste, extra work, and even machine stops. This makes your costs go up. If you want good products and low costs, you must find and stop CNC machining defects early.

CNC Machining Overview

What is CNC Machining

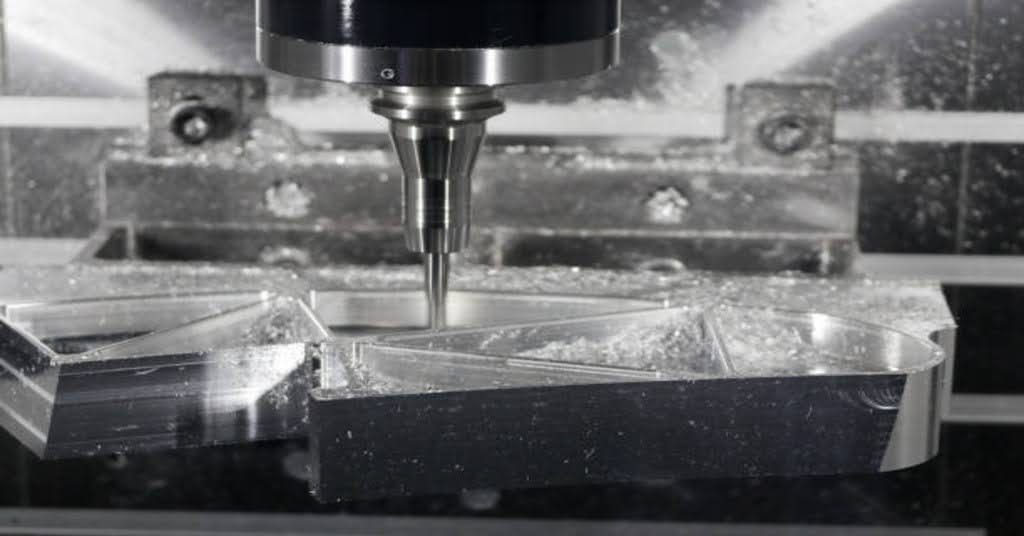

CNC machining uses computers to run machines that cut and shape things. It helps you make parts that are very exact. You can make the same part over and over. This process lets you create shapes that are hard to make with old tools. CNC machining is important in factories today. It helps you make parts fast and with fewer mistakes. You do not have to depend only on skilled workers. The computer does most of the work. You get the same results every time.

Many industries use CNC machining.

• Aerospace companies use it for turbine blades and engine parts.

• Car makers use it for engine and transmission parts.

• Medical companies use it for surgical tools and devices.

CNC machining helps you meet strict quality rules. You can make very exact parts for planes, cars, and medical tools. This control helps you stop many common CNC Machining Defects.

Tip: CNC machining helps lower human mistakes and makes work faster. You can make more parts in less time.

Quality Control

Quality control checks if your parts are made right. You need it to make sure your products work well and last long. CNC machining can reach very close tolerances. This means your parts fit together better and work as they should.

Here is a quick look at how quality control in CNC machining compares to other methods:

You need strong quality control to stop CNC Machining Defects. Good checks help you save money and keep customers happy. If you skip these steps, you might make bad parts. This can hurt your reputation.

Types of CNC Machining Defects

CNC Machining Defects can show up in many ways. You need to know what each defect looks like so you can spot problems early. Here are the most common types you might see in your shop:

You will learn more about each defect in the next sections. For now, here is a quick guide to help you understand what to look for:

Surface Finish

Surface finish problems show up as rough or uneven areas on your part. You might see scratches, grooves, or a dull look. These defects often happen when your tool wears out or when the machine vibrates during cutting. A poor surface finish can make your part look bad and work poorly, especially if you need smooth surfaces for moving parts.

Dimensional Errors

Dimensional errors mean your part does not match the size you wanted. Even a small mistake can make the part useless. These errors often come from worn tools, wrong machine settings, or bad programming. If your part is too big or too small, it may not fit or work as planned.

Tool Wear

Tool wear happens when your cutting tool gets dull or damaged. You might notice slower cutting, more heat, or rougher surfaces. Worn tools can cause other CNC Machining Defects, like bad surface finish or wrong part sizes. You need to check your tools often to avoid these problems.

Chatter

Chatter sounds like a loud, high-pitched noise during machining. You might see wavy marks on your part. Chatter happens when the tool or part vibrates too much. This defect can ruin the surface finish and even break your tool. You need to fix chatter fast to keep your parts and tools safe.

Thermal Damage

Thermal damage means your part gets too hot during machining. You might see discoloration, cracks, or changes in the metal. Too much heat can make your part weak or brittle. This defect often comes from cutting too fast or not using enough coolant.

Burrs

Burrs are sharp, raised edges left on your part after cutting. You can feel them with your finger. Burrs happen when the tool pushes metal out instead of cutting it cleanly. They can make your part unsafe to handle and may cause problems when you put parts together.

Tool Springing

Tool springing means your tool bends or flexes during cutting. This can make your part the wrong size or shape. You might not see tool springing right away, but it can cause other defects like poor surface finish or dimensional errors. You need to use the right tool and setup to stop this problem.

Note: Each of these CNC Machining Defects can hurt your product quality and cost you money. In the next sections, you will learn what causes each defect and how you can prevent them.

Surface Finish

Causes

You may see rough or bumpy spots on your parts. These problems can happen for many reasons in CNC machining. Watch out for these common causes:

• Cutting tools that are dull or shaped wrong

• Feed rates and spindle speeds that are not right

• Cutting too deep or too shallow

• Not enough coolant or oil during cutting

• Problems with CAD/CAM software settings

• Machine setup that is not strong or held tight

• Tool shaking or vibrating while cutting

A dull tool can scratch your part. If you use the wrong speed, the tool might skip or make noise. Not enough coolant can make the part too hot. This can burn or change the color of the surface. If the machine is not set up well, it can shake and leave wavy lines. Software mistakes can make the tool move the wrong way. This can cause uneven surfaces. All these things can lead to CNC Machining Defects and lower your product quality.

Tip: Always check if your tool is sharp and your machine is set up right before you start. Small changes can really help your surface finish.

Prevention

You can stop surface finish problems by using good methods. Try these tips to get smoother and better-looking parts:

For the best results, always match your tool and settings to the material you use. Try to use advanced software to plan your cuts. Make sure your part does not move while cutting. Pick the right coolant for your job. These steps help you stop surface finish defects and keep your parts looking and working great.

Dimensional Errors

Causes

Dimensional errors mean your part is not the right size. These mistakes can make parts not work or be unsafe. You should know what causes these errors so you can stop them.

Some main reasons for dimensional errors are:

• Tool wear can change part size. If a tool is dull, it may cut too much or too little. This makes your part bigger or smaller than planned.

• Machines that are not strong enough can shake. Shaking can make the tool move in ways you do not want. This leads to bad surface and wrong sizes.

• Not enough coolant can make things too hot. Heat can make metal get bigger or tools wear out faster. This changes the size of your finished part.

• Operator mistakes in programming or measuring can cause errors. If you enter wrong numbers or measure wrong, your part will not be right.

Tip: Always check your tools and machine setup before starting. Small problems can turn into big mistakes.

Prevention

You can stop dimensional errors by using good habits and the right rules. Check your tools often and change them if they are worn. Make sure your machine is tight and does not shake. Use enough coolant to keep things cool. Double-check your programs and measurements before you start the machine.

Many industries use rules to help control part size and stop CNC Machining Defects. Here is a table with some important standards:

You should use the rules that fit your industry. These rules help you keep parts the right size. They also help you find mistakes early.

Note: Keeping tools sharp, machines steady, and measurements correct will help you stop most dimensional errors.

Tool Wear

Causes

You face tool wear every time you run your CNC machine. Tool wear means your cutting tool gets dull, chipped, or damaged. This problem can lead to poor part quality and more CNC Machining Defects. Many things can make your tool wear out faster.

• Hard workpiece materials cause more mechanical wear. These materials do not let heat escape easily. Your tool gets hot and loses strength.

• High cutting speeds and deep cuts increase cutting heat. The tool gets hotter and wears out quickly.

• Chemical reactions between the tool and the workpiece can happen at high temperatures. These reactions form compounds that break down the tool.

• Poor cooling and lubrication let friction build up. The tool gets hotter and wears faster.

• Wrong tool material or design makes the tool less durable. If you use the wrong geometry, the tool may chip or break.

• Incorrect machine setup or lack of operator skill can cause unnecessary wear. Bad settings make the tool work harder than needed.

Tip: Always check your machining parameters and tool material before starting a job. Small changes can make a big difference in tool life.

Prevention

You can slow down tool wear by using smart practices. Start by optimizing your cutting parameters. Adjust speed, feed, and depth of cut to match your material. Use proper coolant to keep the tool cool and help remove chips. Clean your tools after each job and store them in a dry place to prevent corrosion.

• Inspect your tools often. Look for signs like higher cutting force or more heat. Replace worn tools before they cause problems.

• Train yourself to spot warning signs. If you hear strange noises or see rough surfaces, check your tool right away.

• Choose the right tool material and design for each job. Harder tools last longer with tough materials.

• Set up your machine correctly. Make sure everything is tight and aligned.

Note: Good habits and regular checks help you avoid tool wear and keep your CNC machining process running smoothly.

Chatter

Causes

Chatter is a loud, high-pitched noise you hear during CNC machining. You might see wavy lines or marks on your finished part. Chatter happens when something vibrates too much while the machine cuts. These vibrations can damage your part and even break your tool. You need to know what causes chatter so you can stop it before it ruins your work.

Here is a table that shows the main causes of chatter and explains each one:

You can see that chatter often starts with small problems. If you ignore these issues, you may face bigger CNC Machining Defects later.

Tip: Always check your tool and setup before you start. Small changes can make a big difference in stopping chatter.

Prevention

You can prevent chatter by using smart techniques and good habits. Try these methods to keep your machine quiet and your parts smooth:

• Use strong and balanced tool holders. These holders keep your tool steady and reduce shaking.

• Apply proper clamping to secure the workpiece. A tight grip stops the part from moving.

• Choose the most rigid tools and toolholders you can find. Rigid tools do not bend or vibrate as much.

• Shorten tool overhangs. A shorter tool is less likely to shake.

• Make sure your tools are sharp. Dull tools cause more vibration.

• Set the right spindle speed and feed rate. Sometimes, changing these settings can stop chatter.

• Use high-efficiency milling. This method keeps the cutting force steady and lowers vibration.

• Plan smooth and continuous tool paths. Sudden changes in direction can cause force spikes and chatter.

• Try tools with variable helix and flute spacing. These designs help resist vibration.

• Use damping techniques to absorb vibrations. Special materials or holders can help.

• Reduce cutting depth and force if needed. Lighter cuts make less noise and vibration.

• Secure both the tool holder and the workpiece. Double-check your setup before you start.

Note: If you hear chatter, stop and check your setup. Fixing the problem early saves time and money.

Thermal Damage

Causes

Thermal damage happens when too much heat builds up. This heat can change your part’s shape or color. It can also make your part weaker. You might see cracks or burns. Sometimes, the part can bend or twist. Many things can cause thermal damage in CNC machining.

• Natural climate: If the room is hot, machines get hotter.

• Ongoing environment: Machines near ovens or boilers get extra heat.

• The machining tool: If the tool gets too hot, it can change shape. This makes cutting worse and can ruin your part.

• Material properties: Harder materials make more friction and heat. This means thermal damage can happen more easily.

If you ignore these things, you may get more CNC Machining Defects. Always watch the temperature near your machine. Think about the material you use.

Tip: Check your shop’s temperature often. Keep machines away from heat sources. This helps stop heat problems.

Prevention

You can stop thermal damage by cooling your tools and parts. Cooling keeps everything at safe temperatures. Here are some ways to help:

Use sharp tools and set the right speed. Slow down if you see smoke or feel heat. Always use enough coolant or lubricant. Keep your machine clean and look for signs of overheating.

Note: Stopping thermal damage saves money and keeps your parts strong and accurate.

Burrs

Causes

Burrs are sharp edges left on parts after cutting. They happen when the tool pushes or tears the metal. This means the cut is not smooth. Some things make burrs more likely.

• Softer metals like aluminum get more burrs than hard ones.

• The shape and sharpness of your tool matter a lot. If your tool is dull or shaped wrong, burrs get worse.

• Cutting too fast or with high feed rates causes more burrs. The tool cannot cut cleanly if you go too fast.

• Parts with sharp corners or tricky shapes get more burrs.

• Burrs grow bigger where the tool leaves the part. The way and angle the tool exits also change burr size.

Tip: Always check your tool before you start. Make sure your material is right for the job. Small changes can help stop burrs and keep you safe.

Prevention

You can stop burrs by using good tools and smart methods. Many shops use both hand and machine ways to remove burrs. Here is a table that shows how people get rid of burrs, what works best, and what does not.

Pick the way that fits your part’s shape and metal. Taking off burrs makes parts safer and easier to put together. It helps parts seal better and last longer. If you control burrs, you get fewer CNC Machining Defects and better products.

Note: Check your tools often. Design parts carefully. Use the right speed when cutting. These steps help you stop burrs before they start.

Tool Springing

Causes

Tool springing happens when your cutting tool bends or flexes during machining. This problem can make your parts the wrong size or shape. You may not see tool springing right away, but it can lead to other CNC Machining Defects if you do not fix it.

Several mechanical factors can cause tool springing:

• The rigidity of your machine affects how much it resists bending when you cut. Machines that are not rigid enough let tools flex more.

• The available torque in your machine helps keep cutting steady. If your machine cannot keep up with the force, the tool may spring.

• Flex can happen in many parts of your setup. The tool, tool holder, and even the parts that connect to the spindle can all bend under pressure.

You might notice tool springing if your parts come out with the wrong measurements or if you see uneven surfaces. Sometimes, you hear a change in the machine’s sound when the tool flexes.

Tip: Always check your machine’s rigidity and make sure all parts are tight before you start cutting.

Prevention

You can prevent tool springing by making smart changes to your process. Try these steps to keep your tools steady and your parts accurate:

• Use sharper tools. Sharp tools cut with less force and reduce stress on the tool.

• Make several smaller cuts instead of one deep cut. This lowers the pressure on your tool and helps it stay straight.

• Set up indicators on your fixturing. These tools help you see if your tool or part moves during cutting.

• Choose the right tool holder. A strong holder keeps your tool from bending.

• Keep your machine and fixtures clean and tight. Loose parts make springing worse.

• Watch your cutting speed and feed rate. Slower speeds and lighter cuts help prevent tool flex.

If you follow these steps, you will see fewer problems with tool springing. Your parts will come out with better size and shape. You will also avoid many common CNC Machining Defects.

Note: Regular checks and good setup habits help you stop tool springing before it causes trouble.

Preventing CNC Machining Defects

Process Optimization

You can stop CNC Machining Defects by making your process better. First, pick good tools and the right cutting fluids. Change spindle speed, feed rate, and depth of cut to fit your material and part shape. Hold your workpiece tight with strong vises and chucks. This stops shaking and keeps cuts neat. Some shops use AI and machine learning to plan tool paths. These smart methods help you get better parts and fewer errors.

Tip: Always check your cutting settings before you start. Even small changes can help your parts turn out better.

• Pick the best tools for your job.

• Adjust cutting speeds and feeds.

• Use strong holders for your workpiece.

• Try smart software to plan tool paths.

Tool Maintenance

Taking care of your tools helps your CNC machine work well. If you clean and check your tools often, you lower the chance of defects. Change tools when they look worn or damaged. Replace inserts early so you do not wait for them to break. This saves money and keeps your parts the same every time. Good maintenance also means less scrap and more finished parts.

• Check tools for damage and wear.

• Clean tools after each job.

• Replace dull or broken tools fast.

• Keep your machine clean and working well.

Note: Good habits help you make great parts every time.

Inspection

Inspection helps you find problems before parts leave your shop. Look at parts with magnifiers or microscopes to spot surface issues. Measure size with calipers and micrometers to make sure parts are right. Check if surfaces are smooth enough. Non-destructive testing uses sound or X-rays to find hidden problems without hurting the part. Advanced tools like CMMs and profilometers help you check tricky shapes and textures.

Tip: Check every part before you ship it. This helps you avoid returns and keeps customers happy.

You can keep CNC machining quality high by using smart steps. If you look for problems early, you waste less. Good habits like tool care, better processes, and checking parts often help every part meet tough rules.

• Finding problems early saves you time and money.

• Making parts the right size keeps customers happy.

• New machines and better programs make work faster.

Focus on doing good work, and you will have fewer problems and better results.

FAQ

What is the easiest way to spot a CNC machining defect?

You can look for scratches, rough spots, or wrong sizes on your part. Use a magnifier or ruler. If something looks or feels off, you likely have a defect.

How often should you check your cutting tools?

Check your tools before every job. If you see chips, dull edges, or hear strange sounds, change the tool right away. Regular checks help you avoid defects.

Can you fix a part with burrs after machining?

Yes, you can remove burrs using files, sandpaper, or special machines. Always check for burrs before shipping parts. Removing burrs makes parts safer and easier to use.

Why does your CNC machine make loud noises during cutting?

Loud noises often mean vibration or chatter. Your tool might be loose, dull, or moving too fast. Stop the machine, check the setup, and adjust speed or tool position.
