What is cnc machining center?

Contents

1. What is the difference between CNC and machining center?

2. What can be performed on a cnc machining center?

What is the difference between CNC and machining center?

The biggest difference between them is to see if the equipment is equipped with a tool magazine. The machining center is actually a CNC milling machine with a tool magazine. The machining center can realize one job of clamping and complete the work of multiple machining processes, such as milling and drilling.

What can be performed on a cnc machining center?

Below are the typical processes on a cnc machining center

CNC Milling: During cnc milling, material was cut from the work-piece by the rotary cutters, thus pockets, slots, and intricate part contours can be shaped.

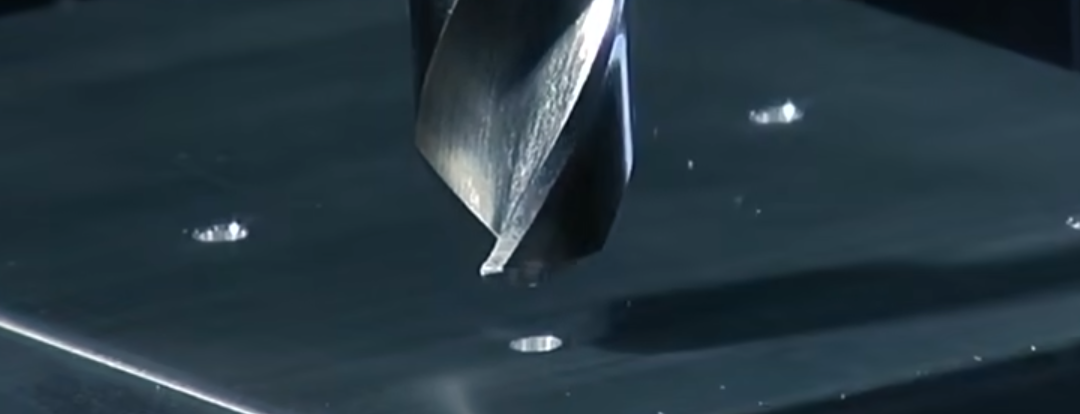

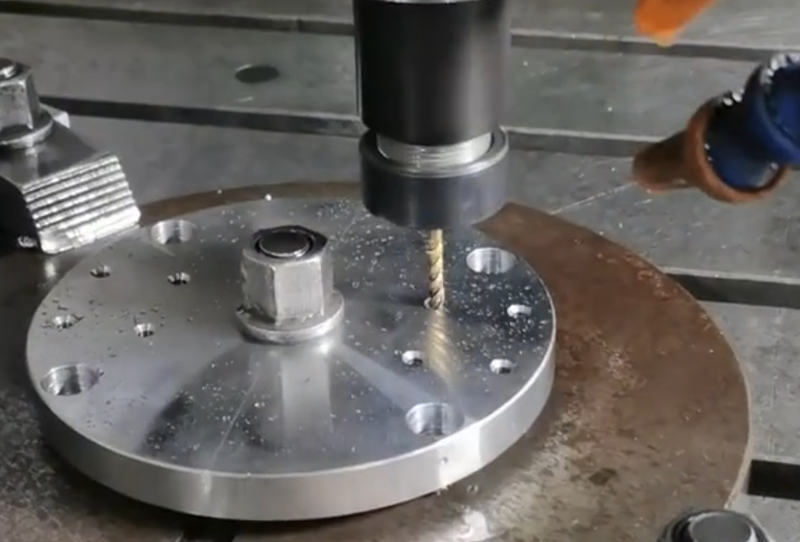

Drilling: Part holes can be created by drill bits . Drill bits move along the axis of the hole. With various sizes and types, a variety of hole diameters and depths are drilled.

What is cnc machining center?cid=12

Boring: Boring means to further machining the drilled hole and fine-tunes the diameter to precise tolerances. Boring can also be used to correct any misalignment in the hole, ensuring that it is perfectly cylindrical.

What is cnc machining center?cid=12

Grinding: Different from milling or turning, in grinding, an abrasive wheel slowly removes the material in a small amount, so fine surface finish can be achieved. Grinding is necessary for parts with tight tolerances or extremely smooth surfaces.

What is cnc machining center?cid=12

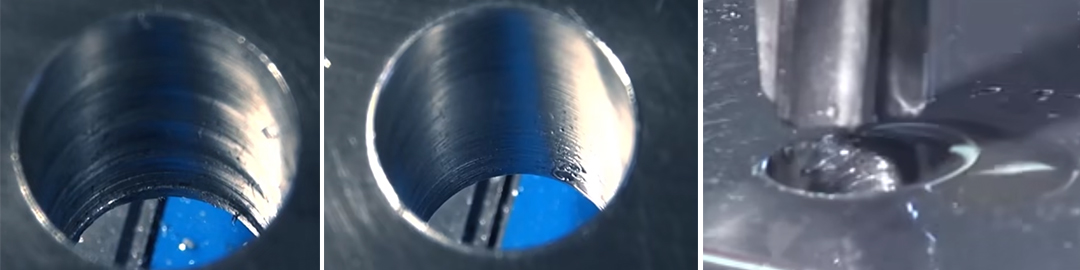

Before reamingafter reamingreaming

Reaming is a process in which a reamer cuts off a trace metal layer from the hole wall of a work-piece to improve dimensional accuracy and hole surface quality. For smaller holes, reaming is a more economical and practical processing method compared to internal grinding and fine boring, and is widely used in production.

Tapping: Tapping refers to the process of using a torque to screw the tap into the hole to process certain internal thread. Tapping , providing a path for screws or other threaded objects. It's critical for applications requiring secure fastening of components.

What is cnc machining center?cid=12

With the above capabilities, complex parts can be processed within a single cnc machining centre, parts can be made more efficiently.
