Is CNC Machining Cheaper for Complex Shapes? A Cost Analysis

You may ask if CNC machining costs less for complex shapes. The answer depends on a few important things. Advanced machines like five-axis ones cost more money. Custom fixturing also adds to the price. Harder materials and detailed designs need more work. This means more time for programming and setup. Starting costs can be high. This is true when you compare it to manual machining or 3D printing. The table below shows how CNC machining compares to other ways for making complex parts:

If you need very accurate parts or want to make many, CNC machining is often a good pick.

CNC Machining Cost Factors

Machine Type and Setup

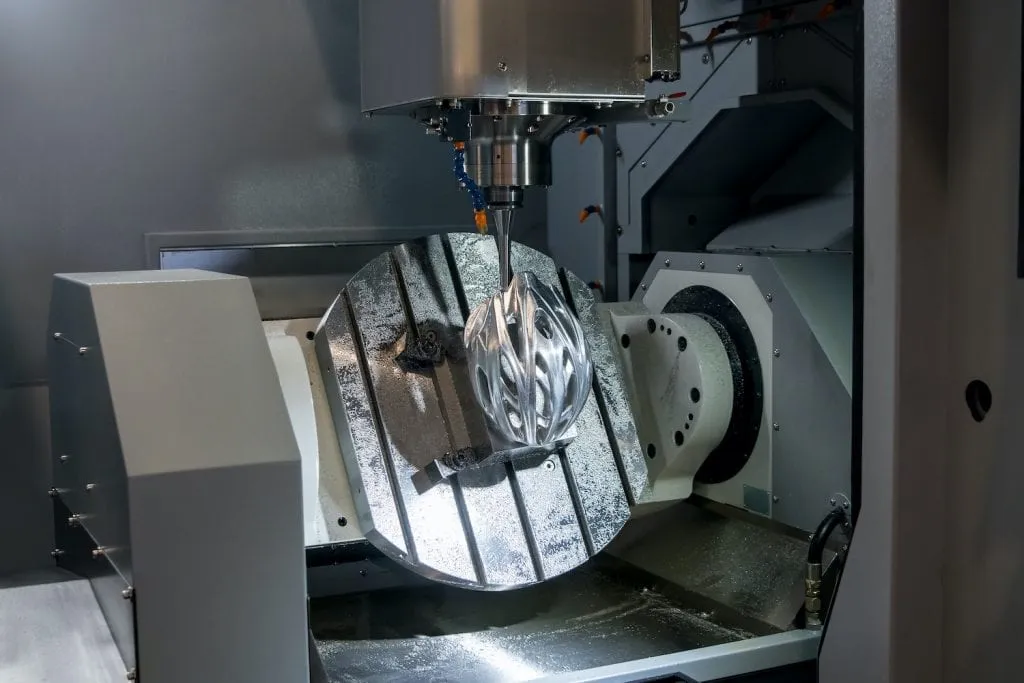

The kind of machine you pick is important. Five-axis machines move in more ways than three-axis ones. They can make deep cuts, curves, and undercuts. Five-axis machines cost a lot more than basic machines. A three-axis machine might cost $25,000 to $50,000. A five-axis machine can cost $80,000 or even more than $500,000. You pay extra, but you get better results and faster work for hard shapes.

Special setups are needed for tricky parts. Custom fixtures hold the part steady while the machine works. These cost more than regular fixtures. They help you get the right shape and stop mistakes. Five-axis machines can do more steps at once. This means less setup time and fewer errors. You also save on labor costs.

Tip: If your part has lots of angles or hard spots, a five-axis machine with custom fixtures can save time but will cost more at the start.

Material Selection

The material you choose changes how much CNC machining costs. Some materials like brass, titanium, and tungsten are expensive. These are strong and last long, but they are tough to cut. Hard materials wear out tools faster. You need to cut slower, so the job takes longer. Sometimes you need special tools for these materials.

• Hard materials make tools wear out faster, so you need new ones more often.

• You must cut slower, which makes the job take longer and cost more.

• Complex shapes need custom fixtures and special tools, which adds to the price.

Labor and Programming

Labor and programming are big parts of CNC machining costs for hard shapes. If your design has lots of details, the programmer needs more time. Each extra step or tool change adds setup time. If you want very tight tolerances, programming gets harder.

Labor costs can be very different. Simple jobs by new workers might cost $20 per hour. Expert programmers can charge up to $200 per hour. Contract programmers may ask for $30 to $250 per hour. The harder your part is, the more you pay for skilled labor and programming time.

Note: To save money, keep your design simple and use common materials. This will lower programming and labor costs.

Complexity and Pricing

Design Intricacy

How hard your part is to make changes the price a lot. If your part has thin walls or tricky shapes, it is harder to machine. Shops need better machines and skilled workers for these parts. This makes setup and machining take longer. Here are some ways that complex designs cost more:

• Complex shapes need more than basic three-axis machines.

• Thin walls and undercuts take longer to set up and machine.

• More features mean more steps, which costs more money.

• Advanced machines and skilled workers add to the price.

• Longer work times and wasted material raise the final cost.

Simple designs save you money. They are faster and cheaper to make. Hard designs need special skills and more time, so they cost more. Five-axis machines can make very detailed parts, but they cost extra.

Tip: Try not to add too many special features. This keeps costs down and makes parts faster to make.

Tolerance and Finish

If you want your part to be very exact or look perfect, it will cost more. Tighter tolerances need special machines and tools. The job takes longer, and workers must check the parts more often. The table below shows how tighter tolerances change the price:

For example, a simple aluminum bracket with standard tolerance may cost $50. If you want ±0.001″, the price can go up to $150 or more. Medical parts can cost twice as much if you need tighter tolerances.

A smooth finish also adds time and money. Workers may need to polish or coat the part. You should think about what you really need and what you can spend. CNC Machining gives you lots of choices, but each one changes the price.

Note: Ask if you really need super tight tolerances. Standard ones usually work well and save money.

CNC Machining vs. Other Methods

Manual Machining Comparison

When you look at manual machining and CNC machining for complex shapes, you see big differences in cost and efficiency. Manual machines cost less to buy, but they need more hands-on work. CNC machines cost more at first, but they save time and reduce mistakes for tricky parts. Here is a table to help you compare:

If you only need a few parts, manual machining may cost less. For larger batches, CNC machining becomes cheaper because it works faster and wastes less material.

Casting and Molding

Casting and molding work well for making many parts at once. You pay a lot up front to make the mold, but each part after that costs less. This method is good for simple shapes and big orders. However, it has some limits:

• Casting gives rough surfaces and less accurate shapes.

• You may see more defects, like cracks or holes.

• Sand casting often leads to rough finishes and size problems.

If you need high detail or tight tolerances, CNC machining gives better results, but costs more for each part.

3D Printing

3D printing is a smart choice for small batches and complex shapes. You do not need special tools or molds, so you save money at the start. This method uses almost all the material, which cuts waste. For 1 to 100 custom parts, 3D printing often costs less than CNC machining. It also lets you make shapes that are hard or impossible to cut.

• Use CNC machining when you want strong, precise parts or need many copies.

• Use 3D printing for quick samples, special shapes, or when you want to save on material.

Tip: Think about how many parts you need and how complex your design is. This helps you pick the best method for your project.

Case Studies

Aerospace Component

CNC Machining is used a lot in aerospace. This is because parts must be strong and very exact. Titanium is a common choice for these parts. It costs more to buy and to machine. Titanium is tough, so you need a five-axis machine. Making 10 parts can cost about $280 each. The main reasons for the high price are tight tolerances and expensive materials. If you pick your materials well and keep track of what you have, you can save 15-30% and still get good parts.

• Five-axis machines are needed for titanium parts with hard shapes.

• Tight tolerances mean more time for setup and checking.

• Good material planning helps you spend less money.

CNC Machining is best when you need many aerospace parts. If you only need one or two, setup and programming make other ways, like 3D printing, cheaper. You need to think about what material you use, how hard the part is, and how many you need to save money. Sometimes, using light composites costs more at first but saves money later because planes use less fuel.

Medical Device

Making medical devices with hard shapes has many costs. Medical-grade materials are pricey and can be over half your total cost. Setup and programming take longer for small batches. Every part must be checked and written down to follow strict rules. Meeting these rules adds more costs. You need top tools and must check your process to keep people safe.

• Medical-grade metals and plastics cost the most.

• Complex designs mean more setup and programming time.

• Checking and writing about each part adds labor costs.

• ISO 13485 means extra quality checks.

• FDA rules need strong safety and tracking.

You must follow these rules to protect patients. These steps make costs go up, but they help you make safe and good medical devices.

Choosing CNC Machining

When CNC Is Cost-Effective

You might wonder when CNC Machining saves money. First, look at your part’s design. Simple shapes are cheaper to make. Complex shapes need better machines and more time. If you make many parts, each one costs less. Large orders help spread out setup and programming costs. Tight tolerances and special finishes cost more, but they give higher quality.

Here is a table to help you see if CNC Machining is right for you:

Tip: If you need lots of exact parts, CNC Machining is often the best choice.

Key Evaluation Factors

Before picking CNC Machining, think about these things:

• Flexibility and accuracy help you get the right part.

• Good online reviews mean the shop is trustworthy.

• Strong quality checks keep your parts safe and the same.

• Technical skills in CAD/CAM software help with hard jobs.

• After-sale support helps if you have problems later.

• Skilled workers make better parts.

• Rapid prototyping makes your project go faster.

• Shops that improve their process often do better work.

• Lead time is important. Hard parts take longer to make.

• Machine capacity changes how fast you get your order.

• High-speed machines finish tricky shapes faster.

If your part is big or has lots of details, it will cost more. More setups and moving parts around also add time and money. Making many parts at once makes CNC Machining a better deal. Always check if the shop can do what you need.

You need to think about design, material, and how many parts you need before picking CNC Machining for hard shapes. Five-axis machines can make very exact and tricky parts, but they cost a lot. If you want to spend less, keep your design easy and do not add extra features. Look at the table below to help you choose:

Think about what your project needs and check other ways to make your part before you decide.

FAQ

What makes CNC machining more expensive for complex shapes?

You pay extra for better machines and skilled workers. It takes longer to set up for hard shapes. Complex shapes need special tools and fixtures.

Tip: Simple designs help you spend less money.

Can you reduce CNC machining costs for intricate parts?

You can save money by picking common materials. Try not to use tight tolerances.

• Pick easy shapes

• Skip special finishes

• Buy more parts at once

Is CNC machining faster than other methods for complex parts?

CNC machining is fast when making many parts. It gives you good accuracy and the same results each time. Manual machining is slower for hard shapes.

Do you need a five-axis machine for every complex part?

You do not always need a five-axis machine for hard parts. Some shapes can be made with three-axis machines. Five-axis machines are good for deep cuts and undercuts.

Note: Ask your shop which machine is best for your part.
