Difference Between 3-Axis, 4-Axis and 5-Axis CNC Machining

You can tell 3-axis, 4-axis, and 5-axis CNC Machining apart by how many ways the tool or part can move. More axes let you make harder shapes and fit things together better.

• Three-axis machines have 39.54% of the market and do easier jobs.

•


• Four-axis machines work on things like impellers and camshafts.

•


• Five-axis machines are growing fast because people want very exact and detailed work.

Having more axes changes your costs, the skills you need, and what you can make. Jobs that need high accuracy, like in aerospace and medical devices, use higher-axis machines to follow strict rules.

Key Differences

Comparison Table

Here is a simple table to show how 3-axis, 4-axis, and 5-axis CNC machines are different:

📝 Tip: When a CNC machine has more axes, it can make parts that are harder and more exact.

Main Distinctions

You can see the main ways 3-axis, 4-axis, and 5-axis CNC Machining are different by looking at how each one moves and what it can do.

• 3-axis machines move in three straight lines: X, Y, and Z. They are used for simple shapes and flat parts. These machines are best for basic jobs and cost less to use. You often have to turn the part by hand to finish every side.

•


• 4-axis machines have one more movement called the A-axis. This lets the part spin while it is being cut. You can make shapes like spirals and curves without stopping to move the part. This helps you finish more parts faster.

•


• 5-axis machines have two rotary axes. You can tilt and spin the part in almost any way. This lets you make very detailed and tricky parts in one go. These machines are used for medical, airplane, and military parts. They help make things like implants and airplane pieces with great accuracy.

As you go from 3-axis to 5-axis CNC Machining, the machines get more advanced. You need more training to use them. The cost per hour goes up, but you can make parts faster and with better quality.

• 3-axis machines are good for easy jobs and cost less.

•


• 4-axis machines help you make harder parts and save time.

•


• 5-axis machines let you make the most detailed and exact parts, but they cost the most and need skilled workers.

If you want to make simple parts, a 3-axis machine is enough. If you need to make parts with curves or want to save time, a 4-axis machine is a good pick. For the hardest and most exact work, you should use 5-axis CNC Machining.

3-Axis CNC Machining

How It Works

A 3-axis CNC machine shapes materials by moving in three ways. The cutting tool or workpiece can move left and right, forward and backward, and up and down. These movements are called the X, Y, and Z axes. A computer program called G-code controls these moves. You use a controller to give the machine instructions. The controller tells the motors how to move each axis. This helps you cut, drill, or mill parts very accurately. When you use all three axes together, you can make flat surfaces and detailed shapes.

Advantages

There are many good things about using 3-axis CNC Machining:

• Programming these machines is easy and saves time.

• They are best for flat and simple shapes.




• You get steady results for basic parts.




• These machines cost less than other types.




• You do not need much training to use them.




💡 Tip: If you want to make simple parts fast, a 3-axis CNC machine is a good pick.

Disadvantages

Applications

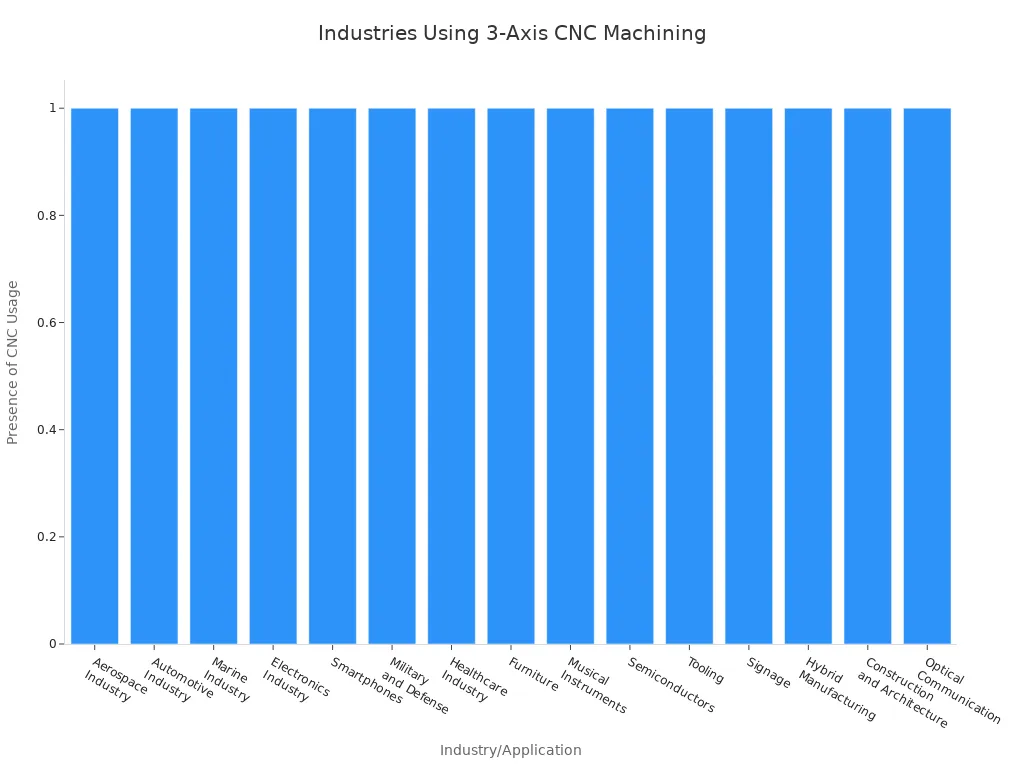

3-axis CNC Machining is used in many fields because it is fast and accurate for simple jobs. Here are some common uses:

• Aerospace and car parts

• Marine equipment




• Electronics and phones




• Medical devices




• Furniture and musical instruments




• Semiconductors and tools




• Signs and building models




• Optical communication devices




You can trust 3-axis CNC Machining for jobs with flat surfaces, holes, or simple shapes. If your project does not need tricky angles or curves, this machine will work well for you.

4-Axis CNC Machining

How It Works

A 4-axis CNC machine can move in four ways. You still use the X, Y, and Z axes. The fourth axis is called the A-axis. This axis lets the part spin while cutting. You can work at different angles. You can make shapes that are hard with only three axes. The fourth axis helps you finish jobs faster. You do not need to stop and move the part as much. This saves time and helps you make parts more exact. Many industries use 4-axis CNC Machining for tricky designs. It is used in aerospace and medical equipment.

🛠️ Tip: The fourth axis lets you cut along curves and arcs. This makes your work much more flexible.

Advantages

There are many good things about using a 4-axis CNC machine:

• You can make hard shapes and features not possible with 3-axis machines.

• The machine needs fewer setups, so you save time and make fewer mistakes.

• You get smoother surfaces and more exact holes.

• You can drill or cut on the sides without moving the part by hand.

• You often need only one fixture, which lowers your costs.

Disadvantages

There are some problems with 4-axis CNC Machining:

• The machines cost more than 3-axis models.

• You need special training to use them well.

• Making very hard shapes can be tough and needs advanced skills.

Applications

4-axis CNC Machining works best for parts with features on many sides or curved surfaces. Here are some examples:

Industries that use 4-axis CNC Machining include aerospace, medical devices, oil and gas, robotics, automotive, and power generation. You will see it used for making turbine blades, engine brackets, surgical tools, and more.

5-Axis CNC Machining

How It Works

A 5-axis CNC machine shapes parts in five ways. It moves along the X, Y, and Z axes. It also spins around the A and B axes. These spins let the tool reach almost any angle. You can make parts with curves and slopes. Tricky shapes are easier to make with this machine. The two extra axes help you make complex things. You can create turbine blades or implants. You do not need to stop and move the part a lot. This makes you work faster and waste less material.

🛠️ Tip: The extra spins help you make parts that three axes cannot.

Advantages

There are many good things about 5-axis CNC Machining. Here is a table that shows the main benefits:

You also make parts faster and drill better. Small details are easier to make.

Disadvantages

There are some hard things about 5-axis CNC Machining:

• Programming is hard and needs strong 3D skills.

• You need skilled workers who know how to use many axes.

• The machines cost much more than 3-axis models.

• Setup and programming take longer because it is more complex.

• You pay more for software and fixing the machine.

• Labor costs are higher because you need trained workers.

Applications

You use 5-axis CNC Machining in jobs that need high precision and tricky shapes. Here is a table with common uses:

You use 5-axis CNC Machining when you need parts with curves, tight fits, or features on many sides.

Choosing CNC Machining

Factors to Consider

When picking a CNC machine, you should think about a few things.

• Cost is important. Three-axis machines cost less and do simple jobs. Four-axis and five-axis machines cost more but are more exact.

• What you make matters. If you work in aerospace or medical, you need machines for very exact parts.

• The shape of your part matters too. Simple shapes work with three-axis machines. Hard shapes need four or five axes.

• Your current tools may limit your choices.

• How many parts you make also matters. Small batches are good for three-axis machines. Big batches may need better machines.

💡 Tip: Pick the machine that fits your project. Do not choose a machine just because it is new or popular.

Application Match

You need to match the CNC machine to your project. Look at the material, how hard the design is, and how many parts you need. Check the spindle speed, size, and how exact the machine is. Make sure the software works with your other systems. Think about your budget and what you will get back.

Cost vs. Benefit

You should look at both short-term and long-term costs. Three-axis machines cost less at first and are good for small batches. Five-axis machines cost more but save time and money for big jobs. Maintenance costs include spindle replacement, oil, and software updates. Power use is different for each machine. High-end machines use more electricity every month.

You should balance the cost with the benefits. Advanced CNC Machining gives better results for hard jobs, but you pay more up front and for upkeep.

You can find the main ways these CNC machines are different in this table:

When picking a machine, remember these things:

• More axes help you make parts more exact and faster.

• Harder shapes need machines with more axes.

• Machines with more axes cost more and need trained people.

Think about what your project needs before you choose a CNC Machining type. If you want to know more, you can read about new tech or join classes that teach you how to use these machines.

FAQ

What does "axis" mean in CNC machining?

An axis is a direction that the machine or tool can move. In CNC machining, more axes mean more ways to move. You get more control and can make more complex parts.

Why should you choose a 5-axis CNC machine?

You should pick a 5-axis machine if you need to make very detailed or curved parts. This machine helps you finish jobs faster and with fewer errors. It works best for aerospace, medical, or advanced engineering projects.

Can you upgrade a 3-axis CNC machine to a 4-axis?

Some 3-axis machines let you add a rotary table to create a 4th axis. You need to check your machine’s design and software. Not all machines support upgrades.

Which CNC machine is best for beginners?

A 3-axis CNC machine is best for beginners. You can learn basic programming and setup. The controls are simple, and you do not need much training.

💡 Tip: Start with simple projects. As you gain skill, you can try machines with more axes.
