What is DLC Surface Treatment and How Does It Work

DLC Surface Treatment puts a thin diamond-like carbon layer on metal parts. This coating is very hard and does not wear out easily. It also makes the surface smooth. The treatment uses special technology like sputtering. This gives the metal a strong and smooth surface. DLC coatings help protect CNC machined parts. They make these parts last longer and work better. Hydrogen-free DLC coatings can make surfaces even smoother. This is helpful in precision manufacturing.

How It Works

Coating Process

First, you clean the metal parts. Cleaning takes away dirt and oil. This helps the coating stick better. After cleaning, you put the parts in a fixture. The fixture turns in different directions. Turning helps the coating cover all sides.

Next, you move the parts into a vacuum chamber. The chamber takes out the air. This keeps the area clean. You heat the parts at a low temperature. Heating gets them ready for the next step. Ions hit the surface after heating. This makes the surface more active. It helps the coating bond tightly.

You add an underlayer using Physical Vapor Deposition (PVD). The underlayer is the base for the diamond-like carbon layer. Then, you put on the amorphous carbon layer. This layer makes the part hard and smooth. Cooling is the last step. The parts cool slowly to keep the coating strong.

Tip: DLC coatings are usually 1 to 2 microns thick. This thin layer protects the part. It does not change the size or shape.

Main Steps in the DLC Surface Treatment Process:

1. Clean the parts

2. Put parts in a turning fixture

3. Remove air in a vacuum

4. Heat at a low temperature

5. Hit with ions

6. Add underlayer (PVD)

7. Add amorphous carbon layer

8. Cool the parts

Technology Used

Special technology helps apply DLC Surface Treatment. Physical Vapor Deposition (PVD) is used often. Plasma Assisted Chemical Vapor Deposition (PACVD) is another way. Both use machines to make a strong and smooth coating.

Plasma-enhanced chemical vapor deposition (PECVD) makes high-quality coatings. You add gases like methane, acetylene, or benzene into the plasma. The plasma breaks down these gases. It forms strong carbon bonds. These bonds give the coating diamond-like features.

DLC Surface Treatment works best at certain temperatures. Most machines work between 150°C and 200°C. This keeps the part safe and helps the coating form well. Lower temperatures are better for aluminum or plastics. High temperatures can hurt these materials.

• For parts that are sensitive to heat, you may need to pre-temper at 482-510°C so they do not change shape.

• Lower temperatures help protect delicate parts from heat damage.

You pick the right technology and temperature for each material and part. This careful work makes sure the coating lasts and works well.

Properties & Benefits

Hardness & Wear Resistance

DLC Surface Treatment gives your parts a strong shield. This coating is very hard, almost like diamond. The hardness can be from 15 to 80 GPa. Most coatings are between 30 and 80 GPa. This means your parts do not dent or scratch easily. They keep their shape even when pressed hard.

• DLC coatings are almost as hard as diamond.

• Parts with DLC do not bend or change shape much.

• Your parts last longer, even in tough places.

DLC coatings also help stop wear. They work better than titanium nitride (TiN) coatings in many tests. You see less wear and less friction with DLC. TiN coatings do not always help some steels. DLC keeps your parts working well for a long time.

• DLC coatings have less wear and friction than TiN.

• DLC-coated parts show the least wear and friction.

• TiN coatings do not always help, but DLC does.

Low Friction

DLC Surface Treatment helps your parts move more easily. The coating makes the surface smooth. This lowers friction between moving parts. Your machines work better in both dry and oily places.

• Hydrogen-free DLC has a friction level of 0.4 to 0.7 when dry.

• Hydrogenated DLCs can be even lower, from 0.001 to 0.02. If it is humid, this can go up to 0.05 to 0.2.

• Regular DLC coatings have a friction level of 0.15 to 0.22 when dry.

• In water, friction drops to 0.03. In oil, it is about 0.08.

DLC coatings help save energy. Less friction means less heat and less wasted power. You spend less on fixing machines. Your machines last longer and work better.
Friction and wear waste a lot of energy in machines. In cars, about one-third of fuel is used to fight friction. DLC Surface Treatment can help you save some of this energy.

Corrosion Protection

DLC Surface Treatment helps your parts last longer in harsh places. The coating blocks water and chemicals. This keeps rust and corrosion away from your metal parts.

Here is how DLC coatings do in corrosion tests:

Salt spray tests show some DLC coatings work well:

You get better rust protection with silicon and fluorine in DLC films. These coatings work well in salty and wet places. Your parts stay safe from rust for a longer time.

DLC Surface Treatment Applications

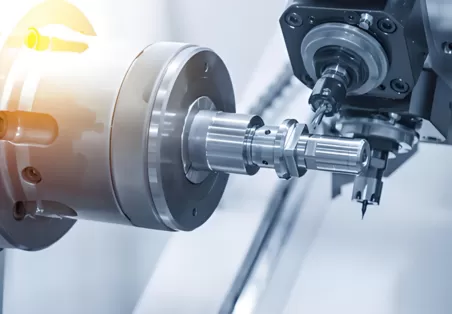

CNC Machining Parts

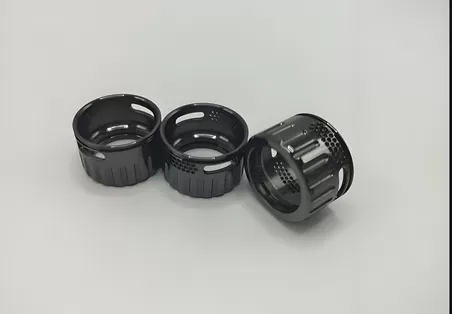

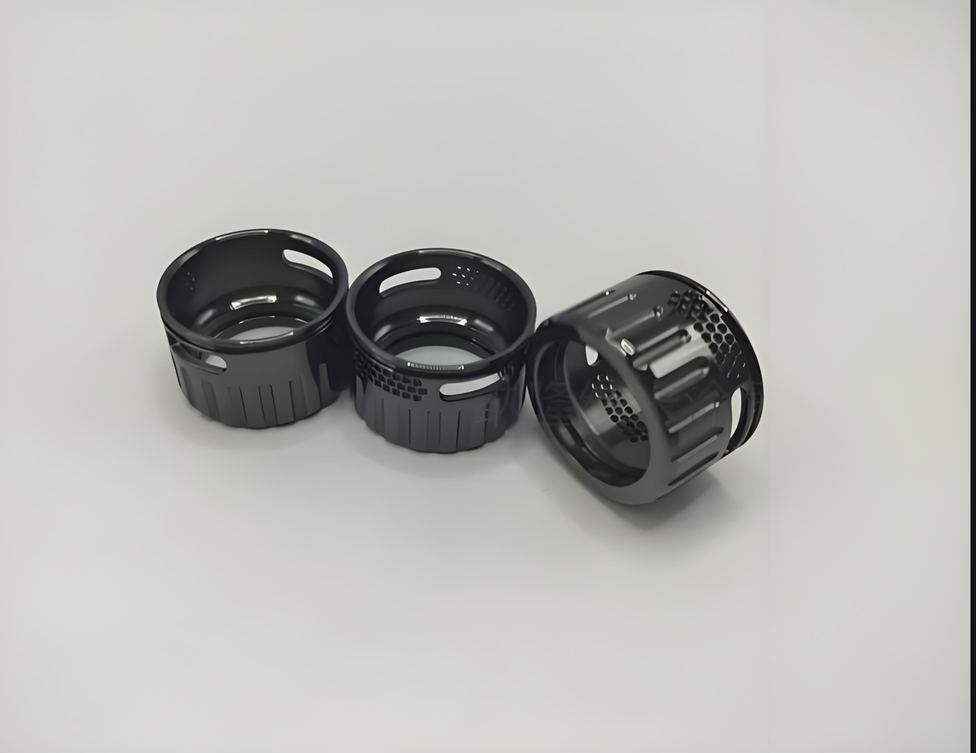

DLC Surface Treatment helps CNC machined parts work better. Shenzhen Huaruida Precision Machinery Co., LTDmakes parts that last longer. The diamond-like layer makes parts harder and stops wear. Here is how DLC coatings help CNC components:

• The strong layer stops material loss from friction.

• The surface does not dent or scratch easily.

• Your parts stay tough in rough places.

• The coating blocks rust, so parts do not corrode.

• You save time and money on fixing and replacing parts.

Automotive

DLC Surface Treatment is important in cars. Many engine parts use DLC coatings to handle high pressure and heat. These coatings help cars run smoother and use less fuel. Common car parts with DLC coatings are:

• Wrist pins

• Piston pins

• Valvetrain pieces

• Racing pistons and rings

• Engine parts under high temperature or pressure

DLC coatings lower friction between moving parts. This means engines use less energy. More fuel turns into movement, so cars work better.

Medical Devices

Many medical devices use DLC coatings because they are safe for the body. These coatings help stop infection. Devices with DLC coatings include:

• Orthopaedic and dental implants

• Intraocular lenses

• Stents and catheters

• Heart valves and prosthetic heart valves

• Neurological implants and dental drills

DLC coatings make devices smoother and more hydrophilic. This stops bacteria from sticking and forming biofilms. It lowers the chance of infection.

Electronics

DLC coatings help electronic parts last longer and work better. You find these coatings on parts that deal with heat and friction. Here is a table showing common uses:

DLC coatings help move heat away from sensitive parts. This keeps devices cool and working well, even when stressed.

Environmental & Health Aspects

Safety

You might wonder if DLC surface treatment is safe. DLC coatings are safe for the body. Many medical devices use DLC because it does not hurt tissue. You see DLC on implants and tools for surgery. These coatings help stop infection and lower irritation.

But you should think about how DLC coatings are made. Making DLC coatings releases carbon ions. These ions can change how cells work. Some studies show some types of DLC, like crystalline and nanocomposite, may break cell membranes. This can make the coating harmful to cells. Soft DLC coatings are better. They keep cells safe, even after a long time.

Tip: If you work with DLC coatings, follow safety rules. Wear safety gear and make sure the air is clean. This helps you avoid breathing in carbon ions.

You can use DLC-coated products every day. The main risk is during making, not when you use the finished part.

Environmental Impact

You care about nature. DLC surface treatment is good for the environment. The coating uses less material than old plating ways. You get a thin, strong layer without heavy metals or bad chemicals. This means less trash and fewer harmful things.

DLC coatings help machines last longer. You do not need to change parts often. This saves resources. Long-lasting parts mean less waste and less energy used.

Here is a table that shows how DLC compares to other coatings:

You help the planet by picking DLC-coated parts. The process makes cleaner factories and lowers your carbon footprint. 🌱

DLC coatings help keep the earth healthy. You get strong parts and help nature at the same time.

DLC Surface Treatment helps in making parts last longer. You save energy and spend less on fixing machines.

Choosing this coating is good for the environment. It is safe and strong. New technology will bring more uses for DLC in smart devices and sensors.

FAQ

What does DLC stand for?

DLC means Diamond-Like Carbon. You see this name because the coating acts like diamond. It gives your parts extra hardness and smoothness.

How thick is a DLC coating?

You get a DLC layer that is usually 1 to 2 microns thick. This thin layer protects your part without changing its size or shape.

Can you use DLC coatings on any metal?

You can use DLC coatings on many metals like steel, aluminum, and titanium. Some plastics also work. Always check if your material fits the process.

How long does a DLC-coated part last?

DLC coatings help your parts last much longer. You see less wear and less corrosion. Many parts work for years without needing replacement.
