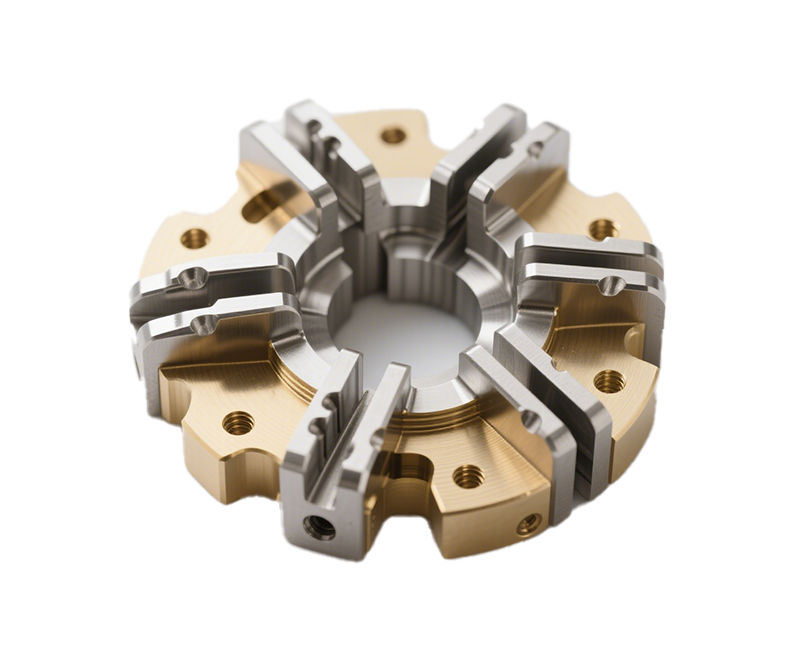

Enhancing Optical Instrument Performance with Precision Nickel-Plated Brass CNC Parts

Precision nickel-plated brass CNC parts play a crucial role in enhancing Optical Instrument Performance. The choice of material and manufacturing process significantly impacts the accuracy and reliability of these instruments, even under challenging conditions. Adhering to industry standards ensures the parts maintain precise dimensions, while advanced manufacturing techniques increase their durability. Huaruida Precision delivers exceptional CNC machining solutions that consistently improve the performance of optical instruments. Their expertise and attention to detail guarantee superior results every time.

CNC Machining

Precision and Accuracy

CNC machining helps make very exact parts for optical instruments. 5-axis CNC machines can cut from many directions. This means fewer setups and less chance for mistakes. These machines can make shapes that are hard to create. They can also make many surfaces at once. This keeps the results the same and the sizes very close. In optical work, parts must be very exact, sometimes within a micron. Some machines can be as close as ±0.001 mm. This level of accuracy is needed for things like lens mounts. Even a tiny mistake can change how the instrument works.

Here are the main steps to make nickel-plated brass parts for optical tools:

1. Use CAD software to design and finish the part model.

2. Use CAM software to write the exact machine instructions.

3. Pick and check the brass rods or billets for use.

4. Use CNC turning to make round shapes and threads.

5. Use CNC milling to make detailed shapes and surfaces.

6. Do extra steps like deburring, polishing, and nickel plating.

7. Check quality with tools like CMMs and surface testers.

“We can machine on all five sides of a part without letting go,” says Tom Ferrara, General Manager at P4Swiss | Lindel CNC Machining. This shows how 5-axis machining saves time and makes parts more exact.

Surface Quality

Surface quality is very important for optical instruments. CNC machining can make smooth surfaces by cutting carefully and using special finishing steps. The surface can be as smooth as Ra 0.4 μm. This is needed for fast or high-stress optical jobs. Polishing, electropolishing, and nickel plating make the surface shiny and protect it from rust.

Some common surface treatments are:

• Polishing from rough to shiny mirror finish.

• Nickel plating to help stop wear and rust.

• Deburring and hand trimming to make edges smooth.

• Other treatments like anodizing or powder coating for looks.

Strict rules like ISO 9001-2015 and ASTM International help guide the work. These rules make sure each part is good enough for optical use. Workers check the parts often with profilometers and CMMs. This makes sure every part is smooth and the right size.

Material Choice

Brass Alloys

Brass alloys are often picked for CNC machining in optical instruments. Brass is strong and easy to work with. It also does not rust easily. These features help make parts that last a long time and work well.

Makers of optical instruments use different brass alloys. Each one has its own good points:

• Highly Machinable: Some alloys like C360 have lead. This makes them simple to cut and shape. It helps tools last longer and makes work faster.

• Corrosion Resistance: Brass does not rust or get damaged by air. This keeps parts working for a long time.

• Malleability: Brass has a lot of copper. This lets it bend into tricky shapes without breaking.

• Strength and Hardness: Brass is tough but still easy to machine.

• Aesthetic Appeal: Brass has a shiny gold color. This looks nice, especially when you can see the part.

Brass alloys help makers get very exact sizes and smooth surfaces. These things are important for optical instruments to work well.

Nickel Plating

Nickel plating makes brass CNC parts even better for optical instruments. Nickel is put on the outside in a thin layer. This helps the part work better and look nicer.

Nickel plating keeps brass parts safe and looking good. It also helps them work well in optical instruments. Makers use this step to make sure parts last and do their job.

Optical Instrument Performance

Alignment and Stability

Precision nickel-plated brass CNC parts help keep optical instruments steady and lined up. These parts hold lenses, mirrors, and other pieces in the right place. They fit together very tightly, so everything stays straight. CNC machiningmakes sure the parts fit just right. Nickel plating adds a tough layer that stops wear and keeps surfaces smooth. Brass makes strong threads and helps block unwanted signals, which is important for sensitive tools.

• CNC-machined mounts and brackets keep lenses from moving.

• Tight fits make sure lenses stay lined up, even if the tool shakes or gets hot or cold.

• Nickel plating stops rust, so the parts stay in place for a long time.

• Brass parts let you adjust things easily, so you can focus and move parts as needed.

Many fields, like medical research and making computer chips, need these steady and exact parts. Workers use special tools to check each part and make sure it is right. This careful checking helps optical instruments work well every time.

Corrosion Resistance

Corrosion resistance is very important for Optical Instrument Performance, especially where there is water or chemicals. Nickel-plated brass CNC parts protect against rust and tarnish. The nickel layer acts like a shield, stopping air and water from reaching the brass. This keeps the parts looking good and working for a long time.

• Nickel plating stops oxidation, which can hurt optical surfaces.

• Brass does not rust as fast as many other metals, so it is a good pick for these parts.

• The smooth nickel surface is easy to clean and does not hold dust or dirt.

Using nickel-plated brass helps optical tools stay strong and correct, even after many years. This protection helps keep Optical Instrument Performance high, even in tough places.

Surface Reflectivity

Surface reflectivity changes how well an optical tool uses light. Nickel plating makes brass parts shine more, especially with certain types of light. A smooth, shiny nickel surface bounces more light, which helps optical systems work better.

Getting a very smooth finish, like Ra 0.4 µm, makes the nickel even shinier. This helps send light exactly where it needs to go inside the tool. More reflectivity means less light is lost and images or signals look clearer.

If the brass is clean and smooth before plating, the nickel will be even shinier. This helps things like solar panels, cameras, and science tools work better. Better reflectivity means sharper pictures and more exact results.

Tip: Check and clean nickel-plated brass parts often to keep them shiny and working well.

Applications

Microscopes

Microscopes need their lenses and moving parts lined up just right. Nickel-plated brass CNC parts help keep everything steady and correct. Many labs and hospitals use microscopes with special brass mounts and knobs. These parts do not rust or wear out quickly, even after years. Huaruida Precision gives microscope makers strong CNC parts. Their team uses smart machines to make parts that fit well. Customers say these parts work smoothly and last a long time.

Telescopes

Telescopes have to work in many places. Nickel-plated brass CNC parts give them lots of good things:

• They stop rust from rain, wet air, and dust.

• They are strong and can take a lot of force when moved.

• Their smooth surfaces help line up mirrors and lenses for clear views.

• CNC machines make sure every part is the right size.

• Nickel plating helps the parts work well, even in tough weather.

Many telescope makers pick Huaruida Precision for their custom parts. Their careful checks make sure each piece helps Optical Instrument Performance.

Cameras

Cameras need small, tough, and nice-looking parts. Nickel-plated brass CNC parts are perfect for this:

• Brass is simple to shape, so makers can create tiny, detailed pieces.

• The shiny gold color looks great and fits camera styles.

• Nickel plating keeps parts safe from scratches and rust.

• Brass and copper slide easily, so moving parts work well.

• These parts are used in lens mounts, connectors, and rings.

Huaruida Precision works with camera companies to make parts that last. Customers say their cameras stay strong and look new, even after lots of use.

Note: Huaruida Precision’s skill and new machines help many businesses make better optical tools. Their care for quality and customers makes them a trusted choice for Optical Instrument Performance.

Alternatives

Other Materials

Makers of optical instruments use more than just nickel-plated brass. Each material has special features for different jobs. Aluminum is strong but light. It is easy to shape and does not rust. People pick aluminum when they want parts that are light and can have many finishes. Stainless steel is very hard and does not rust. It works well in tough places, but it is heavier and harder to cut than brass.

Titanium is very strong and does not rust. It is lighter than steel. It is good when weight and strength are important, but it costs more. Magnesium is also very light and easy to shape. But it can catch fire, so it needs careful handling. Plastics like POM, PC, and nylon are light and do not rust. They are easy to cut and shape. These plastics are good for small, light parts that must not rust.

Nickel plating makes brass stronger and stops rust. But it costs more and can limit design choices. Picking the best material depends on what the optical tool needs.

Manufacturing Methods

There are different ways to make parts for optical tools. CNC machining is the most popular for custom and exact parts. It can make parts very close in size, even as close as ±0.005 mm. CNC machining works with many materials. It is best for making a few parts or when the shape must be perfect.

Other ways include injection molding and 3D printing. Injection molding is good for making lots of the same part, like lens covers. It saves money when you need many parts, but it is not as exact as CNC machining. 3D printing is fast for making new designs and tricky shapes. But 3D printed parts are not as strong or smooth as CNC parts.

• CNC machining is very exact and can change designs easily.

• Injection molding is good for making many parts but is less exact.

• 3D printing is fast for new ideas but may not be strong or smooth enough.

CNC machining keeps the material strong and lets you change the design any time. This makes it great for important optical parts. Other ways can save money for big orders, but they may not be as exact or easy to change.

Precision nickel-plated brass CNC parts help optical tools work better. Studies show that very exact sizes and smooth surfaces keep things lined up and steady. Huaruida Precision makes custom CNC parts and checks their quality carefully. They also deliver parts quickly. Their team helps with hard optical projects, like in medical research. Companies pick Huaruida Precision when they want parts that last and always work well.

FAQ

What benefits do nickel-plated brass CNC parts offer for optical instruments?

Nickel-plated brass CNC parts keep their shape very well. They do not rust easily and have a smooth finish. These things help optical instruments stay lined up and work well, even in tough places.

How does Huaruida Precision ensure quality in CNC machining?

Huaruida Precision checks every part before it is packed. Their team uses special machines and follows strict rules. Customers get parts that match the right size and meet all standards.

Can nickel-plated brass CNC parts be customized for unique optical projects?

Yes. Huaruida Precision can make custom CNC parts. Their engineers talk with clients to design and build parts for special needs in research, medical, or factory tools.

Tip: Tell Huaruida Precision about your project to get the best advice.

Are nickel-plated brass CNC parts suitable for outdoor optical instruments?

Nickel-plated brass does not rust or turn dull. These parts work well outside, like in telescopes or field cameras. The nickel layer keeps out water and bad weather.

What is the typical lead time for CNC machined optical components?

How long it takes depends on the job and how many parts you need. Huaruida Precision can make parts fast or when you need them. Most people get their parts in a few days or weeks.
