What Is Chatter in Machining and How Can You Prevent It

Chatter in Machining happens when your cutting tool and workpiece shake on their own. These shakes are not wanted. They can cause trouble in your shop. You may see rough spots on finished parts. Your tools might wear out faster too. The table below shows how chatter changes productivity and part quality in manufacturing.

If you know what causes chatter, you can try to stop it. This can help you get better results.

Chatter in Machining Basics

What Is Chatter

Sometimes, machines shake in a strange way. This shaking is called chatter in machining. Chatter happens when the cutting tool and workpiece shake together. The shaking keeps going until you stop cutting. This kind of vibration is called self-excited vibration. It is not the same as forced vibration. Forced vibration comes from outside and does not stop when you stop cutting.

Chatter can show up in different ways. You might hear loud sounds or see marks on your part. Sometimes, you feel the machine move. Chatter mostly happens because cutting forces change during machining. If these forces match the machine’s natural frequency, the shaking gets worse. This is called resonance.

Here are some main reasons why chatter starts:

• Resonance and natural frequencies: Vibrations get bigger when cutting forces match the machine’s natural frequency.

• Cutting force imbalance: Uneven forces during cutting can make the machine shake.

• Tool wear and condition: Old tools make cutting forces change.

• Machine rigidity: Weak machine parts let vibrations happen more.

• Excessive cutting speeds and feed rates: High speeds make forces change fast and cause resonance.

How Chatter Occurs

Chatter happens most in milling. It can also happen in turning, boring, and drilling. Milling has the highest risk because the tool cuts in and out many times. Turning and boring have a medium risk. Drilling and grinding have a lower risk.

When you cut metal, the tool pushes against the workpiece. If the force changes quickly, the tool and workpiece start to shake. The shaking gets worse if your machine is weak or your tool is old. High cutting speeds or feed rates make chatter more likely. You can learn more in studies like "Chatter Stability of Machining Operations" by Altintas and "Dynamics of High-Speed Milling" by Tlusty.

Tip: Always check your tool and machine before you start. A strong setup helps stop chatter.

Chatter Causes

Machine Rigidity

A strong machine helps stop chatter. If your machine is weak, it can bend or shake. This shaking makes the surface rough. When the machine cannot stop these shakes, chatter lasts longer. Loose or weak parts make it worse. If your machine runs at its natural frequency, you might hear loud noises. You may also see your tool wear out faster. The table below shows how machine strength changes chatter:

Tip: Always make sure your machine is tight and strong before cutting.

Cutting Parameters

How you set your cutting numbers can change chatter. If you cut too deep, your tool faces more force. This can make it shake. A high feed rate can also push the tool too hard. This causes more shaking. Sometimes, using a smaller cut helps stop chatter. This is true with hard materials. The table below shows how cutting numbers change chatter:

Chatter often happens in corners, when the tool hits the part fast, or when spindle speed matches the machine’s natural frequency.

Tool and Workpiece Factors

The shape and sharpness of your tool matter a lot. If your tool is dull or has the wrong shape, it can cut unevenly. Hard spots in the workpiece can also make the tool shake. If you use the wrong tool or do not clamp the workpiece well, you may get more chatter. Here are some things that can cause chatter:

• Tool shape, like rake and clearance angles, changes stability.

• Hard or uneven materials make the tool bounce.

• Bad clamping lets the workpiece move.

• Old or worn tools cause more shaking.

Chatter in Machining often starts when many of these things happen together. If you know these causes, you can try to stop the shaking and get better results.

Chatter Effects

Surface Finish Problems

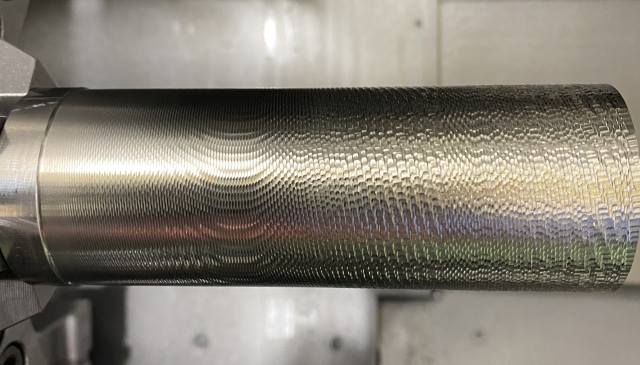

Chatter in Machining often leaves visible marks on your parts. You may notice repeating patterns of small peaks or waves on the surface. These marks can make the part look rough and lower its quality. Sometimes, these surface problems cause parts to fail early, especially if you use them in important machines. You can measure these issues by checking for spikes in a frequency domain plot. This helps you see if chatter is present during cutting.

Note: A poor surface finish can make your parts unusable for critical jobs.

Tool Wear

Chatter does not just harm your parts. It also wears out your tools much faster than normal. When your tool vibrates, it faces uneven loads. This can cause the tool to chip, break, or become dull quickly. Studies show that higher vibration levels lead to more tool wear and even tool breakage. You may need to replace your tools more often, which increases your costs.

• Chatter causes unpredictable vibrations in tools, resulting in uneven loads.

• This uneven loading accelerates wear, leading to tools chipping, breaking, or dulling faster than anticipated.

• Variations in process parameters can speed up tool wear and cause breakage.

Frequent tool changes also slow down your work and add to your expenses.

Productivity Loss

Chatter can hurt your productivity in many ways. You may need to stop your machine more often to fix problems or change tools. This downtime means you make fewer parts in the same amount of time. Chatter also increases scrap rates because more parts come out with defects. If you want to keep your machines running well, you must control chatter.

• Downtime increases due to machine inefficiencies.

• Scrap rates go up because of defects caused by chatter.

• You may need to slow down your cutting speeds, which makes jobs take longer.

Tip: Reducing chatter helps you save time, lower costs, and improve part quality.

Chatter Prevention

Adjusting Cutting Parameters

You can stop Chatter in Machining by changing how you cut. If you make the cut less deep, your machine stays steadier. Changing spindle speed helps you miss the machine’s natural shaking point. If you change the feed rate, you can find better cutting settings. These steps help keep shaking small.

Here is a table that shows ways to adjust cutting settings:

Tip: When you cut corners, use circular moves to make a bigger curve. Then, use a smaller end mill to clean up leftover metal. This helps stop chatter in tight places.

You can also use smaller corner curves and climb milling to keep forces even. Always check your cutting settings before you start.

Tool Selection and Maintenance

Picking the right tool is very important. Use the shortest tool you can with the biggest diameter for your job. Tools with different helix angles or more flutes help break up regular shaking. Good, balanced tool holders work best for fast speeds.

Here are some tips for picking tools:

• Use solid carbide end mills or indexable tools for hard jobs.

• Pick serrated edge tools when you need extra grip.

• Choose flutes spaced unevenly and variable helixes for carbide tools.

• Pick inserts with smaller nose radius and sharper edges for indexable tools.

• Use tools with short overhangs to make them stiffer.

• End mills with bigger core diameters stay strong during cutting.

Taking care of your tools matters too. Check your machine often and make sure it works right. Keep spindles and tool holders clean and tight. Oil moving parts to lower friction. Make sure your worktable and fixtures are clean and steady.

Note: Clean tools and holders help you cut smoothly and avoid problems.

Machine and Setup Improvements

You can lower Chatter in Machining by making your setup stronger. A stiff system keeps shaking away and makes parts better. Use strong fixtures to hold your workpiece. Thicker fixtures give more support and keep things steady.

Here is a table with ways to improve your setup:

Follow these steps to make your system stiffer:

1. Make sure every part of your setup is stiff enough.

2. Build fixtures that can handle cutting forces without bending your part.

3. Use thicker fixtures to make things more stable.

Tip: Use tailstock or steady rest for long parts. Even clamping pressure helps stop shaking.

Advanced Techniques

You can use special methods to fight chatter. Active damping uses circuits to soak up shaking. Vibration analysis helps you guess when chatter might start. Tuned vibration absorbers match the machine’s shaking point and stop it.

Some advanced choices are:

• Active vibration absorbers you can tune for better control.

• Impact dampers and particle dampers for new ways to lower shaking.

• Analytical solutions that help you cut deeper in milling.

Note: Advanced methods work best when you use them with good cutting and strong setups.

You can use vibration analysis to find safe cutting zones. This helps you pick the right spindle speed and cut depth. Adding tuned vibration absorbers makes your setup steadier and lets you cut deeper without chatter.

You can make your shop better by finding and stopping Chatter in Machining. Using good methods gives you smoother parts and tools that last longer. Many shops use real-time detection, stability lobe diagrams, and machine learning to fix chatter quickly.

You can also:

• Change cutting numbers for better results

• Make your machine stronger

• Use systems that lower shaking

• Keep your tools in good shape

• Try new ways to cut

Try these steps now to get better machining and nicer parts.

FAQ

What does chatter sound like during machining?

You often hear a loud, high-pitched noise or a rattling sound. The machine may vibrate or shake. These sounds warn you that chatter is happening.

Can you fix chatter without stopping the machine?

You can sometimes reduce chatter by changing spindle speed or feed rate while the machine runs. For best results, stop the machine and check your setup.

Does tool material affect chatter?

Yes. Harder tool materials like carbide resist vibration better than softer ones. Using the right tool material helps you lower the risk of chatter.

How do you know if your setup is too weak?

You may see the workpiece move or feel the machine shake. Parts may not clamp tightly. If you notice these signs, your setup needs more support.

Will using coolant help prevent chatter?

Coolant can help by reducing heat and friction. It does not stop chatter alone. You still need a strong setup and good cutting parameters.
