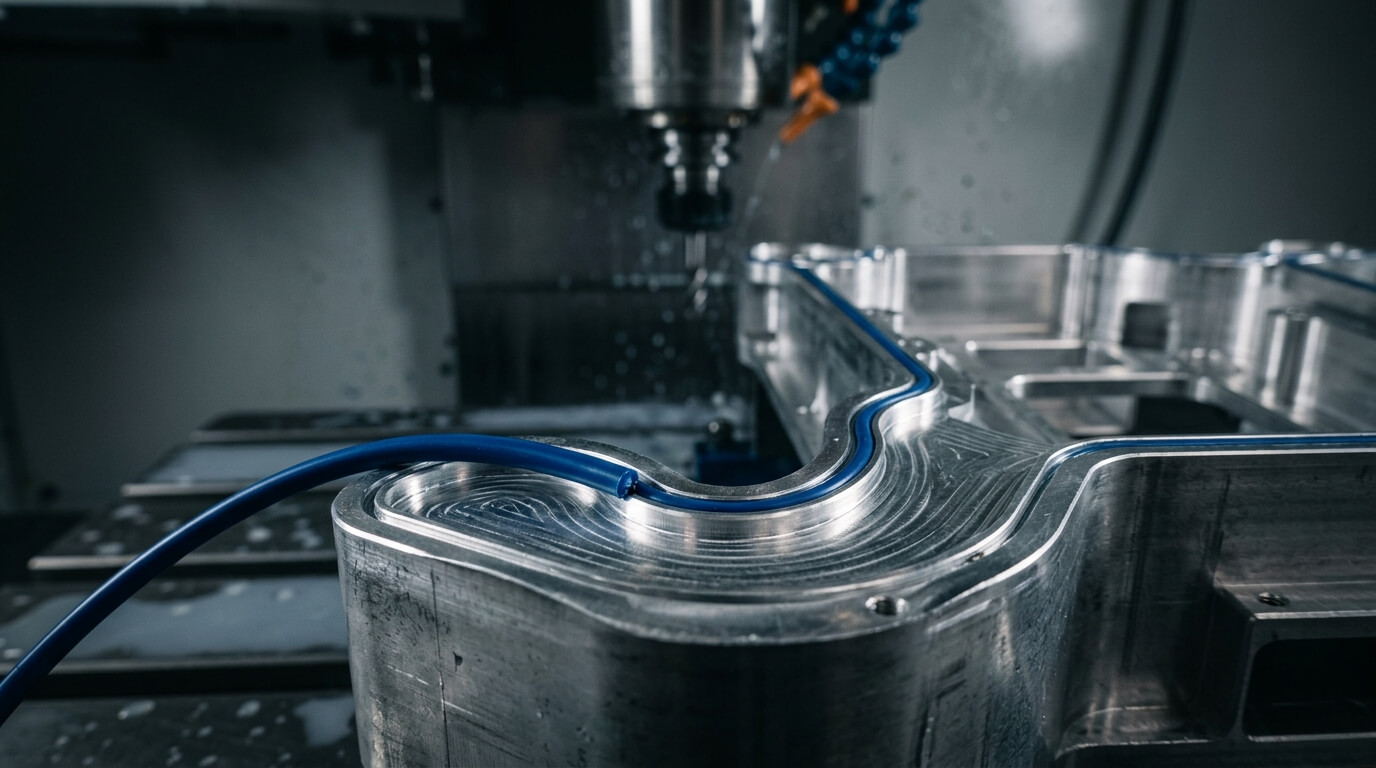

Waterproofing Drone Housings: CNC Tolerances and O-Ring Grooves

Introduction

In the early days of the Unmanned Aerial Vehicle (UAV) industry, drones were fair-weather machines. Today, the landscape has radically changed. Industrial, agricultural, and maritime drones are deployed in the most unforgiving environments on Earth. They are expected to inspect offshore wind turbines in saltwater spray, spray crops during torrential downpours, and execute search-and-rescue missions in blizzard conditions.

In these environments, water is the ultimate enemy. A single drop of moisture reaching the Electronic Speed Controllers (ESCs), flight controller, or battery terminals can cause an immediate short circuit, resulting in a catastrophic crash and the loss of a multi-thousand-dollar payload.

Achieving true IP67 or IP68 waterproof ratings for a drone chassis does not rely on silicone caulk or messy glues. It relies entirely on the precise mechanical compression of elastomeric seals (O-rings) captured between rigid, perfectly flat metal surfaces. This level of sealing demands uncompromising custom CNC machining.

As a premier aerospace and robotics manufacturing partner, Huaruida Precision Machinery (HRD) specializes in machining hermetically sealed enclosures for the global UAV market. This comprehensive guide will dissect the physics of O-ring sealing, explore the extreme CNC tolerances required for different groove types, and provide critical Design for Manufacturing (DFM) strategies to guarantee your custom drone housings remain completely watertight.

Understanding IP Ratings in UAV Manufacturing

Before engineering a seal, you must define the operational requirement. The Ingress Protection (IP) rating dictates the level of CNC precision required.

IP65 (Water Jets): The drone housing can withstand low-pressure water jets from any direction. Rain resistant.IP67 (Immersion): The housing can be completely submerged in water up to 1 meter deep for 30 minutes without leaking. This is the standard for high-end commercial drones (e.g., agricultural sprayers).IP68 (Continuous Submersion): The housing can be continuously submerged beyond 1 meter. This is required for underwater ROVs (Remotely Operated Vehicles) or maritime drones designed to land and float on the ocean.

Achieving IP67 and above requires flawless CNC execution of O-ring grooves and mating flanges.

The Physics of the O-Ring Seal

An O-ring does not seal simply by "blocking" a gap. It seals through mechanical deformation.

When a drone's top cover is bolted to the main chassis, the rubber O-ring is compressed (squeezed) inside its machined groove. This compression forces the elastomer against the top and bottom metal surfaces, creating a physical barrier. Crucially, when water pressure is applied to the outside of the seal, the water actually pushes the O-ring horizontally against the inner wall of the groove. This pressure flattens the O-ring further against the metal, increasing the sealing force. This is why a properly designed O-ring seal is self-energizing.

However, if the CNC-machined groove is too deep, the O-ring will not be squeezed enough (causing a leak). If the groove is too shallow, the O-ring will be over-compressed, permanently fracturing the rubber or preventing the two metal housings from bolting completely flat against each other.

Primary O-Ring Groove Designs for Drones

UAV engineers utilize three primary types of O-ring grooves, each requiring distinct CNC milling or turning strategies.

Static Face Seals (Flange Seals)

This is the most common seal for drone top covers, battery compartment doors, and flat sensor windows. The groove is milled into the flat face of the lower housing, and a flat lid bolts down on top of it, compressing the O-ring vertically.

• Machining Characteristics: Highly reliable and relatively straightforward to machine using standard flat-bottom end mills.

• Compression Target: Typically designed for a 15% to 30% squeeze on the O-ring's cross-section.

Radial Seals (Piston and Rod Seals)

Used extensively for cylindrical drone components, such as tubular camera housings, rotating LiDAR gimbals, or quick-disconnect waterproof cable glands. The O-ring is compressed radially (inwards or outwards) between an inner shaft and an outer bore.

• Machining Characteristics: Best achieved via precise CNC turning. Perfect concentricity between the inner and outer diameters is absolutely critical to ensure uniform squeeze around the entire circumference.

Dovetail Grooves (The Anti-Fallout Seal)

For drone components that are opened frequently in the field—like swap-able battery compartment lids—a standard face seal is problematic because the O-ring will fall out of the groove and get lost. A Dovetail Groove solves this. The groove is wider at the bottom than at the top, physically trapping the O-ring inside the metal.

• Machining Characteristics: Exceptionally difficult to machine. It requires highly specialized, fragile "undercut" end mills. The machinist must perfectly control the feed rate to prevent the delicate tool from chattering or snapping inside the restricted groove.

CNC Machining Tolerances for Flawless Sealing

Creating a watertight drone housing is an exercise in extreme dimensional control. Standard "loose" tolerances are unacceptable for O-ring glands.

Groove Depth Tolerances:The depth of the groove dictates the exact percentage of O-ring compression. For a standard 2.0mm cross-section O-ring, the groove depth must typically be held to a tolerance of +/- 0.05mm. If the tolerance drifts beyond this, the housing will either leak under high pressure or crack the lid due to over-compression.

Groove Width Tolerances:The groove must be wider than the O-ring. Rubber cannot be compressed into a smaller volume; it only changes shape. When squeezed vertically, the O-ring expands horizontally. If the groove is not wide enough to accommodate this expansion, the rubber will extrude out of the gap and shear off. Groove width is typically held to +/- 0.10mm.

Inner Corner Radii:A square CNC end mill cannot cut a perfectly sharp 90-degree internal corner. It will always leave a small radius. If this corner radius is larger than the radius of the O-ring, the O-ring will ride up on the corner and seat improperly.

• The CNC Solution: The machinist must use an end mill with a corner radius strictly smaller than the specified maximum radius in the Parker O-Ring Handbook (typically less than 0.3mm for small O-rings).

The Critical Role of Surface Finish (Ra)

You can hit the perfect depth and width tolerance, but if the surface finish inside the groove is rough, the drone will leak.

Water is incredibly insidious. Capillary action allows water to travel through microscopic scratches left behind by a cutting tool.

• The Enemy: Spiral Tool Marks. When an end mill interpolates a face seal groove, it leaves tiny spiral marks on the bottom of the groove. If these marks are too deep, they act as microscopic rivers, allowing water to flow directly under the compressed O-ring.

• The Requirement: For liquid IP67/IP68 sealing, the surface finish at the bottom of the groove and on the mating flat lid must be exceptionally smooth—typically Ra 0.8 µm (32 µin) or better.

• The CNC Solution: At HRD, we achieve this by utilizing specialized, highly polished finishing end mills, employing climb-milling strategies, and running a final "spring pass" (a zero-depth finishing cut) to iron out any microscopic surface irregularities.

Summary: Sealing Strategies Comparison

Design for Manufacturing (DFM) for Waterproof Housings

Designing a waterproof drone enclosure requires holistic mechanical foresight. The groove is only half the battle; the structural integrity of the entire housing dictates the seal's success.

Defeating Flange Deflection (Bowing)

This is the most common reason custom drone housings leak. Imagine a rectangular aluminum drone chassis with a flat lid. If you place four bolts only at the absolute corners, tightening those bolts will compress the O-ring at the corners. However, in the middle of the long spans between the bolts, the aluminum lid will slightly bow upwards (deflect) due to the upward pressure of the rubber O-ring. This microscopic bowing creates a gap, and water will rush in.

• DFM Tip: Ensure your bolt spacing is dense enough. The distance between fasteners must be short enough to maintain rigid, uniform compression across the entire length of the O-ring. For thin aluminum or plastic lids, bolts should rarely be spaced more than 50mm to 75mm apart.

Dealing with Asymmetrical 3D Seals

Modern drones rarely have perfectly flat tops. If the housing curves, the O-ring groove must curve in 3D space.

• DFM Tip: Machining a 3D O-ring groove requires continuous 5-axis CNC machining, which increases costs. Furthermore, bending a standard round O-ring into a complex 3D shape creates uneven tension, often causing the O-ring to pop out of the groove during assembly. For complex 3D seams, it is often more reliable to CNC machine a channel and utilize a custom-molded silicone gasket rather than a standard O-ring.

Beware of Tapped Holes (Leak Paths)

Never drill a blind tapped hole so deep that it breaks through into the internal waterproof cavity. If a bolt hole penetrates the inner chamber, water will simply bypass the main O-ring, spiral down the threads of the bolt, and flood the electronics. Always leave a solid wall of metal at the bottom of your tapped mounting holes.

Material Selection and Surface Treatments

The material of the housing profoundly impacts its sealing longevity.

Aluminum (6061-T6 / 7075-T6): The undisputed standard for rigid, waterproof drone housings. It does not warp under temperature changes like plastics do, ensuring the O-ring squeeze remains constant from the freezing Arctic to the scorching Sahara.

Engineering Plastics (Delrin / PEEK): For radar or antenna housings that require RF transparency (where metal would block the signal), Delrin is heavily used. However, plastics creep (deform slowly over time) under continuous pressure. The O-ring groove depth must be carefully calculated to account for long-term plastic deformation.

The Danger of Anodizing Build-Up

For marine and agricultural drones, aluminum housings must undergo Type III Hardcoat Anodizing for extreme saltwater corrosion resistance.

• The Dimensional Trap: Hardcoat anodizing adds physical thickness to the aluminum part (often up to 0.05mm). If a machinist cuts an O-ring groove perfectly to tolerance, and then the part is hardcoat anodized, the groove becomes narrower and shallower, potentially destroying the carefully calculated O-ring squeeze ratio.

• The Solution: At HRD, our engineers calculate this anodic build-up in advance. We intentionally machine the O-ring grooves and bearing bores slightly oversized (pre-anodize tolerance), so that after the surface treatments are applied, the final dimensions hit the exact microscopic tolerances required for absolute waterproofing.

Frequently Asked Questions (FAQ)

Q: Why did my IP67 drone housing pass a water test but fail after a flight?

A: Vibration and thermal cycling. During flight, the drone frame vibrates violently, and internal electronics heat up, causing the air inside the sealed housing to expand and contract (pressure cycling). If the CNC tolerances on the O-ring groove are loose, or if flange deflection occurs due to sparse bolt spacing, this pressure cycling will pump water past the seal.

Q: Can you machine a dovetail groove in a plastic drone housing?

A: It is technically possible, but highly discouraged. Dovetail undercut end mills are fragile. When machining plastics like Delrin, the thin lip of the plastic dovetail often deflects away from the tool or breaks off completely. Dovetail grooves should be reserved for rigid metals like aluminum or titanium.

Q: How do you waterproof the wire entry points into the drone chassis?

A: Wire ingress points require custom CNC-machined cable glands or hermetically sealed bulkhead connectors. We precision-machine threaded ports with ultra-smooth sealing faces to accept standardized waterproof M8 or M12 circular connectors, ensuring the entire assembly remains IP67 rated.

Q: What is the fastest way to prototype a waterproof drone enclosure?

A: While 3D printing is fast, 3D printed plastics are inherently porous and will seep water under pressure. For true waterproof testing, we rapid-prototype the enclosures out of solid billet 6061 aluminum using high-speed CNC milling. This guarantees the material is non-porous and allows us to test the exact O-ring compressions that will be used in mass production.

Seal the Future of Unmanned Flight

In the commercial drone industry, a leak is not an inconvenience; it is a critical system failure. Engineering a truly waterproof UAV enclosure requires far more than just drawing a groove in CAD. It demands a masterclass in elastomeric physics, extreme dimensional tolerance control, and flawless surface finish execution.

At Huaruida Precision Machinery, we are the uncompromising structural partners behind the world's most resilient autonomous vehicles. Our engineering team is equipped with advanced multi-axis CNC technology and rigorous quality control metrology to ensure your drone housings survive the harshest environments on Earth.

Contact our Engineering Team Today for a Free Quote on Your Custom Waterproof Housings
