Understanding GD&T Requirements for High-Precision Robotic Gearboxes

Introduction

In the realm of advanced robotics, the physical movement of a six-axis arm, a delta packaging robot, or a collaborative cobot is dictated entirely by its joints. At the heart of these joints are ultra-precise reduction mechanisms—specifically Strain-Wave Gearings (Harmonic Drives) and Cycloidal Drives. These specialized gearboxes transform the high-speed, low-torque output of a servo motor into the low-speed, massive-torque movement required to lift heavy payloads with microscopic precision.

Achieving this "zero-backlash" kinematic perfection is not merely a matter of cutting metal to standard dimensional tolerances. It requires an absolute mastery of Geometric Dimensioning and Tolerancing (GD&T).

A bearing bore might be perfectly sized to a specific diameter, but if it is tilted by a fraction of a degree, or if its center is slightly offset from the main drive axis, the gearbox will suffer from cyclical binding, excessive heat, and premature catastrophic failure.

As a premier manufacturing partner for the global robotics and automation industry, Huaruida Precision Machinery (HRD) specializes in custom CNC machining for ultra-high-precision robotic components. We understand that speaking the language of GD&T is the only way to guarantee absolute kinematic fidelity.

This comprehensive guide decodes the critical GD&T requirements for manufacturing high-precision robotic gearboxes. We will explore how to establish correct datums, analyze the most critical geometric callouts (from Runout to True Position), compare machining strategies, and provide Design for Manufacturing (DFM) tips to ensure your robotic joints operate flawlessly.

The Cost of Backlash: Why Dimensional Tolerances Are Not Enough

Before the widespread adoption of GD&T, engineers relied on standard Cartesian coordinate dimensioning (e.g., +/- 0.05mm). While this dictates how large or small a feature can be, it fails to control the shape, orientation, or location of that feature relative to the rest of the part.

In a standard gearbox, minor misalignments result in noise and wear. In a robotic gearbox, minor misalignments result in Lost Motion and Backlash.

• Backlash is the mechanical play or "slop" between mating gears.

• Lost Motion encompasses the total elastic deformation of the gearbox under load.

If the internal wave generator of a harmonic drive is not perfectly coaxial with the circular spline housing, the gears will mesh too tightly on one side and too loosely on the other. A 0.01mm concentricity error at the gear mesh will amplify across the length of a robotic arm, causing the end-effector (the robot's hand) to miss its target by millimeters.

GD&T is the engineering language used to guarantee that every surface, bore, and shaft relates to one another perfectly, completely eradicating geometric backlash.

Establishing the Foundation: Datums and Reference Frames

The first step in any GD&T drawing is establishing the Datum Reference Frame (DRF). Datums are theoretically perfect planes, axes, or points from which all other features are measured.

In robotic gearbox machining, establishing correct datums is a critical DFM decision.

• Primary Datum (Datum A): Usually the largest flat mating surface (the mounting flange) that bolts to the robot chassis. This establishes the part's perpendicularity.

• Secondary Datum (Datum B): Typically the main central bearing bore or the primary rotational axis. This dictates where the exact center of the universe is for that specific joint.

• Tertiary Datum (Datum C): Often a precision dowel pin hole used to "clock" or stop the rotation of the part.

Machining Strategy: At HRD, when executing precision CNC turning, we always strive to machine Datum A and Datum B in the exact same physical setup. If you unclamp a part to machine the secondary datum on the other side, you introduce microscopic chucking errors, completely destroying the geometric relationship between the datums.

Critical GD&T Callouts for Robotic Gearboxes

When analyzing a drawing for a harmonic drive housing or a cycloidal rotor, our metrology team focuses relentlessly on several key geometric symbols.

Concentricity vs. Runout (The Rotational Imperative)

In gearboxes, everything spins. Therefore, how features relate to the central spinning axis is paramount.

• Total Runout: This is the most stringent and common callout for high-speed robotic drive shafts. Total runout controls both the concentricity (is it centered?) and the cylindricity (is it a perfect cylinder?) of the entire length of a shaft simultaneously. If a drive shaft has poor runout, it will "wobble," destroying the delicate lip seals and causing vibration throughout the robot.

• Concentricity: This simply measures if the center points of two different diameters share the same axis. While useful, it is notoriously difficult to measure on a CMM compared to Runout.

Cylindricity and Roundness

• Cylindricity: Think of the flexspline (the thin, cup-like gear in a harmonic drive) or the outer housing that contains the cross-roller bearing. If the inner bore is slightly oval (out of round) or tapered (cone-shaped), inserting the bearing will deform it. Cylindricity ensures the bore is a mathematically perfect 3D cylinder.

Perpendicularity and Parallelism

• Perpendicularity: The shoulder where the main joint bearing rests must be perfectly perpendicular to the central bore axis. If the shoulder is slanted by even 0.05 degrees, the bearing will sit cockeyed, causing the robotic arm to swing in a distorted arc rather than a flat plane.

• Parallelism: The front mounting flange and the rear mounting flange of a gearbox housing must be perfectly parallel. If they are not, tightening the mounting bolts will physically warp the gearbox, crushing the internal gears together and inducing severe binding friction.

True Position (Positional Tolerance)

• True Position: Used for bolt circles and, most critically, dowel pin holes. High-precision gearboxes do not rely on bolts for alignment; bolts have clearance. They rely on precision dowel pins. True Position dictates the exact X/Y coordinate where the center of that pin hole must be, relative to the main datums, ensuring absolute repeatability when assembling the robotic joint.

GD&T Tolerance Comparison Chart for Robotics

To understand the sheer magnitude of precision required, here is a typical GD&T matrix for an aerospace-grade or surgical robotic joint housing.

CNC Machining Strategies to Achieve Extreme GD&T

Achieving geometric tolerances below 0.010mm stretches the capability of standard CNC equipment. It requires an entirely different approach to subtractive manufacturing.

The Power of Mill-Turn Centers

To achieve perfect concentricity and true position between a turned bearing bore and a milled off-axis mounting hole, HRD utilizes advanced Mill-Turn Centers. By executing 5-axis CNC milling and high-speed turning in a single clamping setup, we completely eliminate the tolerance stacking that occurs when a part is manually moved from a lathe to a standalone mill.

Precision Boring vs. Reaming

For ultra-precise planetary gear pin holes, standard drilling is unacceptable. The drill bit wanders, destroying the True Position.

• We must spot-drill, drill undersized, and then use a single-point boring bar or a high-precision carbide reamer. Boring ensures that the hole is not only perfectly round (Cylindricity) but also perfectly located (True Position) relative to the spindle axis.

Temperature Control and Metrology

At the micron level, temperature dictates geometry. An aluminum robotic housing machined during a hot afternoon shift will literally shrink overnight as the factory cools, pulling the bearing bores entirely out of their GD&T tolerance bands. To combat this, extreme precision machining requires climate-controlled facilities. Furthermore, verifying these tight geometric callouts is impossible with manual hand tools. We utilize high-end Coordinate Measuring Machines (CMM) equipped with ruby-tipped touch probes to map the 3D surface of the part and mathematically verify every GD&T callout against the master CAD model.

Design for Manufacturing (DFM) Rules for GD&T

Applying GD&T to your drawings is essential, but over-tolerancing or applying conflicting callouts will skyrocket your manufacturing costs.

Do Not Over-Constrain Non-Critical Features

If a feature is simply a clearance hole for a wire harness to pass through, do not assign it a True Position tolerance of 0.01mm. Strict geometric callouts should be reserved exclusively for kinematic mating surfaces, bearing journals, and dowel pins. Over-tolerancing forces the machine shop to run the machines slower and inspect features that do not affect the robot's performance, inflating the price of your parts.

Ensure Datums are Machinable

When selecting your primary, secondary, and tertiary datums, look at the physical part. Can a machinist actually clamp onto the part and access all three of these datums in the same setup? If Datum A is on the top of the part, and Datum B is an internal blind pocket on the bottom of the part, establishing a perfect relationship between them is incredibly difficult and expensive.

Account for Surface Treatments

If your robotic housing requires hardcoat anodizing or electroless nickel plating for wear resistance, remember that surface treatments add physical thickness to the part. This coating buildup can easily push a tightly toleranced bearing bore out of its Cylindricity and Size specs.

• DFM Solution: Always specify on your drawings whether the GD&T dimensions apply Before or After coating. At HRD, we heavily utilize custom silicone masking to keep critical precision bores bare metal while anodizing the rest of the housing.

Frequently Asked Questions (FAQ)

Q: What is the difference between Circular Runout and Total Runout?

A: Circular Runout only measures a single 2D circular cross-section of a spinning shaft. Total Runout measures the entire 3D cylindrical surface of the shaft simultaneously. For robotic drive axles that must interact perfectly with full-length needle bearings or oil seals, Total Runout is the vastly superior and more stringent callout.

Q: Why did my bearing bore pass the diameter measurement but fail Cylindricity?

A: A bore can measure perfectly to 50.00mm with calipers at the top, but if the tool deflected slightly during machining, the bottom of the bore might be 49.98mm (a taper). Or, if the chuck gripped the part too hard, the bore might be slightly triangular (lobing). Both scenarios mean the diameter is correct at certain points, but the 3D shape (Cylindricity) is fatally flawed.

Q: Can you achieve a 0.005mm True Position tolerance on a 3-axis CNC mill?

A: Yes, but only if all the features are on the exact same plane and can be reached without un-clamping the part. If the features are on different sides of a block, a continuous 5-axis machine or a Mill-Turn center is mandatory to achieve that level of positional accuracy between faces.

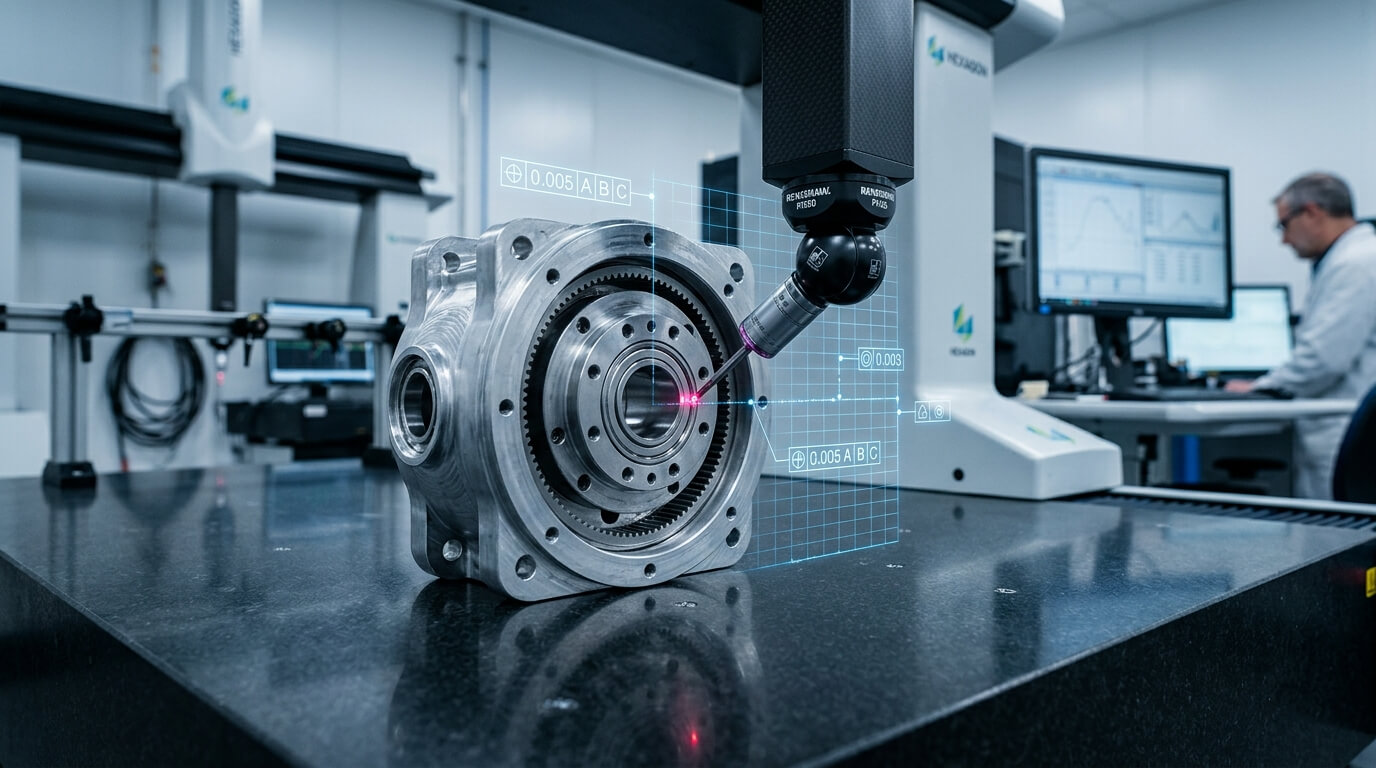

Q: How does HRD inspect and verify these GD&T callouts?

A: We rely on automated 5-axis Coordinate Measuring Machines (CMM). The CMM traces the physical geometry of the machined part, compares it directly to the native 3D CAD model, and generates a comprehensive inspection report proving that every concentricity, perpendicularity, and true position requirement has been met to the micron.

Achieve Zero-Backlash Perfection

In advanced robotics, standard dimensional tolerances are obsolete. Eliminating backlash, vibration, and lost motion requires a profound understanding of geometric controls and the heavy-duty, high-precision subtractive technology required to achieve them.

At Huaruida Precision Machinery, we speak the language of GD&T fluently. Our engineering team is equipped with the advanced Mill-Turn centers, climate-controlled environments, and world-class metrology labs necessary to manufacture the beating heart of your robotic systems.
