Sheet Metal Fabrication for Electronics Enclosures: The Complete Design Guide (2026 Edition)

Introduction

In the fast-paced world of electronics manufacturing, the enclosure is more than just a protective box; it is the shield that secures sensitive components, manages thermal performance, ensures electromagnetic compatibility (EMC), and defines the user experience. While 3D printing is excellent for rapid prototyping and CNC machining offers high precision for solid blocks, Sheet Metal Fabrication remains the gold standard for producing durable, scalable, and cost-effective custom electronics enclosures.

Whether you are designing a 1U rackmount chassis for a data center, a rugged industrial control console, or a sleek consumer device, understanding the nuances of sheet metal design is crucial. As a leading sheet metal fabrication service in China, Huaruida Precision Machinery (HRD) specializes in turning CAD designs into reality.

This comprehensive guide will walk you through the critical aspects of designing sheet metal enclosures for electronics, covering material selection, Design for Manufacturing (DFM) best practices, thermal management, EMI shielding strategies, and advanced finishing options.

Why Choose Sheet Metal for Electronics Enclosures?

Compared to plastic injection molding (which requires expensive molds) or CNC machining (which can have high material waste for large parts), precision sheet metal fabrication offers a unique balance of speed, cost, and durability for both low-volume prototyping and high-volume production.

• Low Tooling Costs: Unlike die casting or injection molding which require molds costing thousands of dollars, sheet metal uses standard tooling (punches and dies), making it ideal for low-to-medium volume production (1 to 5,000 units).

• Durability & Strength: Metal enclosures provide superior protection against impact, vibration, and harsh environmental factors compared to plastic housings.

• EMI/RFI Shielding: Metals are naturally conductive, offering intrinsic protection against electromagnetic interference, which is critical for FCC/CE compliance in telecommunications and medical devices.

• Rapid Iteration: Designs can be modified quickly in CAD and sent to laser cutters or CNC punch presses without waiting for new molds, accelerating your time-to-market.

Material Selection: Aluminum vs. Steel vs. Stainless

Selecting the right material is the foundation of a successful enclosure design. It affects the weight, strength, conductivity, and overall cost of your project.

Material Comparison Table

Deep Dive into Enclosure Materials:

• Aluminum 5052-H32: The industry standard for custom aluminum enclosures. It possesses excellent formability, allowing for complex bends without cracking. It is lightweight and dissipates heat effectively, making it perfect for consumer electronics and heat-sensitive components.

• Cold Rolled Steel (CRS - SPCC): Stronger and stiffer than aluminum but prone to rust. It is the go-to material for heavy-duty indoor server racks and industrial machinery housings but must be plated or powder coated.

• Stainless Steel 304/316: The premium choice for medical device enclosures or outdoor equipment requiring high corrosion resistance (IP65/IP67 rated). Note that stainless steel is harder to cut and bend, which may slightly increase fabrication costs.

• Galvanized Steel (SECC/SGCC): Often used for internal chassis parts where aesthetics are less critical, as the zinc coating prevents rust without needing additional painting.

Structural Design: Common Enclosure Types

Choosing the right structural configuration depends on your accessibility needs and assembly process.

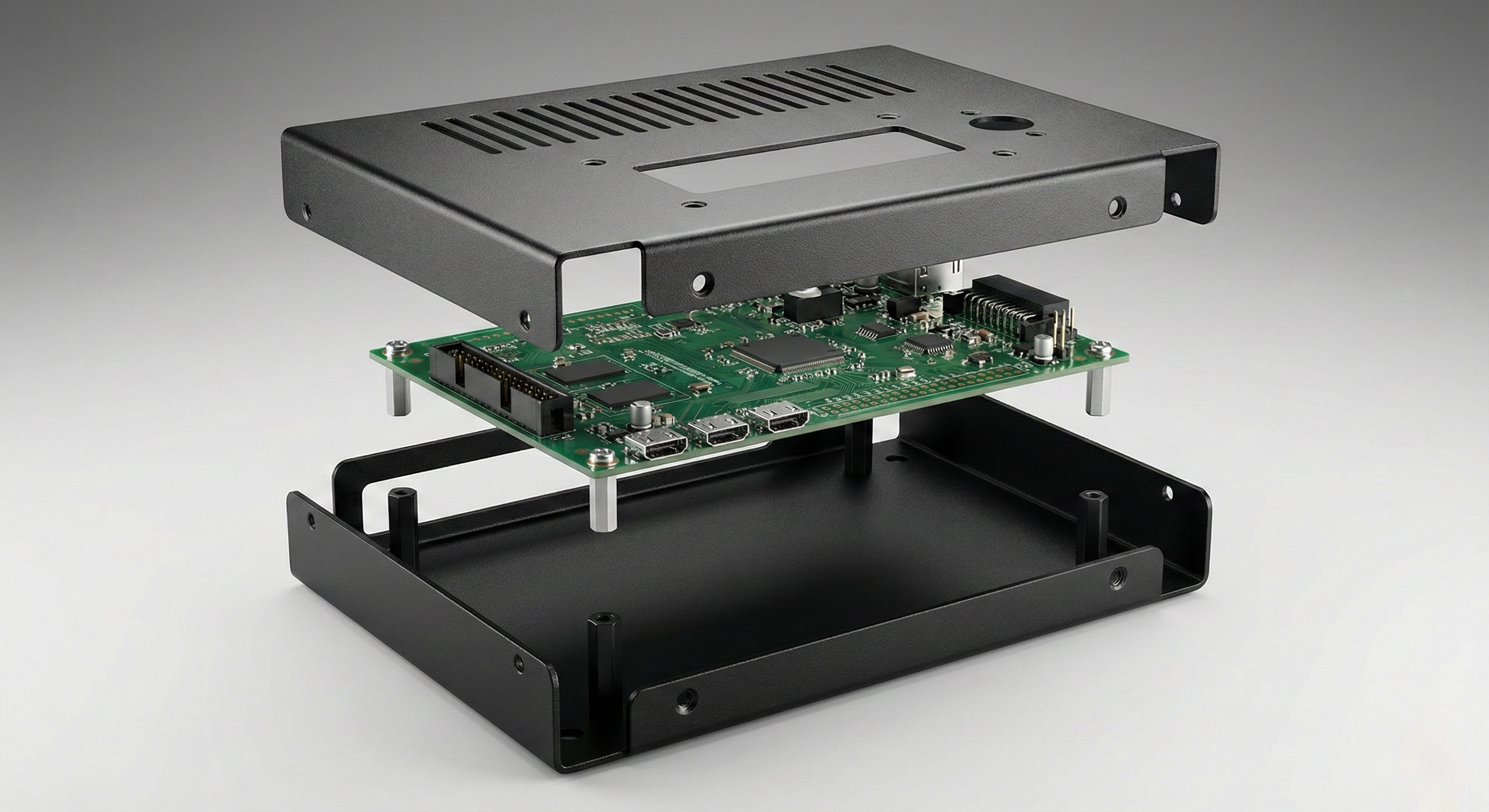

The "U" Shape (Clamshell)

This classic design consists of a base (bent into a U-shape) and a cover (also bent into a U-shape).

• Application: General-purpose electronic housing and power supply units.

• Pros: Simple to manufacture, easy access for assembly.

• Cons: Seams are visible on the sides, which might require aesthetic treatment.

The "L" Shape

Two "L" shaped pieces screw together to form a box.

• Pros: Different seam placement allows for unique aesthetic designs and can be structurally rigid.

5-Sided Box with Cover

A welded or folded box with a flat lid.

• Pros: Very strong and offers maximum EMI sealing capability.

• Cons: Harder to access internal components for maintenance compared to a clamshell design.

Rackmount Enclosures (1U, 2U, 4U)

Standardized width (19-inch) chassis designed for server racks.

• Key Consideration: Strict adherence to EIA-310 standards for hole spacing and height is mandatory. We recommend using aluminum front panels for a premium look while using steel for the main body to support heavy components.

Design for Manufacturing (DFM) Guidelines

To ensure your enclosure can be manufactured cost-effectively by a custom metal fabrication shop like Huaruida, follow these critical DFM rules.

Material Thickness (Gauge)

Stick to standard gauges to avoid material procurement delays.

• Recommended: 18 gauge (1.2mm) or 16 gauge (1.5mm) for most medium-sized sheet metal boxes.

Minimum Bend Radius

The internal bend radius should generally be equal to the material thickness (1T).

• Aluminum: 1T is safe for 5052 alloy. 6061 alloy is prone to cracking and may require a larger radius (1.5T-2T).

• Risk: Specifying a radius smaller than the material thickness causes stress cracks on the outer surface.

Hole-to-Edge Distance

Holes placed too close to a bend will deform (turn into ovals) during the bending process.

• Rule: Distance from the edge of the hole to the bend line should be at least 2.5x Material Thickness + Bend Radius. If you need a hole closer, it may need to be CNC machined after bending, which adds cost.

Bend Relief

When bending a tab inside a larger sheet, you must cut "relief" notches on the sides of the tab to prevent tearing the metal.

• Rule: Relief width should be at least equal to material thickness; depth should go past the bend line.

Hardware and Fasteners

Sheet metal is often too thin to tap threads directly. To mount PCBs and components securely, we rely on Self-Clinching Fasteners (often referred to by the brand PEM®).

Common Fasteners for Enclosures:

1. Clinching Nuts (CLS/S): Pressed into the sheet to provide a strong threaded hole for chassis assembly screws.

2. Standoffs (BSO/SO): Essential for mounting PCBs inside the enclosure. They space the circuit board away from the metal chassis to prevent short circuits.

3. Threaded Studs (FH): Threaded pins sticking out of the sheet, often used for mounting heavy transformers or connectors.

4. Blind Rivets: Useful for permanently joining two sheets where you cannot access the back side.

Design Tip: Always specify the specific fastener part number (e.g., PEM SO-M3-6) in your CAD assembly to avoid production errors.

Thermal Management and Airflow

High-performance electronics generate heat. Your enclosure must effectively dissipate it to prevent failure.

Passive Cooling strategies:

• Ventilation Patterns: Laser-cut hex patterns, slots, or louvers provide open area for air while blocking fingers (safety) and large debris.

• Material Choice: Using aluminum enclosures acts as a giant heatsink, dissipating heat much better than steel.

Active Cooling:

• Fan Mounts: Ensure standard hole spacing for 40mm, 80mm, or 120mm fans.

• Airflow Path: Design intake vents on one side and exhaust fans on the opposite side to create a "wind tunnel" effect over hot components like CPUs or power supplies.

EMI/RFI Shielding Strategies

For medical, military, or telecommunications devices, preventing Electromagnetic Interference (EMI) is non-negotiable.

1. Conductive Finishes: Powder coating is an electrical insulator. You must mask contact points (where the lid meets the base) or use Chromate Conversion Coating (Alodine) on aluminum to maintain electrical continuity throughout the chassis.

2. Half-Shear Buttons: Small dimples pressed into flanges to bite into the mating part, ensuring a consistent grounding path.

3. EMI Gaskets: Conductive foam or wire mesh gaskets placed between seams to close gaps that might leak RF signals.

4. Keep Holes Small: The wavelength of the interference determines the maximum hole size. For high frequencies, use perforated mesh rather than large open slots.

Finishing Options: Aesthetics and Protection

The finish defines the look and durability of your product. As a full-service provider, HRD offers comprehensive surface treatments in-house.

• Powder Coating: The industry standard for custom steel enclosures. It is durable, scratch-resistant, and available in infinite RAL colors and textures (matte, gloss, sandtex).

• Anodizing (Aluminum only): An electrochemical process that hardens the surface. It provides a premium, "Apple-like" metallic finish. Available in Clear (Silver), Black, Blue, Gold, and Type II or Type III (Hard) Anodizing.

• Chromate Conversion (Alodine/Chem Film): Provides corrosion resistance while remaining electrically conductive. Often used internally for grounding points.

• Silk Screening / UV Printing: Essential for adding logos, port labels (USB, HDMI), and safety warnings directly onto the metal panel.

Cost Reduction Tips

How to keep your custom enclosure fabrication cost low:

1. Stick to one plane: Bends are cheap; welding is expensive. Design parts that can be folded rather than requiring welded corners whenever possible.

2. Standardize hole sizes: If your design requires 10 different drill bit changes, it increases machine time. Try to use common sizes (e.g., M3, M4) for all hardware.

3. Loose Tolerances: Don't specify +/- 0.05mm unless absolutely necessary. Sheet metal standard tolerances are typically +/- 0.1mm to 0.2mm. Tighter tolerances increase inspection and rejection rates.

4. Use Stock Sheet Sizes: Design parts that nest efficiently on standard 4'x8' sheets to minimize scrap waste.

Frequently Asked Questions (FAQ)

Q: What is the best file format for sheet metal quotes?

A: A 3D STEP (.stp) file is best for quoting as it allows us to analyze bending feasibility. For production, we also need a 2D PDF drawing specifying tolerances, finish, and tapped holes.

Q: Can you powder coat over threads?

A: No. Powder coating adds thickness and will clog threads. We must mask threaded holes or install self-clinching nuts after painting (though installing before painting and masking is standard practice to prevent rust).

Q: What is the minimum quantity for custom enclosures?

A: Huaruida Precision Machinery handles everything from a single rapid prototype (MOQ 1) to low-volume pilot runs and mass production (10,000+ units). Check our prototyping services for more details.

Q: How do I mount a PCB inside the box?

A: The standard method is using PEM standoffs pressed into the base of the enclosure. You simply screw your PCB into these standoffs.
