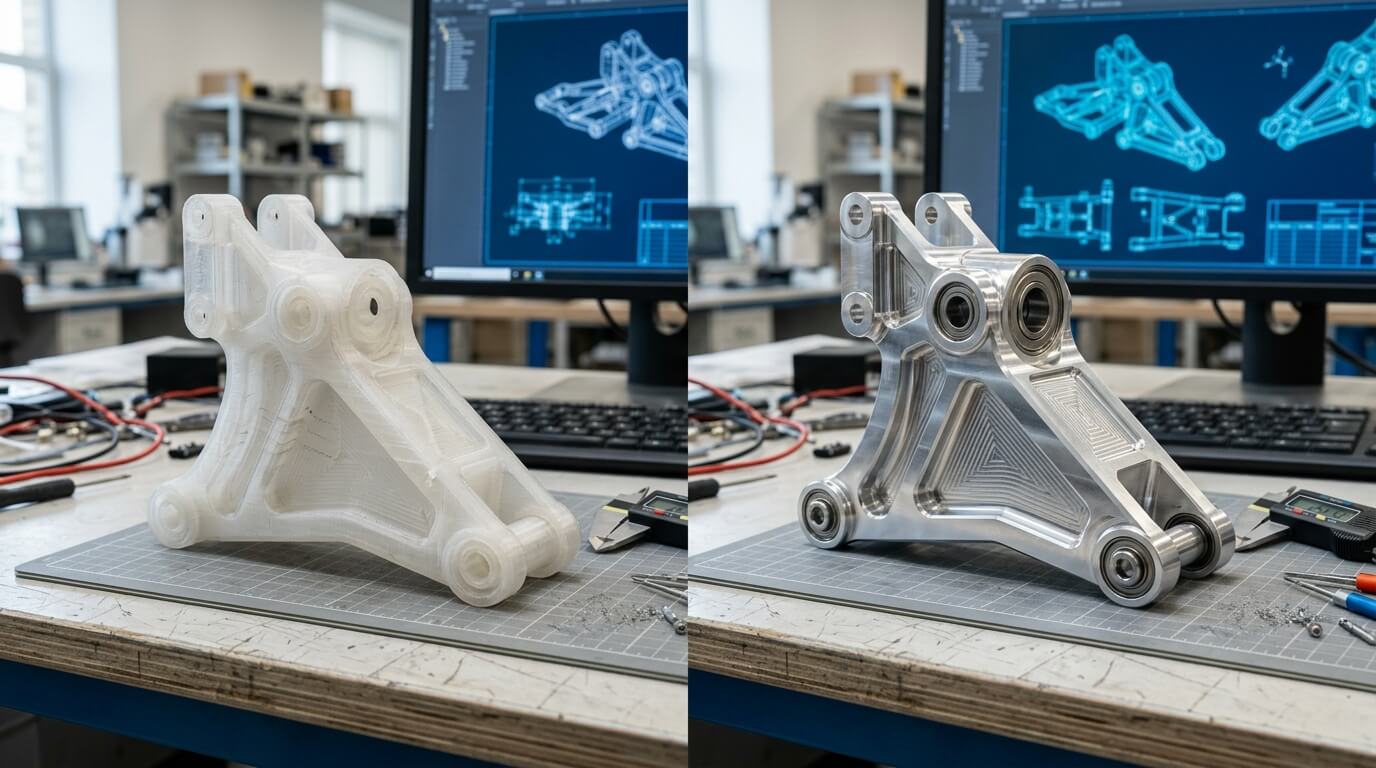

Rapid Prototyping for AMR Development: From 3D Printing to CNC

Introduction

The Autonomous Mobile Robot (AMR) and Automated Guided Vehicle (AGV) industries are experiencing explosive growth. From intelligent warehouse fulfillment bots to rugged agricultural rovers and hospital delivery systems, the race to bring the next generation of autonomous mobility to market is fiercely competitive. In this fast-paced landscape, time-to-market is the ultimate currency.

However, developing an AMR is a profoundly complex multidisciplinary challenge. It requires seamlessly integrating delicate sensors (LiDAR, stereo cameras), heavy-duty battery arrays, and high-torque kinematic drive systems into a compact, robust chassis. To navigate this complexity without burning through millions in venture capital on flawed designs, robotics engineers rely entirely on rapid prototyping.

The journey of an AMR prototype typically begins with the rapid, low-cost iterations of 3D printing and eventually transitions to the rigorous, high-fidelity world of metal CNC machining for functional testing and pilot production.

As a premier manufacturing partner for the global robotics industry, Huaruida Precision Machinery (HRD) bridges the gap between digital concepts and physical reality. We provide comprehensive custom CNC machining and rapid fabrication services tailored for robotics.

This in-depth guide explores the AMR prototyping lifecycle, compares Additive Manufacturing (3D printing) with Subtractive Manufacturing (CNC machining), and provides critical Design for Manufacturing (DFM) strategies to help your engineering team successfully transition from a plastic proof-of-concept to a fully functional, CNC-machined metal robotic platform.

The AMR Development Lifecycle: A Phased Approach

Successful robotic hardware development is never achieved in a single leap. It is an iterative process divided into distinct phases, each demanding different manufacturing technologies.

Phase 1: The Alpha Prototype (Proof of Concept)

The Alpha phase is all about form, fit, and spatial packaging. Engineers need to verify that the LiDAR sensor has a clear field of view, the custom PCB fits inside the enclosure, and the overall physical footprint meets the project requirements.

• Primary Technology: 3D Printing (FDM, SLA).

• Materials: PLA, ABS, standard resins.

• Goal: Rapid, cheap iteration. Parts might be reprinted daily as the CAD model evolves. Structural integrity is not the primary concern.

Phase 2: The Beta Prototype (Functional Testing)

This is the critical inflection point. The robot must now bear its actual payload, drive across uneven factory floors, and dissipate the heat generated by its in-wheel motors. Plastic 3D printed parts will bend, shatter, or melt under these dynamic kinematic loads.

• Primary Technology: CNC milling and CNC turning.

• Materials: Aluminum 6061-T6, 7075-T6, 1045 Steel.

• Goal: Real-world physical validation. The parts must possess the exact isotropic strength, thermal conductivity, and micron-level tolerances (e.g., H7 bearing bores) of the final production units.

Phase 3: Pilot Production (Low-Volume Run)

Once the Beta prototype is validated, the company must produce a pilot run (e.g., 10 to 50 units) for field testing with early-adopter clients.

• Primary Technology: Optimized CNC machining, Sheet Metal Fabrication, and Urethane Casting.

• Goal: Refining DFM to lower the cost-per-part, finalizing surface treatments for durability, and establishing a scalable supply chain before mass production.

3D Printing in AMR Prototyping: Strengths and Limitations

Additive manufacturing is a miraculous tool for early-stage robotics development, but engineers must understand its hard physical limits.

The Strengths:

• Geometric Freedom: 3D printing can create impossible shapes—such as enclosed hollow voids, organic lattices, and extreme undercuts—that no cutting tool could ever reach.

• Speed to Hand: For small components, a CAD file can be printed and held in an engineer's hand within 24 hours.

The Limitations for AMRs:

• Anisotropic Strength: FDM (Fused Deposition Modeling) prints parts layer by layer. The part is strong in the X and Y axes but significantly weaker in the Z-axis (where the layers bond). Under the heavy vibration of an AMR chassis, these layers can easily split.

• Tolerance Slop: Standard 3D printers struggle to hold the tight tolerances required for press-fitting bearings or aligning strain-wave gearboxes.

• Thermal Failure: Most prototyping plastics have a low glass-transition temperature. If bolted directly to a hot stepper motor, a 3D-printed PLA or ABS motor mount will warp and melt, causing immediate drive failure.

The Shift to Subtractive Manufacturing: Why CNC is Mandatory

When the AMR must transition from a static display model to a dynamic, load-bearing machine, CNC Machining becomes the only viable rapid prototyping method.

Uncompromised Structural Integrity

CNC machining is subtractive. It carves the part out of a solid, extruded, or forged billet of metal. The resulting aluminum or steel component possesses isotropic strength—meaning it is equally strong in every direction. For an AMR suspension linkage or a high-torque drive wheel hub, this monolithic strength is non-negotiable.

Micron-Level Precision for Kinematics

Robotic joints rely on perfectly aligned bearings and shafts. CNC turning centers can machine an axle to a diameter tolerance of +/- 0.005mm, ensuring a flawless zero-backlash fit. 3D printing simply cannot replicate the concentricity and cylindricity required for high-performance harmonic drives or heavy-duty caster swivels.

Thermal Management

AMRs are densely packed with batteries, compute modules, and servo drives. CNC-machined Aluminum 6061 acts as a massive, highly efficient heat sink. By machining the robot's main chassis out of aluminum, engineers can conduct heat away from critical internal electronics, preventing thermal throttling during 24/7 continuous operation.

Additive vs. Subtractive Prototyping Comparison Table

Bridging the Gap: DFM Strategies for the CNC Transition

The most common and expensive mistake an AMR startup can make is sending a CAD file optimized for 3D printing directly to a CNC machine shop. A part designed for additive manufacturing is often physically impossible to machine subtractively.

To successfully transition your prototype to CNC metal, you must redesign the components using these strict Design for Manufacturing (DFM) rules:

Eliminate Internal Voids and "Impossible" Undercuts

A 3D printer can easily print a completely hollow ball. A CNC mill cannot. A CNC cutting tool must have physical line-of-sight and clearance to reach the material it needs to remove.

• The Fix: If your 3D-printed chassis features hidden internal channels for wiring, you must redesign the part for CNC by splitting it into two separate machinable halves that bolt together, or by changing the internal channels to open, external routed grooves.

Eradicate Sharp Internal Corners

In 3D printing, a sharp 90-degree internal corner is perfectly fine. In CNC milling, a rotating cylindrical end mill cannot cut a sharp internal corner; it will always leave a radius equal to the size of the cutting tool.

• The Fix: Add generous fillets (radii) to all internal vertical corners. The larger the radius you design, the larger and faster the cutting tool the machinist can use, which drastically reduces your prototyping costs.

Standardize Wall Thicknesses

While 3D printed parts can have paper-thin walls supported by internal lattice infill, CNC machining exerts immense physical force on the metal.

• The Fix: If a wall on an aluminum AMR sensor bracket is too thin (e.g., under 1mm), the vibration and pressure of the cutting tool will cause the wall to chatter, bend, or snap completely. Design robust, uniform wall thicknesses to ensure the part remains rigid during the machining process.

Design for Setup Minimization

A 3D printer prints the part in one continuous setup. A standard 3-axis CNC mill must have the part manually flipped and re-clamped to access different sides.

• The Fix: Try to design your robotic linkages and base plates so that all the critical features (bearing bores, tapped holes, deep pockets) can be accessed from the top and bottom. Minimizing the number of times the part must be rotated reduces both labor costs and tolerance stacking errors. For highly complex, multi-sided robot chassis, HRD utilizes advanced 5-axis CNC machines to mill the part in a single setup.

Sheet Metal: The Unsung Hero of AMR Prototyping

While CNC machining is perfect for complex drive linkages and sensor mounts, it is an incredibly expensive way to make a hollow box. For the outer protective covers, battery enclosures, and main deck plates of an AMR, Sheet Metal Fabrication is the ultimate rapid prototyping solution.

Sheet metal parts are laser-cut and CNC-folded in minutes. An aluminum or steel sheet metal chassis provides immense structural rigidity, excellent EMI shielding for internal electronics, and is exceptionally cost-effective to iterate. Smart robotics engineers combine CNC-machined nodes for the high-precision joints and connect them using heavy-gauge sheet metal for the main body structure.

Surface Treatments for Functional Prototypes

As your AMR moves from the lab to the warehouse floor for Beta testing, the raw metal prototypes must be protected from environmental degradation.

• Hardcoat Anodizing: For aluminum chassis and suspension parts, Type III Hardcoat Anodizing provides a highly scratch-resistant, electrically insulating layer that prevents short circuits from internal wiring harnesses.

• Black Oxide or Zinc Plating: For custom steel drive axles or caster forks, these fast, inexpensive surface treatments prevent rust during field testing without altering the precision dimensions of the machined parts.

• Powder Coating: The industry standard for the exterior sheet metal skins of an AMR, providing a durable, visually striking, and brand-matched cosmetic finish.

Frequently Asked Questions (FAQ)

Q: Why is my CNC machining quote so high for a part I 3D printed for $50?

A: 3D printing costs are based primarily on material volume and machine time. CNC machining costs are driven by setup complexity, tool changes, and the removal of solid metal. If your 3D-printed part features complex organic curves, deep narrow pockets, and requires 6 different clamping setups on a mill, the CNC cost will be high. Applying CNC-specific DFM principles will drastically lower this quote.

Q: How fast can HRD turn around a metal CNC prototype for my robot?

A: Depending on part complexity and material availability, Huaruida Precision Machinery routinely delivers precision custom metal prototypes in 5 to 10 business days, allowing your R&D team to maintain aggressive testing schedules.

Q: Can you CNC machine plastics instead of metal for AMR prototypes?

A: Absolutely. For components that require the tight tolerances of CNC machining but need to remain lightweight or electrically insulating, we frequently CNC machine engineering plastics like POM (Delrin), PEEK, and Nylon. Delrin machines exceptionally well and is a fantastic material for custom robotic grippers or low-friction sliding mounts.

Q: Do I need to mask tapped holes before powder coating my prototype chassis?

A: Yes! Powder coating adds a thick layer of plastic to the metal. If you powder coat over a tapped thread or a precision bearing bore, the hole will be completely ruined. You must specify these critical areas on your drawing, and HRD will utilize specialized high-temperature silicone plugs to mask them before the coating process.

Accelerate Your Robotics Development with HRD

Transitioning an autonomous mobile robot from a brilliant digital concept to a rugged, field-ready physical machine is the hardest phase of hardware development. Surviving this phase requires a manufacturing partner who understands both the speed of rapid prototyping and the uncompromising precision of advanced kinematics.

At Huaruida Precision Machinery, we speak the language of robotics. From machining complex 5-axis aluminum chassis to fabricating heavy-duty sheet metal battery enclosures, our engineering team is ready to guide your AMR through every stage of development.

Contact our Engineering Team Today to Get a Free Quote on Your AMR Prototypes
