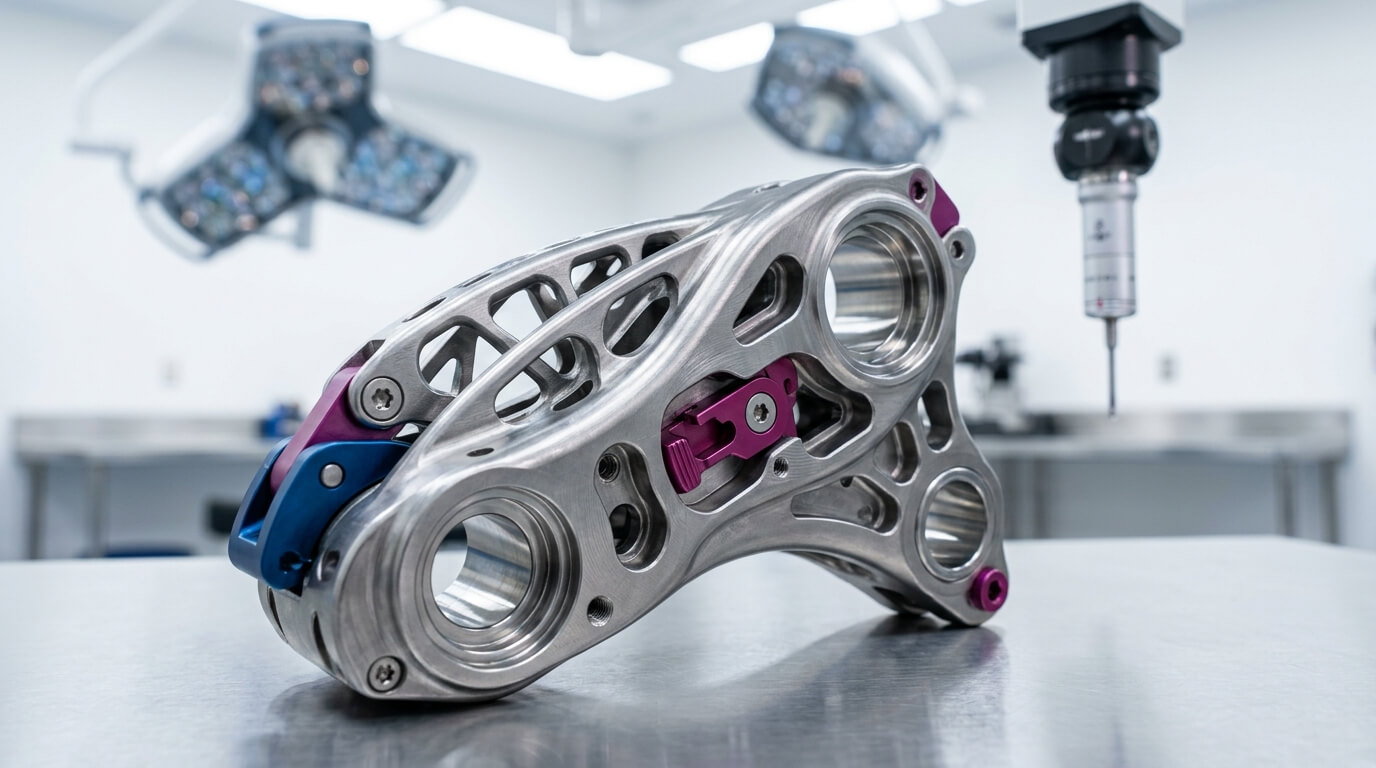

Precision CNC Machining for Surgical Robot Arms: Meeting ISO 13485 Standards

Introduction

The integration of robotics into the operating room has forever changed the landscape of modern medicine. Minimally invasive surgical robots allow surgeons to perform complex procedures—from mitral valve repairs to delicate neurological interventions—with superhuman precision, absolute stability, and microscopic dexterity. However, the software interpreting the surgeon's hand movements is only as effective as the physical hardware executing them.

The mechanical backbone of these life-saving systems is the surgical robot arm. These intricate assemblies of linkages, micro-pulleys, and articulating joints must operate with zero backlash, uncompromising rigidity, and flawless repeatability. Furthermore, because they operate within a sterile surgical environment, their manufacturing process is governed by the strictest regulatory standards on the planet.

Manufacturing components for medical robotics is not standard industrial machining; it is life-critical engineering. As a premier provider of custom CNC machining for the global medical device sector, Huaruida Precision Machinery (HRD) understands that achieving microscopic tolerances is only half the battle. The other half is rigorous, uncompromising quality management.

This comprehensive guide explores the intersection of ultra-precision multi-axis CNC machining and medical device compliance. We will dissect the stringent requirements of ISO 13485, analyze the machining characteristics of medical-grade superalloys, and provide critical Design for Manufacturing (DFM) guidelines specifically tailored for sterilizable surgical robotics.

The Anatomy of a Surgical Robot Arm

To understand the manufacturing requirements, we must break down the physical components of a master-slave surgical robotic system. A typical system consists of a patient cart holding multiple articulating arms.

Structural Linkages:These are the primary "bones" of the arm. They are typically monolithic structures optimized for maximum stiffness and minimal weight to prevent inertia-induced oscillation when the arm stops moving. They feature highly complex, organic 3D geometries.

Kinematic Joints and Micro-Pulleys:Surgical instruments at the end of the arm are often cable-driven. The joints contain microscopic pulleys, capstans, and drive shafts. These components must be perfectly concentric. Any eccentric wobble in a pulley will cause the drive cable to slacken and tighten during rotation, instantly introducing dangerous backlash into the surgeon's scalpel.

Instrument Interfaces (End-Effectors):The terminal end of the arm holds the sterile surgical instruments. The mounting interfaces involve intricate latching mechanisms that must allow for rapid, secure tool changes mid-surgery while maintaining perfect alignment.

Demystifying ISO 13485 in CNC Machining

In aerospace or industrial robotics, a perfectly machined part is considered a success. In medical manufacturing, a perfectly machined part without proper documentation is considered scrap. This is the essence of ISO 13485—the internationally recognized Quality Management System (QMS) standard for the medical device industry.

When sourcing precision parts for surgical robots, partnering with an ISO 13485-compliant manufacturer like HRD guarantees several critical protocols are strictly followed:

Absolute Material Traceability

If a surgical arm fails in the field, the manufacturer must be able to trace the component back to the exact block of raw material it was cut from. We maintain rigorous lot tracking, heat numbers, and Material Test Reports (MTRs) for every piece of titanium and stainless steel that enters our facility. This documentation trails the part through every step of the CNC process.

Process Validation (IQ/OQ/PQ)

In medical machining, you cannot simply measure the final part and assume the process is stable. The CNC machines, cutting tools, and software programs themselves must be validated. Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) ensure that our CNC milling centers will produce parts consistently within the exact same micron-level tolerances on the first part and the ten-thousandth part.

CAPA and Risk Management

If a dimensional non-conformance is detected, ISO 13485 mandates a rigorous Corrective and Preventive Action (CAPA) system. We do not just scrap the bad part; we conduct a root-cause analysis (e.g., thermal expansion during machining, undetected tool wear) to ensure the failure mode is permanently engineered out of the process.

Material Selection for Medical Robotics

Materials used in surgical robotics must offer high strength, low mass, and total biological safety. Even if the main structural arm does not directly enter the patient's body, it must still withstand aggressive chemical wipe-downs and potentially high-temperature steam sterilization (autoclaving).

Medical-Grade Titanium: Ti-6Al-4V ELI (Grade 23)

Titanium is the undisputed king of medical manufacturing. The "ELI" stands for Extra Low Interstitial, meaning the alloy contains lower limits of oxygen, carbon, and iron, vastly improving its ductility and fracture toughness.

• Machining Profile: Titanium is exceptionally strong but has poor thermal conductivity. The heat from cutting does not leave with the chip; it stays in the tool and the part. Machining titanium surgical linkages requires immense machine rigidity, high-pressure through-tool coolant, and specialized variable-pitch carbide end mills to prevent catastrophic tool failure and part warping.

High-Strength Stainless Steels: 17-4 PH and 316L

Stainless steel is utilized heavily in the drive mechanisms, joint shafts, and gear housings of the robotic arm.

• 17-4 PH (Precipitation Hardening): This alloy can be machined in a relatively soft state and then heat-treated to immense strength levels (up to 44 HRC) with virtually zero dimensional distortion. It is the premier choice for surgical robotic drive shafts.

• 316L (Low Carbon): Provides the ultimate resistance against pitting corrosion from harsh medical sterilizers. It is notoriously gummy and prone to work-hardening during CNC turning, requiring razor-sharp tooling and aggressive feed rates.

High-Performance Polymers: PEEK

Polyetheretherketone (PEEK) is an advanced engineering plastic. It is highly radiolucent (invisible to X-rays and MRIs) and can survive thousands of autoclave sterilization cycles without degrading. We frequently machine PEEK for electrical insulators, non-marring wire guides, and radiolucent surgical targeting fixtures.

Material Comparison for Surgical Arms

Advanced CNC Strategies for Micro-Kinematics

The scale and complexity of surgical robotic components demand cutting-edge subtractive manufacturing techniques.

Continuous 5-Axis Milling for Monolithic Linkages

To achieve absolute rigidity, the main sections of the robotic arm must be machined from a single, solid billet of titanium or aluminum. Assembling multiple pieces introduces micro-vibrations. 5-axis CNC machining allows our cutting tools to access incredibly deep, complex organic pockets from multiple angles in a single setup. This "Done-in-One" strategy completely eliminates the tolerance stacking errors that occur when a part is manually unclamped and repositioned.

Swiss-Type Lathe Machining for Micro-Components

The internal wire-drive systems of a surgical wrist rely on miniature pulleys and pins, often less than 2mm in diameter. Standard CNC lathes cannot machine parts this small; the cutting pressure causes the tiny metal rod to bend and snap. We utilize Swiss-Type CNC Turning Centers. In a Swiss lathe, the material is fed through a guide bushing directly adjacent to the cutting tool. Because the material is supported millimeters away from the cut, we can machine microscopic medical components with extreme length-to-diameter ratios while holding diametric tolerances of +/- 0.002mm.

Design for Manufacturing (DFM) for Sterilizable Robotics

Designing a robotic arm for an industrial warehouse is fundamentally different from designing one for an operating room. In medical DFM, the physical shape of the part dictates its ability to be sterilized.

The Eradication of "Dead Zones"

If an instrument interface or lower arm linkage is exposed to biological matter, it must be cleanable.DFM Rule: Never design sharp 90-degree internal corners, deep blind holes, or narrow, inaccessible crevices. These features act as biological traps where bacteria can survive the sterilization process. All internal pockets must feature generous, sweeping radii (fillets) that allow for easy fluid drainage and complete steam penetration.

Minimize Tapped Blind Holes

Tapped threads are notorious for trapping contaminants. If a blind threaded hole is required to assemble a surgical casing, design the hole with a generous smooth counterbore at the top, and ensure the thread depth is minimized to exactly what is structurally required. Where possible, design pass-through (through-hole) bolting strategies rather than blind threads.

Design for Smooth Surface Finishes

A rough surface finish acts as a microscopic landscape for pathogens to cling to. While a Ra 3.2µm finish is acceptable for industrial machinery, medical robotic components exposed to the surgical field often require finishes of Ra 0.4µm or smoother. Engineers should design parts that can be easily accessed by polishing tools or electropolishing baths.

Medical Surface Treatments and Passivation

Raw machined metal is highly reactive and not ready for the operating room. We offer specialized, medically compliant surface treatments.

Passivation (ASTM A967):When machining 17-4 PH or 316L stainless steel, the cutting tools can embed microscopic particles of free iron into the surface of the part. If left untreated, this iron will rust. Passivation is a highly controlled acid bath process (citric or nitric acid) that dissolves the free iron and accelerates the formation of a pristine, rust-proof chromium-oxide layer.

Titanium Color Anodizing:Unlike aluminum anodizing which uses dyes, titanium anodizing is a bio-compatible process that uses voltage manipulation to alter the thickness of the oxide layer. This refracts light differently, creating brilliant colors (blue, gold, magenta) without any toxic pigments. This is extensively used in surgical robotics for color-coding specific mechanical joints, cable routing paths, or rapid-exchange instrument latching points.

Electropolishing:An electrochemical process that removes a microscopic layer of metal from the part's surface. It smooths out microscopic peaks and valleys, leaving a mirror-like, ultra-smooth, and highly cleanable surface essential for sterile medical environments.

Frequently Asked Questions (FAQ)

Q: Why is CNC machining preferred over metal 3D printing for surgical robot arms?

A: While metal 3D printing (DMLS) is incredible for complex internal lattices, it cannot achieve the mirror-like surface finishes or the absolute zero-backlash H7 tolerances required for robotic kinematics directly off the printer. High-precision surgical joints always require the uncompromising accuracy of subtractive CNC machining to ensure flawless repeatability.

Q: How does HRD ensure the precision of 5-axis machined titanium arms?

A: Titanium generates immense cutting forces. We utilize highly rigid 5-axis trunnion machines, temperature-controlled machining environments, and specialized trochoidal milling toolpaths to manage heat. Post-machining, every critical dimension is verified using automated Coordinate Measuring Machines (CMM) with sub-micron accuracy.

Q: Can you provide complete material traceability for FDA compliance?

A: Absolutely. Our ISO 13485 compliant quality management system ensures total traceability. We provide comprehensive documentation packages with your components, including raw material certifications, dimensional inspection reports, and surface treatment validation certificates.

Q: What is the lead time for custom surgical robotic prototypes?

A: We understand that medical R&D moves rapidly. Depending on the geometric complexity and the availability of specialized medical-grade alloys, we can often deliver high-fidelity, machined robotic prototypes in 7 to 15 business days, accelerating your path to clinical validation.

Engineering the Future of Minimally Invasive Surgery

A surgical robotic arm is an extension of the surgeon’s intent. Any vibration, backlash, or structural deflection can mean the difference between a successful intervention and a catastrophic failure. Achieving the ultimate level of kinematic precision while adhering to strict medical regulatory standards requires a manufacturing partner with absolute mastery over their craft.

At Huaruida Precision Machinery, we operate at the intersection of extreme multi-axis CNC precision and ISO 13485 quality control. Our engineering team is ready to review your medical CAD models, optimize your designs for sterilizability, and manufacture the robotic components that save lives.
