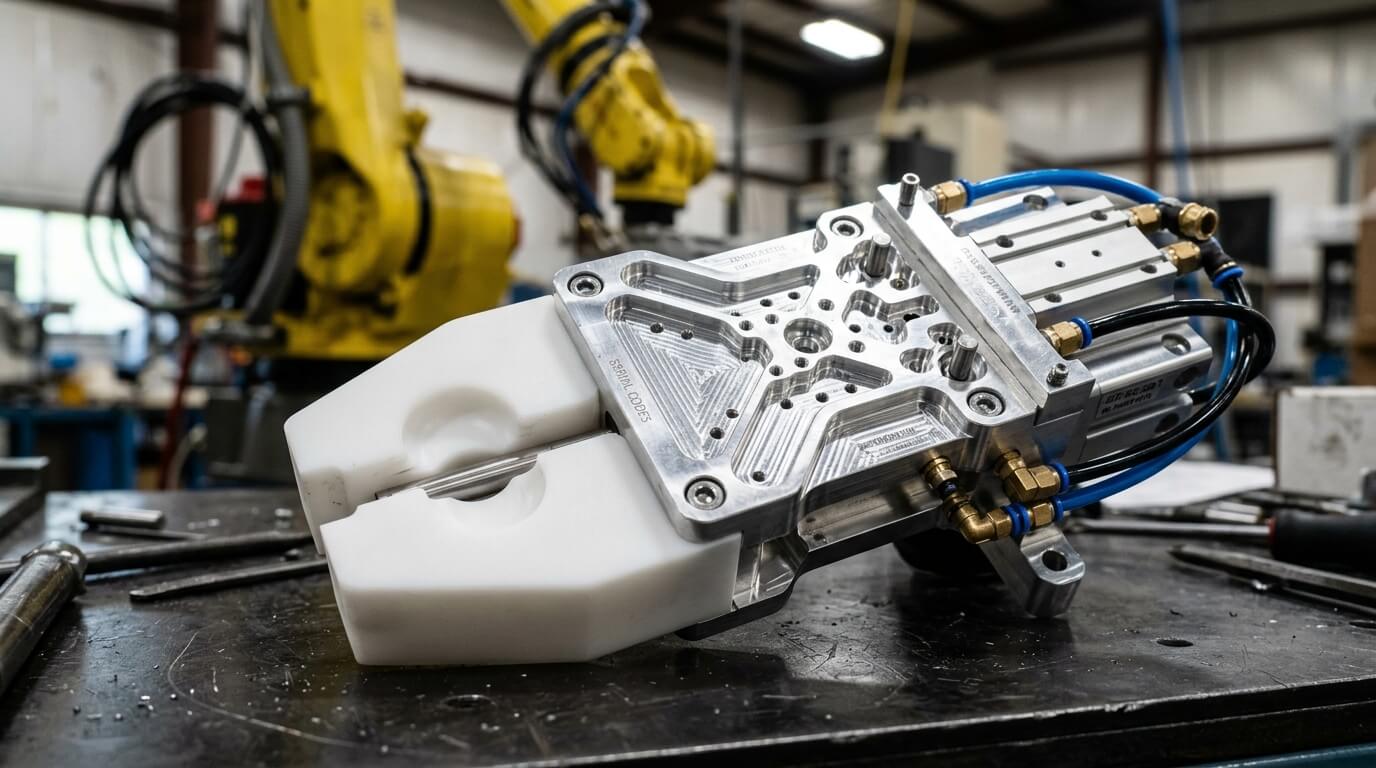

Manufacturing End-of-Arm Tooling (EOAT): Custom CNC Grippers Guide

Introduction

In the highly specialized world of industrial automation, purchasing a six-axis robotic arm is only the first step. The robot itself is merely a highly precise positioning device; it cannot actually pick up a fragile glass test tube, weld a car chassis, or pack a cardboard box. The true functionality of any automated system is entirely dependent on the End-of-Arm Tooling (EOAT).

Also known as the robot's "hand" or "end-effector," EOAT is the critical interface where the machine interacts directly with the workpiece. Because every manufactured product has a unique shape, weight, and fragility, off-the-shelf grippers are rarely sufficient. System integrators and automation engineers must constantly design and manufacture highly customized EOAT to perfectly cradle their specific payloads.

As a leading manufacturing partner for the global robotics and automation industry, Huaruida Precision Machinery (HRD) specializes in producing ultra-precise, lightweight, and durable custom custom CNC machining components for EOAT assemblies.

This comprehensive guide dives deep into the engineering, material selection, and subtractive manufacturing strategies required to build world-class robotic grippers. We will explore the nuances of machining pneumatic manifolds, crafting non-marring custom fingers, and applying essential Design for Manufacturing (DFM) principles to optimize your next automation project.

The Anatomy of End-of-Arm Tooling

Before discussing how to manufacture EOAT, we must break down its primary components. A standard custom gripper assembly usually consists of three main sub-systems:

The Tool Changer / Mounting Flange:This is the base plate that bolts directly to the robot's wrist (usually conforming to ISO 9409-1 mechanical interface standards). It must be machined to exacting tolerances to ensure absolute concentricity and rigidity.

The Actuator / Manifold Body:This houses the mechanical, pneumatic, or electrical drive system that opens and closes the gripper. For pneumatic systems, this block of metal is heavily machined with complex, intersecting internal air channels to route compressed air to the pistons.

The Custom Gripper Fingers (Soft Jaws):This is the highly customized element that actually touches the product. The inner geometry of these "fingers" is CNC machined to form a perfect negative impression (a nest) of the object being picked up, ensuring a secure grip without crushing the part.

Material Selection for Custom Robotic Grippers

In EOAT design, mass is the enemy. The heavier your gripper assembly, the less payload the robot can carry. Conversely, the tooling must be rigid enough to prevent deflection during high-speed, high-G kinematic movements.

Aluminum: The Industry Standard

For 90% of structural EOAT components, aluminum is the undisputed champion.

• 6061-T6 Aluminum: The workhorse material for custom gripper bodies, pneumatic manifolds, and mounting flanges. It is highly machinable, accepts anodizing beautifully, and provides a fantastic balance of strength and low weight.

• 7075-T6 Aerospace Aluminum: Specified when the gripper must handle extreme dynamic loads (like high-speed delta robots used in packaging) but must remain as light as possible to minimize the moment of inertia.

Engineering Plastics: The Non-Marring Solution

When the robot is handling highly delicate, scratch-sensitive, or optically clear parts (such as glass lenses, painted automotive trim, or medical devices), metal fingers are too aggressive.

• POM (Delrin / Acetal): The ultimate plastic for custom CNC gripper fingers. Delrin machines remarkably well, holds excellent dimensional tolerances, and is naturally slippery and non-marring.

• PEEK: Used when the gripper must operate in extreme high-temperature environments (like handling parts fresh out of an injection molding press) or harsh chemical washdowns.

High-Strength Steels: The Heavy Lifters

For heavy foundries, forging operations, or automotive welding lines, aluminum will melt or fatigue.

• 4140 Alloy Steel: Used for extreme payload gripper linkages and high-wear pivot pins. We heavily rely on CNC turning to create hardened 4140 steel alignment studs for quick-change EOAT systems to prevent premature wear.

EOAT Material Comparison Table

CNC Machining Pneumatic Manifolds and Vacuum Plenums

Many custom EOAT systems rely on compressed air or vacuum generators. Integrating the air channels directly into the structural aluminum body of the gripper—creating a pneumatic manifold—eliminates the need for external, messy, and vulnerable plastic air hoses.

Machining these manifolds is a highly complex CNC milling task that requires absolute mastery of internal geometries.

Deep Hole Drilling and Intersecting Channels

To route air through a solid block of aluminum, machinists must drill deep, intersecting channels.

• The Challenge: Drilling a deep hole (e.g., 100mm deep but only 3mm wide) causes the drill bit to wander or flex, potentially missing the intersecting cross-channel.

• The Solution: We utilize specialized parabolic flute drills and high-pressure through-tool coolant systems to evacuate chips and keep the drill tracking perfectly straight, ensuring flawless pneumatic intersections with zero air leaks.

Machining O-Ring Dovetail Grooves

When bolting a vacuum cup or an air cylinder to the manifold, the interface must be hermetically sealed, usually via an O-ring.

• Standard square O-ring grooves are easy to machine, but the O-ring falls out when the gripper is disassembled for maintenance.

• The Advanced Solution: We frequently machine Dovetail O-Ring Grooves using specialized undercut end mills. The dovetail shape physically traps the rubber O-ring inside the metal channel, ensuring it never falls out during aggressive robotic movements or tooling changeovers.

Crafting the Perfect Grip: Machining Custom Fingers

The "fingers" (or soft jaws) are the most frequently redesigned part of any EOAT system. Because they must perfectly mirror the complex 3D shape of the customer's product, they are heavily reliant on advanced CNC surfacing techniques.

3D Contouring and Simultaneous 5-Axis Milling

If a robot needs to pick up a computer mouse, the gripper fingers must be carved with organic, swooping 3D curves to cup the mouse without scratching it. Using advanced CAM software and simultaneous 5-axis milling, we can run high-speed ball-nose end mills across blocks of Delrin or Aluminum to carve out these flawless negative cavities. The 5-axis approach ensures a mirror-smooth surface finish, eliminating the "stair-stepping" effect that could mar a delicate plastic product.

The Critical Role of Dowel Pins for Repeatability

Gripper fingers wear out and must be replaced. When a maintenance technician bolts a new set of custom fingers onto the pneumatic actuator, they must align perfectly within microns. If they are misaligned, the robot will crush the product.

• DFM Rule: Never rely on the mounting screws for alignment. Screws have clearance slop.

• Manufacturing Strategy: We always CNC machine highly precise dowel pin holes (reamed to an H7 slip-fit or press-fit tolerance) into both the gripper body and the custom fingers. The dowel pins guarantee absolute, dead-center repeatability every time a finger is swapped out.

Lightweighting Strategies for High-Speed EOAT

In delta robots (the spider-like robots used for high-speed sorting) or SCARA robots, fractions of a second matter. The lighter the EOAT, the faster the robot can accelerate.

Pocketing and Isogrid Structures

Rather than using solid plates of aluminum, we heavily mill out the non-structural areas of the mounting flanges. By machining an "isogrid" (a honeycomb-like pattern of triangular pockets), we can remove up to 70% of the aluminum's weight while maintaining 95% of its bending stiffness. This requires extensive, high-speed CNC milling time but yields a massive performance upgrade for the robotic system.

The Shift to Magnesium

For ultra-lightweight applications, we can machine EOAT base plates from magnesium alloys. While magnesium is highly flammable during the machining process and requires specialized safety protocols and coolants, it is 33% lighter than aluminum, providing the absolute minimum moment of inertia for lightning-fast robotic cycle times.

Surface Treatments for End-of-Arm Tooling

A raw aluminum gripper will oxidize, scratch, and eventually gall (cold-weld) against mating components. Applying the correct surface treatments is mandatory for industrial longevity.

Type III Hardcoat Anodizing:This is the gold standard for aluminum EOAT components. It penetrates the aluminum to create an incredibly hard, wear-resistant, and electrically insulating ceramic-like oxide layer. We routinely mask the critical dowel pin holes and bearing bores to ensure the anodizing buildup does not ruin the precision alignment fits.

PTFE (Teflon) Infused Anodizing:If the gripper fingers must slide against the product without causing friction or sticking (e.g., handling hot plastics or sticky packaging), we can impregnate the hardcoat anodized layer with PTFE. This creates a permanent, ultra-low-friction, non-stick surface directly on the metal.

Polyurethane Overmolding:For handling highly fragile items (like glass bottles or polished metal cylinders), we will CNC machine an aluminum or steel finger core, and then cast a layer of soft, high-friction polyurethane (PU) directly onto the gripping surface. This combines the unyielding rigidity of a metal backbone with the gentle, high-grip touch of an elastomer.

Design for Manufacturing (DFM) Tips for EOAT Designers

To lower the cost of your custom robotic grippers and accelerate your prototyping phase, follow these essential engineering guidelines:

• Avoid Deep, Square Internal Pockets: If you design a deep pocket to house a custom sensor within your gripper body, ensure the internal corners have generous radii. A CNC end mill is round and cannot cut a sharp internal corner. The larger the corner radius you design, the larger and faster the cutting tool we can use, significantly lowering your machining costs.

• Standardize Thread Sizes: An EOAT manifold might have dozens of threaded holes for air fittings, sensors, and mounting bolts. Standardize these to one or two sizes (e.g., M5 and M8). This prevents the CNC machine from performing dozens of time-consuming tool changes.

• Use Heli-Coils for High-Wear Threads: Aluminum threads will strip if a maintenance tech constantly unscrews and re-screws the gripper fingers. For all frequently utilized mounting holes in an aluminum EOAT base, design the holes to accept stainless steel helical thread inserts (Heli-Coils) for permanent durability.

Frequently Asked Questions (FAQ)

Q: Why should I CNC machine my custom gripper fingers instead of 3D printing them?

A: 3D printing is excellent for rapid, day-one prototyping. However, 3D printed plastics (like FDM PLA or ABS) suffer from anisotropic strength (they break easily along layer lines) and cannot hold the tight tolerances required for precision dowel pin alignment. For long-term production runs, high-cycle fatigue resistance, or handling heavy payloads, CNC-machined Delrin or Aluminum is infinitely more reliable.

Q: Can HRD machine the complex internal air routing for a custom vacuum plenum?

A: Yes. Machining custom vacuum plenums (base plates that distribute vacuum suction to dozens of small suction cups) is one of our specialties. We utilize precision deep-hole drilling and gasket-groove milling to ensure your vacuum system operates efficiently without massive air leaks.

Q: What tolerance can you hold on the robot wrist mounting flange?

A: The mounting flange (typically adhering to ISO 9409 standards) requires extreme precision to ensure the tool sits perfectly flat and concentric to the robot's axis. We routinely face-mill and bore these critical locating features to tolerances of +/- 0.01mm or tighter.

Q: Do you manufacture the quick-change tool studs?

A: Yes. Quick-change systems allow a robot to swap grippers automatically in seconds. The locking studs that make this possible are subjected to extreme wear and pull-out forces. We CNC turn these studs from 4140 alloy steel or high-carbon steel and heat-treat them for maximum hardness and longevity.

Empower Your Robots with Precision Tooling

A million-dollar robotic arm is useless if its gripper drops the product. Engineering and manufacturing high-performance End-of-Arm Tooling requires a delicate balance of extreme lightweighting, complex pneumatic integration, and uncompromising dimensional accuracy.

At Huaruida Precision Machinery, we are the silent partners behind the world's most efficient automated assembly lines. Our engineering team is equipped with the advanced multi-axis CNC technology necessary to bring your custom gripper designs to life.
