Lightweighting Robots: CNC Strategies for Magnesium and Carbon Fiber

Introduction

In the rapidly advancing fields of autonomous robotics, drones (UAVs), and wearable exoskeletons, mass is the ultimate enemy. Every extraneous gram of weight demands larger motors, drains battery reserves faster, limits payload capacity, and reduces the dynamic agility of the robotic system. To overcome the limitations of traditional materials like steel and standard 6061 aluminum, advanced robotics engineers are pushing the boundaries of material science, focusing on two ultimate lightweighting champions: Magnesium Alloys and Carbon Fiber Reinforced Polymers (CFRP).

While both materials offer extraordinary strength-to-weight ratios, they exist on entirely different ends of the manufacturing spectrum. Magnesium is a highly machinable metal that poses severe fire risks during processing, while carbon fiber is a highly abrasive composite that destroys standard cutting tools and risks catastrophic structural delamination.

As a premier manufacturing partner for the global robotics industry, Huaruida Precision Machinery (HRD) has mastered the specialized custom CNC machining techniques required for both exotic materials.

This comprehensive guide delves deep into the CNC strategies for processing magnesium and carbon fiber. We will explore their unique mechanical properties, dissect the extreme challenges of machining them safely and accurately, provide a comparative analysis, and offer essential Design for Manufacturing (DFM) guidelines for engineering hybrid lightweight robotic assemblies.

The Physics of Lightweighting in Robotics

Before examining the materials, it is crucial to understand why shedding weight is so critical in robotic design.

In a multi-axis articulated robotic arm, weight has a compounding effect. If the end-effector (the "hand") is heavy, the wrist motor must be larger to move it. Because the wrist motor is now larger and heavier, the elbow motor must be scaled up to support the wrist, which in turn requires a massive shoulder motor and a heavier base chassis.

By substituting a standard aluminum link with a custom-machined magnesium or carbon fiber component at the end of the arm, engineers can drastically reduce the moment of inertia. This allows for smaller, highly responsive servo drives across the entire robot, drastically reducing total system weight and extending untethered battery life.

Material Deep Dive: Magnesium Alloys

Magnesium is the lightest structural metal available on Earth. It is 33% lighter than aluminum and 75% lighter than steel.

Mechanical Advantages for Robotics

• Extreme Lightness: Magnesium alloys (such as AZ31B or AZ91D) offer excellent specific strength (strength divided by density).

• Vibration Dampening: Magnesium possesses an incredibly high damping capacity. It naturally absorbs kinetic energy and vibrations. For a high-speed pick-and-place robot or a camera-carrying drone, magnesium linkages significantly reduce "shudder" and stabilize the payload.

• Excellent Machinability: From a purely mechanical cutting standpoint, magnesium is exceptionally easy to machine. It produces short, well-broken chips, allows for massive material removal rates, and yields a brilliant surface finish with minimal tool wear.

CNC Machining Magnesium: The Flammability Challenge

If magnesium is so easy to cut, why do many CNC machine shops refuse to process it? The answer is extreme flammability.

Magnesium dust, chips, and swarf are highly reactive and combustible. When ignited, magnesium burns at over 5,000°F (3,000°C), emitting an intensely bright, blinding white light. A magnesium fire cannot be extinguished with water—in fact, water reacts with burning magnesium to produce explosive hydrogen gas.

Advanced Machining Strategies for Magnesium

To safely perform CNC milling and turning on magnesium, strict protocols must be enforced:

• Specialized Coolant Systems: Water-based emulsions are strictly prohibited when machining magnesium due to the risk of hydrogen gas generation. HRD utilizes specialized, lightweight mineral oil-based cutting fluids that suppress sparks and cool the cutting zone without reacting with the metal.

• Sharp Tooling and High Feed Rates: Friction is the trigger for ignition. Dull tools that rub the material generate immense heat. Machinists must use razor-sharp, highly polished uncoated carbide tools. Furthermore, heavy feed rates are required to produce thick, substantial chips; fine, dust-like chips are far more likely to ignite than thick ones.

• Chip Evacuation: Magnesium chips cannot be allowed to accumulate in the machine bed. They must be continuously evacuated, and the machine must be kept immaculately clean.

• Class D Fire Extinguishers: Every machine processing magnesium must be equipped with specialized Class D fire suppressants (dry powder specifically designed for combustible metals).

Material Deep Dive: Carbon Fiber (CFRP)

Carbon Fiber Reinforced Polymer (CFRP) is a composite material made by binding woven carbon fibers with an epoxy resin matrix.

Mechanical Advantages for Robotics

• Unrivaled Strength-to-Weight Ratio: In tension, carbon fiber is significantly stronger and stiffer than steel, yet it weighs even less than magnesium.

• Anisotropic Properties: Unlike isotropic metals (which have the same strength in all directions), carbon fiber can be engineered. By laying up the carbon fibers in specific directions, engineers can create a robotic arm that is incredibly stiff in the direction of the load, while saving weight in unstressed directions.

• Zero Thermal Expansion: CFRP has a near-zero coefficient of thermal expansion, making it ideal for precision optical robotics that must maintain exact dimensions across extreme temperature variations.

CNC Machining Carbon Fiber: The Abrasion and Delamination Challenge

Machining carbon fiber is the exact opposite of machining magnesium. The material is highly abrasive, does not dissipate heat, and is highly susceptible to structural destruction during the cutting process.

Advanced Machining Strategies for CFRP

• PCD Diamond Tooling: Carbon fibers are essentially microscopic razor blades that will destroy a standard solid carbide end mill in minutes. To maintain dimensional accuracy, CNC turning and milling of CFRP require Polycrystalline Diamond (PCD) or CVD diamond-coated tooling, which outlasts carbide by up to 50 times.

• Defeating Delamination: The upward and downward forces of a standard drill bit or end mill will peel the layers of carbon fiber apart (delamination). To prevent this, machinists use Compression Routers, which push the top layers down and pull the bottom layers up simultaneously, forcing the cutting pressure toward the center of the panel for a perfectly clean, fray-free edge.

• Heat Management: Because the epoxy resin matrix acts as a thermal insulator, friction heat builds up in the tool rather than the chips. If the temperature exceeds the resin's glass transition temperature (often around 150°C), the matrix melts, ruining the part. Extremely high spindle speeds combined with aggressive feed rates are required to slice the fibers before heat can accumulate.

• Hazardous Dust Extraction: Machining CFRP produces no chips—only a fine, highly abrasive, and electrically conductive toxic dust. This dust can short out unprotected CNC machine electronics and poses severe respiratory hazards. High-velocity HEPA vacuum extraction at the spindle is mandatory.

Material Comparison: Magnesium vs. Carbon Fiber vs. Aluminum

To help engineers choose the optimal lightweight material, we have compared them across critical manufacturing and performance metrics.

Design for Manufacturing (DFM) for Hybrid Robotic Assemblies

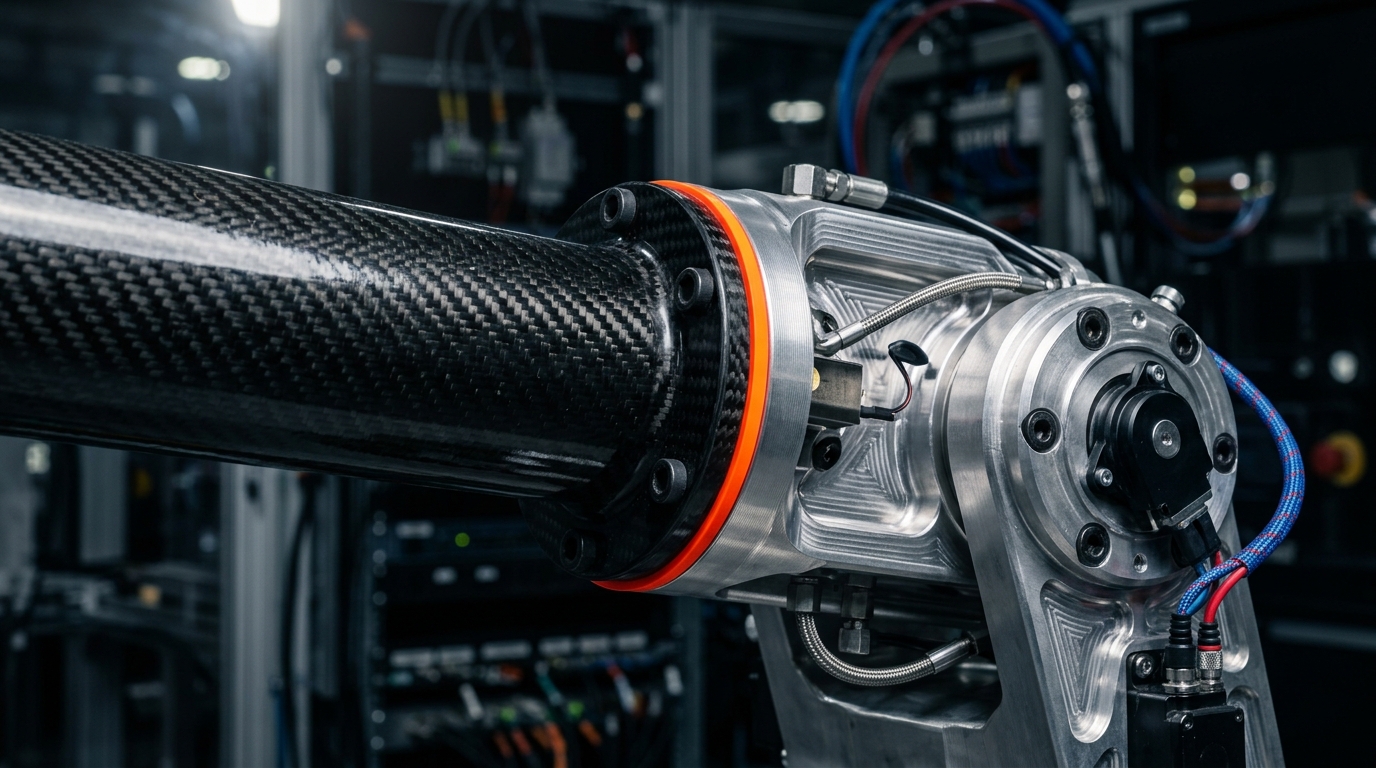

The most advanced robots often use a combination of these materials—for instance, a carbon fiber tubular arm connecting to a precision-machined magnesium joint housing. However, integrating these materials requires strict DFM knowledge.

The Danger of Galvanic Corrosion

This is the most critical design consideration when mixing CFRP and Magnesium. Carbon fiber acts as a highly noble (cathodic) material, while magnesium is highly active (anodic). If bare carbon fiber physically touches bare magnesium in the presence of moisture, a powerful galvanic cell is created. The magnesium component will corrode and dissolve at an astonishing rate.

• The DFM Solution: You must completely electrically isolate the two materials. This is achieved by placing a dielectric barrier between them. Engineers typically specify a layer of fiberglass (G10) at the mating surface, or ensure the magnesium part is heavily treated with a protective coating, and use titanium or specially coated fasteners to join the assembly.

Dealing with Threads

• Magnesium: While you can tap threads directly into magnesium, it is a relatively soft metal. For high-torque robotic joints that may be disassembled for maintenance, it is highly recommended to design the part to accept stainless steel helical thread inserts (Heli-Coils) to prevent stripping.

• Carbon Fiber: Never attempt to tap threads directly into CFRP. The fibers will tear out immediately. Design oversized blind holes and use high-strength structural adhesives to pot internally threaded metallic inserts (like brass or stainless steel) into the composite.

Surface Treatments and Finishes

Both materials require specific surface treatments to survive in harsh operational environments.

• Magnesium Protection: Bare magnesium oxidizes rapidly. It must be protected immediately after machining. Common treatments include Micro-Arc Oxidation (MAO), which creates a thick, ceramic-like oxide layer offering exceptional wear and corrosion resistance. Chromate conversion coatings (Alodine) are also used as a base layer before applying a durable powder coat or epoxy paint.

• Carbon Fiber Sealing: While carbon fiber does not rust, the machined edges expose the raw fibers to moisture absorption, which can degrade the epoxy matrix over time. All CNC-routed edges of a CFRP robotic part should be sealed with a thin layer of cyanoacrylate or liquid epoxy to lock out moisture and prevent fraying.

Frequently Asked Questions (FAQ)

Q: Why not just use 3D printing for lightweight robot parts instead of CNC machining?

A: While 3D printing (Additive Manufacturing) is excellent for complex topological shapes, printed polymers and even printed metals cannot match the isotropic strength, structural rigidity, and tight geometric tolerances of CNC-machined billet magnesium or woven carbon fiber. For high-torque dynamic robotic joints, CNC machining is strictly necessary to ensure zero-backlash performance.

Q: Can HRD machine custom carbon fiber tubes for robotic arms?

A: Yes. We frequently perform custom 5-axis routing and drilling on pre-rolled carbon fiber tubes to create precise mounting points, sensor windows, and joint interfaces for robotic arm linkages, utilizing specialized PCD tooling to prevent delamination.

Q: Is machining magnesium more expensive than machining aluminum?

A: The raw material cost of magnesium is generally higher than standard aluminum. Furthermore, while the physical cutting process is fast, the stringent safety protocols, specialized mineral oil coolants, and careful chip management required to prevent fires add overhead to the manufacturing process, making it slightly more expensive to machine than 6061 aluminum.

Q: How do you achieve tight tolerances on a carbon fiber part?

A: Unlike metals, composites can relieve internal stresses when cut, causing slight warping. To hold tight tolerances (e.g., +/- 0.05mm), we use highly rigid vacuum fixturing, sharp diamond compression routers, and often utilize a roughing pass followed by a very light, high-speed finishing pass to minimize cutting forces on the final surface.

Push the Boundaries of Robotic Kinematics

Lightweighting is not just about shedding grams; it is about unlocking new levels of speed, payload capacity, and energy efficiency in your robotic systems. Successfully harnessing the power of exotic materials like Magnesium and Carbon Fiber requires a manufacturing partner with deep metallurgical knowledge, uncompromising safety protocols, and state-of-the-art tooling.

At Huaruida Precision Machinery, our engineering team is ready to analyze your hybrid robotic CAD assemblies, optimize them for multi-material manufacturability, and deliver precision components that defy gravity.

Contact our Engineering Team Today to Discuss Your Lightweight Robotics Project
