A Guide to the Laser Cladding Process: Technology, Materials, and Applications

Introduction

In extreme industrial environments, metal components are constantly subjected to severe wear, abrasion, corrosion, and high thermal stress. Replacing these massive, high-value components when they wear out is incredibly expensive and causes massive downtime. Enter Laser Cladding—a state-of-the-art surface engineering and additive manufacturing technology designed to extend the lifespan of critical parts indefinitely.

Also known as Laser Metal Deposition (LMD), laser cladding involves using a high-powered laser beam to melt a metallic powder or wire onto a substrate, creating a pore-free, metallurgically bonded coating. Unlike traditional welding or thermal spraying, this process offers unparalleled precision, minimal heat input, and the ability to combine dissimilar metals for ultimate surface performance.

As a comprehensive manufacturing partner, Huaruida Precision Machinery (HRD) understands that creating high-performance components often requires blending additive and subtractive manufacturing. While we specialize in custom CNC machining, we frequently process, finish, and restore parts that have undergone advanced surface treatments like laser cladding.

This comprehensive guide delves deeply into the science of the laser cladding process, compares it to alternative coating methods, explores the materials used, and highlights why post-cladding CNC machining is essential for your custom metal parts.

How the Laser Cladding Process Works

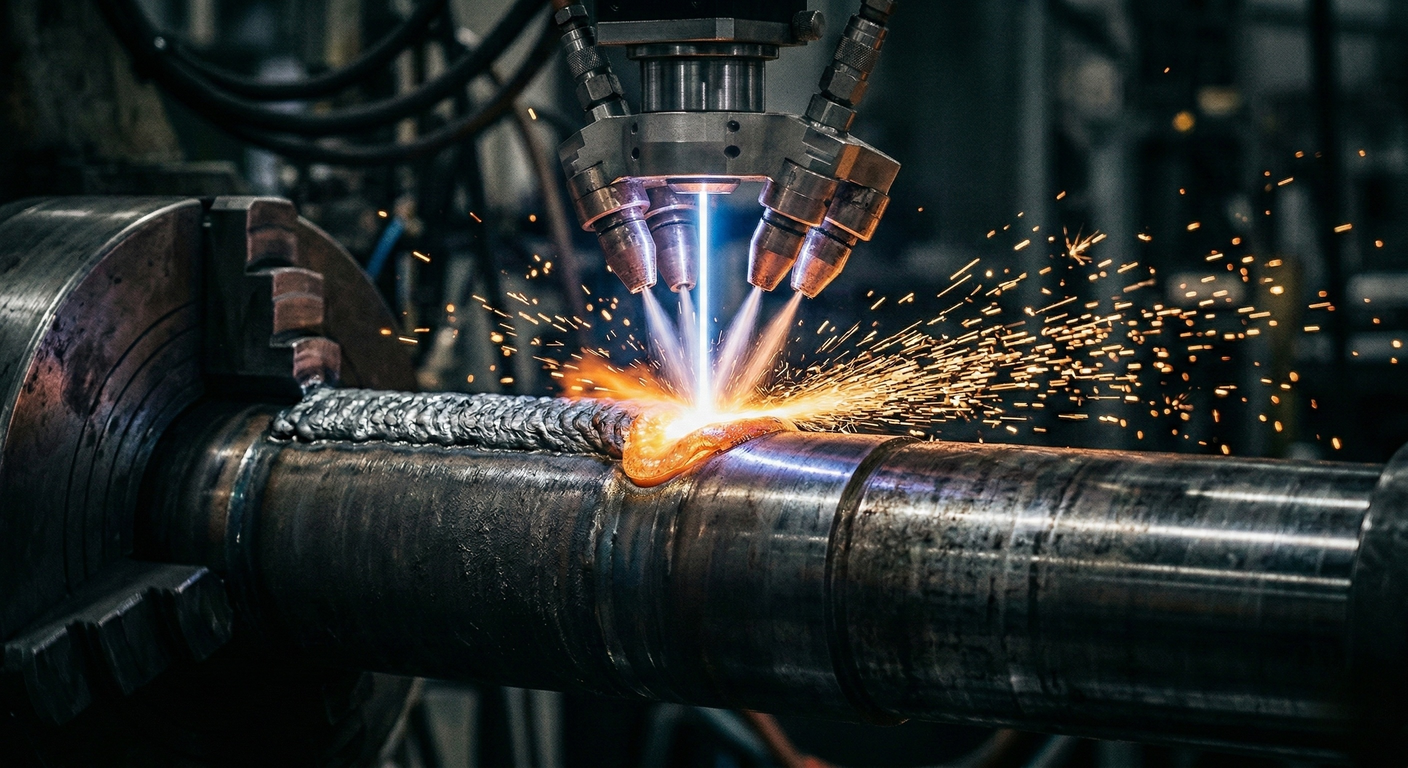

At its core, laser cladding is a highly controlled welding process. It utilizes optics to focus a powerful laser (typically Fiber, Nd:YAG, or Diode lasers) onto the surface of a workpiece.

The process follows these precise steps:

Melt Pool Generation: The focused laser beam hits the substrate (the base material), rapidly heating a microscopic area to its melting point. This creates a highly localized, shallow "melt pool."

Material Injection: Simultaneously, a coating material—usually in the form of a fine metallic powder or a solid wire—is fed directly into the melt pool. Powders are typically blown into the beam using a coaxial nozzle carried by an inert shielding gas.

Fusion and Solidification: As the laser moves along the programmed CNC path, the injected powder melts and fuses with the base material. Because the laser moves quickly, the melt pool cools and solidifies almost instantly.

Shielding Gas: Throughout the process, an inert gas (such as Argon or Helium) shrouds the melt pool. This prevents oxygen and atmospheric contaminants from entering the molten metal, ensuring a dense, porosity-free coating.

The result is a fully dense overlay that is metallurgically bonded to the base metal, meaning the coating and the substrate have fused at a molecular level, making it virtually impossible for the coating to peel or flake off.

Laser Cladding vs. Traditional Surface Coating Techniques

To understand why engineers specify laser cladding over older technologies, we must look at the concepts of Dilution and Heat Affected Zone (HAZ).

Dilution refers to how much of the base metal mixes with the coating material. Too much dilution ruins the properties of the expensive coating. HAZ refers to the area of the base metal that was not melted but had its microstructure altered by the heat, often causing warping or loss of strength.

Surface Coating Comparison Table

Key Takeaways from the Comparison

• Versus Thermal Spray: While High-Velocity Oxygen Fuel (HVOF) spraying is excellent for thin wear coatings, the bond is purely mechanical. In high-impact applications, thermal spray can delaminate (chip off). Laser cladding's metallurgical bond will never delaminate.

• Versus Arc Welding: Traditional hardfacing via TIG or PTA welding pumps massive amounts of heat into the part, causing severe warping and a massive Heat Affected Zone (HAZ). Laser cladding puts significantly less heat into the part, preserving the substrate's mechanical properties and tight dimensional tolerances.

• Versus Hard Chroming: Hard chrome is being phased out globally due to severe environmental and health regulations (Hexavalent Chromium toxicity). Laser cladding is the primary green alternative, offering superior wear and corrosion resistance without the toxic byproducts.

Common Materials Used in Laser Cladding

One of the greatest advantages of the laser metal deposition process is material versatility. You can deposit expensive, high-performance alloys strictly where they are needed—on the wear surface—while using a cheaper, tougher carbon steel for the main body of the part.

Cobalt-Based Alloys (Stellite)

Stellite powders are heavily used for extreme wear resistance combined with high-temperature stability. They retain their hardness even at red-hot temperatures and are highly resistant to galling and cavitation. They are frequently used to clad engine valves, saw blades, and high-pressure chemical pumps.

Nickel-Based Alloys (Inconel, Hastelloy)

Nickel superalloys are the kings of corrosion and oxidation resistance. Cladding a steel part with Inconel 625 or 718 provides the component with immense resistance to pitting, crevice corrosion, and acidic environments. These are widely used in offshore oil and gas drilling equipment.

Tungsten Carbide (WC) Composites

For ultimate abrasion resistance (e.g., digging tools, mining augers), Tungsten Carbide particles are mixed with a Nickel or Cobalt matrix binder. The laser melts the softer binder matrix to adhere to the substrate, permanently trapping the diamond-hard Tungsten Carbide particles within the wear layer.

Iron-Based Alloys and Stainless Steels

Martensitic stainless steels (like 410 or 420) are frequently used to restore worn-out steel shafts to their original dimensions. They offer a cost-effective way to repair heavy industrial machinery components rather than buying new ones.

The Critical Role of CNC Machining After Laser Cladding

A common misconception is that a laser-clad part comes out of the machine ready to use. In reality, the laser deposition process leaves a surface finish that looks like overlapping weld beads—it is relatively rough and slightly oversized.

To achieve the precise dimensional tolerances and smooth surface finishes required for mechanical assemblies (like bearing journals or hydraulic seal surfaces), the clad layer must be heavily machined.

This is where integrating additive processes with precision subtractive manufacturing becomes vital.

Machining Challenges of Clad Surfaces

Machining a laser-clad surface is significantly more difficult than cutting raw steel.

• Extreme Hardness: Coatings like Stellite or Tungsten Carbide often reach hardness levels of 50 to 65 HRC.

• Interrupted Cuts: The slightly wavy topography of the raw cladding causes interrupted cutting forces, which can shatter brittle cutting tools.

Subtractive Solutions

To bring these extremely hard surfaces down to exact tolerances, expert manufacturers utilize rigid CNC turning centers equipped with PCBN (Polycrystalline Cubic Boron Nitride) or ceramic inserts. For complex geometries, heavy-duty CNC milling and post-process cylindrical grinding are employed to achieve mirror-like finishes (Ra 0.4um or better) on the incredibly tough clad layer.

Designing a part for laser cladding requires a "machining allowance." The engineer must CAD the base part undersized, allow the cladding to build it up oversized, and then specify the final CNC machining dimensions to trim the hard-face down to perfection.

Major Industrial Applications

The ability to selectively apply super-alloys to localized wear points has transformed multiple heavy industries.

Oil, Gas, and Mining

Downhole drilling tools, mud motor rotors, and hydraulic cylinders operate in highly abrasive, sand-filled, corrosive slurry environments. Cladding these components with Tungsten Carbide composites extends their operational life by up to 500% compared to unclad steel.

Power Generation and Aerospace

Gas and steam turbine blades suffer from severe erosion and high-temperature oxidation. Laser cladding is used to deposit Inconel alloys onto the leading edges of these blades, and more importantly, it is the primary method used to repair expensive turbine blades that have worn down over time.

Automotive and Tooling

Stamping dies and plastic injection molds wear out at the edges after thousands of cycles. Instead of scrapping a massive D2 tool steel die, laser cladding can deposit a tiny, precise line of high-hardness tool steel exactly on the worn edge, which is then CNC milled back to its original sharp profile.

Frequently Asked Questions (FAQ)

Q: Is the bond between the laser cladding and the substrate mechanical or metallurgical?

A: It is strictly a metallurgical bond. The laser slightly melts the top layer of the substrate, blending it with the injected powder. Once cooled, the coating and the base material are molecularly fused into a single piece of metal. It will not flake or peel under heavy impact.

Q: How thick can a laser clad coating be?

A: Laser cladding is highly controllable. A single pass can deposit a layer anywhere from 0.2mm to 2.0mm thick. Multiple overlapping tracks and layers can be deposited to build up thicknesses of 5.0mm, 10mm, or even higher, essentially performing 3D printing (Directed Energy Deposition) on the part.

Q: Is laser cladding more expensive than thermal spray (HVOF)?

A: The initial application cost of laser cladding is generally higher than HVOF due to the cost of the laser equipment and the high-purity metal powders required. However, because it lasts significantly longer, never delaminates, and requires less frequent part replacement, the Total Cost of Ownership (TCO) is almost always lower for high-stress components.

Q: Can you laser clad aluminum?

A: Yes, but it is challenging. Aluminum is highly reflective to most laser wavelengths and dissipates heat rapidly. However, using specific laser wavelengths and specialized powder blends, it is possible to clad wear-resistant layers onto custom aluminum parts.
