High-Precision Bearing Housings for Robotic Joints: A CNC Machining Guide

Introduction

In the intricate world of advanced robotics, every movement—from the delicate positioning of a surgical scalpel to the aggressive swing of an industrial automotive welding arm—relies on flawless kinematics. At the literal pivot point of these movements are the robotic joints. Inside these joints, enclosing the harmonic drives, cycloidal gearboxes, and heavy-duty cross-roller bearings, lies one of the most critical mechanical components in the entire assembly: the High-Precision Bearing Housing.

A bearing housing in a robotic arm is not merely a cover; it is a structural foundation. If the bearing bore is machined even a few microns out of tolerance, the bearing will be compressed unevenly. This induces friction, generates excessive heat, accelerates wear, and most critically, introduces backlash (mechanical play) into the joint. A microscopic deviation at the base joint of a robot will amplify into a massive positioning error at the end-effector.

As a premier provider of custom CNC machining for the global automation industry, Huaruida Precision Machinery (HRD) specializes in manufacturing ultra-precise robotic components. We understand that machining a perfect bearing housing requires mastering thermal dynamics, vibration control, and rigorous Geometric Dimensioning and Tolerancing (GD&T).

This comprehensive guide delves into the extreme engineering requirements of robotic bearing housings. We will explore critical tolerance management, compare machining strategies for perfect bearing bores, discuss material selection, and provide essential Design for Manufacturing (DFM) tips to ensure your robotic joints operate with absolute zero-backlash precision.

The Kinematic Imperative: Why Bearing Housing Precision Matters

To understand the machining challenges, engineers must first understand the physics of a robotic joint. Modern collaborative robots (cobots) and industrial arms heavily utilize strain-wave gearings (commonly known as Harmonic Drives).

These drives offer zero backlash and immense torque in a tiny package, but they are incredibly sensitive to their mounting environment. The bearing housing that supports these drives must achieve absolute perfection in three specific areas:

Concentricity (Coaxiality): The inner diameter (ID) of the bearing bore must share the exact same centerline as the outer diameter (OD) or the opposing bearing bore. If the bores are eccentric, the rotating shaft will wobble, inducing cyclical stress that will destroy the gearbox in hours.

Cylindricity: The bore cannot be tapered (cone-shaped) or out-of-round (oval). If the bore is oval, pressing a perfectly round bearing into it will force the outer race of the bearing to distort into an oval shape as well, pinching the ball bearings inside and causing immediate joint failure.

Perpendicularity (Squareness): The shoulder (the flat shelf at the bottom of the bore that the bearing rests against) must be perfectly perpendicular to the bore's axis. If the shoulder is slanted, the bearing will sit at an angle, causing the robotic arm to sweep in a distorted, non-planar arc.

CNC Machining Strategies for Perfect Bearing Bores

Achieving H7 or h6 tolerances (often requiring diametric precision within +/- 0.005mm or tighter) requires specialized subtractive manufacturing techniques. Not all cutting methods are created equal when it comes to bearing housings.

The Limitation of Circular Interpolation (Milling)

Many designers assume a bearing bore can simply be cut using a standard end mill on a CNC mill, using a technique called circular interpolation (moving the tool in a circle). While excellent for general CNC milling, interpolation relies on the simultaneous movement of the X and Y machine axes. Any microscopic backlash in the machine's ball screws will translate into a very slight oval shape in the bore. For high-end robotic bearings, interpolated bores are often insufficiently round.

The Power of CNC Boring

The absolute best method for creating a perfect bearing bore on a milling center is using a Boring Head. A boring bar uses a single-point cutting insert spinning on a fixed axis. It does not rely on the machine's X/Y axis movement to create the circle; the rotation of the spindle itself creates a mathematically perfect cylinder. Boring delivers unparalleled cylindricity and a flawless surface finish.

CNC Turning and Mill-Turn Centers

For housings that are primarily cylindrical, CNC turning is the ultimate solution. Spinning the workpiece on a lathe guarantees perfect concentricity. At HRD, we heavily utilize Mill-Turn Centers for robotic housings. We can turn the critical bearing bores, stop the spindle, and then use live milling tools to cut the asymmetric mounting flanges and drill bolt patterns without ever un-clamping the part. This "Done-in-One" approach eliminates the tolerance stacking that occurs when moving parts between different machines.

Bore Machining Comparison Table

Combating Thin-Wall Deformation

Robotic engineers are obsessed with lightweighting. To reduce the mass of the robot arm, bearing housings are often designed with extremely thin walls. This presents a massive manufacturing nightmare.

When a machinist clamps a thin-walled aluminum cylinder in a traditional lathe chuck, the pressure of the jaws squeezes the part into a slight triangle shape. The machinist bores a perfectly round hole into this "triangle." However, the moment the chuck is opened and the clamping pressure is released, the part springs back to its original shape, and the perfectly round bore springs into a triangular, out-of-tolerance mess.

Expert Solutions for Thin Walls:

• Custom Pie Jaws (Soft Jaws): Instead of three small contact points, we machine custom aluminum jaws that wrap completely around the workpiece, distributing the clamping pressure evenly over 360 degrees.

• Low-Stress Machining: We utilize a two-step process. We rough-machine the part, leaving a tiny amount of material. We then unclamp the part to relieve internal material stresses, re-clamp it with incredibly light pressure, and take a final, razor-thin finishing pass with an ultra-sharp cutting insert to minimize cutting forces.

Material Selection for Robotic Housings

The material dictates the strength, weight, and thermal stability of the robotic joint.

• Aluminum 7075-T6: The premier choice for advanced robotics. It offers the strength of steel at one-third the weight. It machines beautifully, holds tight tolerances, and diffuses heat effectively away from the servo motors.

• Titanium (Ti-6Al-4V): Used in deep-sea ROVs and highly stressed aerospace linkages. It provides ultimate corrosion resistance and strength. However, its poor thermal conductivity makes it notoriously difficult to machine, requiring immense machine rigidity to prevent the cutting tools from chattering.

• Stainless Steel (304 / 316): Specified for food-grade delta robots or medical surgical arms where the joints must withstand aggressive chemical washdowns. Stainless steel requires slower cutting speeds to prevent work-hardening during bore machining.

Design for Manufacturing (DFM) for Bearing Housings

An incredibly expensive, high-precision bearing is useless if it is damaged during installation. Proper DFM ensures the housing is not only manufacturable but assembly-friendly.

Include an Undercut (Relief Groove)

The sharp 90-degree internal corner where the bearing bore meets the seating shoulder cannot be machined perfectly square (a cutting tool always has a microscopic radius). If you do not design a relief groove, the bearing will hit this corner radius before it sits flat on the shoulder, causing it to sit crooked.DFM Tip: Always design a small undercut (relief groove) at the base of the bearing bore. This allows the bearing to clear the corner radius and seat perfectly flat against the shoulder.

Design Generous Lead-in Chamfers

Pressing a high-precision steel bearing into an H7 tolerance aluminum bore requires perfect alignment. If the bore has a sharp 90-degree top edge, the bearing can easily catch and "gall" (scrape and cold-weld) the aluminum as it is pressed in, ruining the housing.DFM Tip: Design a shallow, 10-to-15-degree lead-in chamfer at the top of every bearing bore to gently guide the bearing into alignment during the press-fit operation.

Account for Thermal Expansion

Robotic servo motors generate immense heat. Aluminum expands thermally at a much higher rate than the steel bearings pressed inside it. In high-heat applications, an aluminum housing can expand so much that a tight press-fit becomes a loose slip-fit, causing the joint to vibrate.DFM Tip: For high-temperature robotic joints, engineers must calculate the thermal expansion delta and specify an exceptionally tight "interference fit" at room temperature, or utilize steel sleeve inserts within the aluminum housing.

Surface Treatments and Masking

After machining, robotic housings typically undergo surface treatments for wear protection and aesthetics.

The Danger of Anodizing Bearing Bores:Type III Hardcoat Anodizing provides excellent scratch resistance for the exterior of an aluminum robot chassis. However, anodizing adds a microscopic layer of thickness (build-up) to the part. If you anodize a precision H7 bearing bore, the bore will shrink, and the bearing will no longer fit.

The Solution (Precision Masking):At HRD, we employ rigorous masking protocols. We utilize custom-machined silicone plugs to hermetically seal the high-precision bearing bores and tapped threaded holes before the part is sent to the anodizing bath. This ensures the exterior receives maximum protection while the critical kinematic interfaces remain bare, perfectly-dimensioned aluminum.

Frequently Asked Questions (FAQ)

Q: Why is my robotic joint experiencing backlash if the bearing is high quality?

A: Backlash in a robotic joint is rarely the fault of a premium bearing. It is almost always caused by a poorly machined bearing housing. If the housing bore is oversized, out-of-round, or if the seating shoulder is not perfectly perpendicular, the bearing will shift under dynamic loads, introducing backlash into the arm.

Q: Can HRD machine custom housings for Harmonic Drives and Cycloidal Gears?

A: Absolutely. We specialize in manufacturing ultra-precise mounting flanges, flexspline cups, and circular spline housings for strain-wave gearings, ensuring the exact concentricity required for zero-backlash robotic performance.

Q: How do you measure a precision bearing bore to guarantee an H7 tolerance?

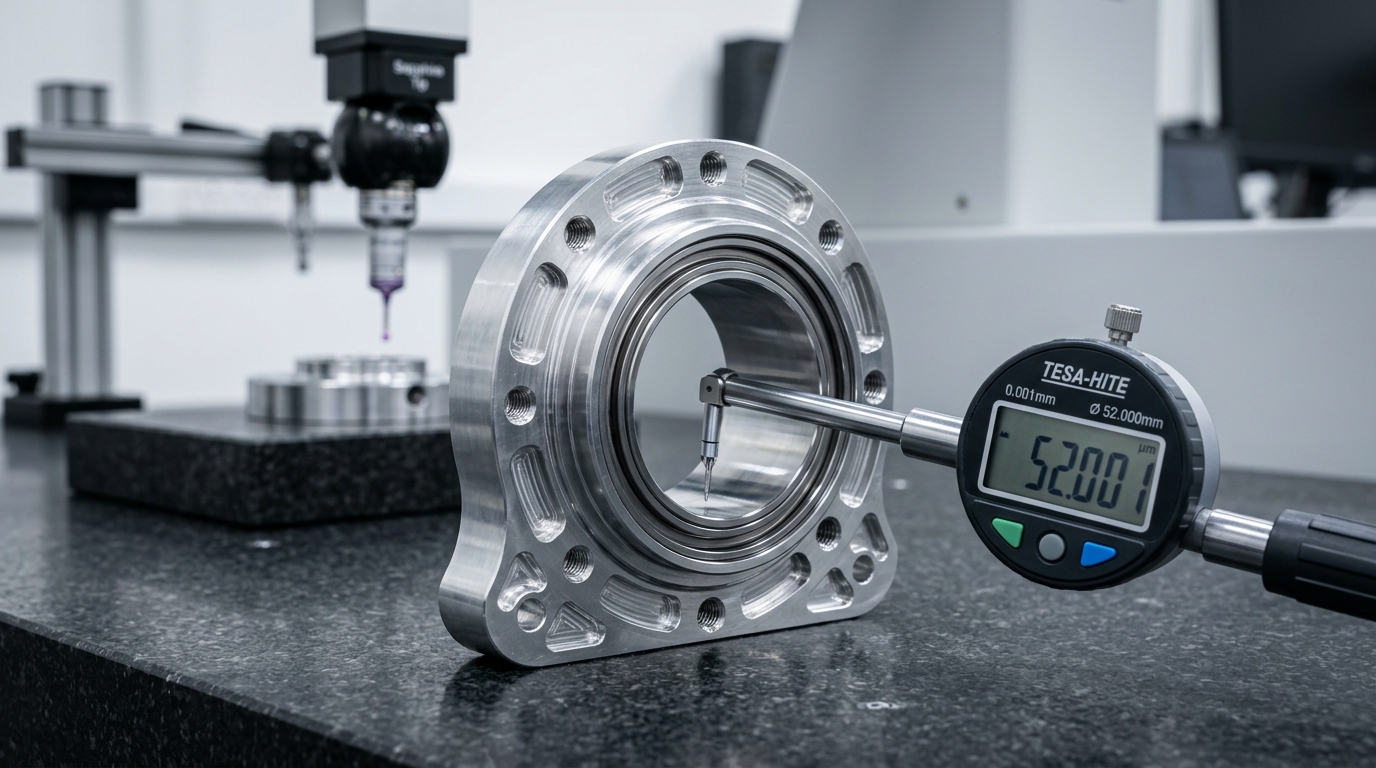

A: We do not rely on standard calipers for critical robotic joints. We utilize precision bore micrometers (dial bore gauges) and automated Coordinate Measuring Machines (CMM) with ruby-tipped touch probes to verify exact diameter, roundness, and cylindricity down to the micron level.

Q: Should I use a press fit or a slip fit with retaining compounds?

A: For high-torque, heavy-payload robots, a true mechanical interference fit (press fit) is generally preferred for maximum rigidity. However, for lightweight, thin-walled aerospace housings where a heavy press fit might crack the housing, a tight slip fit combined with an anaerobic retaining compound (like Loctite 680) is an excellent engineering alternative.
