Heavy-Duty Chassis Machining for Warehouse Logistics Robots: A Complete Guide

Contents

Introduction

The Engineering Demands of Heavy-Duty Robot Frames

Material Selection for Heavy-Duty Chassis

Manufacturing Strategy: Weldments vs. Monolithic Billet

The Critical Step: Thermal Stress Relief and Post-Weld Machining

Mastering GD&T for Heavy Kinematics

Surface Treatments for Warehouse Environments

Frequently Asked Questions (FAQ)

Heavy-Duty Chassis Machining for Warehouse Logistics Robots: A Complete Guide

Introduction

The backbone of the modern global supply chain is no longer just concrete and steel; it is automation. Mega-warehouses, automotive assembly plants, and intelligent fulfillment centers rely entirely on fleets of Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), and automated forklifts. Unlike lightweight hospital delivery bots, these heavy-duty logistics robots are tasked with moving massive payloads—often ranging from 1,000 kg to over 10,000 kg—continuously, 24 hours a day, 7 days a week.

At the very foundation of these mechanical workhorses is the heavy-duty robot chassis. This central structural frame must support colossal vertical loads, endure the dynamic shock of uneven warehouse floors, provide rigid mounting points for high-torque servo motors, and maintain absolute dimensional stability to keep LiDAR sensors and camera arrays perfectly aligned.

Manufacturing these massive components requires a fusion of heavy industrial fabrication and microscopic CNC precision. As a premier provider of custom CNC machining and large-scale metal fabrication in China, Huaruida Precision Machinery (HRD) specializes in producing the rugged skeletons that power global logistics.

This comprehensive guide explores the unique engineering challenges of heavy-duty chassis machining. We will compare monolithic billets versus fabricated weldments, dive deep into the critical necessity of post-weld stress relief, explore large-scale CNC milling strategies, and provide actionable Design for Manufacturing (DFM) tips for your next robotics project.


The Engineering Demands of Heavy-Duty Robot Frames

Designing a chassis for a heavy-duty warehouse robot is fundamentally different from designing a consumer electronics enclosure. The mechanical stresses are exponential.

Extreme Payload Capacity: The chassis must bear not only the static weight of a multi-ton pallet but also the dynamic, shifting loads when the robot accelerates, brakes, or turns sharply. If the chassis flexes under these loads, the internal drive components will bind and fail.

Kinematic Precision on a Massive Scale: Even though the chassis might measure two meters in length and weigh 500 kg, the bearing bores for the drive axles must still be machined to exacting H7 tolerances. If the left and right drive wheels are misaligned by just a fraction of a degree, the robot will constantly fight itself, scrubbing its tires and rapidly burning out its drive motors.

Sensor Alignment: Modern logistics robots navigate via SLAM (Simultaneous Localization and Mapping). The structural mounts for the LiDAR units and safety scanners must be perfectly flat and rigid. Any vibration or geometric distortion in the chassis will blind the robot's navigation software.


Material Selection for Heavy-Duty Chassis

The choice of material dictates the manufacturing process, the final weight of the robot, and the overall cost. For heavy-duty logistics, engineers typically choose between structural carbon steel and high-strength aluminum.

Carbon Steel: The Industry Standard

For massive payload capacities (AGVs moving cars, steel coils, or heavy pallets), carbon steel is the undisputed king.

  • A36 / Q235 Mild Steel: The most common material for custom robot chassis. It offers excellent weldability, massive strength, and high ductility to absorb shock. It is highly cost-effective for large, fabricated frames.

  • 1045 Medium Carbon Steel: Used for precision base plates or heavy-duty mounting flanges that require higher rigidity and better machinability than mild steel.

High-Strength Aluminum: The Agile Alternative

For AMRs that handle medium payloads (500 kg to 1,500 kg) but require high-speed agility and maximum battery efficiency, shedding chassis weight is critical.

  • 6061-T6 Aluminum: Often used to CNC machine thick base plates for smaller pallet jacks. It offers a great balance of strength, lightweighting, and excellent thermal conductivity to draw heat away from the battery banks.

  • 7075-T6 Aluminum: Aerospace grade. Used in highly specialized, compact robots where the chassis must be as strong as steel but a third of the weight.

Material Comparison for Robot Chassis

Feature

Carbon Steel Weldments (A36/Q235)

Billet Aluminum (6061-T6)

Cast Iron

Payload Capacity

Extreme (10+ Tons)

Medium to High (Up to 2 Tons)

Extreme (High compressive strength)

Manufacturing Method

Laser Cut -> Weld -> CNC Machine

CNC Machined from solid block

Sand Casting -> CNC Machine

Vibration Damping

Good

Low

Exceptional

Weight

Very Heavy

Lightweight

Very Heavy

Lead Time for Prototyping

Fast (Fabricated from stock plates)

Fast (Machined from billet)

Very Slow (Requires mold creation)

Cost at High Volume

Low to Medium

High (Due to material cost/waste)

Very Low


Manufacturing Strategy: Weldments vs. Monolithic Billet

How do you manufacture a chassis that is 2 meters long and 1 meter wide?

The Monolithic Billet Approach

For smaller AMRs, the entire chassis can be carved out of a single, solid block of aluminum using heavy-duty CNC milling. This creates a seamlessly rigid part with zero joints. However, for a 2-meter-long heavy-duty AGV, buying a solid block of steel or aluminum that size is astronomically expensive, and machining away 80% of its volume is a massive waste of machine time.

The Fabricated Weldment Approach

This is the industry standard for large logistics robots. The chassis is designed as a skeletal frame made of heavy steel plates and square tubing.

  1. The individual plates are laser-cut.

  2. The pieces are clamped into a fixture and robotically or manually MIG/TIG welded together.

  3. The Challenge: The resulting welded frame is immensely strong, but it is entirely out of tolerance. The intense heat of welding warps the steel. A mounting pad that was supposed to be perfectly flat is now bowed.

This brings us to the most critical step in heavy chassis manufacturing.


The Critical Step: Thermal Stress Relief and Post-Weld Machining

You cannot simply put a freshly welded steel frame into a CNC machine and start cutting precise bearing bores.

Why Stress Relief is Mandatory

During welding, massive amounts of heat are injected locally into the steel, creating a Heat Affected Zone (HAZ). As the weld cools, the metal shrinks, locking massive internal stresses into the frame. If you CNC machine a raw weldment, the act of cutting away metal releases those locked-in stresses. The frame will literally warp and twist while it is clamped in the CNC machine. You might bore a perfectly round hole, but the moment you unclamp the chassis, it will spring into a twisted shape, and the hole will become an oval.

The Thermal Annealing Process

To prevent this, HRD subjects all heavy-duty robotic weldments to Thermal Stress Relief. The entire welded frame is placed into a massive industrial furnace. It is slowly heated to around 600°C (1100°F), held at that temperature for several hours, and then allowed to cool extremely slowly inside the furnace. This reorganizes the molecular structure of the steel, completely erasing the internal stresses.

Post-Weld CNC Machining

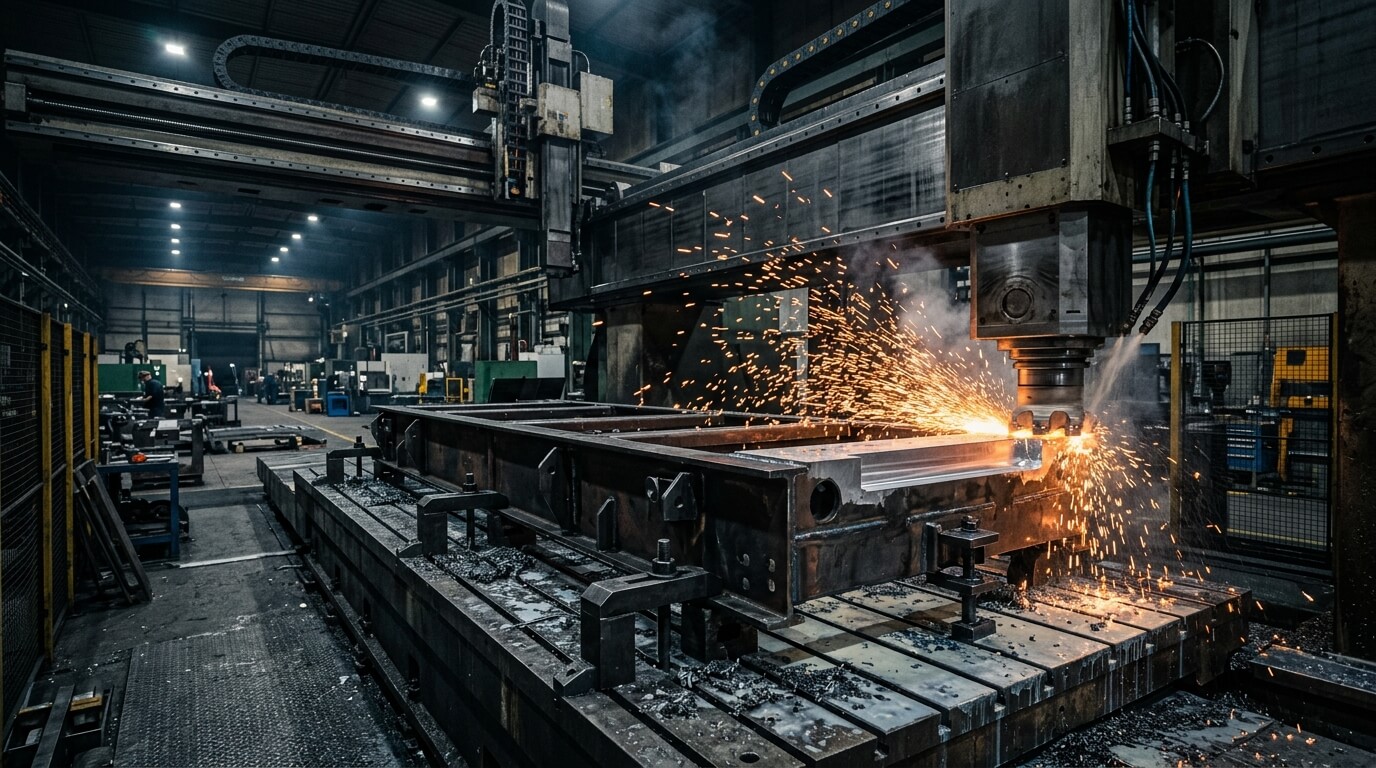

Once the frame is stress-relieved, it is dimensionally "dead" (stable). We then load the massive frame onto a Large-Scale Gantry CNC Mill or a Horizontal Boring Mill. We use these massive CNC machines to perform subtractive manufacturing on the welded frame:

  • Face-milling all motor mounting pads so they are perfectly flat and coplanar.

  • Boring out the drive axle holes to precise H7 tolerances.

  • Drilling and tapping all sensor and battery mounting hole patterns.

Because the frame was stress-relieved, it will remain perfectly accurate after the machining is finished.


Mastering GD&T for Heavy Kinematics

When machining a heavy-duty chassis, Geometric Dimensioning and Tolerancing (GD&T) is far more critical than simple linear dimensions.

Parallelism of Drive Axles: If an AGV uses a differential drive system (two independent drive wheels), the bores for those two drive axles must be perfectly parallel to each other. If they are toe-in or toe-out by even a fraction of a degree, the solid polyurethane tires will scrub violently against the concrete warehouse floor. This drains the battery and destroys the treads in weeks.

Coplanarity of Suspension Mounts:Many heavy AGVs use specialized suspension casters to keep all wheels on the ground over uneven surfaces. The mounting plates for these casters on the bottom of the chassis must be absolutely coplanar (on the exact same flat geometric plane). We achieve this by face-milling all mounting pads in a single, continuous CNC operation using a large fly cutter or face mill.

Design for Manufacturing (DFM) for Large Chassis

Designing a 500 kg steel chassis requires a different mindset than designing a handheld aluminum part. Consider these DFM rules to lower your manufacturing costs:

Design for One-Setup Machining

Large gantry CNC mills are expensive to run. Every time a massive, heavy chassis must be lifted by a crane, rotated, and re-indicated by the machinist, costs skyrocket, and accuracy is lost.DFM Tip: Try to design your chassis so that all critical precision features (motor mounts, axle bores, sensor pads) can be accessed from the top and the sides without having to flip the chassis completely upside down.

Utilize Self-Locating Weld Features

To ensure the welders assemble the steel plates accurately before machining, design "Tab and Slot" features into your laser-cut parts. This allows the plates to physically interlock like puzzle pieces before welding, guaranteeing correct geometry and reducing the need for expensive, custom-built welding jigs.

Standardize Hardware and Thread Sizes

A massive robot chassis might have 200 tapped holes to mount various panels and components. Do not use M4, M5, M6, and M8 threads randomly. Standardize on one or two thread sizes (e.g., make everything M6). This prevents the massive CNC machine from having to perform dozens of time-consuming tool changes to load different drills and taps.


Surface Treatments for Warehouse Environments

A heavy-duty chassis is subjected to forklift impacts, battery acid spills, and high humidity. Bare steel will rust rapidly.

  • Powder Coating: The ultimate standard for logistics robots. Following the final CNC machining, the chassis is masked (to protect the precision bearing bores and tapped holes) and sprayed with a heavy-duty, impact-resistant thermoset powder coat.

  • Zinc Plating (Galvanizing): Often used for internal structural brackets or suspension arms hidden within the robot. It is highly cost-effective and provides excellent rust prevention.

  • Electroless Nickel Plating: Used for critical CNC turning components like custom heavy-duty drive axles. It provides a hard, perfectly uniform, corrosion-resistant shell that does not alter the precision dimensions of the shaft.


Frequently Asked Questions (FAQ)

Q: Why not just bolt the robot chassis together using aluminum extrusions?

A: Aluminum extrusions (like T-slot framing) are great for prototyping or very light-duty lab robots. However, for a 2-ton warehouse AGV, bolted extrusions will flex, shift, and vibrate loose under dynamic payload stress. A heavy-duty welded and CNC-machined steel chassis provides the uncompromising rigidity required for industrial longevity.

Q: What is the largest robot chassis HRD can CNC machine?

A: HRD operates large-scale gantry CNC milling centers capable of machining massive structural weldments exceeding several meters in length, easily accommodating the chassis requirements of large-scale pallet movers and automated forklifts.

Q: How do you guarantee the accuracy of such a large machined part?

A: For massive components, we utilize advanced metrology equipment, including large-scale portable Coordinate Measuring Machines (CMM arms) and laser tracking systems. This allows us to verify the parallelism, flatness, and true position of all critical features before the chassis leaves our facility.

Q: Can you cast the chassis out of iron instead of welding it?

A: Yes. For extremely high-volume production of the exact same heavy-duty robot, sand casting the chassis out of ductile iron and then CNC machining the critical faces is very cost-effective and provides incredible vibration damping. However, casting requires expensive upfront mold tooling, making it unsuitable for prototyping or low-volume production where fabricated weldments dominate.

Build the Backbone of Global Logistics

The software running an autonomous warehouse is brilliant, but it is ultimately limited by the physical strength and geometric accuracy of the robot's chassis. Manufacturing a frame that can reliably move multi-ton payloads 24/7 requires a master-class understanding of thermal dynamics, heavy fabrication, and extreme-scale CNC precision.

At Huaruida Precision Machinery, we are equipped to handle the heavy lifting. From thermal stress relief of massive steel weldments to precision gantry milling of kinematic drive axles, our engineering team is ready to build the foundation of your autonomous fleet.
