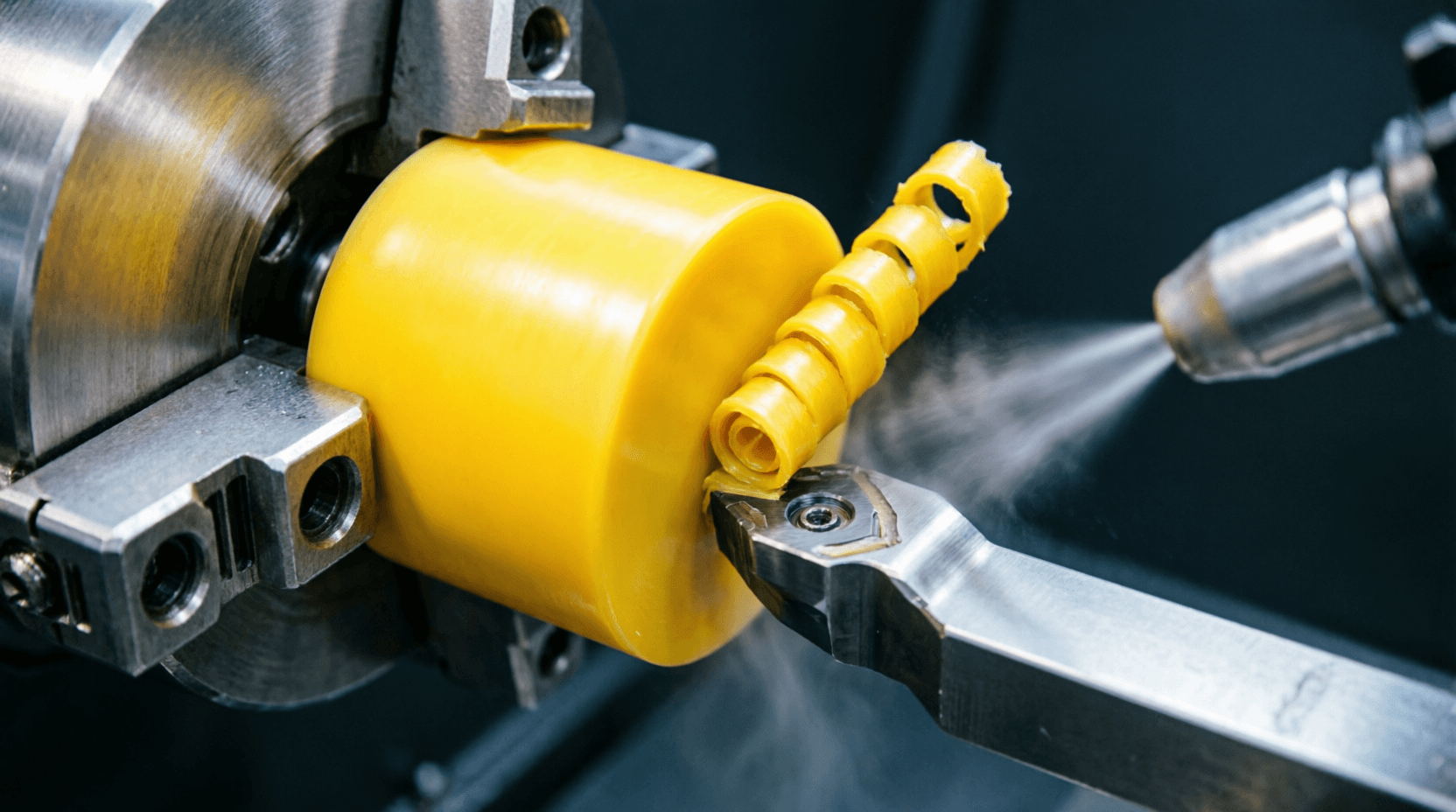

Features of Processing Polyurethane on CNC Machines: A Machining Guide

Introduction

In the diverse landscape of manufacturing materials, few are as versatile—or as notoriously difficult to machine—as Polyurethane (PU). Commonly referred to simply as urethane, this unique elastomer bridges the gap between rubber and plastic. It offers the flexibility of natural rubber combined with the immense durability and load-bearing capacity of rigid plastics.

Because of its extraordinary resistance to abrasion, impact, and oil, polyurethane is heavily specified for custom manufacturing applications such as heavy-duty rollers, suspension bushings, custom seals, and robotic grippers. However, processing polyurethane on standard custom CNC machining equipment presents a radical departure from machining metals or rigid plastics like Delrin (POM).

Unlike steel, which shears cleanly, or acrylic, which chips, polyurethane behaves more like a dense eraser. It compresses, stretches, melts, and fights the cutting tool at every turn.

As an expert in complex subtractive manufacturing, Huaruida Precision Machinery (HRD) has mastered the art of elastomeric machining. This comprehensive guide will explore the five defining features of processing polyurethane on CNC machines, providing engineering insights, Design for Manufacturing (DFM) guidelines, and tooling strategies to ensure the success of your custom urethane components.

Understanding Polyurethane Hardness: The Shore Scale

Before diving into the machining features, it is critical to understand how polyurethane is categorized, as this entirely dictates its machinability. Polyurethane hardness is measured on the Shore Durometer scale.

• Shore A Scale (Softer): Measures flexible rubbers. A rubber band is around 20A, a car tire is around 70A, and a skateboard wheel is around 90A. Anything below 80A is exceptionally difficult to CNC machine at room temperature.

• Shore D Scale (Harder): Measures rigid plastics. A hard hat is around 80D. Polyurethane in the 60D to 75D range machines much more like standard hard plastics and is significantly easier to process.

The rule of thumb for CNC machinists: The lower the Shore hardness, the higher the elasticity, and the more difficult the polyurethane is to machine.

Feature One: Extreme Material Deformation and Elasticity

The most defining characteristic of processing polyurethane is its extreme elasticity. When a CNC end mill or turning insert engages the material, the polyurethane's natural instinct is not to be cut, but to compress and deflect away from the tool.

Machinists refer to this as the "push-away" effect. As the tool passes, the material compresses, avoids the cutting edge, and then immediately expands back to its original shape behind the tool.

The Machining Impact:This elasticity makes hitting precise dimensional tolerances incredibly challenging. If you program a CNC milling machine to take a 1.0mm deep cut, the tool might only remove 0.6mm of material because the other 0.4mm simply squished out of the way.

The Expert Solution:To combat this, machinists must use tools with extreme "sharpness" (often utilizing razor-like, un-honed carbide or high-speed steel) to slice the material before it has a chance to deform. Additionally, programmers must often intentionally "over-cut" the CAD dimensions to compensate for the material's spring-back effect.

Feature Two: High Sensitivity to Thermal Melting

Metals dissipate the heat generated by the friction of a cutting tool through the chips that fly away from the workpiece. Polyurethane is a profound thermal insulator; it does not transfer heat well.

During the machining process, the friction generated by the spinning end mill builds up rapidly in the highly localized cutting zone. Because polyurethane has a relatively low melting point, this heat buildup causes the material to instantly soften, melt, or burn.

The Machining Impact:If the urethane melts, it will immediately weld itself to the flutes of the cutting tool. Once the tool gets "gummed up," it stops cutting entirely and simply rubs against the part, destroying the surface finish and melting a large cavity into the workpiece.

The Expert Solution:Heat management is non-negotiable.

• Air Blasting: High-pressure cold air blasts are universally preferred to clear away urethane shavings and cool the tool.

• Coolant Selection: If liquid coolant is used, it must be carefully selected. Polyurethane can absorb water and certain oils over time, which degrades its mechanical properties. Synthetic, non-reactive coolants or mist systems (MQL) are strictly required.

• Speeds and Feeds: The CNC machine must run at relatively low spindle speeds (RPM) to minimize friction, paired with high, aggressive feed rates to ensure the tool is constantly slicing into new, cool material rather than dwelling in one spot

Feature Three: Specialized Tooling Geometry Requirements

You cannot use the same end mill that you used to cut steel or aluminum to cut polyurethane. The geometry of the tool must be fundamentally altered to handle the elastomeric nature of the material.

The Machining Impact:Standard tools have slightly rounded or honed cutting edges for durability against hard metals. In polyurethane, these honed edges will just rub and compress the material.

The Expert Solution:

• High Positive Rake Angles: The tool must have a highly positive rake angle. This creates a "scooping" or "slicing" action, pulling the polyurethane up and shearing it efficiently before it can deform.

• Polished Flutes: The flutes of the end mill must be mirror-polished. This prevents the sticky urethane shavings from adhering to the tool body and clogging the cutter.

• Fewer Flutes: For CNC milling, 1-flute or 2-flute end mills are heavily preferred over 4-flute tools. Fewer flutes mean massive "chip valleys," allowing the stringy, elastic urethane shavings plenty of room to evacuate without jamming.

Feature Four: Complex Workholding and Fixturing

Holding a soft polyurethane block in a CNC machine is akin to clamping a gummy bear in a bench vise.

The Machining Impact:Traditional steel machine vises clamp parts using immense horizontal pressure. If you clamp a block of 70A polyurethane in a vise, you will visibly crush and distort it. If you machine the part while it is crushed, it will warp entirely out of shape the moment you open the vise and release the pressure.

The Expert Solution:Workholding for soft elastomers requires creativity and specialized engineering.

• Vacuum Fixturing: The absolute best method for holding flat polyurethane sheets. Vacuum chucks pull the material down flat against the table using suction, providing highly secure holding power without inducing any crushing forces on the sides.

• Custom Soft Jaws: For complex 3D shapes, machinists will cut custom "soft jaws" (often out of aluminum) that perfectly match the contour of the raw urethane billet, distributing the clamping pressure evenly across a wide surface area.

• Double-Sided Tape: For thin, delicate urethane gaskets, high-strength industrial double-sided tape is frequently used to secure the material to a sacrificial spoilboard during routing.

Feature Five: The Cryogenic Machining Advantage

When dealing with extremely soft polyurethanes (e.g., Shore 40A to 60A), traditional machining at room temperature is nearly impossible. The material is simply too flexible to shear. This leads to the most unique feature of processing urethane: temperature manipulation.

The Machining Impact:At room temperature, soft urethane bends away from the cutter, making it impossible to hold tolerances or achieve clean cuts.

The Expert Solution (Cryogenics):By drastically lowering the temperature of the polyurethane, its state can be temporarily altered from a flexible elastomer to a rigid, brittle solid. Machinists achieve this by freezing the raw urethane billets using dry ice or liquid nitrogen prior to machining. While frozen, the urethane behaves like hard plastic, shearing cleanly and allowing for aggressive CNC turning and milling with incredibly tight tolerances.

The caveat? The machinist must work quickly. As the part thaws and returns to room temperature, it expands slightly. The CNC program must perfectly calculate this thermal expansion to ensure the part remains within spec once it completely thaws.

Material Comparison: Polyurethane vs. Rigid Plastics

To understand when to specify polyurethane for custom CNC parts, it helps to compare it directly to standard engineering plastics.

Design for Manufacturing (DFM) Tips for Polyurethane Parts

If your project requires custom urethane parts, following these DFM guidelines will drastically reduce your manufacturing costs and improve part quality.

1. Avoid Ultra-Tight Tolerances:Do not expect metal-like tolerances (+/- 0.001 inches) on a soft urethane part. Due to material elasticity and thermal expansion, standard commercial tolerances for machined polyurethane are typically between +/- 0.005 to +/- 0.015 inches, depending on the Shore hardness.

2. Specify the Hardest Acceptable Grade:If your application can function with an 80A or 90A polyurethane instead of a 60A grade, specify the harder grade. Harder urethanes are exponentially faster, cheaper, and more accurate to CNC machine.

3. Avoid Thin Walls:Designing a thin, freestanding wall (e.g., 1mm thick) out of polyurethane is a recipe for failure. The cutting tool will simply push the flimsy wall over rather than cutting it. Ensure wall thicknesses are robust enough to withstand lateral cutting forces.

4. Limit Surface Finish Expectations:Unlike aluminum, which can be fly-cut to a mirror finish, machined polyurethane generally retains a slightly matte, "fuzzy," or textured surface. Secondary surface treatments or flame polishing can improve the look, but it will rarely mimic glass or polished metal.

Frequently Asked Questions (FAQ)

Q: Why not just mold polyurethane instead of CNC machining it?

A: Polyurethane is frequently cast or injection molded. However, creating the molds (tooling) can cost thousands of dollars and take weeks. For prototyping, low-volume production (1 to 500 parts), or parts with extremely complex geometries that cannot be easily demolded, CNC machining polyurethane from solid stock is significantly faster and more cost-effective.

Q: Can HRD machine custom polyurethane rollers?

A: Yes. We frequently utilize CNC lathes to turn custom urethane drive rollers, conveyor wheels, and pinch rollers. We can hold precise concentricity tolerances to ensure the rollers run smoothly at high speeds without vibration.

Q: Does coolant degrade polyurethane during machining?

A: It depends on the formulation. Polyether-based urethanes resist water well, but polyester-based urethanes can degrade (hydrolyze) if exposed to water-based coolants for extended periods. We generally prefer cold air blasts or specialized synthetic mists to ensure the material's chemical integrity remains intact.

Q: Can you tap threads into a polyurethane part?

A: It is generally not recommended. Polyurethane is too soft; the threads will strip out under minimal torque. The best engineering practice is to design a pocket and press-fit a threaded brass or stainless steel insert into the urethane part.

Partner with Experts in Elastomeric Machining

Machining soft plastics and elastomers is a highly specialized niche within the manufacturing industry. It requires an intimate understanding of material science, specialized tooling inventories, and a willingness to embrace unconventional techniques like cryogenic freezing.

At Huaruida Precision Machinery, we do not shy away from difficult materials. Whether you are engineering heavy-duty suspension bushings for the automotive sector or delicate, non-marring robotic grippers for factory automation, our team has the technology to deliver your custom urethane components precisely to spec.
