Essential Guide to Sheet Metal Drawing in 2025
What’s Essential in Sheet Metal Drawing for 2025
Sheet Metal Drawing Types: 2D and 3D
Key Drawing Components and Features
Sheet Metal Drawing File Formats and Best Practices
Preparing Drawings for Fabrication

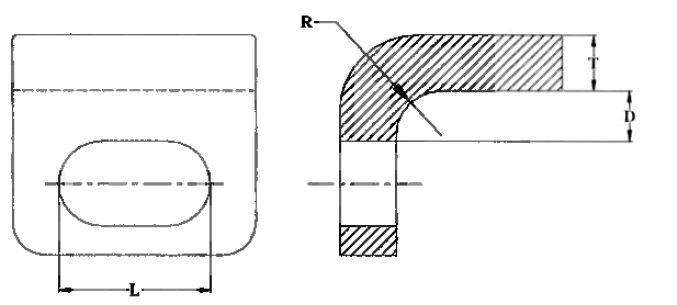

If you work with Sheet Metal Drawing in 2025, you know that every detail matters. You want to make sure your drawings show clear dimensions, tight tolerances, and every bend, hole, or flange. When you talk to fabricators, clear communication helps avoid mistakes and wasted time. Today, digital standards and 3D modeling are changing the way you design. In fact, almost two-thirds of CAD work now uses 3D models, up from 62% just two years ago. This shift makes your job faster and helps catch errors before they reach the shop. Whether you design, engineer, or fabricate, these changes help you create better parts.
Year | 3D CAD Usage | 2D CAD Usage |
|---|---|---|
2023 | 62% | 38% |
2025 | ~66% | ~34% |
When you make a Sheet Metal Drawing in 2025, you want your design to work in real life. You should think about how your part will be made. You also need to think about cost and delivery time. If you forget these things, you might have delays or spend more money.
Here are the most important things for manufacturability:
DFM Principle | Description |
|---|---|
Material Formability | Make sure your material can be shaped easily. |
Machine Capabilities | Design your part for the machines your fabricator uses. |
Lead Time | Plan how long it takes to make your part. |
Cost | Keep your design simple to save money. |
Change Orders/Reworks | Good design means fewer changes and less rework. |
You can follow these steps to make your Sheet Metal Drawing better:
Think about the manufacturing process when you design. This helps you avoid problems.
Use tolerances your fabricator can do. This keeps your parts correct.
Add standard components if you can. This makes assembly faster.
Tip: Always ask your fabricator before you finish your drawing. They know their machines and can help you avoid mistakes.
You should add features that meet what the industry expects. Here is a table with new and important features for 2025:
Feature | Description |
|---|---|
Bend Notches | Add marks for alignment in press brakes. You can change shapes and sizes. |
Improved Tab and Slot Workflows | Use new ways for tab alignment and placement. This gives you more choices. |
Multi-Length Edge Flanges | Make flanges of different lengths in your design. |
Groove Beads for Welding | Show weld beads clearly for better accuracy. |
Structure Systems and Weldments | Build complex weldment profiles and use better tools for structure systems. |
If you organize your CAD files and keep them compatible, you help everyone. You save time and reduce waste by designing well.
Know what your fabricator can do.
Make sure your CAD files are neat and work together.
Try to use less material and processing.
You want your Sheet Metal Drawing to follow the newest standards. These standards help people understand each other and avoid mistakes. In 2025, there are global and regional rules.
Standard | Region | Description |
|---|---|---|
ISO | Global | Used for international projects. Sets rules for dimensions, tolerances, and symbols. |
ANSI | USA | The main standard for sheet metal drawings in the United States. |
DIN | Germany | Popular in Germany. Gives guidelines for dimensions and tolerances. |
Always check which standard your project needs. If you work with teams in other countries, ISO helps everyone understand. If you work in the U.S., use ANSI. For German projects, DIN is best.
Note: Standards change over time. Stay updated so your drawings always follow the newest rules.
Sheet Metal Drawing keeps changing. You see more digital workflows, better 3D modeling, and new features every year. If you keep learning and changing, you will stay ahead in the industry.
2D drawings are the old way to show ideas. They work like blueprints for making parts. You use them to tell fabricators the size, material, and notes. Here is why 2D drawings help:
They follow a set format, so workers can read them.
Clear details help save material and cut down waste.
CNC machines and laser cutters use these drawings to cut shapes.
Flat patterns in 2D show where to bend or punch, making work easier.
But 2D drawings have some problems. Look at this table:
Limitation | Explanation |
|---|---|
Limited Visualization | You only see one side at a time, so it’s hard to see how parts fit. |
Higher Risk of Errors | Without depth, mistakes can happen when putting parts together. |
Time-Consuming for Complex Projects | You need many views for hard parts, which takes time and can cause mistakes. |
3D drawings are changing how people design. You can see the whole part, so you find problems early. Here is why 3D models are good:
Benefit | Description |
|---|---|
Reduction in Material Waste | You can fit parts better and make flat patterns, so you waste less metal. |
Faster Design Cycles | You finish designs faster and get products out sooner. |
Increased Design Capacity | You can do more projects at once with better tools. |
3D models let you look at every side, so you make fewer mistakes.
You control sizes better, so there are fewer bad parts.
Teams work together better because everyone sees the same thing.
You can change designs fast and keep working.
You get better cost guesses with detailed lists.
But 3D drawings have some hard parts, too. Here is a quick look:
Challenge | Description |
|---|---|
Material and Bending Constraints | Picking the right metal is important, since bending can change the shape and waste material. |
Alignment and Assembly Problems | Hard shapes and different thicknesses can make putting parts together tough. |
CNC Fabrication Errors | If you do not change files right, you might get bad parts from the CNC machine. |
You may wonder which type to use. It depends on your project. Look at this table:
Criteria | 2D Drawings | 3D Drawings |
|---|---|---|
Best for | Controlling main sizes and showing part needs | Making parts accurately and quickly |
Use case | Simple parts with easy shapes | Detailed designs that need high accuracy |
File format | DXF | STP and STEP |
Communication clarity | Easier for simple designs | Lets you check the design from all sides |
Manufacturing connection | Not linked to CNC machines | Connects right to CNC machines for accuracy |
When to use | For things like flat laser cut parts | When you need the most precision |
If your part is simple or flat, 2D works well. For hard assemblies or if you want to track material, use 3D. You can always ask your fabricator what they like for your Sheet Metal Drawing.
When you make a Sheet Metal Drawing, you need to be clear. Good drawings always have important information.
The title block tells you the part name, drawing number, revision, scale, and material.
You should show the part from different sides. Use orthographic, section, and isometric views.
Write the exact sizes for lengths, hole spots, bend angles, and cutouts.
Tolerances show how much a size can change and still work.
Material callouts tell you the type, thickness, and surface treatment.
Bend details include the radius, angle, and which way to bend.
If you forget or mix up these details, you can have problems. You might waste material or even have to throw parts away. Missing notes or unclear symbols can stop work and cost you money.
Tolerances tell you how much a part’s size can change. If tolerances are too tight, you spend more on tools and checks. If they are too loose, parts may not fit or work well. Here’s a quick look:
Tolerance Type | Impact on Quality | Impact on Cost |
|---|---|---|
Tighter Tolerances | Better fit and assembly | Higher cost for precision |
Looser Tolerances | Lower cost, but risk of poor fit or leaks | Cheaper, but may cause complaints |
Most assembly problems happen because of bad tolerance planning. Always check the space for holes and bends to avoid trouble.
Flat patterns and isometric views help you and your fabricator see the part before making it. Flat patterns show where to cut and bend. Isometric views let you see the part in 3D, so you can find mistakes early.
Aspect | Description |
|---|---|
Bending Pattern | Shows where to bend the sheet metal. |
Geometry | Helps you see the shape after cutting and bending. |
Fabrication Guidance | Tells fabricators where to cut, bend, and form features. |
Visualization | Lets you check the part from all angles for accuracy. |
Picking the right material and finish helps your part last longer. Always list these things:
Specification Type | Details |
|---|---|
Material Type | Steel, stainless steel, aluminum |
Material Thickness | 1.0 mm, 2.5 mm |
Surface Finish | Brushed, anodized, powder-coated |
Temper or Hardness | Needed for some metals |
Industry Standard | ASTM, JIS, DIN, EN, GB |
Color | Example: RAL 9005 |
Coating Thickness | Example: 60–80 μm for powder coat |
Pre-treatment | Degreasing, phosphating |
Masking Requirements | Areas that must stay bare |
Different materials change how you design and make your part. Aluminum is light and does not rust. Steel is strong and costs less. Stainless steel is good for tough places. Pick the best one for your job.
Tip: Always show all formed features like bends, holes, countersinks, flanges, hems, curls, and ribs in your drawing. This helps your fabricator make your part right the first time.
You have many ways to save your Sheet Metal Drawing. Picking the right file type makes your job easier. It also helps your team avoid mistakes. Here are the most used formats in 2025:
File Format | Description | Best Use Case |
|---|---|---|
DXF (.dxf) | 2D vector format for CNC cutting | Best for laser, plasma, and waterjet cutting. It is used to show cut paths and helps with accurate material cutting. DXF supports exact curves, lines, and sizes. |
DWG (.dwg) | Native AutoCAD 2D/3D format | Used for detailed 2D drawings like flat patterns and blueprints. It is good for keeping notes and making changes. DWG keeps layer details safe. |
STEP (.stp) | ISO standard file format; widely supported across CAD/CAM software | Best for full sheet metal part models or 3D designs. It helps teams work together because most software can open it. STEP is great for sharing with different CAD programs. |
You want your files to work on any computer. Newer file types help you share designs without losing details. Here are some ways these formats help your team:
They work with your team’s software.
You lose less data when sharing files.
You can work with people using other programs.
If you have big assemblies, STEP files help you share 3D models with everyone. DWG is best if you use AutoCAD. DXF is good for simple shapes and works with many programs. Sometimes, you may have problems like missing features or lost data. Here is a table with common issues:
Compatibility Issue | Description |
|---|---|
Missing Features in STEP AP242 | Some sheet metal features do not work in STEP AP242. This can cause missing details when sharing files. |
Incomplete PMI Data | When you export models with Product Manufacturing Information, not all details go into the STEP file. |
Lack of Standardized Documentation | Some things like rolling direction, threads, engraving, and bending details cannot be saved in STEP AP242. You may need extra files for all the info. |
To stop these problems, you should:
Know your manufacturing needs and machines.
Pick file types that fit your project.
Talk to your manufacturer to clear up questions.
Test your files before sending them.
Use feedback to do better next time.
Keeping your files neat saves time and helps your team. Try these ideas:
Give your files clear names so you find them fast.
Make folders by project, team, or step.
Update your templates for standard files often.
Share sheet metal libraries with your group.
Import 2D drawings from AutoCAD to make new models.
Tip: Good file order means fewer mistakes and faster work. You spend less time looking and more time designing.
You want your ideas to come through clearly in your drawings. Good communication helps everyone on your team understand what you need. When you share your design intent, you make the process smoother and cut down on mistakes. Here’s how clear communication helps:
You and your team can review the design together and spot problems early.
Everyone knows exactly what the part should look like and how it should work.
Your drawings act as blueprints with exact sizes and material details, so fabricators know what to do.
You give fabricators a clear path, so they deliver the right part the first time.
If you keep your drawings clear, you avoid confusion and save time.
Mistakes can slow you down and cost money. You can avoid most problems if you pay attention to a few key things:
Pick the right material for your part.
Design for easy manufacturing, not just looks.
Double-check your measurements and tolerances.
Use the right bending methods for your metal.
Think about how stress will affect your part over time.
Don’t forget about surface finish—this stops rust and wear.
Make sure welds are strong and in the right place.
Check your work for quality before sending it out.
Talk with your fabricator if you have questions.
Always follow safety rules.
If you keep your drawings simple and clear, you help everyone do their job better.
You get the best results when you work closely with your fabricator. Teamwork makes your Sheet Metal Drawing stronger and your parts better. Here’s a quick look at how collaboration helps:
Benefit | What It Means for You |
|---|---|
Clear Communication | Everyone understands the design, so there are fewer mistakes. |
Adherence to Standards | Your parts meet quality rules and look the same every time. |
Comprehensive Detailing | Fabricators get all the info they need to make your part right. |
Ask for feedback from your fabricator before you finish your drawing. They can spot problems you might miss and suggest changes that save time and money. When you work together, you get better parts and fewer surprises.
You can follow 2025 sheet metal drawing standards in many ways. Use 3D models to test your designs. Add clear notes and labels to your drawings. Share your files in DXF or STEP formats. Give your files easy names and keep track of changes. Choose the best material for your part. Use standard gauges and make bends simple. Pick tolerances that help production go smoothly. Watch for new trends and rules in the industry. Talk with your fabricator often and update your software.
You should use STEP (.stp) for 3D models and DXF (.dxf) for 2D drawings. These formats work with most CAD software and help your fabricator open your files without trouble.
List every bend, hole, flange, hem, curl, and rib. Use clear labels and add isometric views. This helps your fabricator see every detail and make your part right the first time.
Flat patterns show where to cut and bend the metal. They help your fabricator plan each step and avoid mistakes. You get better results and save time.
Double-check your dimensions, tolerances, and material details. Make sure your notes are clear. Ask your fabricator for feedback. This helps you catch errors early.
Use folders for each project. Name your files with part numbers and dates. Update your templates often. Share your sheet metal library with your team. 👍
