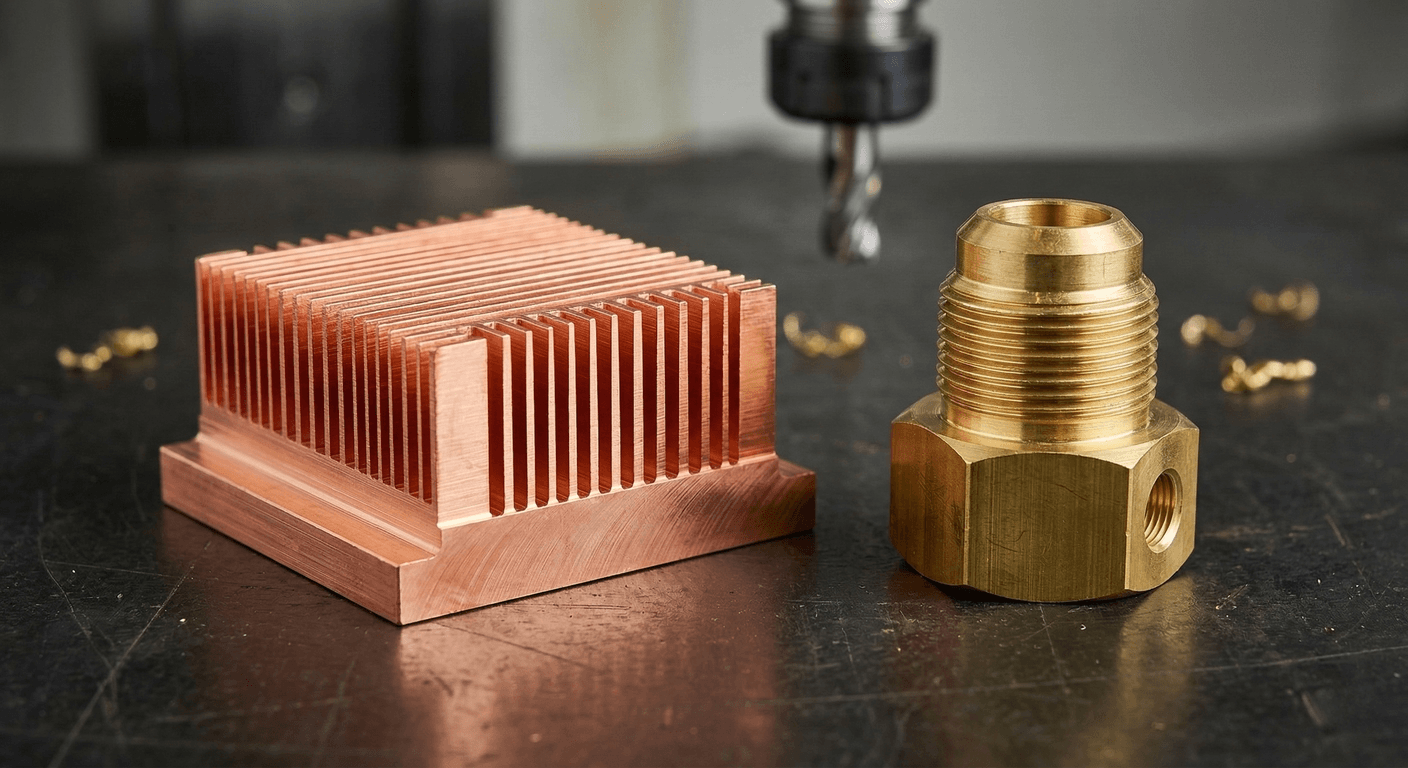

Copper vs. Brass: Key Differences in Machining and Properties

Introduction

In the world of precision manufacturing and electrical engineering, red metals are ubiquitous. Walk into any high-end custom CNC machining facility, and you will undoubtedly see machines turning out gleaming golden and reddish-orange components. However, while copper and brass may look similar to the untrained eye and share a common metallurgical base, they are fundamentally different materials with drastically different properties, costs, and behaviors under a cutting tool.

For design engineers and procurement managers, choosing between copper and brass is a critical decision. Specifying copper when brass would suffice can skyrocket your raw material and machining costs. Conversely, specifying brass when pure copper is required can lead to catastrophic electrical resistance or thermal failure in your application.

As a leading provider of custom metal parts, Huaruida Precision Machinery (HRD) processes massive volumes of both metals. We understand the nuanced differences in how these materials shear, dissipate heat, and react to different surface treatments.

This comprehensive guide will break down the metallurgical differences between copper and brass, compare their mechanical and thermal properties, explore the unique challenges of machining each, and provide actionable Design for Manufacturing (DFM) tips to help you select the optimal material for your next CNC project.

The Fundamental Difference: Composition and Metallurgy

The most basic distinction between the two metals lies in their chemical composition.

Copper is a pure elemental metal (Cu on the periodic table). In manufacturing, "commercially pure copper" refers to alloys that are at least 99.3% to 99.99% pure copper, with only microscopic trace elements added to improve certain characteristics (like removing oxygen or adding a tiny amount of tellurium for machinability).

Brass, on the other hand, is a metal alloy. It is created by combining copper with zinc. The percentage of zinc—which can range from 5% to over 40%—determines the specific mechanical properties, color, and machinability of the resulting brass alloy. Metallurgists may also add small amounts of lead, tin, or arsenic to further enhance machinability or corrosion resistance.

Because of this alloyed structure, brass generally exhibits higher tensile strength and hardness than pure copper, but it sacrifices a significant amount of thermal and electrical conductivity in the process.

Material Properties Comparison

To make an informed decision for your custom CNC machined components, you must evaluate how copper and brass stack up across several critical engineering metrics.

Copper vs. Brass Comparison Table

Electrical and Thermal Conductivity

This is the single most important differentiating factor. Pure copper sets the standard for electrical conductivity (100% IACS). If you are designing busbars, heavy-duty electrical contacts, or high-performance CPU heat sinks, copper is mandatory.

Brass, due to its zinc content, acts as a resistor relative to copper. Its conductivity drops to around 26-28% IACS. While brass is still conductive enough for household light switch terminals or low-current connectors, it will dangerously overheat if used in high-amperage power transmission applications.

Strength and Rigidity

Pure copper is highly ductile and relatively soft. It bends and deforms easily, making it fantastic for wire drawing but challenging for structural components. Brass is significantly harder and possesses higher tensile and yield strength. If you need a structural bracket, a threaded fitting, or a gear that can bear mechanical loads without deforming, brass is the superior choice.

The Machinability Showdown: Cutting Copper vs. Brass

For a CNC turning or milling shop, the difference between these two metals is night and day. It directly impacts machine cycle times, tool wear, and ultimately, the price you pay for your parts.

Machining Brass: A Machinist's Dream

Brass—specifically leaded free-machining brass like C36000—is widely considered the easiest metal in the world to machine. The addition of lead (usually around 3%) acts as an internal microscopic lubricant.

• Chip Formation: Brass shears perfectly, forming tiny, brittle chips that evacuate from the cutting zone effortlessly.

• Tool Wear: Almost non-existent. Standard uncoated carbide tools can cut brass for hundreds of hours without degrading.

• Speeds and Feeds: CNC machines can run at maximum spindle speeds and incredibly aggressive feed rates.

• Result: Custom brass CNC machining is exceptionally fast and cost-effective, resulting in beautiful surface finishes and tight tolerances with minimal effort.

Machining Copper: The "Gummy" Challenge

Pure copper (like C11000 ETP) is the exact opposite. Because it is so soft and ductile, it does not shear easily.

• The Gummy Factor: Instead of chipping, copper tears and stretches. It tends to weld itself to the cutting tool, creating a Built-Up Edge (BUE) that instantly dulls the tool.

• Chip Formation: It produces long, stringy "bird's nest" chips that wrap around tooling and spindles, requiring specialized chip-breaker geometries and high-pressure coolant to clear.

• Heat Generation: While it conducts heat well, the extreme friction of cutting copper causes the workpiece to expand thermally during machining, making tight tolerances difficult to hold without expert thermal management.

• Result: Machining pure copper is slower, requires sharper, specialized tooling, demands highly skilled operators, and is inherently more expensive than machining brass.

Common Brass Alloys for CNC Machining

Not all brass is identical. Choosing the right grade is essential for your application.

C36000 (Free-Machining Brass)

This is the absolute standard for CNC machining. If you request "brass parts" from a manufacturer without specifying a grade, they will likely use C36000. It offers 100% machinability, good strength, and a bright yellow color. It is ideal for threaded fittings, valve components, and precision gears.

C26000 (Cartridge Brass)

With 70% copper and 30% zinc, this alloy has excellent cold-working properties. While not as easy to machine as C36000, it is exceptionally good for deep drawing, stamping, and forming. It is famously used for ammunition casings and musical instruments.

C46400 (Naval Brass)

This alloy includes a small amount of tin (about 1%) to dramatically increase its resistance to saltwater corrosion (specifically fighting a process called dezincification). It is harder and stronger than standard brass, making it the premier choice for marine hardware, propeller shafts, and offshore drilling components.

Common Copper Alloys for CNC Machining

When high conductivity is required, engineers must choose between pure copper and slightly alloyed versions designed to improve machinability.

C11000 (Electrolytic Tough Pitch - ETP)

The standard for electrical components. It is 99.9% pure, offering 100% IACS conductivity. However, it has a machinability rating of only 20% and is notorious for producing stringy chips and burrs.

C10100 (Oxygen-Free Electronic - OFE)

The purest copper available (99.99%). It is used in ultra-high vacuum environments, linear accelerators, and advanced electronics where absolutely zero oxygen contamination can be tolerated. It is extremely difficult to machine.

C14500 (Tellurium Copper)

This is the secret weapon for CNC milling shops. By adding just 0.5% Tellurium to pure copper, the machinability rating skyrockets from 20% to 85%. The chips break cleanly, much like brass. Amazingly, it retains 90-95% of the electrical conductivity of pure copper. For complex, high-volume electrical contacts, C14500 is almost always the most cost-effective choice.

Cost Analysis: Raw Material and Manufacturing

When budgeting for your project, you must consider both the raw material cost and the machining cost.

• Raw Material Cost: Copper is generally more expensive than brass. Zinc is a cheaper commodity than copper, so alloying copper with zinc to create brass lowers the overall material price per pound.

• Manufacturing Cost: Because brass can be machined at significantly higher speeds and feeds with almost zero tool wear, the CNC machine time required for a brass part is much lower than an identical copper part.

Conclusion on Cost: A custom machined brass part will almost always be substantially cheaper than the same part made from pure copper. Only specify copper if your thermal or electrical requirements demand it.

Surface Treatments and Finishes

Both red metals will tarnish and oxidize when exposed to the atmosphere. Copper turns dark brown and eventually forms a green patina (copper carbonate). Brass will tarnish, turning a dull, dark brownish-yellow.

To preserve the appearance and functionality of your parts, HRD offers several post-machining finishes:

• Electroless Nickel Plating: An excellent choice for both copper and brass, providing a hard, corrosion-resistant, and highly uniform silver-colored coating. Heavily used in electronics.

• Silver and Gold Plating: Often applied to copper electrical contacts to ensure maximum surface conductivity and prevent oxidation that could cause electrical resistance.

• Clear Passivation/Anti-Tarnish: A chemical dip that leaves an invisible, microscopic barrier on the metal, preserving the raw, bright look of the freshly machined copper or brass for months during storage and transit.

• Polishing: Both metals take a high polish exceptionally well, ideal for decorative components or luxury consumer goods.

Design for Manufacturing (DFM) Strategies

If you are designing parts for brass or copper, keep these DFM tips in mind to optimize your production run:

• Leverage Threads in Brass: Brass holds fine threads exceptionally well without galling (sticking). Feel free to specify tapped holes in brass.

• Beware of Tapping Copper: Tapping small threads in pure copper is risky; the material grabs the tap, often causing it to snap. Use form taps (roll taps) instead of cut taps for copper, or consider designing the part to accept threaded inserts.

• Design for Coolant in Copper: If machining deep pockets in copper, design generous internal radii. Sharp corners require small tools, which cannot evacuate the gummy copper chips effectively and will break.

• Switch to Tellurium Copper: If your design calls for C11000 copper but requires complex CNC turning with tight tolerances, consult with your engineering team to see if the slight conductivity drop of C14500 (Tellurium Copper) is acceptable. The savings in machining time will be massive.

Frequently Asked Questions (FAQ)

Q: Can I use brass as a heat sink instead of copper to save money?

A: Generally, no. Brass has less than a third of the thermal conductivity of pure copper. If your electronic component generates significant heat, a brass heat sink will likely fail to dissipate it fast enough, leading to thermal throttling or damage. Aluminum is a better low-cost alternative to copper for heat sinks than brass.

Q: Why do my machined copper parts have heavy burrs on the edges?

A: Pure copper is highly ductile; it tends to push and fold over at the edge of a cut rather than shearing off cleanly. This results in burrs. At HRD, we utilize specialized sharp tooling and secondary deburring processes (like tumbling or manual finishing) to ensure all copper parts are delivered burr-free.

Q: Is brass toxic for food or water applications?

A: Standard free-machining brass (C36000) contains lead, which makes it unsuitable for drinking water applications under modern regulations (like the Safe Drinking Water Act in the US). For potable water or food-grade applications, you must specify Lead-Free Brass (such as Eco Brass, C69300), which replaces lead with silicon or bismuth for machinability.

Q: How can I tell copper and brass apart without a chemical test?

A: The simplest way is color. Pure copper has a distinct reddish-pink or orange hue. Brass, depending on the zinc content, is much more yellow, closely resembling gold. Additionally, if you strike them, brass will yield a higher-pitched, more resonant "ring" because it is harder and stiffer than the softer copper.

Partner with Experts in Red Metal Machining

Machining copper and brass requires an intimate understanding of metallurgy, tooling geometry, and thermal dynamics. Whether you need thousands of free-machining brass fittings or complex, high-conductivity copper busbars, Huaruida Precision Machinery has the high-speed CNC equipment and the engineering expertise to deliver flawless components.
