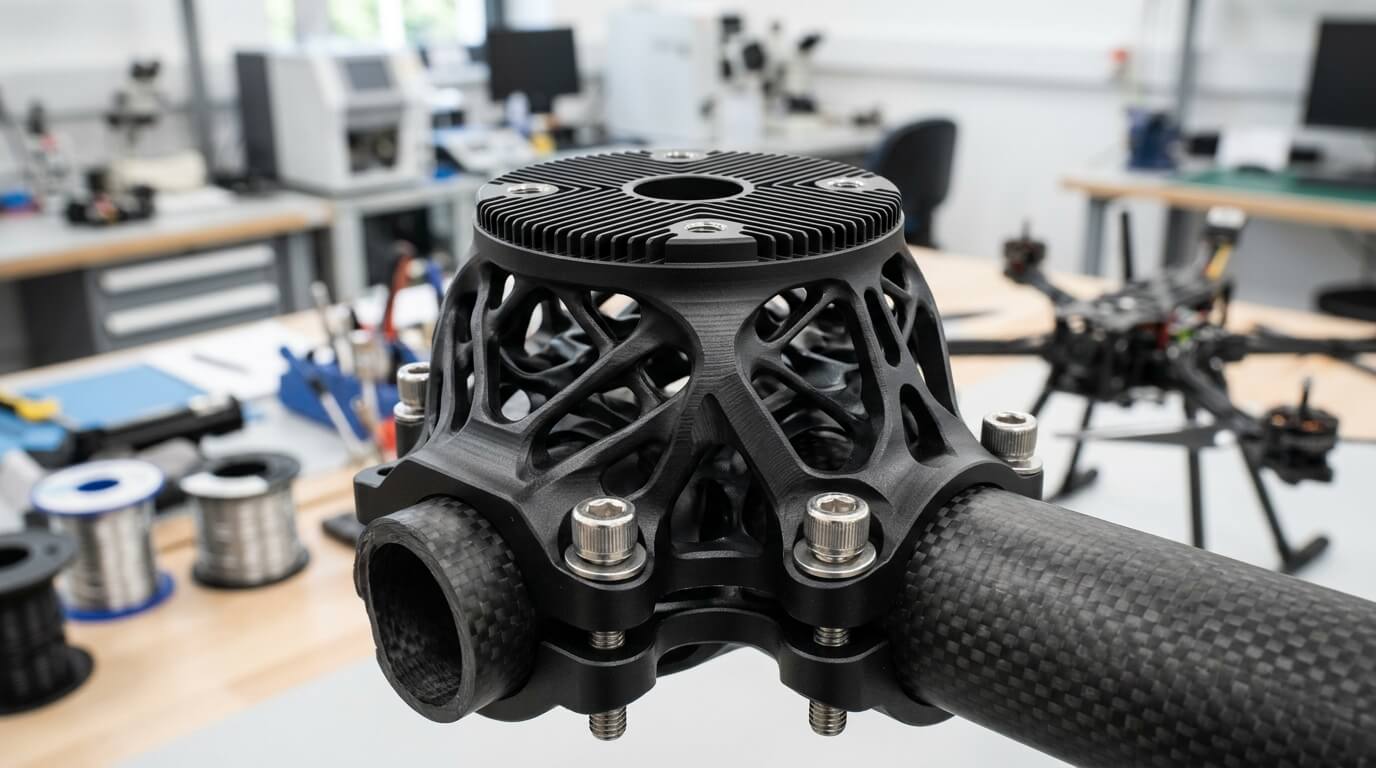

CNC Machining Drone Motor Mounts: Balancing Weight and Strength

Introduction

The Unmanned Aerial Vehicle (UAV) industry has evolved far beyond lightweight plastic hobbyist drones. Today’s commercial multi-rotors are industrial workhorses. From agricultural drones spraying hundreds of pounds of fertilizer to heavy-lift cinematic rigs carrying expensive RED cameras, modern UAVs demand aerospace-grade reliability.

At the very extremity of these robotic flying machines, connecting the thrust-generating brushless DC (BLDC) motors to the carbon fiber airframe, lies a critical structural component: the drone motor mount.

This seemingly simple bracket shoulders a monumental engineering burden. It must withstand explosive bursts of torque, dampen high-frequency vibrations that could destroy flight controller IMUs, and act as a massive heat sink to keep the motors from melting during sustained flight. Above all, it must do this while weighing almost nothing. In aviation, every excess gram reduces battery life and limits payload capacity.

As a premier aerospace and robotics manufacturing partner, Huaruida Precision Machinery (HRD) provides high-performance custom CNC machining for the global UAV industry. We understand that machining the perfect motor mount is a relentless battle between extreme lightweighting and uncompromising structural rigidity.

This comprehensive guide explores the physics and engineering behind UAV motor mounts. We will dissect the best aerospace materials, explore advanced multi-axis CNC milling strategies for topology-optimized designs, and provide critical Design for Manufacturing (DFM) tips to help you build the ultimate drone propulsion system.

The Critical Role of the Motor Mount in UAV Dynamics

Before we cut any metal, we must understand the physics that a custom drone motor mount endures during flight.

Thrust and Torque TransferWhen a heavy-lift drone initiates a rapid ascent or maneuvers sharply, the BLDC motors generate immense, instantaneous torque. The motor mount must transfer this energy flawlessly into the carbon fiber boom (arm) of the drone. If the mount flexes, the thrust vector changes, causing the drone's flight controller to overcompensate, leading to unstable, oscillating flight.

High-Frequency Vibration IsolationPropellers spinning at 10,000+ RPM generate intense micro-vibrations. If the motor mount lacks structural rigidity, it will amplify these harmonic vibrations, sending them down the carbon fiber arm directly into the gyroscope and sensors. A perfectly machined, rigid aluminum mount helps dampen these harmonics, ensuring crisp, stable camera footage and accurate autonomous navigation.

Thermal Management (Heat Dissipation)Heavy-lift drone motors draw massive electrical currents, generating extreme heat. If this heat is not dissipated, the copper windings inside the motor will burn out, and the neodymium magnets will lose their magnetic strength (demagnetization). The metal motor mount acts as a primary heat sink, pulling heat away from the motor stator and dissipating it into the propwash (airflow).

Material Selection for Drone Motor Mounts

Choosing the right material is the first step in balancing weight and strength. Plastics and 3D-printed resins are completely unacceptable for industrial UAV motor mounts due to their low melting points and flexibility. Precision CNC-machined metal is mandatory.

Aluminum 7075-T6: The Aerospace Standard

For high-performance drones, 7075-T6 Aluminum is the undisputed king. It is heavily alloyed with zinc, providing a tensile strength that rivals many structural steels, yet it retains the extreme lightweight properties of aluminum. It is highly resistant to fatigue stress, making it perfect for enduring the constant, vibrating loads of a drone motor.

Aluminum 6061-T6: The Cost-Effective Alternative

For medium-lift drones or rapid prototyping phases, 6061-T6 Aluminum is incredibly popular. It is easier to machine than 7075, highly corrosion-resistant, and significantly cheaper. While slightly weaker than 7075, a well-designed 6061 motor mount will perform flawlessly in 80% of commercial applications.

Magnesium Alloys (AZ31B): The Ultimate Lightweighting

When absolute minimum weight is the only goal, magnesium is 33% lighter than aluminum. It offers incredible vibration-damping properties. However, magnesium requires highly specialized CNC machining protocols due to its severe flammability during the cutting process, and it is more susceptible to galvanic corrosion if not perfectly isolated from carbon fiber.

Titanium (Ti-6Al-4V): For Extreme Shock Loading

Titanium is rarely used for standard drone motor mounts because it is heavier than aluminum and possesses poor thermal conductivity (meaning it acts as a poor heat sink). However, for military-grade drones or tactical UAVs designed to survive physical impacts and extreme crash-landing scenarios, titanium provides indestructible mounting nodes.

UAV Motor Mount Material Comparison

The Lightweighting Dilemma: Generative Design vs. Machinability

To minimize weight, modern aerospace engineers use Generative Design and Topology Optimization software. The computer algorithm removes all material from the CAD model that is not actively bearing a mechanical load.

The result is a highly organic, skeletal motor mount that looks like an alien bone structure. While these designs are mathematically perfect, they are often a nightmare to manufacture.

The Challenge of Thin-Wall Machining

Topology optimization often leaves the motor mount with paper-thin supporting webs (sometimes less than 1mm thick). When a high-speed CNC milling tool engages these thin walls, the metal lacks the rigidity to push back against the cutter. Instead of cutting cleanly, the thin wall vibrates violently (chatter) or deflects away from the tool, resulting in torn surface finishes, blown geometric tolerances, or completely snapped parts.

HRD's Machining Solutions for Thin Walls

To successfully machine extreme lightweight drone mounts, we employ advanced CAM (Computer-Aided Manufacturing) strategies:

• High-Speed, Low-Force Cutting: We utilize spindle speeds exceeding 15,000 RPM paired with Trochoidal milling (Dynamic Milling) paths. This takes microscopic, razor-thin "bites" of the aluminum at extremely high feed rates, drastically reducing the lateral pressure exerted on the thin walls.

• Custom Soft Jaw Workholding: A standard CNC vise will crush a delicate, lightweighted drone mount. We machine custom 3D-contoured aluminum soft jaws that perfectly cradle the organic shape of the mount, absorbing vibration and preventing crushing during the final machining passes.

Mastering the Carbon Fiber Boom Interface

The motor mount must clamp securely onto the drone's tubular carbon fiber arms. This interface is the most critical tolerance zone on the entire part.

Carbon fiber is incredibly strong in tension but can be easily crushed if squeezed too hard. If the motor mount bore is too large, the mount will rotate on the tube during flight, twisting the motor and causing an immediate crash. If the bore is too small, clamping the mount will crack the expensive carbon fiber tube.

Precision Boring for Clamp Interfaces

To guarantee a flawless fit, the clamping bore cannot simply be interpolated with an end mill. At HRD, we utilize precision boring heads or specialized CNC turning centers to machine the inner diameter (ID) of the clamping mechanism to strict H7 tolerances. This ensures perfect, even contact pressure across the entire circumference of the carbon fiber tube.

The "Pinch Clamp" Design

Most high-end motor mounts feature a split "pinch clamp" design. The CNC machine cuts a fine slit through the side of the mounting bore, and a cross-bolt is used to squeeze the slit together, clamping the mount onto the tube.

• DFM Tip: When designing this slit, ensure it is wide enough to allow for sufficient compression, but do not make it so wide that the aluminum fractures at the base of the slit when the bolt is tightened. Design a generous stress-relief radius (a circular hole) at the very bottom of the slit to prevent fatigue cracking.

Design for Manufacturing (DFM) Guidelines for UAV Mounts

To ensure your custom drone motor mounts can be manufactured quickly, cost-effectively, and reliably, adhere to these DFM principles:

Optimize Cooling Fins

To help dissipate motor heat, many engineers design cooling fins into the base of the motor mount.

• DFM Rule: Do not design fins that are incredibly deep and close together. A CNC end mill requires clearance. The deeper the slot between the fins, the longer and more fragile the cutting tool must be. Keep the depth-to-width ratio of your cooling channels below 4:1 to allow for the use of thick, rigid end mills, which vastly reduces machining time and cost.

Beware of Tapped Threads in Aluminum

Heavy-lift drone motors create immense vibration. If you tap standard M3 or M4 threads directly into a soft 6061 aluminum motor mount to secure the brushless motor, those threads can vibrate loose or strip out entirely after multiple motor swaps.

• DFM Rule: For professional-grade UAVs, design the mounting holes to accept stainless steel helical thread inserts (Heli-Coils). This provides a permanent, vibration-resistant, steel-on-steel connection for the motor mounting screws, dramatically increasing the lifespan of the aluminum mount.

Minimize 5-Axis Setup Requirements

While 5-axis CNC machining is incredible, it is expensive. If you design a motor mount with mounting holes and complex pockets pointing in six completely different geometric directions, the manufacturing cost will skyrocket.

• DFM Rule: Try to align all your critical features (motor screw holes, wire routing channels, weight-saving pockets) along standard orthogonal planes (Top, Bottom, Left, Right). This allows the shop to use faster, more cost-effective 3-axis or 3+2 axis setups to complete the part.

Surface Treatments for Aerospace Environments

A raw aluminum motor mount will oxidize, particularly if the drone operates in humid, agricultural, or coastal environments. Proper surface treatments are mandatory.

Type II and Type III Anodizing:Anodizing is the absolute gold standard for drone components. It converts the surface of the aluminum into a hard, scratch-resistant oxide layer.

• The Thermal Secret of Black Anodizing: While many clients choose black anodizing for its sleek, tactical appearance, it serves a highly functional purpose. Raw, shiny aluminum has poor thermal emissivity (it reflects heat back inward). Black anodized aluminum has an incredibly high thermal emissivity rating, allowing it to radiate the motor's heat out into the atmosphere far more effectively.

Masking for Conductivity:If your drone relies on the aluminum airframe to act as an electrical ground or requires carbon fiber to be electrically isolated to prevent galvanic corrosion, inform your manufacturing partner. We can utilize precision silicone masking to ensure specific contact pads remain bare, highly conductive aluminum, while the rest of the part receives protective anodizing.

Frequently Asked Questions (FAQ)

Q: How much weight can topology optimization actually save on a motor mount?

A: Depending on the initial bulky design, applying topology optimization and utilizing advanced 5-axis CNC machining to remove non-load-bearing material can often reduce the weight of an aluminum motor mount by 40% to 60% without sacrificing its peak structural integrity.

Q: Why not use CNC machined carbon fiber plates instead of aluminum for the motor mount?

A: Flat carbon fiber plates are excellent for the drone's main central body. However, motor mounts require complex 3D geometries to clamp around tubular arms, house cross-bolts, and act as thermal heat sinks for the motors. Carbon fiber cannot easily be machined into complex 3D clamps, nor does it conduct heat away from the motor effectively. 3D machined billet aluminum remains the superior choice for this specific interface.

Q: Can HRD manufacture custom motor mounts for heavy-lift coaxial drone setups (two motors per arm)?

A: Absolutely. We frequently machine complex, elongated multi-rotor mounts designed to support coaxial motor setups (one motor facing up, one facing down on the same mount). We utilize large-envelope CNC milling centers to ensure perfect alignment between both motor mounting planes.

Q: What is the fastest way to get a prototype motor mount manufactured?

A: Send us a 3D STEP file of your design. For rapid prototyping phases, we can quickly CNC machine functional prototypes out of 6061-T6 aluminum in a matter of days, allowing your team to perform real-world flight testing and vibration analysis before committing to a larger production run.

Elevate Your Unmanned Fleet with Precision Hardware

In the aerospace and UAV industry, gravitational forces are unforgiving. A brilliant flight controller algorithm cannot save a drone if its physical hardware twists, flexes, or fractures in mid-air. Achieving the ultimate balance of extreme lightweighting, thermal efficiency, and unyielding structural strength requires a masterclass in subtractive manufacturing.

At Huaruida Precision Machinery, we are the silent structural partners behind cutting-edge autonomous flight. Our engineering team is equipped with advanced multi-axis CNC technology and rigorous quality control metrology to manufacture your UAV components to exacting aerospace standards.
