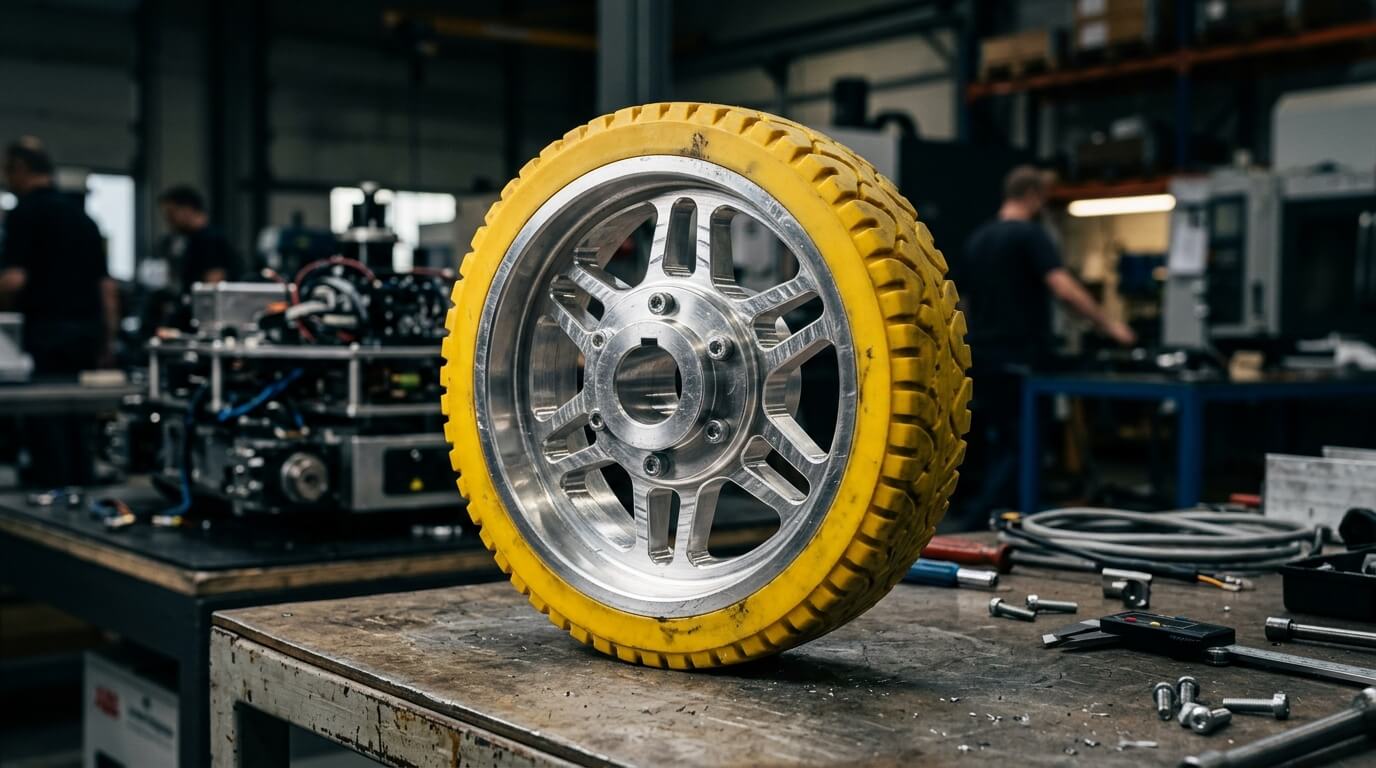

CNC Machining for AGV Drive Wheels and Casters: A Material Selection Guide

Introduction

The logistics, warehousing, and manufacturing sectors are undergoing a massive paradigm shift driven by Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs). These intelligent robotic systems work tirelessly, moving massive payloads across facility floors 24/7. However, the software algorithms and LiDAR sensors directing these robots are completely dependent on the physical integrity of a single, highly stressed subsystem: the mobility chassis.

At the exact point where the robot meets the factory floor, the AGV drive wheels and swivel casters bear the entire brunt of the robotic payload, extreme torque from the drive motors, and relentless continuous operation. A failure in a drive wheel hub or a micro-fracture in a caster fork doesn't just stop a robot; it halts an entire automated supply chain.

As a premier provider of custom CNC machining for the global automation and robotics industry, Huaruida Precision Machinery (HRD) specializes in manufacturing ultra-reliable, high-precision mobility components. We understand that selecting the right material and the correct subtractive manufacturing process for AGV wheels is the most critical decision a mechanical engineer will make.

This comprehensive guide delves deeply into the engineering requirements for AGV drive wheels and heavy-duty casters. We will explore the metallurgical properties of top-tier materials, compare machining strategies, discuss the critical interaction between metal hubs and polyurethane treads, and provide actionable Design for Manufacturing (DFM) tips to optimize your autonomous robotic platforms.

The Anatomy of AGV Mobility Systems

To specify the correct material, engineers must analyze the two distinct components of an AGV's undercarriage, as they experience vastly different physical forces.

The Drive Wheel Hub:The drive wheel is the heart of the AGV's kinematic system. The central metal hub must perfectly mate with the drive shaft (often via a keyway or precision spline) or house a direct-drive in-wheel motor. It must transfer massive rotational torque without shearing, dissipate heat generated by the motors, and provide a perfectly textured outer surface to bond chemically with the rubber or polyurethane tire tread.

The Swivel Caster Assembly:Casters are typically unpowered, freely rotating wheels that provide balance and load support. The metal caster fork (or yoke) holds the axle, while the top plate houses a precision thrust bearing allowing for 360-degree rotation. These components are subjected to immense vertical static loads and severe lateral impact shocks when the AGV navigates over uneven floor joints or debris.

Material Selection for AGV Drive Wheel Hubs

Choosing the material for a custom AGV wheel hub is a delicate balancing act between minimizing rotational mass (to extend battery life) and maximizing shear strength (to transfer torque).

Aluminum Alloys: The Lightweight Champions

For light-to-medium payload AMRs (e.g., warehouse fulfillment robots carrying up to 500 kg), aluminum is the undisputed standard.

• 6061-T6 Aluminum: Extremely versatile, highly machinable, and cost-effective. It offers a superb strength-to-weight ratio and diffuses heat effectively, making it ideal for enclosing in-wheel brushless DC motors.

• 7075-T6 Aerospace Aluminum: When the AGV requires absolute minimum inertia but handles higher dynamic loads, 7075-T6 provides tensile strength comparable to many steels at a fraction of the weight. It is strictly utilized in high-performance or ultra-compact robotic chassis.

Carbon and Alloy Steels: The Heavy-Duty Workhorses

For heavy-duty AGVs moving multi-ton payloads (e.g., automotive chassis movers or steel coil transporters), aluminum will fatigue and fail.

• 1045 Medium Carbon Steel: An excellent, cost-effective choice for large, high-torque drive hubs. It provides superior rigidity and resistance to keyway wallowing (where the motor shaft key stretches the slot over time).

• 4140 Chromoly Steel: For the most extreme industrial environments, 4140 alloy steel offers incredible fatigue strength and deep toughness. We frequently machine these hubs in a pre-hardened state to guarantee they survive decades of relentless torque reversal and shock loading.

Stainless Steel: The Cleanroom Mandate

• 304 / 316 Stainless Steel: While heavier and more expensive to machine than aluminum or standard steel, stainless is mandatory for AGVs operating in pharmaceutical cleanrooms, semiconductor fabs, or food processing plants subject to harsh chemical washdowns.

Material Selection for Heavy-Duty Caster Forks

Traditional manual carts use stamped steel or cheap cast iron caster brackets. For precision autonomous robots, these legacy manufacturing methods are unacceptable due to their sloppy tolerances, which introduce severe backlash and tracking errors into the robot's navigation.

Modern high-end AMRs rely on CNC-machined billet casters.

• Billet Aluminum (6061-T6): Often utilized to CNC machine the swivel fork for medium-duty robots. Using CNC milling, we can carve complex, organic structural webs that provide immense rigidity against lateral impacts while keeping the caster assembly ultra-lightweight.

• Machined Steel Plates (1018/1045): For multi-ton AGVs, the caster forks are often laser-cut from thick steel plate, precision CNC bent, and robotically welded. We then perform post-weld CNC machining on the bearing bores to ensure absolute concentricity.

CNC Machining Strategies for Perfect Wheel Hubs

Manufacturing a drive wheel hub requires rigorous tolerance control. The hub acts as the interface between the drive motor, the bearings, and the floor.

The Superiority of CNC Turning

The vast majority of an AGV drive hub is symmetrical and cylindrical. CNC turning is the ultimate subtractive manufacturing method for these components. A high-precision lathe guarantees absolute concentricity between the inner bore (where the motor shaft connects) and the outer diameter (where the urethane tread is poured). If the outer diameter is eccentric to the inner bore by even a few hundredths of a millimeter, the wheel will "cam" or wobble as it rotates. At high speeds, this wobble destroys the gearbox, damages the floor, and throws the LiDAR navigation algorithms completely off trajectory.

Integrating Milling for Drive Interfaces

While the hub is round, it requires non-symmetrical features to transfer torque. We heavily utilize Mill-Turn Centers to manufacture these parts in a single setup.

• Keyways and Splines: The mill-turn center can broach or mill a precise internal keyway into the bore to lock the hub to the motor shaft.

• Bolt Circles: For hub-motor designs, the machine will drill and tap a perfectly spaced circular array of mounting holes to bolt the motor stator directly to the wheel structure.

The Critical Interface: Polyurethane Tread Bonding

A beautifully CNC-machined aluminum hub is useless if the rubber or polyurethane (PU) tread peels off under load. The primary failure mode of an AGV drive wheel is delamination—where the intense shear force of acceleration and braking rips the urethane tire away from the metal hub.

Engineering the Metal Surface for Bonding

To prevent delamination, the CNC machining process must be intentionally altered to prepare the outer diameter of the hub for chemical bonding.

1. Rough Surface Finish: We do not want a mirror finish on the outer diameter. We deliberately program the CNC lathe to leave a highly textured, ridged, or "phonograph record" surface finish. This drastically increases the surface area for the urethane to grip.

2. Knurling or Cross-Hatching: For extreme high-torque applications, we will use a knurling tool to press a deep, diamond-patterned texture into the metal outer ring, providing aggressive mechanical interlocking hooks for the cast polyurethane.

3. Sandblasting: Post-machining, the hubs are aggressively sandblasted with aluminum oxide to remove any microscopic machining oils and create a highly active, matte surface ready for the chemical bonding primer.

Summary Material Comparison Table

Design for Manufacturing (DFM) Tips for AGV Mobility

To ensure your custom AGV wheels and casters are cost-effective to manufacture and bulletproof in the field, follow these engineering guidelines:

Specify H7 Tolerances Only Where Necessary

An H7 or h6 tolerance requires extreme precision, often demanding secondary boring or reaming operations. Specify these ultra-tight tolerances only on the critical bearing bores and motor shaft interfaces. Specifying a +/- 0.01mm tolerance on the outer diameter where the polyurethane tire will be cast is a massive waste of machining capital, as the urethane casting process itself cannot hold that tolerance.

Design Relief Grooves for Press Fits

If you are pressing precision bearings into your machined caster forks or wheel hubs, always design a small undercut (relief groove) at the bottom corner of the bearing pocket. A CNC end mill cannot cut a perfectly sharp 90-degree internal corner. Without a relief groove, the bearing will hit the corner radius and sit slightly crooked, inducing backlash and friction into the wheel.

Optimize for Thermal Dissipation

If you are designing an aluminum wheel hub that encloses an internal hub motor, heat is your enemy. The heat from the motor will transfer into the aluminum hub and subsequently into the polyurethane tread. If polyurethane gets too hot, its load-bearing capacity plummets and it will melt or delaminate.

• DFM Solution: Design heat-dissipating cooling fins into the face of the aluminum hub, and ensure the CNC milling toolpaths leave ample wall thickness to pull heat away from the critical urethane bonding zone.

Surface Treatments for Environmental Protection

Unless you are utilizing stainless steel, your AGV components require robust surface treatments to survive warehouse environments, humidity, and accidental chemical spills.

• Hardcoat Anodizing (Type III): The ultimate finish for aluminum caster forks and wheel hubs. It creates a dark, highly wear-resistant ceramic-like oxide layer. It is vastly superior to standard anodizing for preventing scratches from facility debris.

• Electroless Nickel Plating: The premier choice for carbon steel and 4140 alloy hubs. It deposits a highly uniform, rust-proof layer that penetrates perfectly into deep bearing bores and keyways without the uneven buildup associated with electrolytic plating.

• Zinc Plating (Galvanizing): A highly cost-effective, sacrificial rust-prevention coating for high-volume, heavy-duty steel caster brackets used in standard indoor logistics environments.

Frequently Asked Questions (FAQ)

Q: Should I buy off-the-shelf caster wheels or CNC machine custom ones?

A: For basic, low-speed carts, off-the-shelf is fine. However, for precision autonomous robots guided by LiDAR or SLAM, off-the-shelf casters have too much mechanical "slop" (backlash) in their swivel bearings. This causes the robot to drift off its path. CNC machining custom billet caster forks allows you to press-fit high-precision angular contact bearings, completely eliminating swivel backlash and ensuring perfect navigational tracking.

Q: Why is the keyway failing on my AGV aluminum drive wheel?

A: Aluminum is a relatively soft metal. Under heavy, reversing torque loads (accelerating and braking repeatedly), a hard steel motor shaft key will slowly crush and widen the aluminum keyway slot, leading to severe wheel wobble. For high-torque applications, you must either switch the hub material to 1045 steel, or design the aluminum hub to accept a specialized, high-strength steel keyway insert.

Q: What is the best polyurethane shore hardness for an AGV drive wheel?

A: This depends heavily on the floor surface and payload. Generally, a Shore 90A to 95A polyurethane offers the best balance. It is hard enough to support massive payloads without flattening out (which drains battery power due to rolling resistance), yet soft enough to grip a smooth epoxy warehouse floor without slipping under heavy motor torque.

Q: Can HRD manufacture the complete wheel, including the polyurethane tread?

A: Yes. Huaruida Precision Machinery is a comprehensive manufacturing partner. We precision CNC machine the metal wheel hubs to your exact CAD specifications, perform the necessary surface sandblasting and priming, and then manage the high-quality polyurethane casting and curing process to deliver a complete, ready-to-install AGV drive wheel.

Drive Your Autonomous Fleet Forward with Precision Manufacturing

The reliability of your AGV or AMR fleet rests entirely on the quality of its mobility components. A brilliant software stack cannot compensate for an out-of-round drive wheel or a fracturing caster fork. Achieving flawless kinematic movement requires a manufacturing partner with deep metallurgical knowledge, advanced multi-axis CNC technology, and rigorous quality control.

At Huaruida Precision Machinery, we specialize in turning complex robotic engineering designs into hyper-reliable physical components. Our engineering team is ready to review your mobility chassis CAD models, advise on the best materials, and execute flawless production.
