CNC Knurling: Types, Processes, and Applications

CNC Knurling makes metal surfaces with special patterns. These patterns help you hold things better and look cool. You can see these patterns on tool handles, knobs, and electronic parts. The main styles are straight lines, diamond shapes, and custom angles. You make these patterns by pressing or cutting the metal. The way you do it depends on the type of metal. This process helps parts feel better in your hand and look nice for everyday use.

• Common knurling patterns:

• Straight knurling is used for thumbscrews and watch crowns

• Diamond knurling is used for hand tools and control knobs

• Custom designs are used for electronics and jewelry

CNC Knurling Overview

What Is CNC Knurling

CNC Knurling makes patterns on metal using machines. These machines use computers to control special tools. The tools press or cut shapes into the metal. The tool looks like a hard wheel with sharp teeth. It rolls on the spinning metal piece. The tool pushes on the metal and makes a pattern that stays forever. You can find these patterns on handles, knobs, and machine parts.

CNC Knurling is special because it uses computer programs. You can set how deep, wide, or close the patterns are. This way, you get the same pattern every time. The machine does the same steps for each part. This means every piece looks the same and has good quality.

Here is a quick comparison between CNC Knurling and manual knurling:

Tip: If you want perfect patterns and steady results, CNC Knurling gives you more control than doing it by hand.

Purpose And Advantages

CNC Knurling is used for many reasons. The main reason is to help you hold things better. The patterns also make things look nice. When the tool presses on the metal, the metal changes shape. This makes a rough surface that stops things from slipping.

Key mechanical principles behind CNC Knurling include:

• The tool pushes on the spinning metal piece.

• The tool rolls a pattern into the metal.

• The pressure changes the metal’s shape forever.

• Careful control of pressure, speed, and position makes good patterns.

CNC Knurling gives you many good things:

• You get patterns that are always the right size.

• You get the same results, even with lots of parts.

• You can use many types of metal, so it works for many jobs.

CNC Knurling helps many industries. Car parts have better grip. Medical tools are easier to hold. You can make special patterns for each customer. The patterns also make electronics look cool and modern.

Note: CNC Knurling helps your products work better and look better too.

Knurling Types And Patterns

Straight Knurling

Straight knurling makes lines that go in the same direction as the part. You see this pattern a lot on round metal pieces. It helps you hold things better because it adds friction. Straight knurling can fix parts or help them fit tighter together. This pattern also gives metal a simple and neat look.

You might see straight knurling on:

• Metal that looks nice

• Handles that stop your hand from slipping

• Parts that need to fit tightly

Tip: Straight knurling is good for tools, car parts, and things people use every day.

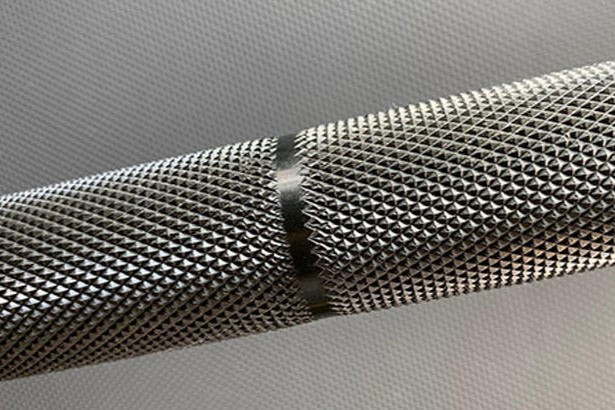

Diamond Knurling

Diamond knurling makes a pattern that looks like tiny diamonds. CNC Knurling machines use special tools to make this design. First, you plan the diamond shape on a computer. Then the machine cuts the pattern into the metal. This pattern has lots of spots to hold, so it is easy to grip.

Diamond knurling is found on tool handles, knobs, and railings. It helps you hold things without slipping and looks nice too.

Annular Knurling

Annular knurling makes round rings all around the part. These rings help parts stick together when you push or press them. The rings spread out the force and make it hard to pull the parts apart. This pattern is used when one part is metal and the other is plastic.

• Rings go around the part

• Used to press or push parts together

• Makes parts join easily and stay together

• Works well for metal and plastic pieces

Pattern Selection

Pick a knurling pattern based on what you want the part to do and how you want it to look. Each pattern is good for different jobs. Diamond knurling is best for gripping. Annular knurling is best for joining parts. Softer metals like aluminum and brass are easier to work with. You need the right tools and must line up everything carefully. Go slow and use steady pressure to get a nice pattern.

Note: Choosing the right knurling pattern helps your product work better and look better.

CNC Knurling Process

Pressing Vs. Cutting Methods

There are two main ways to make knurled patterns. One way is pressing, and the other is cutting. Each way has good and bad points. Pressing pushes the pattern into the metal with force. Cutting takes away metal to make the pattern.

Here is a table to compare both ways:

Pick the way that fits your metal and pattern. If you want a very exact pattern or use hard metals, cutting is better. If you want less waste and use soft metals, pressing is better.

Tip: For hard metals like stainless steel, use cut knurling tools. This stops cracks and gives a clean pattern.

CNC Lathe Tools

You need special tools for CNC Knurling. The most common tools are knuckle joint type and revolving head type. The knuckle joint type has one pair of rollers that turn with the metal. The revolving head type has three pairs of rollers. This lets you change the pitch without moving the setup.

You can pick different patterns like diamond or straight. Each tool comes in coarse, medium, or fine pitches. For hard metals like stainless steel or titanium alloys, carbide knurling wheels work best. These wheels stay sharp for over 20,000 uses. They last longer than high-speed steel wheels. Cut knurling tools are also good for hard metals. They take away metal, lower machine stress, and keep the part’s shape.

• Use carbide wheels for hard metals.

• Pick cut knurling tools for metals above 200 HB.

• Carbide wheels last longer and keep patterns sharp.

Note: The right tool and metal help you get a strong, clean, and long-lasting knurled pattern.

Step-By-Step Process

Here are the steps to finish a CNC Knurling job:

1. Tool Selection: Pick the right tool and wheel for your pattern and metal.

2. Setup and Alignment: Line up the tool with the metal. Make sure the pressure is even.

3. Initial Contact: Start the machine. Let the tool touch the spinning metal gently.

4. Knurl Rolling: The tool rolls over the metal. The pattern gets deeper each time.

5. Final Passes: Make more passes to make the pattern better and the right size.

6. Inspection and Finishing: Check the surface for problems. Fix any issues before finishing.

Tip: Always check your work for messy patterns, marks, or rough spots. Fixing these early saves time and metal.

If you see double lines or a messy pattern, check your metal size and tool setup. For hard metals, use cut knurling to stop flaking or bending. Good setup and the right tools help you avoid most mistakes.

Materials And Surface Finish

Suitable Materials

Picking the right material helps make a strong knurled pattern. Some metals are easier to use than others. Aluminum and brass are soft. They make patterns easily. Stainless steel is harder. It needs special tools so it does not crack. Plastics can also be knurled. But the pattern might not last long.

Here is a table to show how different materials work:

Use form knurling tools for soft metals like aluminum and brass. These tools press the pattern in without hurting the metal. For hard metals like stainless steel, use cut knurling tools. They help stop cracks and keep the pattern sharp.

Tip: Pick the right tool for your material. This helps your tools last longer and gives better results.

Surface Quality

A good knurling job makes the surface look neat and even. The pattern should be sharp and rough enough to grip. Knurling does more than add bumps. It also makes the part look better and work better. The pattern is even. This helps you hold the part and makes it look nice.

Knurling gives metal parts a special look. It changes plain metal into something textured and cool. This helps the part work well and look good.

You can check the surface finish in different ways:

Note: A neat and even pattern helps your parts look good and work well in real life.

Applications & Considerations

Industrial Uses

Knurled patterns are used in many jobs. CNC Knurling helps parts work better and last longer. You see these patterns on handles, valve stems, and knobs. They help you hold and control machines. Here are some common uses:

• Machinery and manufacturing: Lathe machines, milling machines, and CNC equipment have knurled surfaces. These help you make small changes easily.

• Medical equipment: Hospital beds and diagnostic machines use knurled knobs. These knobs are easy to turn and adjust.

• Aerospace and automotive: Knurled parts help you move things in aircraft and cars.

Knurled patterns help you grip things better. They make putting parts together easier. They also make products look nice and professional. The process is quick and uses machines you already have. This saves you time and money.

Design And Cost

When you design a knurled part, you need to think about the die, material, and holder. You want the part to look smooth and have a strong grip. The table below shows important design points:

Cost is important when making lots of parts. You need to plan for care, workers, materials, and setup. Making more parts lowers the cost for each one. The table below explains these factors:

Troubleshooting

Sometimes you get bad patterns or tools wear out. You can fix most problems with easy steps. The table below lists common troubleshooting tips:

Tip: Always check your setup and use enough lubricant. These steps help you avoid most problems and keep your patterns looking good.

You learned how CNC knurling creates strong patterns for grip and style. You saw the main types, the process steps, and common uses. CNC machines give you precise and repeatable results every time. If you want to start with CNC knurling, try simple projects first. You can read more guides or ask experts for advice.

Tip: Keep exploring new patterns and tools. You can improve your skills and make better products.

FAQ

What is the best metal for CNC knurling?

You get the best results with aluminum or brass. These metals are soft and easy to shape. Stainless steel works too, but you need special tools. Always match your tool to your metal for a clean pattern.

Can you knurl plastic parts?

Yes, you can knurl plastic parts. The pattern may not last as long as on metal. Use lower pressure and slower speeds. This helps you avoid cracks or damage.

How do you fix a double knurl pattern?

Check your tool alignment and the size of your metal blank. Make sure the tool matches the part size. Adjust the setup if you see double lines. This helps you get a single, clean pattern.

Do you need coolant or lubricant for knurling?

Yes, you should use coolant or lubricant. This reduces heat and tool wear. It also helps you get a smoother finish. Always keep your tools and workpiece cool for the best results.

Can CNC knurling make custom patterns?

You can make custom patterns with CNC knurling. Change the tool or program to create new designs. This lets you match your product’s style or function.
