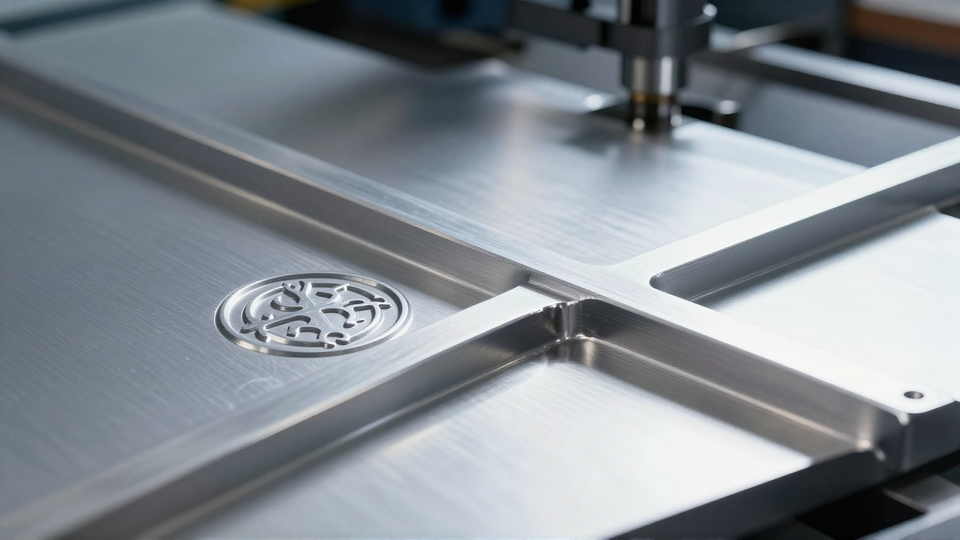

The Art and Science of the Sheet Metal Embossing Process

Introduction

In the highly competitive world of product design and industrial manufacturing, sheet metal is often viewed purely as a structural necessity—a flat, rigid enclosure designed to protect internal components. However, advanced sheet metal fabrication allows for true three-dimensional transformation. Among the most versatile of these forming techniques is the Sheet Metal Embossing Process.

Embossing sits uniquely at the intersection of aesthetic artistry and mechanical science. It is the process of creating raised or sunken designs, patterns, text, or functional geometric features directly into the surface of a sheet metal part. From the sleek, raised corporate logo on a luxury appliance to the complex network of stiffening ribs that prevent a thin steel chassis from collapsing under immense weight, embossing adds both unparalleled cosmetic value and critical structural integrity.

As a leading provider of comprehensive metal fabrication and custom CNC machining services, Huaruida Precision Machinery (HRD) utilizes advanced CNC punch presses and custom die sets to manipulate sheet metal far beyond simple bends and cuts.

This comprehensive guide will demystify the art and science of the sheet metal embossing process. We will explore the mechanical principles of metal deformation, compare embossing to similar processes like coining, provide strict Design for Manufacturing (DFM) guidelines, and showcase how this technique can optimize your next custom metal component.

The Science of Embossing: How Plastic Deformation Works

To understand how to design for embossing, an engineer must first understand what happens to the metal at a molecular level during the process.

Embossing relies on plastic deformation. When a piece of sheet metal is placed between a matching male and female die (the tooling), immense pressure is applied. The metal is stretched and forced to conform to the precise geometry of the dies.

Unlike cutting or shearing, embossing does not remove any material. Instead, it rearranges it. Because the metal is being stretched, the wall thickness of the embossed area is inherently thinner than the rest of the sheet. If the pressure is too high, or the design is too deep, the metal will exceed its tensile limits and tear (fracture). Calculating this precise balance between pressure, material thickness, and die depth is the "science" of a successful custom sheet metal forming operation.

Embossing vs. Coining vs. Stamping: Clearing the Confusion

These three terms are frequently used interchangeably by procurement teams, but in the realm of precision manufacturing, they describe fundamentally different mechanical processes.

Metal Forming Comparison Table

The Golden Rule to Remember: If you emboss a logo into a sheet of steel, you will feel the raised logo on the front, and you will feel an indent (a negative cavity) of that exact logo on the back. If you coin a logo, the metal is squeezed so hard that the back of the sheet can remain perfectly flat.

Functional Applications: The Science of Stiffening Ribs

While embossing is famous for decorative branding, its most critical industrial application is structural reinforcement.

When designing large sheet metal panels (like tractor hoods, electrical cabinet doors, or automotive floor pans), engineers face a dilemma: a flat sheet of thin metal will "oil-can" (wobble and flex) and easily buckle under load. Increasing the gauge (thickness) of the entire sheet solves the flex but adds massive, unacceptable weight and cost.

The Solution: Embossing stiffening ribs. By embossing linear or cross-hatched ribs into the thin sheet, the geometric moment of inertia is drastically increased. The metal gains profound rigidity and resistance to bending without adding a single gram of weight to the part. This is the cornerstone of lightweighting in aerospace and automotive engineering.

Aesthetic Applications: The Art of Branding

In consumer electronics, high-end audio equipment, and luxury appliances, brand identity is everything. Embossing provides a permanent, highly tactile branding solution that screen printing or laser engraving cannot match. A raised, polished logo physically stamped into an aluminum faceplate conveys premium quality and durability. Furthermore, because it is formed into the metal itself, an embossed logo can never be scratched off, faded by UV light, or removed by harsh chemical cleaners.

Material Selection for the Embossing Process

Not all metals are created equal when it comes to extreme stretching. Highly ductile metals are the best candidates, as they flow into the die without tearing.

Excellent Candidates for Embossing

• Aluminum (5052-H32): The undisputed champion of custom sheet metal embossing. It is highly ductile, stretches beautifully, and requires less tonnage than steel, extending tool life.

• Deep Drawing Steel (CQ / DQ): Commercial Quality or Drawing Quality low-carbon steels are specifically smelted to maximize ductility for aggressive forming operations.

• Copper and Brass: Extremely soft and malleable, making them perfect for highly detailed, artistic, and decorative embossing.

Difficult Candidates for Embossing

• Stainless Steel (304 / 316): While stainless can be embossed, it suffers from rapid work-hardening. As it is stretched into the die, it instantly becomes harder and more brittle, increasing the risk of cracking. It requires much higher tonnage and extremely robust tooling.

• Aerospace Aluminum (7075-T6): Extremely rigid and brittle in its tempered state. Attempting to emboss a deep feature into 7075 will almost certainly result in catastrophic fracturing.

Modern CNC Punch Presses and Embossing Tools

Historically, embossing required the creation of massive, expensive custom die sets, making it viable only for mass production (e.g., hundreds of thousands of car doors).

Today, HRD utilizes advanced CNC Punch Presses equipped with specialized forming tools. These machines can use a small, modular embossing tool (like a louver tool, a countersink tool, or a small ribbing tool) and "nibble" or press the feature into the sheet metal across the X and Y axes.

This breakthrough allows for low-volume production and rapid prototyping of embossed features (like ventilation louvers or strengthening dimples) without the exorbitant upfront tooling costs of traditional stamping presses.

Design for Manufacturing (DFM) Guidelines for Embossing

To ensure a successful embossing operation, prevent tearing, and keep manufacturing costs low, engineers must follow strict DFM rules.

Rule 1: The Depth-to-Thickness Ratio

Do not design an embossed feature that is too deep.

• Guideline: The maximum depth of the emboss should generally not exceed 3 times the material thickness (3T). Going deeper risks stretching the metal until it tears.

Rule 2: Minimum Distance to Edges and Holes

When metal is stretched during embossing, it pulls material from the surrounding flat area. If the emboss is too close to the edge of the part, it will warp and distort the edge. If it is too close to a pre-punched hole, the hole will be stretched from a circle into an oval.

• Guideline: Keep embossed features at least 3 times the material thickness (3T) away from any edges, bends, or holes.

Rule 3: Generous Corner Radii

Sharp internal corners are the enemy of sheet metal forming. A sharp 90-degree corner in an embossing die concentrates all the stretching stress into a single microscopic point, leading to immediate cracking.

• Guideline: Ensure all embossed geometries have generous radii. The internal radius of the embossed feature should be at least 1.5 times the material thickness (1.5T).

Rule 4: Draft Angles

Just like in plastic injection molding, the vertical walls of the embossed feature cannot be perfectly 90 degrees straight up and down. They must be angled to allow the metal to flow into the die and to allow the tool to release the part after forming.

• Guideline: Incorporate a draft angle of at least 10 to 15 degrees on the side walls of your embossed design.

Surface Finishes and Embossing

The interaction between an embossed feature and post-machining surface treatments is a crucial aesthetic consideration.

• Powder Coating: Embossed logos look spectacular under a sleek powder coat. The raised geometry catches the light, making the branding pop. Ensure the emboss depth is sufficient so that the thick powder coat layer does not completely "drown out" the design.

• Anodizing: Because anodizing adds almost zero measurable thickness, it is perfect for preserving the razor-sharp details of a highly intricate embossed aluminum panel.

• Brushing / Polishing: A highly effective technique is to emboss a logo, and then use a surface grinder or polishing wheel to heavily polish only the raised embossed surface, while leaving the flat background matte or brushed. This creates a stunning, high-contrast visual effect.

Frequently Asked Questions (FAQ)

Q: Can HRD emboss custom logos onto low-volume production runs?

A: Yes. While massive custom die sets are expensive, we can often utilize modern CNC punch presses or create cost-effective, smaller modular tooling specifically for your logo, making it viable for runs of 100 to 1,000 pieces.

Q: Why did the metal tear around the edges of my embossed design?

A: Tearing (fracturing) usually occurs due to one of three DFM failures: the design was too deep for the material gauge, the corner radii were too sharp, or the wrong material was chosen (e.g., trying to deep-emboss brittle 304 stainless steel without proper draft angles).

Q: Is it better to emboss stiffening ribs before or after bending the part?

A: Embossing must always be performed before the final bending operations. Embossing stretches the flat sheet and changes its overall dimensions slightly. If we bend the part first, the subsequent embossing process would warp the established bend angles out of tolerance.

Q: Does embossing weaken the sheet metal?

A: Locally, the stretched walls of the emboss are slightly thinner than the raw sheet. However, functionally, the geometry created by the emboss drastically increases the overall rigidity and moment of inertia of the panel. Therefore, embossing makes the part significantly stronger against bending and twisting forces.

Elevate Your Sheet Metal Components with HRD

From maximizing the structural integrity of industrial chassis through engineered ribbing, to cementing your brand identity with raised metallic logos, the embossing process is a powerful tool in precision manufacturing.

At Huaruida Precision Machinery, our engineering team is ready to analyze your CAD designs, ensure they meet rigorous DFM standards, and execute flawless sheet metal forming operations.
