What Are Fly Cutters and When Should You Use Them in CNC Milling?

Contents

Introduction

What is a Fly Cutter? The Mechanics of Single-Point Milling

Anatomy of a Fly Cutter

Fly Cutters vs. Face Mills: The Ultimate Comparison

Key Advantages of Using Fly Cutters

Limitations and Disadvantages

Ideal Materials for Fly Cutting

Masterclass: Speeds, Feeds, and Setup Strategies

Troubleshooting Common Fly Cutting Defects

Frequently Asked Questions (FAQ)

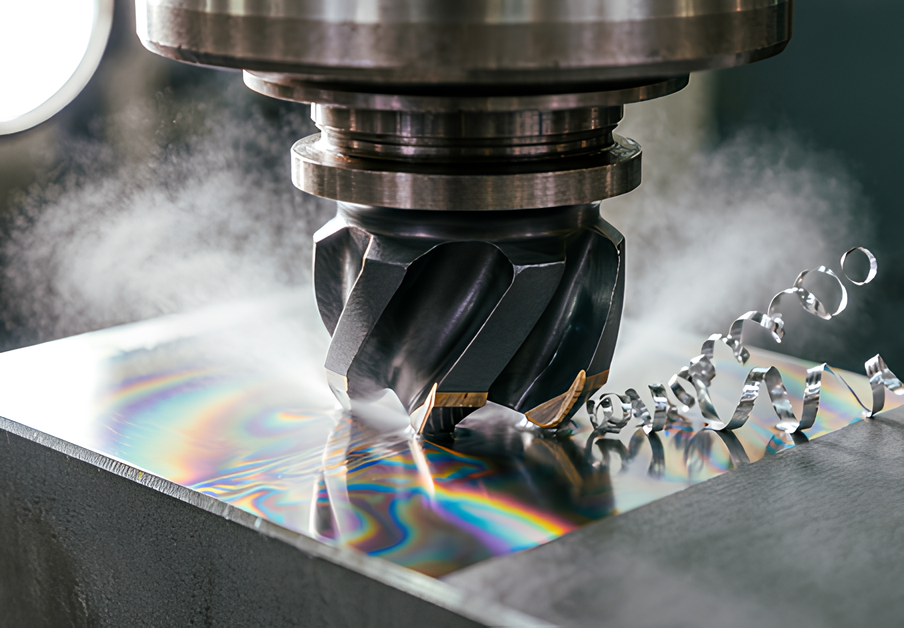

What Are Fly Cutters and When Should You Use Them in CNC Milling?cid=12

Introduction

In the precision world of subtractive manufacturing, achieving a perfectly flat, mirror-like surface finish on a wide expanse of metal is one of the ultimate tests of a machinist's skill and the machine's rigidity. When standard multi-flute end mills or heavy-duty face mills leave behind visible overlapping tool marks or slight stepping, expert machinists turn to a highly specialized, elegantly simple tool: the Fly Cutter.

Despite being one of the oldest cutting tools in the machining playbook, the fly cutter remains an irreplaceable asset in modern CNC milling centers. It relies on a single cutting point sweeping across a large diameter to produce surface finishes that often rival precision grinding, all at a fraction of the cost.

As a leading provider of custom metal components, Huaruida Precision Machinery (HRD) utilizes a vast array of tooling to meet our clients' exacting cosmetic and geometric tolerances. Understanding when to deploy a fly cutter instead of a traditional face mill is crucial for optimizing both aesthetic quality and production costs.

This comprehensive guide will demystify the fly cutter. We will explore its anatomy, deeply compare it against traditional face mills, analyze the optimal speeds and feeds for perfect surface finishes, and provide actionable Design for Manufacturing (DFM) tips for your custom CNC projects.


What is a Fly Cutter? The Mechanics of Single-Point Milling

At its core, a fly cutter is a single-point rotary cutting tool used primarily for surfacing or face milling large, flat areas on a workpiece.

Unlike a standard end mill that has two, four, or more flutes (cutting edges) engaged with the material simultaneously, a fly cutter uses only one cutting edge. The tool body holds this single cutting bit at a wide radius from the spindle's center of rotation. As the spindle turns, this single point "flies" in a large circular arc, taking a very shallow, wide slice out of the material.

The magic of the fly cutter lies in this single-point contact. Because there is only one cutting edge, there is absolutely no axial runout variation.

In a multi-insert face mill, even the most microscopic difference in the height of the inserts will cause the lowest insert to leave a distinct scratch or "step" on the metal surface. A fly cutter eliminates this variable entirely. Every single rotation uses the exact same cutting edge at the exact same height, resulting in an impeccably smooth, continuous surface finish across the entire width of the cut.


Anatomy of a Fly Cutter

A traditional fly cutter is remarkably simple, consisting of three primary components:

The Tool Body (Arbor): This is the heavy, rigid cylindrical body that mounts directly into the CNC machine spindle (usually via a CAT40, BT40, or R8 shank). The body is designed with a massive amount of mass to absorb vibrations and prevent chatter.

The Tool Slot: At the bottom of the tool body, an angled slot or channel is milled. This slot holds the actual cutting tool. The angle ensures the cutting tip protrudes downward and outward.

The Cutting Tool (Tool Bit): This is the business end of the fly cutter. Historically, this was a piece of square High-Speed Steel (HSS) that a machinist would hand-grind to the perfect geometry. Today, modern CNC fly cutters often utilize standard indexable carbide inserts (such as SEHT or APMT inserts) for repeatability and high-speed machining.


Fly Cutters vs. Face Mills: The Ultimate Comparison

When an engineer needs to flatten a large aluminum plate, the first question is always: Should we use a face mill or a fly cutter? Both are surfacing tools, but their applications are vastly different.

Milling Tools Comparison Table

Feature

Fly Cutter

Face Mill

Number of Cutting Edges

1 (Single-point)

3 to 10+ (Multi-insert)

Primary Application

Finishing (Cosmetic surface)

Roughing & High Volume Material Removal

Surface Finish Quality

Exceptional (Mirror-like)

Good (Often shows overlapping witness marks)

Material Removal Rate (MRR)

Very Low

Very High

Feed Rate Required

Very Slow

Extremely Fast

Machine Horsepower Needed

Very Low (Can be run on small/hobby machines)

High (Requires high torque to push multiple inserts)

Tooling Cost

Very Low

High (Expensive body + multiple inserts)

Vibration / Chatter Risk

High (If unbalanced or run too fast)

Lower (More continuous cutting forces)

When to Use a Face Mill

You should specify a face mill when you need to remove a massive amount of material quickly (roughing). If you have a raw steel billet that needs 5mm of material removed across a wide area, a multi-insert face mill will chew through the metal efficiently.

When to Use a Fly Cutter

You should specify a fly cutter when the material is already close to its final dimension, and the primary goal is a flawless, ultra-flat cosmetic surface finish. Fly cutting is typically the very last operation performed on a flat face, taking a "dusting" cut of perhaps 0.05mm to 0.1mm deep.


Key Advantages of Using Fly Cutters

Why does this ancient, slow tool still hold a place of honor in high-tech CNC machine shops?

1. Unrivaled Surface Finishes

As mentioned, the lack of insert height variation means the surface finish is incredibly consistent. With the right feed rate, a fly cutter can produce an iridescent, "rainbow" mirror finish on aluminum and brass that looks like a freshly pressed vinyl record.

2. Low Horsepower Requirements

Because only one tiny point of the tool is engaged with the metal at any given time, the cutting forces are incredibly low. This allows smaller, less rigid CNC machines to flatten very large areas without stalling the spindle or deflecting the machine column.

3. Infinite Diameter Adjustability

A traditional fly cutter body can accommodate a long piece of HSS tool steel. By sliding the tool bit further out of the slot before tightening the set screws, a machinist can create a 6-inch (150mm) or even 8-inch (200mm) cutting diameter using a tool body that is only 2 inches wide. This allows a single tool to sweep across massive custom metal plates in a single pass, completely eliminating the overlapping lines that occur when a smaller end mill takes multiple parallel passes.

4. Custom Tool Geometry

When using HSS blanks, a machinist can grind a custom radius or angle onto the cutting tip specifically tailored for the material being cut. This level of customization is impossible with standard off-the-shelf indexable face mills.


Limitations and Disadvantages

No tool is perfect. Fly cutters have severe limitations that relegate them strictly to finishing operations.

1. Horrendously Slow Cycle Times

Because there is only one cutting tooth, the chip load per tooth (IPT) dictates the feed rate. A face mill with 6 inserts can feed 6 times faster than a fly cutter at the same RPM while maintaining the exact same chip thickness. In high-volume production, the time it takes a fly cutter to traverse a large plate is often prohibitively expensive.

2. High Risk of Imbalance

Extending a piece of heavy steel far out from the center of rotation creates an unbalanced mass. If the spindle is spun too fast, this imbalance acts like a washing machine during a spin cycle. The resulting vibration will destroy the spindle bearings and leave a terrible, chattering finish on the part. Fly cutters must be run at lower RPMs than perfectly balanced face mills.

3. Rapid Tool Wear

In a 6-insert face mill, the wear is distributed across six cutting edges. In a fly cutter, the solitary cutting edge does 100% of the work. If you are machining an abrasive material, the single point will dull quickly, potentially causing the part dimension to taper from the beginning of the cut to the end.


Ideal Materials for Fly Cutting

Not all metals react well to the single-point sweeping action of a fly cutter.

Excellent: Aluminum Alloys (6061, 7075, 5052)

Aluminum is the absolute best candidate for fly cutting. It is soft, shears cleanly, and does not rapidly dull the single cutting edge. A polished carbide insert or a keenly ground HSS tool bit will leave a breathtakingly shiny finish on custom aluminum components.

Excellent: Brass and Copper

Free-machining brass (C36000) fly cuts beautifully due to its brittle chips. Pure copper is gummy, but a fly cutter with a very sharp, highly positive rake angle can shear the copper cleanly, leaving a highly conductive, perfectly flat contact surface for electrical heat sinks.

Moderate: Plastics (Delrin, Acrylic, Polycarbonate)

Fly cutters work very well on plastics, provided the tool is razor-sharp. If the tool is dull, it will rub and melt the plastic rather than cutting it, smearing the surface.

Poor: Carbon Steel, Stainless Steel, and Titanium

While you can fly cut steel, it is generally avoided. The toughness and high shear strength of alloys like 304 Stainless Steel or 4140 Chromoly will cause immense impact shock every time the single cutter enters the material. This rapid hammering will quickly break the single carbide insert or dull the HSS tool, resulting in a poor finish and frequent tool changes. For tough metals, multi-insert face mills are heavily preferred.


Masterclass: Speeds, Feeds, and Setup Strategies

Achieving the perfect fly-cut finish requires expert manipulation of CNC machining parameters.

1. Tramming the Machine Head

A fly cutter will amplify any misalignment in your CNC machine. The spindle must be perfectly perpendicular (trammed) to the machine table. If the spindle is tilted even a fraction of a degree, the fly cutter will cut deeper on the leading edge and drag on the trailing edge, leaving a distinct, cross-hatched "dish" pattern on the surface.

2. Calculating Speeds (RPM)

Speed is limited by the balance of the tool.

  • Rule of Thumb: The larger the sweep diameter of the fly cutter, the slower the RPM must be to prevent violent vibration. For a massive 6-inch sweep, the spindle may be limited to 500 - 800 RPM.

3. Calculating Feeds (IPM/MMPM)

Feed rate is the secret to the finish.

  • To get a mirror finish, the feed per revolution must be smaller than the radius of the cutting tip.

  • If you feed too fast, the tool creates a helical groove (like a phonograph record).

  • Target Feed: Extremely slow. Often 0.001 to 0.003 inches per revolution (0.025mm to 0.075mm per rev).

4. Depth of Cut (DOC)

Fly cutters are finishing tools. The Depth of Cut should be microscopic.

  • Target DOC: 0.002 to 0.010 inches (0.05mm to 0.25mm) maximum. Attempting to hog out material with a deep fly cut will cause severe chatter or snap the tool bit.

5. Coolant Application

When fly cutting aluminum, high-pressure flood coolant or mist coolant (MQL) is highly recommended. It prevents the soft aluminum from welding to the single cutting edge (Built-Up Edge), which is the primary cause of a cloudy or torn surface finish.


Troubleshooting Common Fly Cutting Defects

If your surface finish looks terrible, consult this diagnostic chart:

Defect Observation

Likely Cause

Solution Strategy

Cloudy, Torn, or Smeared Finish

Built-Up Edge (BUE) on tool tip

Increase coolant flow; Ensure tool is razor-sharp; Check if tool is rubbing.

Deep Concentric Grooves (Record Player)

Feed rate is vastly too high

Slow down the feed rate (IPM); Use an insert with a larger corner radius.

Visible "Step" or Cross-Hatch Pattern

Machine head is not trammed

Re-tram the CNC spindle to ensure perfect perpendicularity to the table.

Severe Chattering / Screaming Noise

Tool imbalance or lack of rigidity

Reduce RPM; Shorten the tool bit extension; Ensure the workpiece is clamped tightly.

Tapered Part (Thicker at one end)

Tool wear during the long cut

For abrasive materials, use a premium carbide or PCD (Diamond) insert instead of HSS.

Design for Manufacturing (DFM) Considerations

If you are designing a part and require an ultra-flat, mirror-finished surface (e.g., a vacuum sealing flange, a laser optics mounting base, or an aesthetic front panel), keep these tips in mind:

Specify the Finish, Not the Tool: Rather than telling the machine shop to "use a fly cutter," specify a tight surface roughness requirement on your engineering drawing, such as Ra 0.4µm (16µin) or better. This allows the shop to decide whether to use a fly cutter, a highly tuned face mill, or a surface grinder to achieve your goal.

Avoid Interrupted Cuts: Fly cutters perform best on continuous, solid, flat areas. If your part has hundreds of drilled holes or deep pockets interrupting the flat surface, the fly cutter will slam into the edge of every hole as it passes, which can induce vibration and slightly degrade the finish.

Post-Processing: Keep in mind that applying subsequent surface treatments like sandblasting, matte anodizing, or powder coating will completely erase the beautiful mirror finish created by the fly cutter. If you want the machined look preserved, specify clear anodizing or clear passivation.


Frequently Asked Questions (FAQ)

Q: Why not just use a multi-insert face mill with a "wiper" insert?

A: This is a modern alternative! High-end CNC face mills can be equipped with a "wiper insert"—one insert that sits slightly lower and flatter than the rest to "wipe" away the witness marks. While excellent for production speeds, achieving a true, flawless mirror finish across a massive span is still more reliably achieved with the sheer simplicity of a single-point fly cutter.

Q: Can a fly cutter be used in a CNC lathe?

A: No. A fly cutter is a rotating tool designed for a milling machine spindle. In CNC turning, the workpiece rotates, and a stationary single-point tool is used. The physical mechanics of a lathe cutting tool essentially mimic what a fly cutter does in a mill.

Q: Does HRD Precision Machinery use fly cutters for production parts?

A: We utilize them selectively. For high-volume production, fly cutting is usually too slow. We rely on highly precision-balanced, multi-flute face mills. However, for low-volume aerospace, optical, or custom cosmetic enclosures that demand an impeccable, scratch-free surface, our expert machinists will absolutely deploy custom fly cutting strategies.

Partner with Masters of Precision Surface Finishing

Achieving the perfect surface finish is an art form that blends rigid machinery, advanced tooling geometry, and decades of machining intuition. Whether you need a flawless sealing surface for a vacuum chamber or a stunning cosmetic finish for a consumer electronic housing, Huaruida Precision Machinery has the technology and expertise to deliver.
