What Are Threading Operations in Manufacturing and Machining

Threading operations make screw threads. These threads look like spiral grooves on a workpiece. You can see threads on bolts and nuts. Many everyday things have threads. Manufacturers make more screw threads than any other machine part each year. Threading helps make strong connections. These connections can be adjusted and taken apart. Most threads are made by cutting or forming. Each method shapes metal in its own way. This helps parts fit together tightly.

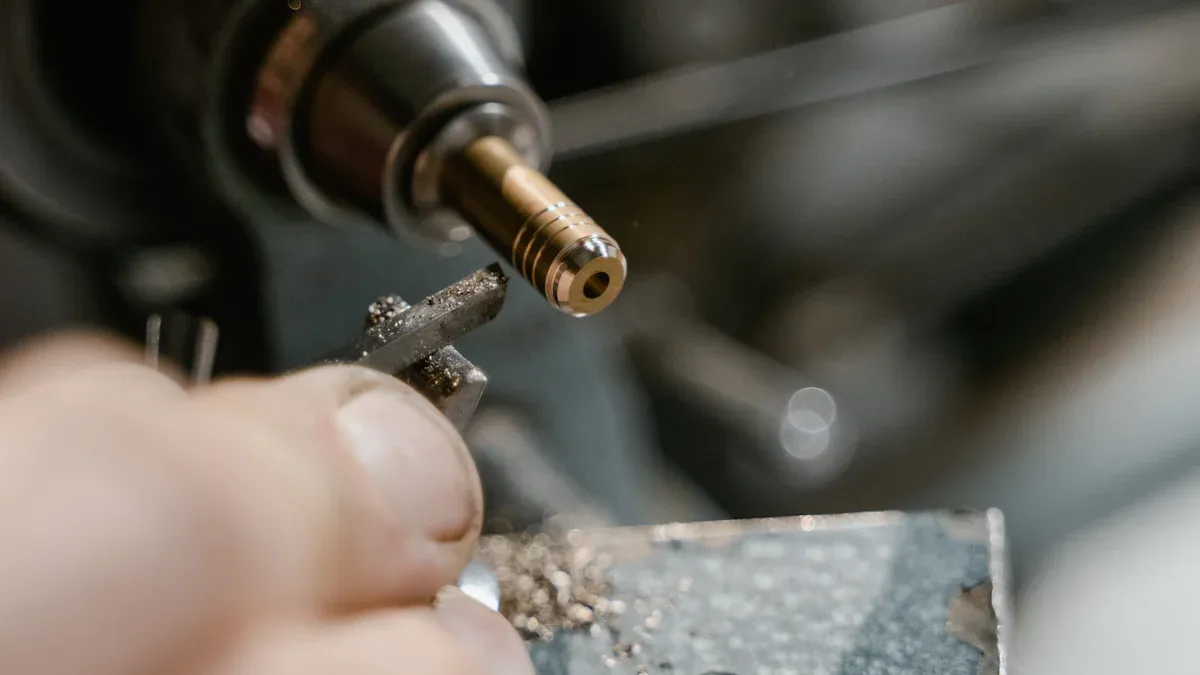

Threading Operations Overview

What Is Threading?

Threading makes spiral grooves called threads on a workpiece. You use threading to help parts fit together, like bolts and nuts. There are different ways to do threading. The two main ways are thread cutting and thread forming. Look at the table below to see how they are different:

Thread cutting takes away metal to make threads. Thread forming pushes the metal into shape. Thread forming usually makes threads that are stronger and smoother. You need ductile materials for thread forming.

Internal vs. External Threads

Internal threads are inside holes, like in nuts or pipe fittings. External threads are on the outside of parts, such as bolts and screws. The table below shows how they are not the same:

• Internal threads are used in:

• Cars

• Mechanical engineering

• Farm machines

• Home appliances

• External threads are found in:

• Machines

• Cars

• Building materials

• Pipes

Why Threading Matters

Threading Operations help you make strong and reusable connections. You need threads for safety and to keep things working well. For example, threaded fasteners hold machines together and seal pipes. If you do not check threads often, leaks or breaks can happen. Threaded connections can be the weakest part in plumbing systems. Checking threads often helps you avoid expensive repairs and keeps things working. Taking care of threads helps your products last longer and stay safe.

Types of Threading Operations

Thread Cutting

Thread cutting is a common way to do Threading Operations. This method takes away material to make threads on a workpiece. You can use cutting tools for both inside and outside threads. It works well for almost any kind of metal, even hard or brittle ones.

Here are the main types of thread cutting used today:

1. Tapping: A tap cuts threads inside holes. Tapping is easy and saves money.

2. Die Cutting: A die cuts threads on the outside of rods. This method is good for making lots of parts fast.

3. Thread Milling: A cutter with many teeth makes threads. Thread milling lets you change the thread design easily.

4. Thread Rolling: Some rolling tools cut threads for very exact needs. This is sometimes grouped with forming.

Tip: Use tapping for threads inside holes. Use die cutting for threads on rods or bolts.

You should know the good and bad sides of thread cutting:

Thread cutting works for big or odd-shaped parts. But it can be slow and may make threads weaker because it cuts the metal’s grain.

Thread Forming (Rolling)

Thread forming, also called thread rolling, is another Threading Operations method. You do not cut metal away. You press and shape the metal to make threads. This works best with metals that bend easily.

Materials that work well for thread rolling are:

• Carbon steel and alloy steel

• Stainless steel (especially austenitic types)

• Aluminum

• Brass and bronze

• Titanium

• High-temperature alloys

Thread rolling gives you many benefits:

The process makes threads with smooth roots and sides. There are no tears or marks that could cause problems or make the threads weak.

• Rolled threads are stronger because the metal grain follows the thread shape.

• The surface is smoother, so cracks and breaks are less likely.

• No chips are made, so there is less waste.

Pick thread rolling if you want strong, high-quality threads and use metals that bend. This method is fast and good for making lots of parts.

Other Methods (Milling, Tapping, Grinding)

You can also use other Threading Operations like milling, tapping, and grinding. Each one has its own good points.

• Thread milling is good for tricky parts and costly materials. One tool can make many thread sizes. This saves time and lowers the chance of breaking tools in expensive parts.

• Tapping is simple and best for making inside threads in soft metals.

• Grinding is used for very exact threads or a perfect surface. Use grinding for hard steel or special shapes.

Note: Thread milling helps you save expensive parts if a tool breaks. It also lets you do more than one step at a time, making your work faster.

Threading Operations can be used for many shapes, sizes, and materials. You must pick the right method for your job. Some ways are better for making lots of parts. Others are best for custom or very exact parts. You may have problems like waste, tool wear, or rough surfaces. Knowing what each method does best helps you choose the right one for your project.

Threading Process and Tools

Step-by-Step Process

You can follow these steps to make threads on a rod or workpiece:

1. Prepare the rod. Cut it to the right length and clamp it tightly.

2. Choose the right die. Make sure it matches the thread size and pitch you need.

3. Lubricate the rod. Use cutting oil to lower friction and get better threads.

4. Start cutting. Align the die and turn it clockwise. Reverse sometimes to break chips.

5. Finish the thread. Remove the die and clean off any burrs.

6. Inspect and finish. Test the thread fit and check for accuracy.

Tip: Always check your threads after cutting. This helps you catch mistakes early.

Common Tools and Machines

You have many tools and machines for threading. Each one can change how accurate and fast your work is.

• Thread turning, thread milling, and tapping work best for different jobs.

• Stable machines with enough power and torque give you better threads.

• Changing the threading method can help your tools last longer and improve the surface finish.

• Adjusting cutting depth and the number of passes can make your process smoother.

• New machines use sensors to watch torque and force. This helps you spot tool wear or misalignment.

• Machine setup and tool choice matter a lot for good results.

Note: If you use the right machine and method, you can avoid many common problems in Threading Operations.

Tool Selection

Picking the right tool depends on your material and thread type. Here is a quick guide:

• HSS works best for aluminum and mild steel.

• Cobalt and carbide tools are needed for stainless steel, titanium, and hard alloys.

You should also:

1. Confirm the thread standard (like UN, ISO, or BSW) matches your project.

2. Pick the fit class you need—loose, standard, or precision.

3. Double-check the size limits for your tool and workpiece.

Remember: The right tool makes your job easier and your threads stronger.

Thread Standards

International Standards

Thread standards help parts fit and work well. Different places use different rules. The size and type of thread changes how things work together. Here are some common thread standards used around the world:

• ISO metric screw threads (M) are used for many jobs.

• BSP threads (R, G) are found in pipes and plumbing.

• Unified Inch Screw Threads (UN, UNR) are used in North America.

• ISO general purpose screw threads are used everywhere.

ISO standards started in 1947. They now include many country rules. Most products use ISO metric threads. ANSI standards use inches and are popular in the United States. DIN standards come from Germany and use metric units. The table below shows how these standards are not the same:

Key Parameters

You need to check some important thread details. These details help you know if threads are strong and fit well. Here are the main things to look at:

Tip: Always use the right thread details for your standard.

Inspection and Measurement

You must check threads to make sure they are right. Good measurement keeps products safe and working well. Here are ways to check threads:

1. Go/no-go gauges test if threads fit the limits.

2. Thread micrometers measure thread shapes very closely.

3. The three wire method finds the pitch diameter.

4. Special measuring tools give exact results.

5. Imaging uses projectors or microscopes to look at threads.

6. Laser triangulation checks threads without touching them.

7. CMM machines do careful checks.

8. Stylus scanning tools scan thread shapes for full details.

Note: Checking threads often helps you avoid mistakes and keeps your Threading Operations working well.

Choosing a Threading Method

Factors to Consider

When you choose a threading method, you need to think about the material, how many parts you want to make, and how exact the threads must be. If you work with soft, ductile metals and need to make many parts, thread rolling works best. This method shapes the metal without cutting, so it is fast and makes strong threads. If you need very precise threads, especially on hard or heat-treated parts, thread grinding is the right choice. It uses a grinding wheel to cut threads with high accuracy. Picking the right process helps you get the performance and durability you want from your parts. Always match your method to the job for the best results.

• Thread rolling is efficient for high-volume production.

• Thread grinding is essential for high precision and can handle heat-treated materials.

Common Mistakes

You can avoid many problems in threading if you know what to watch for. Here are some common mistakes and how to prevent them:

1. Always start every thread by hand to make sure it lines up right.

2. Use the 'Reverse-to-Click' trick to help threads catch smoothly.

3. Check thread size with a gauge or fit tool to avoid mismatches.

4. Apply lubricant or anti-seize to stop galling and reduce friction.

5. Pick coarse threads for soft materials to lower the risk of cross-threading.

6. Clean and inspect threads before you begin to remove dirt or chips.

If you use the wrong thread size or force the tool, you can strip or damage the threads. Over-tightening also causes problems. Take your time and check your work as you go.

Quality Tips

To get the best results, provide relief on threads to avoid interference, use a reduced thread height for better strength, and keep thread lengths short to reduce misalignment.

• Select the best tool for your material and thread type.

• Inspect and replace tools often to keep them sharp.

• Adjust speed and feed rates to prevent tool wear and improve accuracy.

When you follow these tips, you improve the quality and efficiency of your Threading Operations.

Threading Operations help you make strong connections. These connections are used in many industries. If you learn about thread types, tools, and standards, you can make better products. This helps in places like aerospace, medical devices, and construction.

Use these tips and keep learning about new tools and ways to do threading. If you get good at threading, you make safer products. Your products will work better and you can stay ahead of others.

FAQ

What is the difference between thread cutting and thread rolling?

Thread cutting removes material to make threads. Thread rolling shapes the metal without cutting. You get stronger and smoother threads with rolling. Cutting works on more materials, but rolling is faster for large batches.

How do you choose the right threading tool?

You should match the tool to your material and thread type. Use HSS for soft metals. Pick carbide or cobalt for hard alloys. Always check the tool size and thread standard before you start.

Why do threads sometimes strip or fail?

Threads strip when you use the wrong size, apply too much force, or skip lubrication. Always start threads by hand, use the right tool, and check your work. This helps you avoid damage.

Can you repair damaged threads?

Yes, you can fix damaged threads with a thread repair kit or insert. Clean the area first. Use the kit to restore the thread shape. This helps you save parts and avoid replacements.
