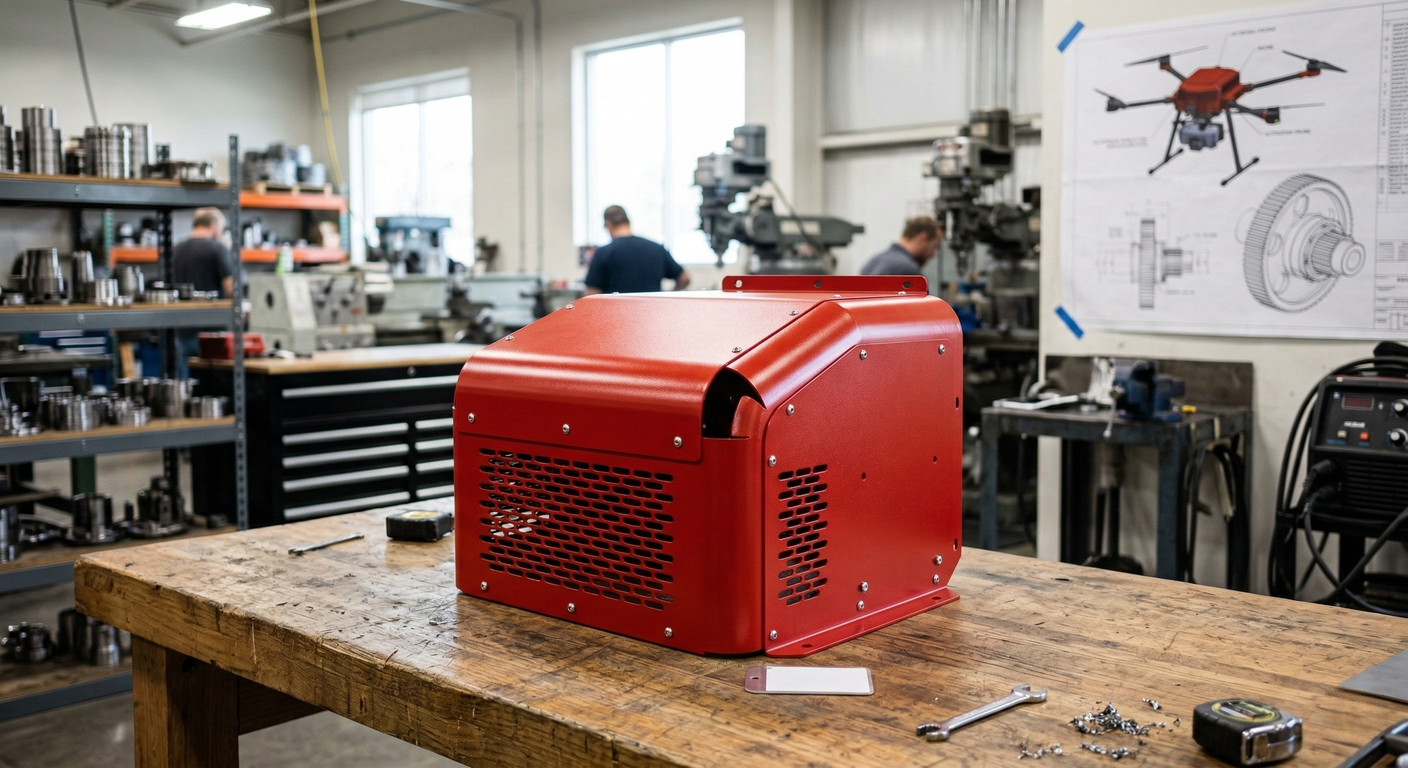

Sheet Metal Applications in the Agricultural Industry: A Complete Guide

Introduction

The agricultural industry is undergoing a profound transformation. The days of purely mechanical, rudimentary farming tools are giving way to the era of Precision Agriculture (AgTech), characterized by GPS-guided autonomous tractors, heavy-duty automated harvesters, and smart drone fleets. However, despite the surge in software and electronics, the physical backbone of all farming equipment remains the same: robust, durable, and precisely engineered metal components.

At the heart of this hardware ecosystem is sheet metal fabrication. From the massive corrugated silos that store grain to the protective enclosures shielding delicate electronic sensors from rain, mud, and corrosive fertilizers, sheet metal provides the ultimate balance of scalability, structural integrity, and cost-effectiveness.

As a trusted partner in global manufacturing, Huaruida Precision Machinery (HRD) provides high-quality custom agricultural sheet metal fabrication services. We understand that agricultural machinery must survive in the most unforgiving environments on Earth.

This comprehensive guide explores the critical applications of sheet metal in the agricultural sector, analyzes the best materials for combating corrosion and wear, and provides actionable Design for Manufacturing (DFM) tips for engineers developing the next generation of farming equipment.

Why Sheet Metal Dominates Agricultural Machinery

When designing agricultural equipment, engineers often weigh the benefits of sheet metal against cast iron, fiberglass, or heavy-duty plastics. Sheet metal consistently wins out for several key reasons:

• Unmatched Durability: Tractors, plows, and seeders are subjected to relentless vibration, impact from rocks, and extreme torque. Steel and aluminum sheet metal can absorb these impacts without shattering, unlike rigid plastics or brittle castings.

• Environmental Resilience: With the right coatings and material choices, sheet metal components can withstand decades of exposure to UV radiation, heavy rain, acidic soil, and highly corrosive chemical fertilizers.

• Cost-Effective Scalability: Whether an AgTech startup needs 50 custom enclosures for a new soil-monitoring device, or a major manufacturer needs 10,000 hopper panels, laser cutting and CNC bending offer minimal tooling costs and rapid scalability compared to injection molding.

• Ease of Maintenance and Repair: In the field, a dented sheet metal tractor hood can be hammered out, welded, and repaired by a local mechanic. Cracking a custom fiberglass panel usually results in a complete, expensive replacement.

Material Selection for Agricultural Environments

The agricultural environment is a nightmare for bare metal. Equipment is constantly exposed to moisture, animal waste (which is highly acidic), and potent agrochemicals. Selecting the right metal alloy is the most important decision in agricultural DFM.

Material Comparison for Farming Equipment

Deep Dive into Agricultural Materials

Galvanized Steel: This is the undisputed workhorse of the farm. By dipping carbon steel in molten zinc, the material gains a protective layer that sacrifices itself before the underlying steel rusts. It is incredibly cost-effective for large-scale outdoor structures like grain bins and fencing.

Stainless Steel (Type 316): While expensive, 316 stainless steel is mandatory for any component handling liquid fertilizers, pesticides, or animal waste. The addition of molybdenum gives it exceptional resistance to pitting corrosion caused by the harsh chemicals used in modern farming.

Aluminum Alloys: As farming equipment becomes smarter, it needs to become lighter to reduce soil compaction. Aluminum 5052 is easily bent and welded, making it perfect for custom enclosures housing delicate electronics in autonomous agricultural robots and UAV drones.

Key Applications of Sheet Metal in Agriculture

The versatility of sheet metal means it is utilized in almost every phase of the agricultural cycle, from soil preparation to post-harvest storage.

Tractor and Harvester Enclosures

The most visible use of sheet metal is in the cabins, hoods, and side panels of heavy machinery. These parts are typically fabricated from heavy-gauge carbon steel and then powder-coated. They protect the engine block from dust and debris while shielding the operator from rollover accidents and the elements.

Grain Storage Silos and Hoppers

Storage silos are monumental feats of sheet metal engineering. They utilize corrugated galvanized steel sheets. The corrugation adds immense structural rigidity, allowing relatively thin metal to hold hundreds of tons of grain. Funnel-shaped hoppers, used to dispense seed or feed, rely on precise CNC press brake bending to ensure smooth flow angles without catching or jamming.

Feeding and Watering Systems

Livestock farming relies heavily on automated sheet metal systems. Cattle and poultry feeding troughs, automated grain dispensers, and watering tanks are fabricated from galvanized or stainless steel to resist rust from continuous water exposure and the corrosive nature of manure.

Precision Agriculture and AgTech Housings

This is the fastest-growing sector. Modern farms utilize soil moisture sensors, weather stations, and RTK GPS antennas mounted on tractors. These sensitive electronics require custom metal enclosures that are typically NEMA 4 or IP67 rated. We often produce these housings using laser-cut aluminum, outfitted with specialized gaskets to guarantee a watertight seal.

Tillage and Seeding Implements

The structural brackets, seed drill housings, and scraper blades pulled behind tractors are subjected to extreme abrasive wear from soil and rocks. These parts often combine heavy-plate sheet metal fabrication with precision CNC milling to create robust mounting points for bearings and rotating shafts.

Advanced Manufacturing Processes for Farm Equipment

Creating reliable agricultural components requires a blend of heavy-duty fabrication and high-precision machining.

• Laser Cutting: Fiber lasers effortlessly cut through thick steel plates used for tractor brackets, as well as thin aluminum sheets used for sensor housings, providing perfectly clean edges without the need for secondary deburring.

• CNC Press Brake Bending: Forming the complex angles of a grain hopper or the sleek curves of a tractor hood requires high-tonnage CNC press brakes. Precise bending ensures that multi-part assemblies fit together perfectly during the welding phase.

• Robotic Welding: Agricultural equipment undergoes massive vibrational stress. To ensure joints do not fail in the field, continuous, high-penetration MIG or TIG welding is utilized.

• Hybrid Subtractive Manufacturing: Sheet metal alone cannot house a rotating axle. We frequently employ CNC turning to manufacture precise pivot pins, bushings, and drive shafts that are then welded or bolted into the sheet metal chassis.

Design for Manufacturing (DFM) Tips for Agricultural Parts

Designing for the farm is not like designing for a cleanroom. Engineers must anticipate mud, water accumulation, and rough handling.

Design for Drainage

Water is the enemy of sheet metal. If your design features a "U" shape or a pocket, mud and rainwater will accumulate there, eventually leading to rust, regardless of the coating. Always incorporate drainage holes at the lowest points of any enclosure or bracket.

Minimize Weld Seams

Welds are often the starting point for corrosion because the heat alters the metal's microstructure. Whenever possible, design parts to be bent from a single piece of sheet metal rather than welding two pieces together. This not only reduces manufacturing costs but dramatically increases the lifespan of the part.

Optimize for Thick Gauges

Farming equipment requires strength. While 18-gauge steel might be fine for an indoor computer case, agricultural brackets often require 1/4-inch (6mm) or 3/8-inch (10mm) plate steel. Ensure your bend radii in CAD software account for these thicker, heavy-duty materials to prevent cracking during the forming process.

Use Self-Clearing Features

If a sheet metal chute or hopper handles dirt, grain, or fertilizer, avoid sharp 90-degree internal corners where material can clump and block the flow. Use wide, obtuse angles and smooth surface finishes to ensure material slides freely.

Surface Treatments for Extreme Environments

No matter how well a carbon steel part is fabricated, it will fail rapidly in an agricultural setting without adequate surface treatments.

• Powder Coating: The industry standard for tractors and implements. It creates a thick, durable, UV-resistant plastic shell over the metal that is far more chip-resistant than liquid paint.

• Hot-Dip Galvanizing: For parts that will live outside 365 days a year (like gates and silo supports), dipping the fabricated part into molten zinc provides ultimate long-term rust protection.

• E-Coating (Electrophoretic Painting): Often used as a primer under powder coat for automotive and heavy agricultural machinery. The electrical process pulls paint into every hidden crevice and tubular section, ensuring 100% coverage against rust.

Frequently Asked Questions (FAQ)

Q: Why not use plastics for tractor enclosures to save weight?

A: While some modern tractors use composite fiberglass for the main hood, sheet metal is still overwhelmingly preferred for side panels, chassis components, and fenders. Sheet metal does not become brittle in freezing temperatures, won't degrade under intense UV sunlight, and can easily be hammered back into shape by a farmer if dented.

Q: What is the best sheet metal material for handling fertilizers?

A: 316 Stainless Steel. Fertilizers contain highly corrosive nitrates, phosphates, and potassium. Carbon steel or aluminum will pit and degrade rapidly when exposed to these chemicals. 316 stainless steel is the safest, most durable investment for sprayer tanks and spreader hoppers.

Q: Can HRD manufacture custom enclosures for agricultural drones?

A: Yes. We specialize in fabricating lightweight, precision-cut aluminum enclosures for AgTech UAVs. These parts often feature intricate ventilation patterns for battery cooling while providing high structural rigidity to protect expensive cameras and LiDAR sensors during flight.

Q: How do you prevent agricultural sheet metal parts from vibrating loose?

A: Heavy vibration is a major issue in farming equipment. We highly recommend using self-clinching fasteners (PEM nuts) pressed directly into the sheet metal, combined with high-grade lock washers or nylon-insert lock nuts during final assembly.

Partner with Experts in Agricultural Manufacturing

Building equipment that feeds the world requires uncompromising quality and durability. Whether you are a legacy agricultural machinery manufacturer needing thousands of heavy-duty brackets, or an AgTech innovator prototyping a new smart-farming sensor, Huaruida Precision Machinery has the technology and expertise to bring your designs to life.
