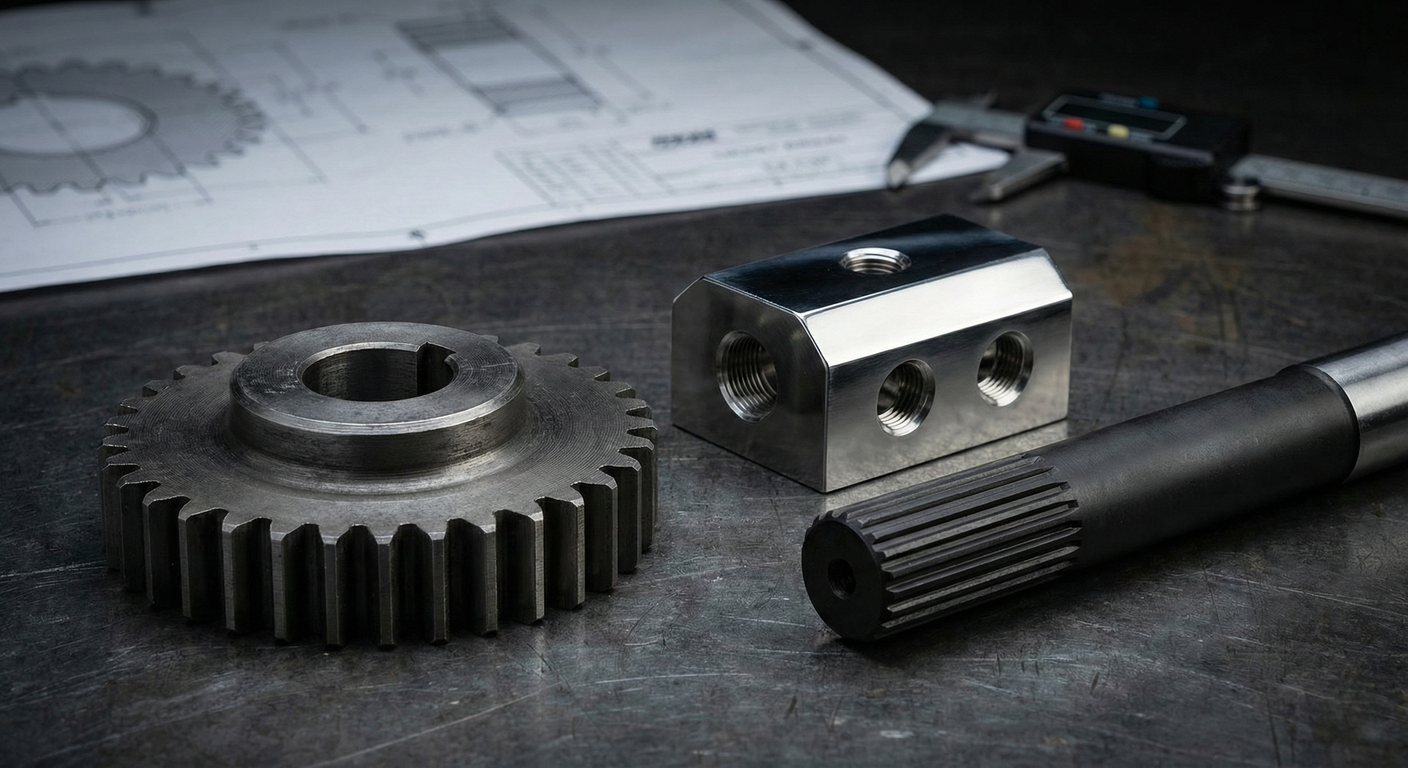

A Guide to Steel Alloy Grades Used in CNC Machining: Selection and DFM

Introduction

In the realm of precision manufacturing, specifying "steel" on a CAD drawing is never enough. The performance, cost, and manufacturability of a component are entirely dictated by its specific steel alloy grade.

From the free-machining capabilities of 12L14 used in high-volume fasteners to the extreme fatigue resistance of 4340 used in aerospace landing gears, choosing the correct grade is the most critical decision an engineer can make. A mismatch between the material grade and the application can lead to premature mechanical failure or exponentially higher CNC machining costs due to rapid tool wear.

As a leading provider of custom CNC machined steel parts in China, Huaruida Precision Machinery (HRD) has extensive experience cutting, milling, and turning virtually every steel alloy on the market. We understand the nuanced behavior of these metals under the intense pressures of a cutting tool.

This comprehensive guide breaks down the most common steel alloy grades used in the CNC machining industry, analyzing their chemical composition, machinability ratings, ideal applications, and Design for Manufacturing (DFM) best practices.

Understanding the AISI/SAE Steel Naming System

Before diving into specific grades, it is helpful to understand how steel is classified. In North America, the AISI (American Iron and Steel Institute) and SAE (Society of Automotive Engineers) four-digit naming system is the standard.

• First Digit: Indicates the primary alloying element (e.g., "1" for carbon steel, "4" for molybdenum steel).

• Second Digit: Indicates the secondary alloying element or modification.

• Last Two Digits: Indicate the carbon content in hundredths of a percent (e.g., "40" means 0.40% carbon).

Example: 4140 steel is a Chromium-Molybdenum alloy ("41") with 0.40% carbon content ("40").

Carbon Steel Grades: The Manufacturing Workhorses

Carbon steels rely almost entirely on carbon for their mechanical properties. They are cost-effective, widely available, and form the backbone of general machinery.

1018 Mild Steel

1018 is the undisputed king of low-carbon (mild) steel. It offers an excellent balance of toughness, strength, and ductility.

• Machinability (78%): It machines relatively easily but can be slightly "gummy" or stringy, requiring sharp tools and proper coolant to achieve a bright surface finish.

• Weldability: Exceptional. It is the go-to material for assemblies requiring welding post-machining.

• Ideal CNC Applications: Structural brackets, mounting plates, tie rods, and general-purpose pins.

1045 Medium Carbon Steel

With 0.45% carbon, 1045 steel provides higher tensile strength and yield strength than 1018. It can be heat-treated (flame or induction hardened) for localized wear resistance.

• Machinability (57%): It cuts cleaner than 1018 because its higher hardness allows chips to break off more easily, resulting in a superior surface finish during CNC turning operations.

• Ideal CNC Applications: Heavy-duty gears, mechanical shafts, axles, and forged components.

12L14 Free-Machining Steel

12L14 is heavily alloyed with lead (L) and sulfur to dramatically enhance its machinability. The lead acts as an internal lubricant, reducing friction and tool wear.

• Machinability (100%): This is the industry baseline for machinability. It allows for extremely high cutting speeds and feeds, producing short, brittle chips.

• Limitations: It has lower tensile strength and is generally not recommended for parts subjected to severe bending or fatigue. It is also difficult to weld.

• Ideal CNC Applications: High-volume screw machine parts, bushings, hose fittings, and low-stress connectors.

Low-Alloy Steel Grades: High Strength and Toughness

Low-alloy steels contain small percentages of elements like chromium, nickel, and molybdenum (usually under 5% total) to improve hardenability and toughness.

4140 Chromoly Steel

4140 is arguably the most versatile alloy steel in the machining world. The chromium and molybdenum provide excellent deep hardenability, high fatigue strength, and extreme toughness.

• Machinability (65% in Annealed State): It machines well when annealed. However, it is frequently machined in a "pre-hardened" state (28-32 HRC) to avoid post-machining distortion, which requires more rigid setups and premium carbide tooling.

• Ideal CNC Applications: Automotive crankshafts, oil and gas drill collars, coupling parts, and high-stress structural components.

4340 Nickel-Chromium-Molybdenum Steel

When 4140 isn't strong enough, engineers turn to 4340. The addition of nickel drastically increases its impact resistance and toughness, especially at low temperatures. It can be heat-treated to incredibly high tensile strengths.

• Machinability (50% in Annealed State): Harder on cutting tools than 4140. Due to its toughness, it requires robust workholding and optimized tool paths to prevent chatter.

• Ideal CNC Applications: Aerospace landing gears, heavy machinery transmission shafts, and custom performance auto parts.

8620 Carburizing Steel

8620 is a low-carbon alloy steel designed specifically for case hardening (carburizing). After machining, carbon is infused into the outer skin of the part and quenched.

• The Result: A part with a glass-hard, wear-resistant outer shell (up to 60 HRC) and a tough, shock-absorbing ductile core.

• Machinability (66%): Machines very well in its raw state prior to the carburizing process.

• Ideal CNC Applications: Custom ring gears, camshafts, splined shafts, and heavy-duty pins.

Stainless Steel Grades: Corrosion Resistance

For parts exposed to moisture, chemicals, or medical environments, high-alloy stainless steels are mandatory. They rely on high chromium content (minimum 10.5%) to prevent rust.

304 Austenitic Stainless Steel

304 is the most widely used stainless steel globally. It is non-magnetic and highly resistant to chemical corrosion.

• Machinability (45%): 304 is notorious for work-hardening. If a cutting tool rubs against the material instead of cutting aggressively, the surface hardens instantly, destroying the tool. It requires slow speeds, heavy feeds, and highly rigid CNC milling setups.

• Ideal CNC Applications: Food processing equipment, medical device housings, and architectural hardware.

316 Austenitic Stainless Steel

Known as "marine grade," 316 contains added molybdenum, which drastically increases its resistance to pitting corrosion from chlorides (saltwater).

• Machinability (36%): Even tougher to machine than 304. It requires specialized tooling geometries to evacuate stringy chips and prevent heat buildup.

• Ideal CNC Applications: Marine hardware, chemical processing valves, and pharmaceutical manifolds.

416 Martensitic Stainless Steel

416 is a magnetic stainless steel with added sulfur to make it free-machining. It can be heat-treated to high hardness levels.

• Machinability (85%): The easiest stainless steel to machine. It produces clean chips and excellent surface finishes.

• Limitations: Lower corrosion resistance compared to the 300 series.

• Ideal CNC Applications: Precision pump shafts, valve components, and firearm parts.

17-4 PH Precipitation Hardening Stainless

17-4 PH combines the corrosion resistance of 304 with the immense strength and hardenability of martensitic steels.

• Machinability (15% in Condition H900): Usually roughed out in the softer Annealed (Condition A) state, then subjected to a low-temperature aging process (e.g., H900) to achieve final hardness with minimal dimensional distortion.

• Ideal CNC Applications: Aerospace structural parts, high-pressure valves, and nuclear reactor components.

Tool Steel Grades: Extreme Wear Resistance

Tool steels are heavily alloyed with carbon, chromium, tungsten, or vanadium. They are designed to cut, stamp, or mold other metals.

D2 Tool Steel

D2 is a high-carbon, high-chromium tool steel known for its extreme abrasion resistance.

• Machinability (27%): Extremely difficult to machine. It is highly abrasive to carbide tools. Machining D2 requires rigid machine tools, high-pressure coolant, and often specialized coated inserts.

• Ideal CNC Applications: Stamping dies, industrial shear blades, and custom cutting tools.

H13 Tool Steel

H13 is a hot-work tool steel. It retains its strength and hardness even when exposed to extreme thermal cycling.

• Machinability (45%): Machined in the annealed state, it is manageable but requires robust tooling.

• Ideal CNC Applications: Aluminum die-casting molds, plastic injection molding cavities, and hot extrusion dies.

Machinability and Applications Summary Table

Use this reference matrix to quickly compare the most common CNC steel grades:

Design for Manufacturing (DFM) Tips for Steel Alloys

To minimize production costs and ensure the highest quality for your custom metal parts, consider these engineering principles:

Pre-Hardened vs. Annealed Machining

When using alloys like 4140 or P20, consider specifying pre-hardened material (28-32 HRC) if your final hardness requirement allows it. While it takes slightly longer to machine than annealed steel, it eliminates the need for post-machining heat treatment, thereby completely avoiding warping, scaling, and the need for secondary grinding operations.

Dealing with Work-Hardening

If your design requires 304 or 316 stainless steel, ensure you design for aggressive machining. Avoid specifying extremely deep, small-diameter blind holes. A drill pecking too lightly in stainless steel will work-harden the bottom of the hole, leading to immediate drill breakage. Try to keep hole depths under 4x diameter.

Standardize Corner Radii

High-strength alloys and tool steels place immense stress on cutting tools. Do not specify sharp internal corners (which require tiny, fragile end mills) unless absolutely necessary. Design generous internal corner radii to allow the CNC shop to use larger, more rigid tools, which drastically speeds up the milling process and lowers your costs.

Surface Finishes for Steel Alloys

Unless you are using stainless steel, all carbon and alloy steels will rust. Huaruida Precision Machinery offers a full suite of surface treatments to protect your components:

• Black Oxide: Adds mild corrosion resistance without altering part dimensions. Perfect for precision 4140 gears or tooling components.

• Zinc Plating: The most common rust prevention for 1018 and 1045 steels.

• QPQ (Quench-Polish-Quench) / Nitriding: Diffuses nitrogen into the surface of alloy steels, providing exceptional wear resistance, a sleek black finish, and high corrosion resistance.

• Electroless Nickel: Deposits a perfectly even, hard, and corrosion-resistant layer, ideal for complex geometries.

Frequently Asked Questions (FAQ)

Q: What is the most cost-effective steel for general CNC turning?

A: 1018 is highly cost-effective for general structural parts. However, if you are making thousands of small, non-structural turned parts (like spacers or standoffs), 12L14 free-machining steel will be cheaper overall because the machining time is drastically reduced.

Q: Why would I choose 4340 over 4140?

A: You should specify 4340 when the part will be subjected to severe impact, shock loading, or extremely low temperatures. The added nickel in 4340 gives it superior toughness and deep hardenability compared to 4140, making it worth the higher material cost for critical aerospace or heavy machinery components.

Q: Can you machine steel after it has been fully hardened to 60 HRC?

A: Yes, this is known as hard turning or hard milling. It requires specialized rigid CNC machines and premium ceramic or CBN (Cubic Boron Nitride) inserts. It is slower and more expensive, but it allows us to hold incredibly tight tolerances (e.g., +/- 0.005mm) that would be impossible to guarantee if the part was heat-treated after machining.

Q: How do I know I am getting the correct steel grade from my manufacturer?

A: A reputable CNC machining supplier will always provide traceability. At HRD, we provide comprehensive Material Test Reports (MTR) with every batch of parts, certifying the chemical composition and mechanical properties of the raw steel.
