Fundamentals of Sheet Metal Cutting Processes

Sheet Metal Cutting is when you change big, flat metal pieces into shapes you want. This process lets people make car bodies, airplane parts, building frames, and even art. The world sheet metal fabrication market was $18.50 billion in 2025, and cutting services were more than a quarter of that amount. You can see this process in many places:

• Car factories use it to make engines and panels.

• Airplane companies shape turbine blades with it.

• Builders use it to make steel bridges and frames.

• Electronics and medical tools need very exact cuts.

If you know how sheet metal cutting works, you can choose the best way to make strong and correct parts. Precision manufacturers like HRDJM apply these principles to ensure top-tier quality for every component.

Key Takeaways

• Know how sheet and plate metal are different to pick the best material for your work. - Pick the right cutting method by looking at the metal’s features and the shape you want for your part. - Always stay safe by wearing safety gear and following rules when using cutting tools. - Laser and waterjet cutting can make detailed shapes with high accuracy and speed. - Take care of your tools and machines often to get good cuts and make them last longer.

Sheet Metal Cutting Basics

What Is Sheet Metal Cutting

You use Sheet Metal Cutting to shape large, flat pieces of metal into smaller, useful parts. This process helps you create everything from car panels to kitchen appliances. When you cut sheet metal, you apply high force to the cutting edge. The tool must push harder than the metal’s shear strength to break it cleanly. You often use tools like punches and dies for this job. The punch presses down on the metal, while the die supports it from below. These tools work together in operations such as shearing, blanking, punching, and piercing. Each operation helps you get the shape or hole you need.

Tip: Always check that your punch and die fit well. Good fit means cleaner cuts and less waste.

Sheet vs. Plate Metal

You need to know the difference between sheet and plate metal before you start cutting. The main difference is thickness. Sheet metal is thinner and more flexible. Plate metal is thicker and more rigid. The table below shows how industry standards separate them:

Sheet metal bends easily, so you use it for car bodies and appliance housings. Plate metal stays strong under heavy loads, so you use it for bridges and machinery.

Cutting Clearance and Mechanics

When you cut sheet metal, you need to think about cutting clearance. This is the small gap between the punch and the die. If the gap is too small, the metal may jam or the tools may wear out fast. If the gap is too large, the cut edge will look rough. A good rule is to keep the clearance up to 2% of the metal’s thickness. You also need to understand shear stress. The cutting tool must create enough shear force to break the metal along a straight line. In shearing, you place the metal between two blades—one stays still, and the other moves to make the cut. This method gives you straight, clean edges.

Sheet Metal Cutting Methods

Sheet Metal Cutting uses different ways to shape metal. Each way has special tools and steps. Each way works best for certain jobs. The table below shows the main cutting operations.

Shearing

Shearing makes straight cuts across metal sheets. It is good for trimming big pieces. Shearing does not melt or burn the metal. The metal stays strong and keeps its shape. You can shear aluminum, steel, and copper. Shearing is quick and saves money. Factories can make thousands of pieces every hour. The edges are smooth and the cuts are very exact, often within 0.127 mm. Car and appliance factories use shearing to make many parts fast.

Note: Shearing is best for straight cuts. It cannot make curves or tricky shapes.

Blanking and Punching

Blanking and punching both use a punch and die. But they do different things. Blanking cuts out a flat shape from the sheet. The piece you take out is the part you want. You use blanking for car panels, coins, or washers. Punching makes holes or patterns in the metal. The leftover sheet is the main part. You throw away the punched-out bits. Punching is used for making holes in panels, electrical boxes, or fancy covers.

Both ways give smooth edges on steel and aluminum. The cuts are very exact, so parts fit together well. These ways work best when you need lots of parts.

Notching and Slitting

Notching takes small pieces from the edge or corner of a sheet. You use notching to get parts ready for bending or joining. Notching helps make tabs, slots, or shapes that fit together. It is important for frames, boxes, or brackets.

Slitting cuts big sheets or coils into thin strips. Rotary blades slice the metal fast. Slitting saves money and does not waste much metal. You see slitting in places that make pipes, tubes, or rolled products.

Trimming and Deburring

Trimming cuts off extra metal from the edges of a part. You trim after forming or stamping to get the right size and shape. This step makes sure the part matches the plan.

Deburring smooths rough edges or bumps left after cutting. You use tools or machines to clean the edges. Deburring makes parts safe to touch and helps them fit together better. Almost every Sheet Metal Cutting job uses trimming and deburring.

Advanced Methods: Laser, Plasma, Waterjet

Advanced cutting uses energy instead of force. You can pick laser, plasma, or waterjet cutting for special jobs. For complex projects requiring high precision, companies like HRDJM utilize these advanced methods to minimize waste and ensure accuracy.

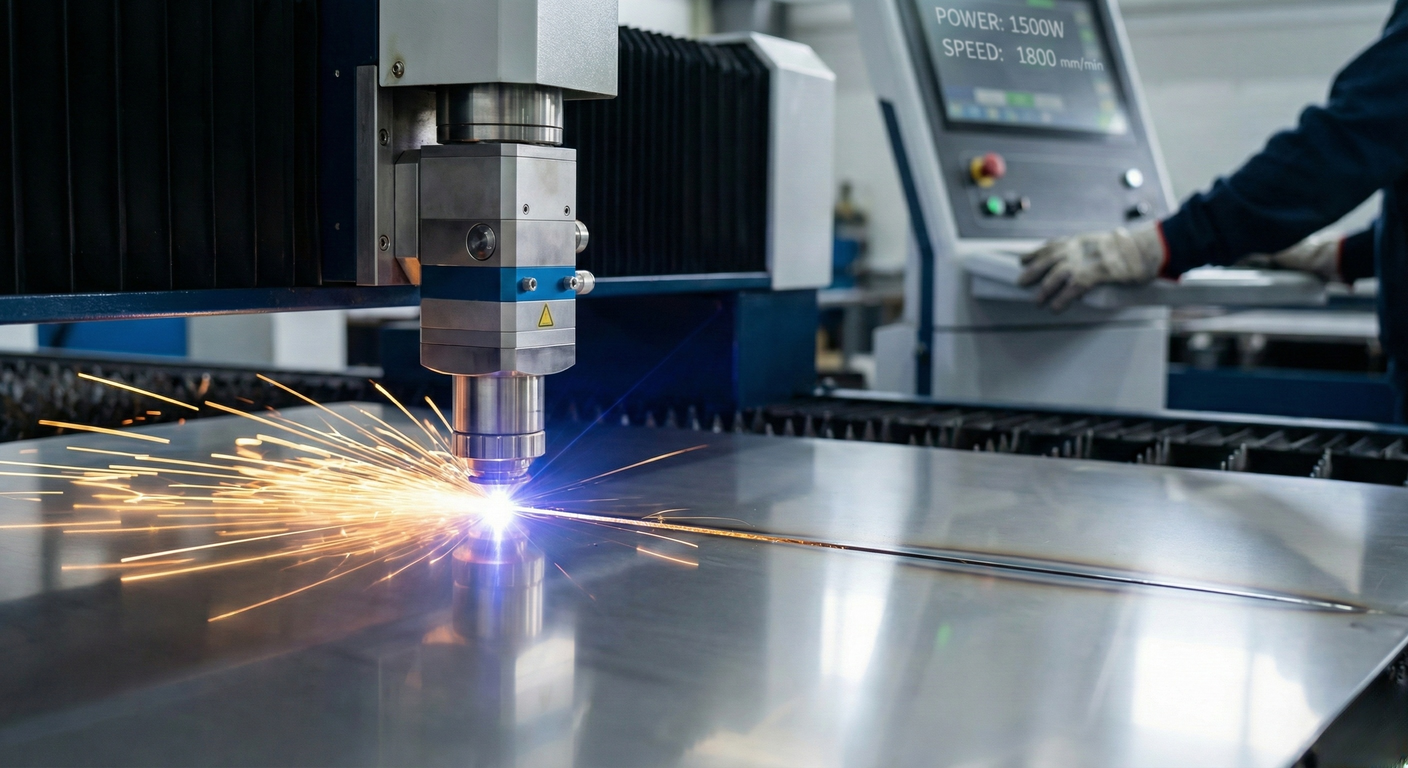

Laser cutting uses a strong light beam to melt or burn metal. It gives sharp, clean edges and is very exact. Laser cutting works best for thin and medium sheets. You see laser cutting in car, airplane, and electronics factories.

Plasma cutting uses hot gas to cut thick, metal sheets. It works fast on thick plates but leaves rough edges. Plasma cutting is used for big machines, ships, or buildings.

Waterjet cutting uses high-pressure water with grit to slice metal. It does not make heat, so the metal does not change. Waterjet cutting works on almost any material, even glass or stone. You see waterjet cutting in airplane, art, and design jobs.

Tip: Use advanced methods when you need very exact cuts, smooth edges, or must cut thick or special materials.

You can compare advanced and regular methods in the table below.

Note: Advanced methods cost more but give better cuts and smooth edges. Regular methods cost less and work well for simple shapes and lots of parts.

Typical Applications

• Shearing: Used for quick, straight cuts in car or appliance factories.

• Blanking: Used for making coins, washers, or flat parts in big numbers.

• Punching: Used for making holes in panels, electrical boxes, or covers.

• Notching: Used for frames, boxes, or parts that need bending.

• Slitting: Used for making strips for pipes, tubes, or rolled products.

• Trimming and Deburring: Used in almost every Sheet Metal Cutting job to finish parts.

• Laser Cutting: Used in car, airplane, electronics, and medical factories.

• Plasma Cutting: Used for thick steel or aluminum in building and big machines.

• Waterjet Cutting: Used in airplane, art, and design for cutting thick or special materials.

Remember: The best Sheet Metal Cutting way depends on your metal, part shape, and how good you want the part to be.

Factors Affecting Cutting Quality

Material Properties

You need to know how metal properties change cutting results. Hardness, ductility, and tensile strength are important. Hard metals last longer but are tough to cut. Ductile metals bend and make chips, so edges are smoother. Metals with high tensile strength can hold heavy things but slow down cutting. The table below shows how these properties affect your cuts:

Tip: Pick your cutting tools based on how hard and bendy the metal is for better results.

Thickness and Tool Selection

The thickness of sheet metal helps you pick the right tool. Thin sheets are good for shearing, punching, or laser cutting. Thick sheets need strong tools like plasma or waterjet cutters. You must match the tool to the metal’s thickness. If you use the wrong tool, you might get rough edges or break your tool. Different cutting methods work best for certain thicknesses.

Note: Always check your tool’s max thickness before you start cutting.

Process Parameters

You can control cut quality by changing process settings. Cutting speed, feed rate, and clearance angle all matter. If you cut too fast, tools wear out and cuts get worse. Feed rate changes how smooth the surface looks. Clearance angle helps tools last longer and keeps cuts clean. The table below shows how these settings change your results:

• Faster speeds make more heat, which can hurt tools.

• You need to match heat to what your tool can handle.

• Chip load shows how hard the tool works, not just speed or feed.

• Knowing chip load helps you get better cuts.

If you do not control these things, you may see bad edges, twisting, or bending. You can fix these problems by changing clearance, rake angle, and clamp pressure.

Safety and Process Selection

Safety Practices

You must always put safety first when working with sheet metal cutting. Many hazards can cause injuries if you do not follow the right steps. The table below shows common dangers you may face:

To stay safe, you should:

1. Learn how your machine works by reading the manual.

2. Wear long sleeves, pants, closed-toe shoes, and steel-toed boots.

3. Put on safety glasses, earplugs, and a face mask.

4. Check machines before use and keep them in good shape.

5. Use sharp blades and set the right speed.

6. Secure your metal and mark cut lines clearly.

7. Make sure guards and safety locks work.

8. Keep your workspace well-ventilated.

9. Know what to do in an emergency and practice drills.

10. Watch for hazards and always follow safety rules.

Tip: Good training and the right gear help you avoid most injuries. Never skip safety steps, even for quick jobs.

Choosing the Right Method

You need to pick the best cutting method for your job. Think about the metal’s hardness, strength, and how easy it bends. The table below lists key things to check:

You should also think about the type and thickness of your metal. Thin sheets work well with laser cutting. Thick plates need plasma or waterjet cutters. If you need very exact cuts, use laser or waterjet. For simple shapes or fast jobs, shearing or punching may work best.

Other things to consider:

• High-volume jobs save money with automated systems like laser cutting.

• Low-volume or custom work fits flexible tools like waterjet or manual plasma.

• Lower costs come from simple tools, less waste, and trained workers.

Remember: The right method gives you safe, clean, and cost-effective results every time.

You now know Sheet Metal Cutting has many ways to shape metal. These ways help you make strong and exact parts. If you learn the basics and pick the best way, you get better quality and save time. Advanced tools like laser and waterjet cutting let you try new designs and waste less metal. Good training and smart choices help you avoid errors and make customers happy. Partnering with experts like HRDJM ensures your fabrication needs are met with efficiency and precision.

Keep learning these skills so you do even better on every project.

Key Takeaways

• Choosing the best way changes cost, speed, and quality.

• New technology gives safer, greener, and more flexible choices.

FAQ

What is the best way to cut thin sheet metal at home?

You can use hand shears or a small electric nibbler. These tools give you control and safety. Always wear gloves and eye protection. For straight cuts, try a metal ruler as a guide.

How do you reduce burrs after cutting sheet metal?

You can use a file, deburring tool, or sandpaper. Move the tool along the edge until it feels smooth. This step keeps your parts safe to handle and helps them fit together better.

Can you cut stainless steel with a laser cutter?

Yes, you can cut stainless steel with a laser cutter. Laser cutting gives you clean edges and high accuracy. Make sure your laser has enough power for the thickness you want to cut.

What safety gear should you wear when cutting sheet metal?

Always wear safety glasses, heavy-duty gloves, and closed-toe shoes. For loud machines, use ear protection. Long sleeves protect your arms from sharp edges and flying debris.
