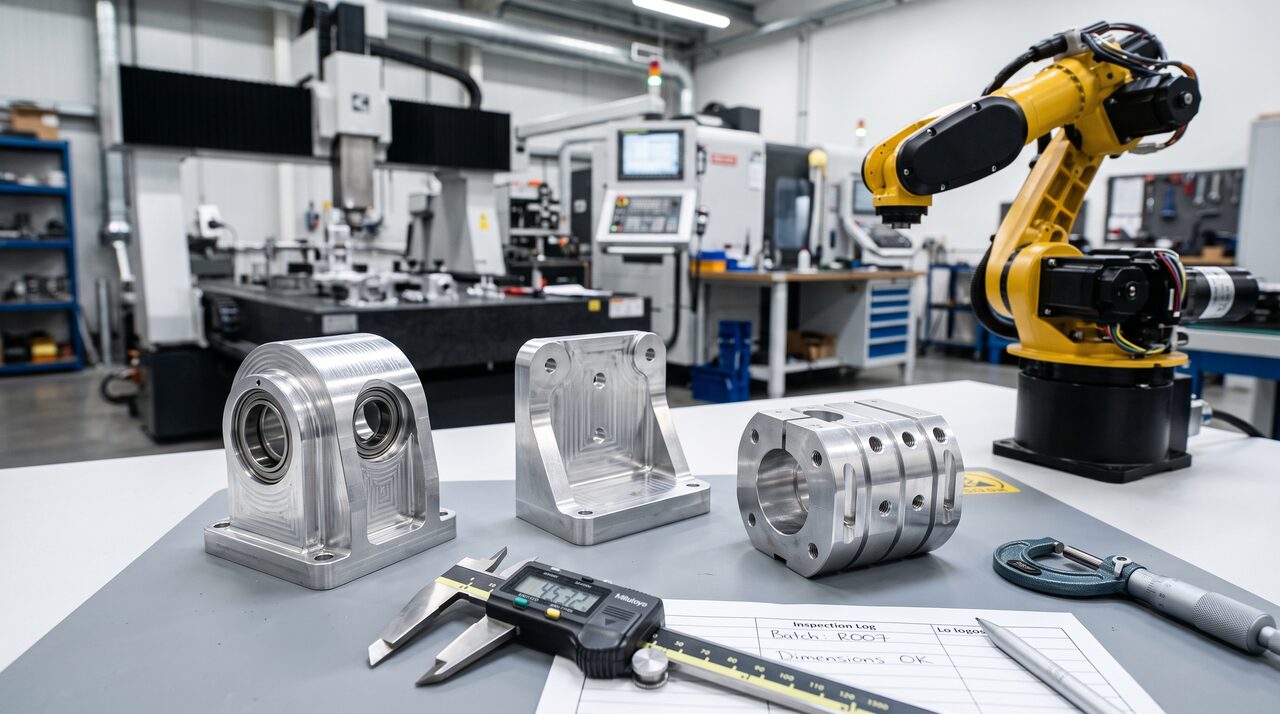

Top 7 Design for Manufacturing (DFM) Tips for CNC Robotic Parts

Before CAD Release: Define What the Robot Part Must Do

A robotic component can look straightforward in CAD yet become expensive or difficult to produce once tool access, workholding, inspection, and assembly are considered. Motor mounts, actuator housings, joint brackets, end-effector bodies, sensor supports, and bearing carriers routinely combine tight interfaces with low-mass structures. Without early manufacturing input, these features can force multiple setups, long-reach tooling, complex fixtures, or extensive inspection that never had to exist.

Effective DFM for CNC parts begins by separating hard functional requirements from design preferences. Identify the surfaces that transmit loads, establish motion, locate bearings, align sensors, dissipate heat, or connect with adjacent assemblies. Those features deserve engineering attention and tight control. Cosmetic pockets, unnecessarily intricate contours, and precision tolerances on nonfunctional surfaces rarely return equivalent value, and each one quietly adds programming, cutting, and measurement time.

Build a short requirement table before requesting a quotation. Record the material and temper, expected loading and duty cycle, mating components, datum scheme, critical-to-function dimensions, surface treatment, batch or annual quantity, and inspection expectations. Supply an assembly model whenever possible. A manufacturing engineer can evaluate a robotic bracket far more accurately when the surrounding fasteners, bearings, cable routing, and moving envelopes are visible, and this early clarity is what separates a smooth first article from repeated revision cycles.

1. Anchor Precision to Stable Datums and Assembly-Critical Interfaces

The most important dimensions on a robotic part should originate from datums that can be established during machining and repeated during inspection. A motor-mounting face may serve as the primary datum, while two locating holes establish secondary and tertiary orientation. Bearing bores, shaft openings, and gearbox mounting patterns are then controlled relative to that reference system rather than through long chains of intermediate dimensions that accumulate error.

Avoid using irregular freeform surfaces, narrow ribs, or unfinished stock edges as functional references. They are difficult to locate consistently in a fixture or on measurement equipment. Broad planar faces, cylindrical bores, and purpose-designed locating features give more repeatable references. If two bores must remain coaxial, state that relationship directly with a coaxiality or position callout instead of relying only on separate coordinate dimensions that leave the requirement ambiguous.

Treat assembly sequence as part of the datum strategy. A precision hole is useless if a technician cannot insert the mating pin, reach the fastener, or measure the feature after other components are installed. For modular robots and end effectors, include unambiguous locating features so parts do not depend on bolt clearance for alignment. Dowels, shoulders, pilots, and controlled mating faces improve repeatability, but use them only where the assembly genuinely requires that precision.

2. Design for Tool Access Before Chasing Complex CAD Geometry

Every machined surface must be reached by a cutting tool while the workpiece is held securely. Deep side features, reverse-facing holes, undercuts, and surfaces approached from several directions increase the number of setups or demand specialized tooling. Each additional setup adds handling time, another workholding operation, and another opportunity for positional variation between related features that share a tolerance.

Where function permits, orient holes, slots, and pockets so they can be produced from a small number of machining directions. A 2.5D design with accessible planar features is usually more efficient than an organically sculpted part with equivalent performance. Five-axis machining can reduce setups and reach angled features, but it does not make inaccessible geometry free: the cutting tool, holder, spindle, fixture, and machine structure still need collision-free clearance to the surface.

Review the model with a simple line-of-sight test. Can a tool approach each feature along a realistic axis without passing through another wall? Pay special attention to angled sensor holes, internal cable channels, cross holes, and fasteners placed close to tall ribs. If a hidden feature has no critical reason to exist, open it to an accessible face, convert it to a through feature, or split the component into machinable parts that assemble reliably.

3. Match Internal Radii and Pocket Depth to Real Cutting-Tool Reach

CNC milling cutters are round, so internal vertical corners cannot be perfectly sharp. Specifying sharp internal corners can force electrical discharge machining, broaching, hand finishing, or another secondary process onto the job. Use the largest acceptable internal radius, and keep the tool radius smaller than the corner radius so the cutter moves smoothly through the corner rather than stalling and reversing direction under a heavy cutting load.

Deep, narrow pockets are a frequent cost driver in lightweight robotic structures. As reach increases, cutters become less rigid and more prone to vibration, deflection, poor finish, and breakage. A practical design favors a larger corner radius, a wider pocket, and a shallower depth whenever stiffness and packaging permit. Stepped pocket depths are often more machinable than a single deep cavity bounded by thin walls, because each step lets a shorter, stiffer tool do most of the work.

If a rectangular mating component must sit inside a milled pocket, add corner reliefs or dog-bone features instead of demanding zero-radius corners. For weight reduction, weigh the actual mass saved by a deep pocket against the extra machining time it creates. Leaving a slightly thicker floor or using an open-sided pocket can yield a stiffer robotic component while shortening tool reach and improving chip evacuation, which in turn protects surface finish and tool life.

4. Control Wall Thickness to Manage Accuracy, Distortion, and Vibration

Thin walls reduce mass, but they also move under cutting forces. A slender wall can deflect away from the tool during machining and spring back after the cut, producing taper, dimensional variation, or chatter marks. The same part may distort when released from the fixture, because machining has removed material that previously balanced residual stress locked into the stock.

Use consistent wall and floor thicknesses where possible, and connect load-bearing regions with gradual ribs rather than abrupt, isolated thin sections. Large swings in section thickness create uneven stiffness and complicate both machining and later thermal performance. Fillets at rib intersections reduce stress concentration and support smoother toolpaths. For covers or electronics housings, keeping a stable perimeter and adding local bosses is usually better than thickening the entire floor.

Clamping deserves equal weight in the design. A delicate housing needs adequate areas for jaws, soft fixtures, vacuum tooling, or custom supports without crushing finished walls. Avoid placing critical surfaces across the entire exterior; leave sacrificial or noncritical holding regions when feasible. For weight-sensitive robot arms, ask the machining supplier to review wall thickness, stock condition, cutting sequence, and fixture strategy before the geometry is frozen, since a stress-relief step may be needed for demanding parts.

5. Set Tolerances by Function, Not by Drawing Habit

Applying tight tolerances to every dimension inflates programming, machining, inspection, and rejection risk without improving the robot. General dimensions can usually carry standard machining tolerances, while precision controls are reserved for bearing seats, locating features, shaft fits, sealing surfaces, gear interfaces, and alignment relationships. The goal is not the loosest possible drawing; it is a drawing that clearly separates critical features from noncritical ones so effort lands where it matters.

Use geometric dimensioning and tolerancing where it communicates function better than stacked plus-or-minus dimensions. Position can control a bolt or dowel pattern relative to functional datums, perpendicularity can protect motor alignment, and parallelism can manage rail-mounting faces. Profile may suit complex contours, but it should never be tighter than the application requires. Remove redundant controls that create contradictory acceptance criteria and slow down inspection.

Evaluate tolerance stack-up at the assembly level. An individually precise bracket can still bind if mating components, fastener clearances, and datum transfer are not assessed together. Define whether a fit is intended for free assembly, repeatable location, sliding motion, or interference. Tell the manufacturer which dimensions affect robot calibration or kinematic accuracy so inspection effort concentrates on the characteristics that actually influence positioning performance.

6. Make Holes, Threads, and Fits Production-Friendly

Standard hole sizes, thread forms, and tool-access clearances simplify both manufacturing and procurement. Use readily available fastener sizes suited to the robot's load and service environment, and avoid unusual thread specifications unless an interface truly demands them. Blind threaded holes need room for drill points, tap runout, and chip accumulation, so the modeled thread depth should not consume the entire drilled depth.

Provide sufficient clearance around holes for drills, taps, thread mills, counterbore tools, and fastener heads. Holes located too close to walls or ribs may be reachable in CAD yet inaccessible to the tool holder. Deep small-diameter holes are especially challenging because chip evacuation and tool rigidity deteriorate with depth. Through holes are often easier to machine and clean, provided they do not expose electronics, lubrication paths, or sealed spaces to contamination.

State the purpose of every precision hole. A clearance hole, tapped hole, dowel hole, bearing bore, and hydraulic passage each require different processes and inspection methods. Reserve reamed or bored holes for controlled fits rather than general fastening. Design coaxial bearing seats and paired alignment holes so they can be machined in one setup when possible. Consider threaded inserts for frequently serviced threads in soft materials, but confirm space, installation method, and replacement requirements during design review.

7. Align Material, Surface Treatment, and Production Volume

Material selection affects far more than strength. Machinability, stiffness, density, corrosion behavior, thermal expansion, wear, electrical conductivity, and surface-treatment compatibility all shape a robotic component's performance and manufacturing route. An aluminum alloy may suit a lightweight sensor bracket, while steel is often preferable for a compact, highly loaded joint feature. Engineering plastics can cut mass and isolate electricity, but moisture absorption, creep, and thermal movement may compromise precision interfaces.

Choose surface treatment early, because it can change dimensions, edge conditions, conductivity, appearance, and masking requirements. Flag the threaded holes, bearing seats, sealing faces, grounding points, and close fits that must be protected or controlled after finishing. Avoid demanding a cosmetic finish inside deep pockets or on hidden faces unless it serves a function. When appearance matters, define the visible surfaces and an acceptable reference sample rather than relying on subjective descriptions.

Finally, design for the intended quantity. A prototype may use flexible workholding and extra machining operations to validate function quickly, while repeated low-volume or mass production can justify dedicated fixtures, standardized stock, in-process probing, or minor geometry changes that trim cycle time. Share realistic forecast quantities instead of requesting a production solution for a single test part. Early collaboration with a custom CNC machining supplier surfaces cost drivers before release and smooths the path from rapid prototyping to stable production.

FAQ

What information should be included with a CNC robotic part RFQ?

Provide 3D CAD files, a controlled 2D drawing, material and finish requirements, quantities, critical-to-function dimensions, datum references, inspection expectations, and an assembly model or interface details when available. The more context the supplier has on mating parts and load paths, the more accurate the quote and lead time.

When is 5-axis machining useful for robotic components?

It helps on parts with angled holes, compound surfaces, or critical features spread across several faces. It can reduce setups and tighten feature-to-feature relationships, though accessible geometry and practical tool clearance still matter. Five-axis capability does not make inaccessible pockets or undercuts free to machine.

How can designers reduce the cost of CNC-machined robot parts?

Simplify tool access, avoid deep narrow pockets, use generous internal radii, limit tight tolerances to functional features, choose standard holes and threads, and group related precision features so they machine in one setup. Consistent wall thickness and adequate clamping areas also reduce rework.

Should bearing bores be toleranced differently from bolt holes?

Yes. Bearing bores often require controlled size, roundness, cylindricity, alignment, and surface condition to seat correctly. Ordinary bolt-clearance holes generally need more open tolerances unless they also locate the assembly, in which case position relative to the functional datums becomes the priority.

Why should surface treatment be specified before machining begins?

Treatments can shift dimensions, alter surface texture, change conductivity, and require masking. Specifying them early lets the manufacturer plan machining allowances and protect critical threads, bores, sealing faces, or grounding areas so the finished part still meets its fits after coating or anodizing.
