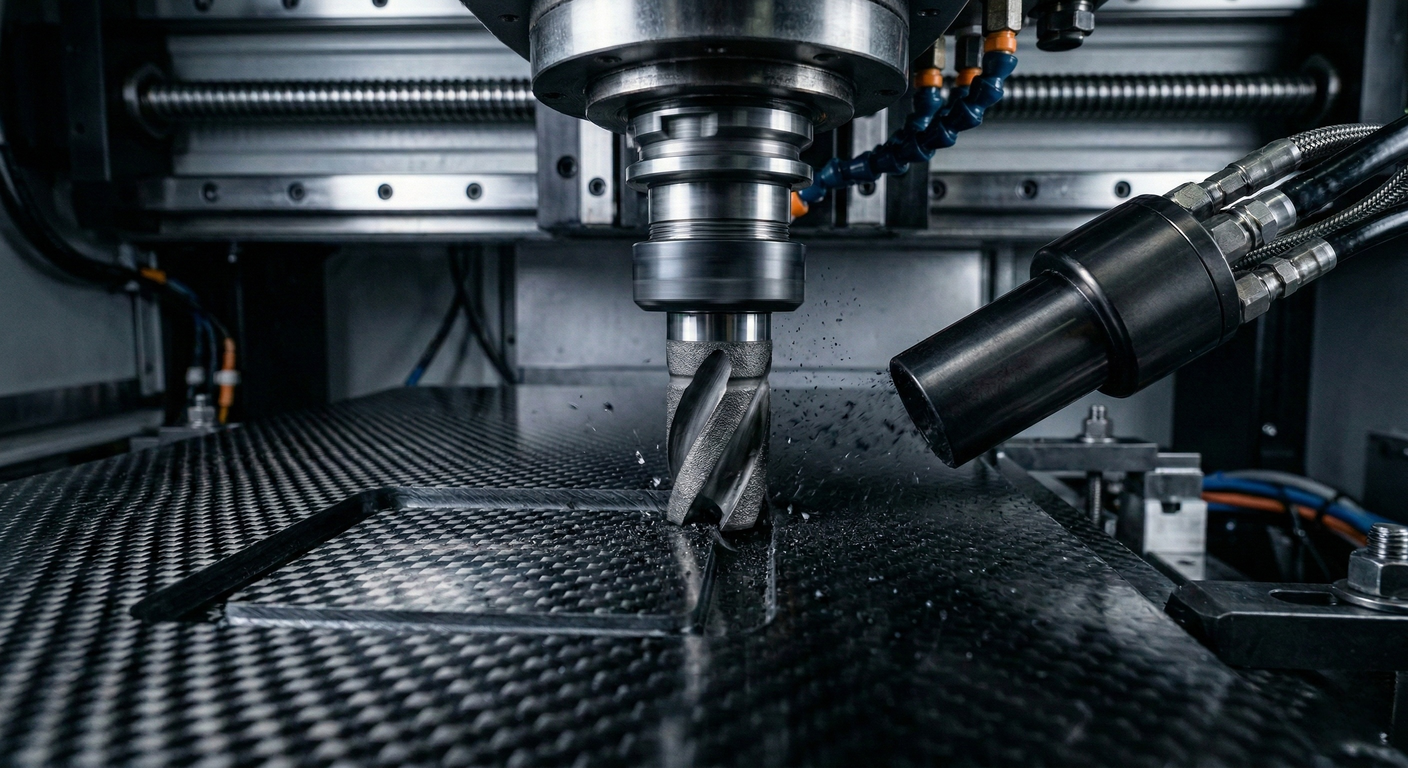

CNC Machining of Composites: Everything You Need to Know (2026 Guide)

Introduction

The engineering world is undergoing a massive shift towards lightweight, high-performance materials. At the forefront of this revolution are composite materials. Offering an unparalleled strength-to-weight ratio, exceptional rigidity, and unique thermal properties, composites are replacing traditional metals in aerospace, robotics, automotive hypercars, and high-end medical devices.

However, while designing a carbon fiber drone frame or a G10 electrical insulator solves many mechanical problems, manufacturing these parts presents a nightmare for traditional machine shops. CNC machining of composites is fundamentally different from machining isotropic metals like aluminum or steel. Composites are highly abrasive, prone to catastrophic delamination, and produce hazardous dust instead of clean metal chips.

As a comprehensive manufacturing partner, Huaruida Precision Machinery (HRD) has invested heavily in the specialized tooling, dust extraction systems, and expertise required to process advanced composite materials. Whether you need precision CNC milling for a complex carbon fiber chassis or custom GFRP insulators, understanding how composites behave under a cutting tool is critical.

This comprehensive guide will explore the most common composite materials, break down the unique challenges they present, provide advanced tooling and machining strategies, and offer actionable Design for Manufacturing (DFM) tips to ensure your composite project is a success.

Understanding Composite Materials in Manufacturing

A composite is formed by combining two or more materials with significantly different physical or chemical properties. In the context of CNC machining, we are primarily dealing with Fiber-Reinforced Polymers (FRP).

An FRP consists of two main components:

1. The Matrix: Usually a polymer resin (like epoxy, polyester, or PEEK) that binds the fibers together and transfers the load.

2. The Reinforcement: The fibers (carbon, glass, or aramid) that provide the structural strength and stiffness.

Because the material is not homogeneous (isotropic), cutting it means simultaneously slicing through ultra-hard, abrasive fibers and a relatively soft, heat-sensitive plastic matrix.

Common Composites Used in CNC Machining

Carbon Fiber Reinforced Polymers (CFRP)

CFRP is the crown jewel of high-performance engineering. It is incredibly stiff, lightweight, and boasts a near-zero coefficient of thermal expansion.

• Machining Profile: Carbon fibers are extremely hard and brittle. They act like microscopic razor blades against cutting tools, causing rapid abrasive wear.

• Typical Applications: UAV (drone) frames, robotic arms, aerospace interior panels, and high-performance automotive components.

Glass Fiber Reinforced Polymers (GFRP / G10 / FR4)

GFRP (often referred to by commercial grades like G10 or FR4) uses woven glass fibers embedded in an epoxy resin.

• Machining Profile: G10 is famously known as a "tool killer." Glass fibers are highly abrasive (essentially machining glass). However, it is much cheaper than CFRP, boasts immense mechanical strength, and is an outstanding electrical insulator.

• Typical Applications: Printed circuit boards (PCBs), high-voltage electrical insulators, knife handles, and cryogenic structural supports.

Aramid Fiber Composites (Kevlar)

Known for its use in ballistic armor, Kevlar offers unmatched impact resistance and toughness.

• Machining Profile: Kevlar is arguably the most frustrating composite to machine. Instead of breaking cleanly, the tough aramid fibers tend to stretch, fray, and "fuzz," making it incredibly difficult to achieve a clean, smooth edge.

• Typical Applications: Skid plates, armor plating, and impact-resistant drone casings.

The Unique Challenges of Machining Composites

Why do many standard machine shops refuse to quote composite parts? The answers lie in the material's physical behavior during the subtractive manufacturing process.

Delamination (Peel-Up and Push-Out)

Delamination is the absolute worst-case scenario in composite machining. Because composites are built in layers (laminates), the forces exerted by a drill bit or end mill can pull the layers apart.

• Peel-Up Delamination: Occurs at the entry point of a tool when the upward pulling force of the flutes separates the top layers.

• Push-Out Delamination: Occurs at the exit point of a drilled hole when the downward force pushes the uncut bottom layers out, causing the back face to splinter and blowout.

Extreme Tool Wear (Abrasion)

Carbon and glass fibers are significantly harder than the HSS (High-Speed Steel) or standard uncoated carbide tools typically used for metals. When machining G10 or CFRP, a standard carbide end mill might lose its sharp edge in just a few minutes of cutting, leading to friction, heat, and eventual delamination.

Thermal Damage (Matrix Melting)

Metals absorb and carry away the heat generated by the cutting tool through the chips. Composites are excellent thermal insulators. They do not carry heat away.

• The Result: Heat builds up rapidly in the tool and the workpiece. If the temperature exceeds the Glass Transition Temperature (Tg) of the epoxy matrix (often around 150°C - 200°C), the resin melts, smearing the surface and ruining the structural integrity of the part.

Hazardous Dust Generation

Machining aluminum creates heavy chips that fall to the machine floor. Machining composites creates a fine, highly abrasive, and toxic powder. Carbon fiber dust is electrically conductive and can short out CNC machine electronics if they are not properly sealed. Furthermore, inhaling glass or carbon dust is a severe health hazard, requiring high-velocity HEPA vacuum extraction systems.

Composite Machinability Comparison Chart

Understanding how different composites compare to standard metals helps in setting expectations for tool life and cost.

Advanced Tooling Strategies for Composites

Standard metal-cutting end mills will not work efficiently on composites. Success requires specialized geometries and ultra-hard materials.

Tool Material: The Diamond Standard

To combat the abrasive nature of carbon and glass fibers, standard carbide is insufficient.

• CVD Diamond Coating: Chemical Vapor Deposition diamond coatings grow a layer of real diamond on a carbide tool. This extends tool life by 10x to 20x compared to bare carbide.

• PCD (Polycrystalline Diamond): PCD tools have actual diamond wafers brazed onto the cutting edges. They are the ultimate solution for high-volume aerospace composite machining, offering the longest possible tool life and keeping edges razor-sharp to prevent delamination.

Tool Geometry: Compression Routers

The biggest innovation in composite routing is the Compression Router Bit.

• How it works: The top half of the bit features a down-cut flute (pushing material down), while the bottom half features an up-cut flute (pulling material up).

• The Result: The cutting forces are directed toward the center of the composite panel. This simultaneously prevents both peel-up on the top surface and push-out delamination on the bottom surface, resulting in a perfectly clean edge.

Drill Geometries: Brad Point and Dagger Drills

Standard 118-degree twist drills will cause massive exit delamination in carbon fiber. Instead, machinists use Brad Point Drills or Dagger Drills. These tools feature a sharp center point that scores the outer fibers before the main cutting edges engage, slicing the hole cleanly rather than pushing through it.

CNC Machining Parameters for Composites

When setting up a CNC turning or milling operation for CFRP or G10, the "speeds and feeds" differ wildly from metalworking.

High Speed, Moderate Feed

• Spindle Speed: Must be very high (often 10,000 to 24,000 RPM) to ensure the fibers are sheared rapidly and cleanly.

• Feed Rate: Must be carefully balanced. If the feed is too slow, the tool rubs, generating massive heat and melting the resin. If the feed is too fast, the cutting forces increase, risking delamination.

• Climb Milling vs. Conventional: Climb milling is almost universally preferred for composites. It produces a superior surface finish and reduces the forces that lead to delamination.

Coolant vs. Dry Machining

This is a heavily debated topic in aerospace machining.

• Dry Machining: Preferred for most CFRP and G10 parts. Water-based coolants can be absorbed by the composite matrix over time, causing it to swell or lose structural integrity. Dry machining requires massive vacuum dust extraction directly at the spindle to remove the hazardous powder.

• Wet Machining: Sometimes used with specialized synthetic coolants that do not degrade epoxy. The coolant flushes away the abrasive dust (preventing machine wear) and cools the part, but the parts must be thoroughly dried and baked post-machining.

Design for Manufacturing (DFM) for Composites

Designing a composite part for CNC machining requires a different mindset than designing for aluminum.

Avoid Tapped Threads

Do not tap threads directly into carbon fiber or G10. The threads will lack strength, and the fibers will tear out immediately when a screw is torqued.

• The Solution: Use Potted Inserts. Design a slightly oversized blind hole. We install a threaded metal insert (usually stainless steel or brass) and bond it in place using high-strength structural epoxy.

Design Generous Internal Radii

Just like in metals, sharp internal corners require tiny cutting tools. In composites, tiny tools snap easily and cannot be made with compression geometries. Specify an internal corner radius of at least 3mm (1/8 inch) wherever possible.

Account for Clamping Vulnerability

Composites are incredibly strong in tension (pulling) but can be weak in compression (crushing). Over-tightening a traditional CNC vise can crush the edges of a hollow carbon fiber tube or delaminate a flat plate. Design flat surfaces that allow for Vacuum Fixturing, which holds the part down securely without inducing crushing forces.

Tolerance Expectations

While CNC machines are capable of holding +/- 0.005mm on steel, achieving this on composites is difficult due to the woven nature of the fibers and stress-relief warping. A standard, highly achievable tolerance for CNC routed composites is +/- 0.1mm to 0.15mm.

Post-Processing and Surface Finishing

After the CNC process, composite parts often require secondary finishing to seal the exposed edges.

• Edge Sealing: Machining cuts through the protective outer epoxy layer, exposing raw fibers. To prevent moisture ingress and galvanic corrosion (especially when CFRP touches aluminum), the machined edges must be sealed with a clear epoxy or polyurethane clear coat.

• Surface Treatments: For aesthetic applications, HRD provides various surface treatments including clear coat polishing for a high-gloss "carbon fiber look" or matte finishes for tactical/military drone applications.

Frequently Asked Questions (FAQ)

Q: Why is CNC machining carbon fiber so much more expensive than aluminum?

A: The primary cost driver is tool wear. A standard carbide tool that can cut aluminum all day will be destroyed by carbon fiber in 15 minutes. We must use expensive PCD (diamond) tooling. Additionally, managing the hazardous, electrically conductive dust requires specialized machine enclosures and filtration systems.

Q: Can you use a waterjet to cut carbon fiber instead of a CNC mill?

A: Yes, abrasive waterjet cutting is excellent for cutting 2D profiles out of thick composite plates. It generates no heat and no airborne dust. However, waterjets cannot control depth (no blind holes or pockets) and can sometimes cause delamination at the piercing point. For 3D features, precision pockets, and tight tolerances, CNC milling is mandatory.

Q: What is the best way to cut Kevlar?

A: Kevlar is notorious for fuzzing. We utilize specialized "scissor-cut" router bits that shear the aramid fibers cleanly. In many cases, ultra-high-pressure pure waterjet cutting (without abrasive) is the cleanest way to cut thin Kevlar laminates.

Q: Does HRD machine G10 and FR4 for electronics?

A: Yes. We specialize in precision machining G10/FR4 materials for PCB testing jigs, electrical enclosures, and high-voltage insulating standoffs. We employ high-velocity dust collection to ensure clean, precise edges without glass fiber fraying.

Ready to Manufacture Your Advanced Composite Parts?Machining materials like Carbon Fiber, G10, and Kevlar is not for the faint of heart. It requires specialized machinery, diamond tooling, and years of experience to prevent part destruction.

At Huaruida Precision Machinery, our engineering team is equipped to handle the unique challenges of advanced composites. Whether you need a lightweight aerospace chassis or heavy-duty electrical insulators, we deliver precision components to your exact specifications.
