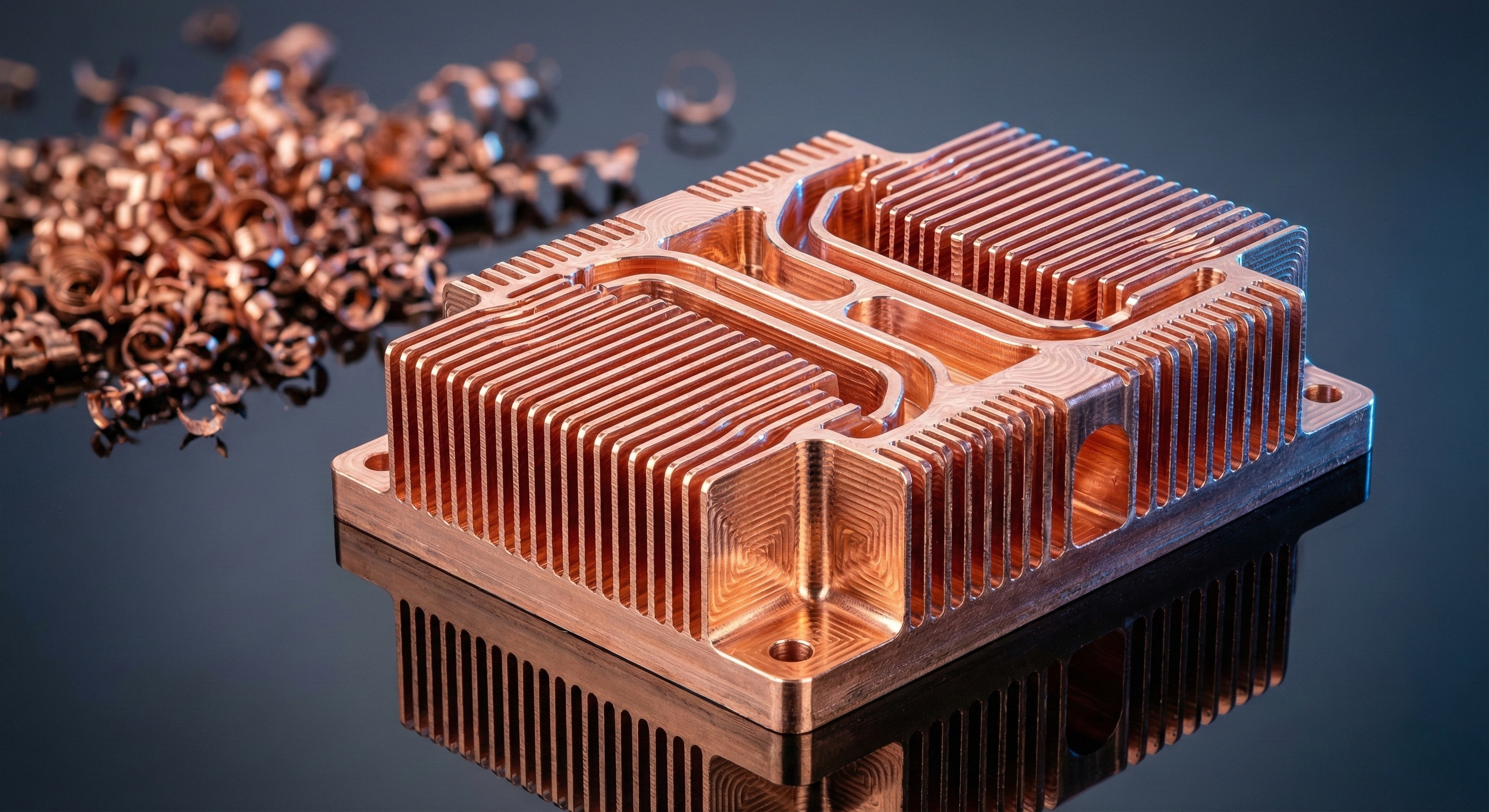

The Ultimate Guide to CNC Copper Machining: Alloys, Processes, and DFM (2026 Edition)

Introduction

In modern manufacturing, copper remains irreplaceable in technologies like electric vehicles (EVs), 5G telecommunications, and high-performance computing due to its unrivaled thermal and electrical conductivity.

However, pure copper is notoriously "gummy," ductile, and prone to work-hardening, presenting unique challenges for CNC machinists. Unlike free-machining brass, it tests the limits of tooling and process control.

As a premier CNC machining manufacturer in China, Huaruida Precision Machinery (HRD) has extensive experience perfecting the art of machining copper. This guide covers copper metallurgy, advanced machining strategies, and Design for Manufacturing (DFM) tips to optimize your components.

Why Choose Copper? Engineering Properties

Before machining, it is crucial to understand why copper is specified:

• Electrical Conductivity: Pure copper (100% IACS) is the benchmark for efficient power transmission in busbars and connectors.

• Thermal Management: With thermal conductivity ~400 W/m·K (double that of aluminum), it is essential for active heat sinks and cooling systems.

• Corrosion Resistance & Hygiene: Naturally antimicrobial and corrosion-resistant, making it ideal for medical and food-grade equipment.

Selecting the Right Copper Alloy

The specific alloy dictates machinability, cost, and performance.

The Pure Coppers (Difficult to Machine)

• C10100 (OFE): 99.99% pure, Oxygen-Free. 101% IACS. Used for high-vacuum and superconductor applications. Machinability: Very Poor (20%).

• C11000 (ETP): 99.9% pure, Electrolytic Tough Pitch. The standard for electrical components. Machinability: Poor (20%). Prone to tearing and burr formation.

The Free-Machining Coppers (Easier to Machine)

• C14500 (Tellurium Copper): The "gold standard" for machining (~85% rating). The addition of Tellurium creates short, clean chips. Conductivity is ~93% IACS. Ideal for high-volume screw machine parts and nozzles.

• C14700 (Sulfur Copper): A lower-cost alternative to C14500 with similar machinability properties.

Summary Comparison Table

The Challenges of Machining Copper

1. The "Gummy" Factor (Ductility): Pure copper stretches rather than shears, causing material to weld to the tool edge (Built-Up Edge), leading to poor surface finishes.

2. High Heat Generation: Heat spreads rapidly through the part, causing thermal expansion. A hot part machined to tolerance will be undersized once cooled.

3. Work Hardening: Dwelling or taking too light a cut compresses the surface, making it hard and brittle, which causes tool chatter on subsequent passes.

4. Burr Formation: The material's ductility results in large, tenacious burrs on exit edges that are difficult to remove.

Advanced Machining Strategies & Parameters

1. Tooling Selection

• Material: Use Uncoated Micro-Grain Carbide. Coatings like TiAlN can chemically interact with copper, increasing stickiness.

• Geometry: High positive rake angles and polished flutes are essential to "slice" the metal and evacuate chips quickly.

2. Speeds and Feeds

• Spindle Speed: Copper can run at high speeds (600-1200 SFM).

• Feed Rate: Be aggressive. Feeds must be high enough (0.004 - 0.010 IPT) to cut under the work-hardened zone. Never dwell.

3. Drilling and Tapping

• Drilling: Use parabolic flute drills and peck cycles to clear long, stringy chips from deep holes.

• Tapping: Use Form Taps (Roll Taps) instead of cut taps. Form taps displace material to create threads, eliminating chip evacuation issues and creating stronger threads.

4. Coolant Strategy

Flood Coolant is non-negotiable. High-pressure coolant flushes chips and stabilizes part temperature.

• Warning: Use "Yellow Metal Safe" coolant to prevent sulfur from staining the copper black.

Machining Process Specifics

• CNC Turning: Use sharp inserts with aggressive chip breakers to prevent "bird's nesting" (long wire chips).

• CNC Milling: Always use Climb Milling. Use Adaptive Clearing (Trochoidal milling) to maintain constant tool load and reduce heat.

• EDM: Sink EDM is excellent for complex internal features, while Wire EDM provides burr-free precision cuts.

Design for Manufacturing (DFM) Tips

1. Switch to C14500: If 93% IACS is acceptable, switching from C11000 to Tellurium Copper can reduce machining time by 40-50%.

2. Limit Blind Hole Depth: Deep holes invite drill breakage. Keep depth under 3x-5x diameter.

3. Corner Radii: Allow generous internal radii to avoid the need for fragile micro-end mills.

4. Relax Finishes: A standard machined finish (Ra 1.6-3.2um) is significantly cheaper than a mirror finish (Ra 0.4um) on pure copper.

Surface Treatments

Copper oxidizes quickly. Common protective finishes include:

• Electroless Nickel Plating: The industry standard for electronics; hard, corrosion-resistant, and uniform.

• Silver Plating: Best for RF applications and high-current contacts (highest conductivity).

• Gold Plating: Used for critical connectors; requires a nickel underplate.

• Passivation (Anti-Tarnish): A chemical dip that maintains the "fresh" copper look for storage.

Industry Applications

• EV & Automotive: Busbars, battery terminals, and charging contact pins.

• 5G & Telecom: Waveguides and high-power amplifier heat spreaders.

• Aerospace: Heat exchangers and oxygen nozzles.

Quality Control & Inspection

• Conductivity Testing: Verify % IACS to ensure material grade.

• Surface Inspection: Check for handling marks or clamp indentations, as copper is soft.

• Thread Verification: Use Go/No-Go gauges, especially important when using form taps.

Troubleshooting Common Issues

Frequently Asked Questions (FAQ)

Q: Can you CNC machine copper to a mirror finish?

A: Yes, using Diamond Turning, but it is delicate. We recommend nickel plating for a durable cosmetic shine.

Q: Why is my copper part turning black after machining?

A: Likely due to sulfur in the coolant. Ensure you are using "Yellow Metal Safe" fluids.

Q: What is the maximum size copper part HRD can machine?

A: We handle plates up to 1000mm x 500mm and turned parts up to 300mm diameter.

Conclusion

Machining copper requires patience, the right tools, and deep metallurgical knowledge. When done correctly, it yields components with unmatched performance. Huaruida Precision Machinery is ready to deliver your precision copper parts, from prototype to mass production.
