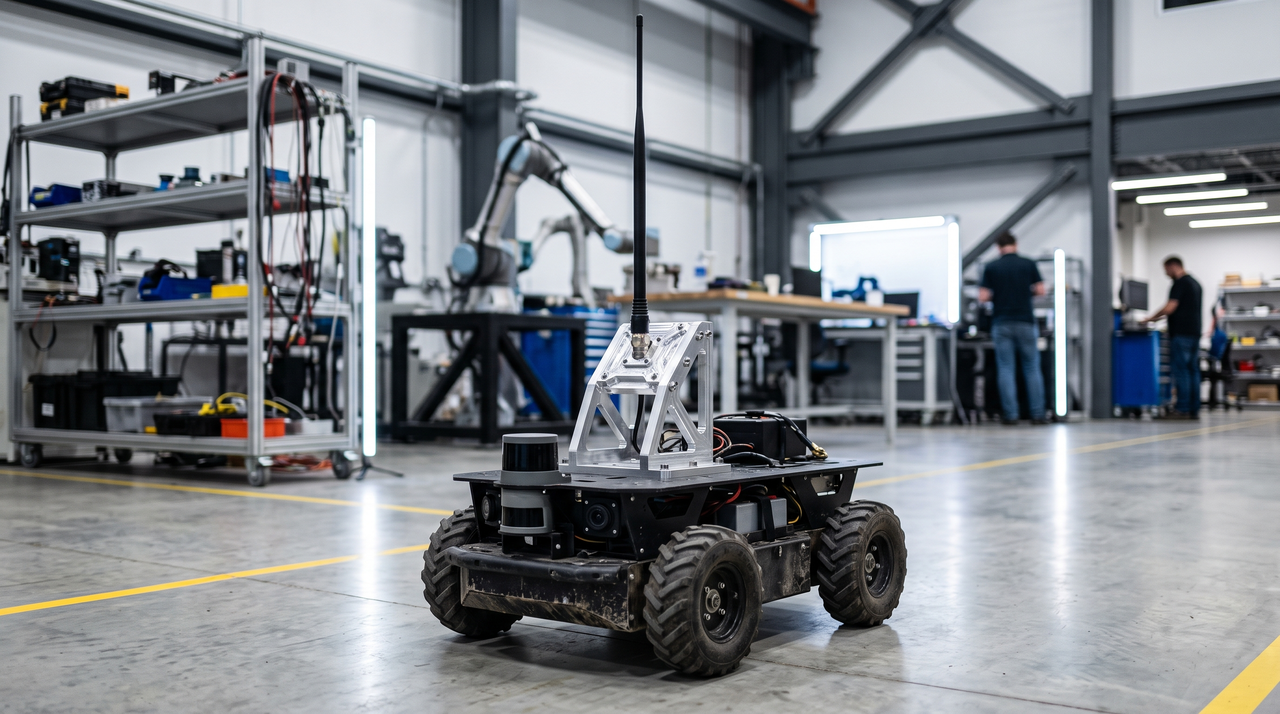

CNC Machined Antenna Mounts for Long-Range Communication Robots

Why Strong Radio Links Fail at the Mechanical Interface

A long-range robot can carry a high-quality radio, a carefully selected antenna, and a well-planned communication protocol yet still suffer intermittent control or telemetry loss. The root cause is frequently mechanical: the antenna changes orientation under vibration, conductive hardware sits too close to the radiating element, a connector loosens over thousands of cycles, or a poorly routed coaxial cable is repeatedly bent past its minimum radius. Well-designed CNC antenna mounts control these variables and keep the communication system performing consistently in the field.

The mounting challenge becomes more demanding on mobile platforms operating over rough ground, around industrial machinery, or in exposed outdoor environments. Antenna brackets must resist shock and vibration without adding excessive weight or creating a large snag point. They may also need to maintain sealing around an enclosure penetration, provide a defined electrical bond, isolate dissimilar metals, and allow a technician to replace an antenna without dismantling the robot.

For engineers, the key decision is not simply whether a mount can hold an antenna. It is whether the complete assembly preserves the antenna's intended position, RF clearance, cable condition, and environmental protection across the robot's full service conditions. Treating the mount as part of both the mechanical structure and the RF installation leads to more reliable results than adapting an off-the-shelf bracket late in development.

How Mount Geometry Influences RF Performance

The mount does not generate or process the signal, but its geometry shapes the antenna's operating environment. Conductive metal placed near a radiating section may detune the antenna, distort its radiation pattern, or create unwanted directional nulls. These effects depend on antenna type, operating frequency, nearby structures, and whether the design requires a ground plane. Mechanical designers should obtain the antenna manufacturer's keep-out, ground-plane, and installation recommendations before defining the bracket envelope.

A mount should establish a repeatable antenna orientation relative to the robot chassis. Vertical polarization is common in many mobile communication systems, but the correct orientation depends on the network design and mating antennas. Angular variation caused by a thin, flexible bracket can reduce link consistency as the robot moves. A ribbed or boxed CNC-machined structure provides greater stiffness than a flat plate while keeping mass concentrated near the attachment points.

The bracket must also account for the robot itself. Masts, cameras, battery enclosures, motors, safety cages, and payloads can obstruct or reflect radio energy. Positioning an antenna slightly higher may improve line of sight, but a tall mount increases bending leverage during shock events. The final geometry should balance RF exposure with structural durability, vehicle clearance, rollover risk, and cable length. RF simulation or representative field testing is advisable when the platform contains large conductive structures or must operate near the edge of its link budget. Precision machined mounts help preserve these carefully chosen relationships once the design moves into production.

Structural Loads, Vibration, and Cable Protection

A useful load model includes far more than the antenna's static weight. Acceleration over bumps, sudden stops, manipulator motion, wind loading, accidental contact, and cable pull all create forces at the mounting interface. Because antennas often stand away from the chassis, these forces produce bending moments at the bracket base. Engineers should define the expected acceleration spectrum, shock events, antenna mass, center of gravity, and unsupported height before selecting wall thicknesses and fastener spacing.

Stiffness is especially important where the antenna connector passes through the bracket or enclosure. Repeated movement at an SMA, N-type, TNC, or other RF connector can damage the cable, loosen the bulkhead interface, or transfer stress into a circuit board. The mechanical design should support the connector according to its intended mounting method and provide separate cable retention. A controlled service loop and a strain-relief clamp prevent vehicle motion from repeatedly flexing the cable at one concentrated point.

Fastener retention must be planned for the operating environment. Options include prevailing-torque hardware, thread-locking compounds compatible with service requirements, locking washers, or mechanically retained fasteners. Designers should avoid relying on a thin unsupported section to maintain preload. Generous internal radii, ribs aligned with the primary load path, and adequate material around threaded holes improve fatigue resistance without making the entire mount unnecessarily thick or heavy.

Material Choices for Weight, Corrosion, and Electrical Behavior

Aluminum alloys are widely used for robot antenna brackets because they combine low density, machinability, stiffness, and access to multiple surface treatments. Aluminum is often suitable for weight-sensitive mobile systems, but the exact alloy should be selected according to strength, corrosion exposure, forming requirements, and finishing needs. If the mount must act as part of an electrical ground path, the designer must specify where conductive contact is required rather than assuming an anodized assembly will provide it. Understanding how material selection affects CNC machined parts helps teams match alloy behavior to field conditions.

Stainless steel may be appropriate when corrosion resistance, wear resistance, or high local strength outweighs minimum mass. Its higher density can be acceptable for compact bulkhead plates or small connector supports, while larger mast-like structures may become unnecessarily heavy. Engineering plastics can provide electrical isolation and RF transparency in selected applications, although creep, temperature, ultraviolet exposure, moisture absorption, and insert retention must all be evaluated for the intended environment.

Dissimilar-metal contact deserves attention on outdoor and marine-adjacent platforms. Aluminum brackets assembled with stainless steel hardware can be vulnerable to galvanic corrosion when moisture and electrolytes are present. Protective finishes, compatible washers, isolating layers, sealants, and drainage features may help, but they must not unintentionally interrupt a required bonding path. The drawing should distinguish structural surfaces, cosmetic surfaces, sealing lands, and electrical contact areas so that finishing and assembly decisions remain unambiguous.

Critical Features That Benefit From Precision CNC Machining

CNC milling is well suited to antenna mounts with precise bulkhead holes, locating shoulders, recessed fasteners, cable channels, sealing grooves, and stiffening ribs. Machining these features from a stable workpiece reduces the alignment variation associated with manually fabricated brackets. It also allows designers to consolidate several plates, spacers, and clamps into one component, reducing hardware count and assembly time. Reviewing available precision CNC machining services early helps confirm which features are practical to produce.

Complex mounts may require access from several directions. Multi-axis or 5-axis machining can produce angled antenna interfaces, compound mounting faces, and undercut cable-routing features with fewer setups. Reducing setups improves the positional relationship between critical surfaces, although complexity should still be justified by functional need. A simpler three-axis design may be more economical when all important features can be reached from two or three orientations.

CNC turning is useful for mast adapters, threaded antenna bases, bushings, sealing carriers, and cylindrical cable glands. A complete mounting assembly may combine a milled base with turned adapters or spacers. During rapid prototyping, 3D-printed parts help verify antenna position, enclosure clearance, installation access, and cable routing before metal machining begins. Printed prototypes should not be treated as structurally or environmentally equivalent to the final machined component.

Tolerance Planning Without Overengineering the Bracket

Not every dimension on an antenna mount needs a tight tolerance. Applying restrictive limits across the drawing increases inspection effort and can raise manufacturing cost without improving communication reliability. Tight control should be reserved for features that govern connector fit, sealing compression, antenna angle, alignment with enclosure holes, bearing or bushing fits, and repeatable contact between mating parts.

A functional datum scheme helps the manufacturer understand how the mount operates. The primary datum may be the chassis mounting face, followed by a locating edge or pin feature, then the antenna interface. Position tolerances can then control connector holes or mounting patterns relative to the surfaces that actually locate the part. Flatness and perpendicularity should reflect assembly and sealing needs rather than arbitrary decimal precision.

The designer should also consider the tolerance stack across the enclosure, gasket, bracket, connector, and fasteners. A bulkhead connector may have limited thread engagement after all layers are assembled, while an O-ring groove requires suitable geometry and surface condition to seal correctly. Providing a CAD assembly, a dimensioned drawing, and a list of critical-to-function characteristics gives the machining and inspection teams a clearer basis for production than a model containing nominal geometry alone.

Environmental Protection and Surface Treatment Decisions

Outdoor robots expose antenna hardware to rain, condensation, dust, temperature cycling, sunlight, and contaminants. Water should not collect around connector bases or in deep machined pockets. Sloped surfaces, drainage paths, sealed enclosure penetrations, and accessible connector boots improve durability. Any sealing strategy should be validated at the assembly level, because leakage may occur through threads, cable jackets, fastener holes, or imperfect mating surfaces rather than through the bracket material itself.

Anodizing improves the surface durability and corrosion resistance of aluminum while providing a consistent appearance. However, anodized layers are electrically insulating, so masked contact points or another planned bonding method may be necessary where electrical continuity is required. Conversion coatings, plating, passivation, painting, and powder coating may be considered depending on the base material and environment. Finish buildup must be accounted for on threads, precision bores, sealing lands, and close-fitting interfaces.

Surface treatment specifications should state the functional objective instead of relying only on a color callout. Procurement documents may need to identify protected areas, masked regions, acceptable contact marks, cosmetic class, and post-finish dimensions. If the antenna system depends on chassis grounding or on lightning and electrostatic discharge management, qualified electrical and safety engineers should define the bonding and protection requirements for the complete robot rather than treating the metal bracket as a standalone safeguard.

From Prototype Validation to Repeatable Production

A prototype should answer practical questions before the design is released. Confirm that the antenna can be installed with normal tools, that the cable can be connected without excessive twisting, and that nearby covers remain removable. Check robot articulation, payload motion, transport configuration, and likely collision zones. Static inspection alone is insufficient; operate the robot through representative vibration, shock, temperature, and communication scenarios while monitoring connector security and link behavior.

RF validation should compare repeatable configurations rather than relying on a single range observation. Engineers can assess received signal indicators, packet loss, latency, throughput, and reconnect behavior across representative orientations and terrain. If performance changes after installing the machined mount, investigate conductive clearances, grounding, cable loss, connector condition, and antenna orientation. Mechanical resonance or cable movement may only become apparent while the robot is moving.

For production, the drawing and quality plan should identify critical dimensions, materials, finish requirements, thread specifications, and inspection methods. First-article results confirm that the manufacturing process reproduces the validated design before volumes increase. Huaruida Precision Machinery supports custom CNC machining from one-piece prototypes through larger production runs, with inspection before packaging. Early design-for-manufacturing review helps teams simplify setups, protect critical RF-related interfaces, and establish a scalable process for consistent robot antenna mounts.

FAQ

Which material is best for a CNC-machined robot antenna mount?

Aluminum is often selected for its low weight, stiffness, machinability, and finishing options. Stainless steel may suit compact, high-strength, or corrosion-sensitive parts, while engineering plastics can provide electrical isolation. The correct choice depends on loads, environment, RF clearances, grounding requirements, and weight targets.

Can a metal antenna mount reduce communication range?

Yes. Conductive material too close to the antenna's radiating section can alter tuning or radiation patterns and create directional nulls. Follow the antenna manufacturer's keep-out and ground-plane guidance, then validate link performance on the complete robot before release.

What dimensions should receive the tightest tolerances?

Prioritize connector bores, sealing features, locating surfaces, mounting patterns, antenna-angle controls, and interfaces that determine electrical contact. Nonfunctional outer dimensions can usually use broader tolerances to save cost and inspection time.

Is 5-axis machining necessary for an antenna bracket?

Not always. It is valuable for compound angles, multiple critical faces, and integrated cable-routing features, but a well-designed three-axis part may be more economical. The machining approach should follow functional geometry and production volume.

How should a prototype antenna mount be tested?

Check assembly access, connector engagement, cable strain relief, vibration, shock, environmental exposure, and interference with moving components. Communication testing should measure link behavior in representative orientations and operating conditions while the robot is moving.

Should anodized aluminum be used as an electrical ground path?

Anodized surfaces are generally electrically insulating. If bonding is required, specify masked contact areas or another controlled conductive interface and verify continuity in the assembled system rather than assuming the finish will conduct.
