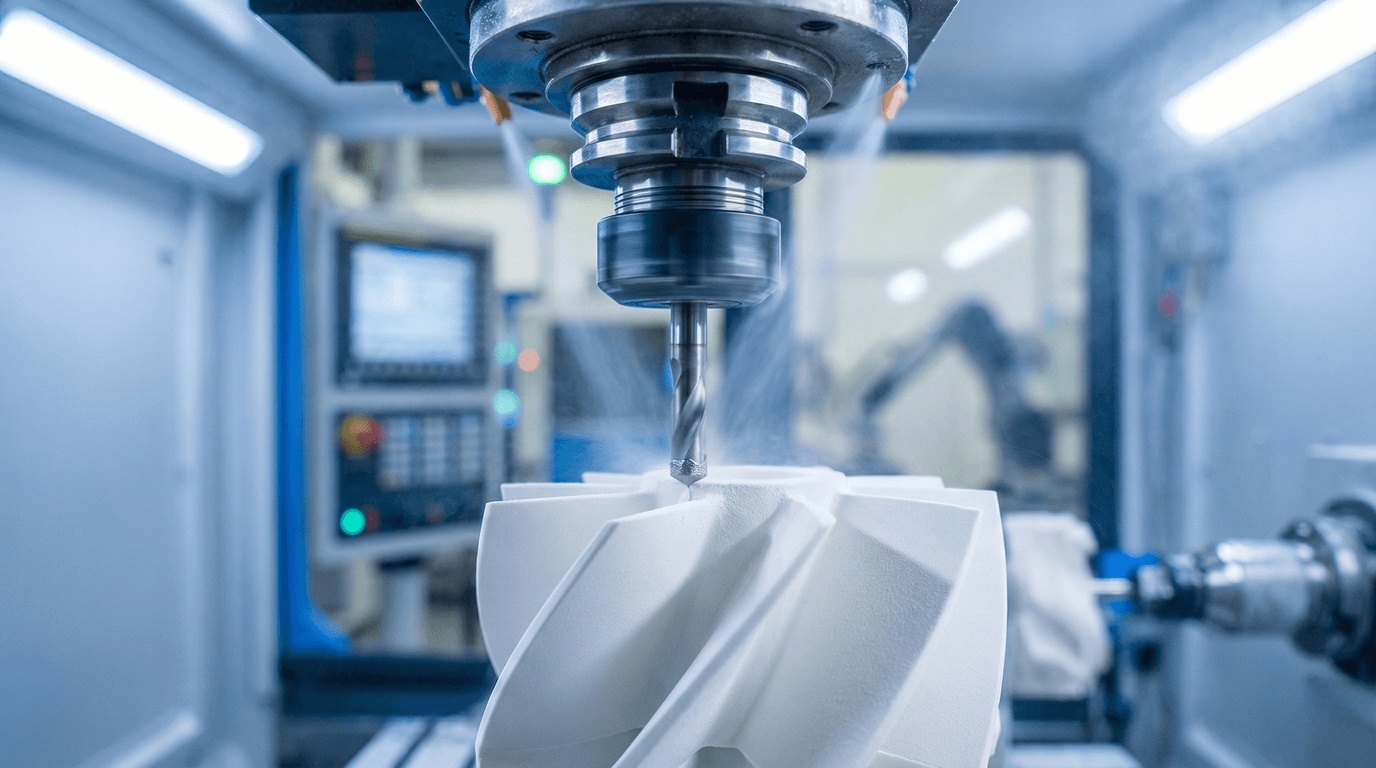

A Deep Dive into Ceramic CNC Machining

You might wonder why Ceramic CNC Machining is important today. This process uses computers to guide machines. These machines shape ceramics into exact parts. Manufacturers pick this method for its accuracy. It can also make very complex shapes. Ceramics are not like metals or plastics. Ceramics are very hard and not very stretchy. You can see the differences in this table:

The ceramic machinery market was worth $4.68 billion in 2024. It will grow to $6.25 billion by 2029. This growth happens because industries want strong and tough materials for new uses, and precision manufacturers like HRDJM are equipped to meet this rising demand.

Ceramic CNC Machining Overview

What Is Ceramic CNC Machining

Ceramic CNC Machining uses computers to control machines. These machines shape ceramic materials very accurately. It is like carving or cutting ceramics with great care. Ceramics are much harder and break easier than metals or plastics. You need special tools and skills to work with ceramics. The main ideas of this process help you get good results. Here is a table that shows these important ideas:

Each idea focuses on being careful and accurate. Diamond tools are needed because regular tools wear out fast. You must control heat and understand how ceramics act when you machine them.

How the Process Works

There are several steps to shape ceramics with CNC machines. Each step helps you make the part the right size and shape. Here is how the process usually works:

1. Material Preparation: Ceramics are formed into blocks or blanks.

2. Rough Milling: Large amounts of material are removed first.

3. Fine Grinding: The surface is made smoother and more exact.

4. Laser Cutting: Lasers are used for detailed shapes and thin parts.

5. Surface Grinding: The surface is made very smooth and precise.

6. Core Drilling: Diamond drills make holes or spaces in the part.

7. Polishing and Finishing: The part is polished to look and work better.

This process can make parts with very tight tolerances and smooth surfaces. For example, you can get sizes as close as ±0.005 mm and finishes as smooth as Ra 0.1 μm. These results are better than with many other materials.

Tip: Always check which ceramic you use. Alumina and zirconia can be made with the highest accuracy and smoothest finish.

CNC vs. Traditional Machining

You might wonder how Ceramic CNC Machining is different from older ways. Traditional machining uses hand tools and skilled workers. CNC machining uses computers and machines that work by themselves. This brings many good changes.

CNC machining gives you more accuracy and lets you make harder shapes. You also get faster work and better quality checks. Modern CNC machines let you watch the process as it happens. You can fix problems quickly and keep parts the same.

Here is a table that compares CNC and traditional machining:

CNC machining costs more at first. But you save money on workers and get better parts. Traditional methods let you change things and use human skill. They cannot work as fast or as accurately as CNC machines.

• CNC Machining Advantages:

• High precision and consistency

• Increased efficiency

• Reduced labor costs

• Traditional Machining Advantages:

• Flexibility for different jobs

• Lower starting cost

• Human skill for changes

• CNC Machining Challenges:

• Higher starting cost

• Needs special programming

• Traditional Machining Challenges:

• Lower accuracy

• More money spent on labor

Ceramic CNC Machining changes how ceramic parts are made. You get better parts, faster work, and more complex shapes. You also need to buy the right machines and teach workers. If you pick the best method and a reliable partner like HRDJM, you can meet the needs of today’s factories.

Ceramic Materials for CNC Machining

Common Ceramic Types

There are many types of ceramics you can use in Ceramic CNC Machining. Each kind has its own special features. These features make them good for different jobs. Here are some common ceramics you might find:

• Alumina Ceramic: This type is very hard and lasts a long time. People use it in airplanes and medical tools.

• Aluminum Nitride: It is great for electronics because it handles heat well.

• Boron Nitride: It does not react with chemicals. It also does not break when the temperature changes fast.

• Silicon Carbide Ceramic: This one is super hard and moves heat well. Many factories use it.

• Zirconia Ceramic: It is strong and tough. Doctors use it for implants.

• Steatite Ceramic: This is a cheaper choice for high-frequency jobs.

• Quartz Ceramic: It is known for its clear look and chemical strength.

• Cordierite Ceramic: It can take shocks and high heat.

• Mullite Ceramic: It stays strong even when it gets very hot.

• Macor: It is easy to shape and looks like porcelain.

• Glass: It is tough and does not break easily.

• Graphite: It does not react with chemicals and can handle sudden heat changes.

Tip: Pick the ceramic that fits your project best. Some ceramics are better for heat. Others are better for strength or saving money.

Key Properties for Machining

When you pick a ceramic for CNC machining, you need to think about its properties. These properties change how easy it is to shape the ceramic. They also change how well it works in hard jobs.

Ceramics are very hard. This makes them great for cutting tools and parts that need to last. They keep their shape even when things get hot. You see this in silicon carbide and boron carbide. These ceramics work well where metals and plastics do not.

Hardness and thermal stability are important for machinability. If a ceramic gets too hot, it can get soft and change shape. Ceramics with low thermal expansion stay strong at high heat. You should always check these properties before you start machining.

Benefits and Limitations

Advantages of Ceramic CNC Machining

Ceramic CNC Machining gives many good benefits to factories today. This process lets you make parts with great accuracy. You can create pieces that fit very tight rules. This is important for airplanes and hospitals. You do not get small mistakes in your parts. The machines can also make shapes that are hard to do by hand.

Ceramic CNC Machining helps products work better, especially in electronics and airplanes. Here are some ways it helps:

• Ceramics move heat well, so they help control temperature.

• Ceramics stop electricity, which is good for electronics.

• These materials do not rust and stay strong in tough chemicals, so parts last longer.

• Ceramics have low friction, so they work well in moving parts and as coatings.

• You can use ceramics for heat sinks, cutting tools, and as insulators.

Ceramics are tough and keep their shape in hard places. The process makes sure every part is the same as your plan.

Tip: If you need parts that must always work, like in planes or medical tools, you should use Ceramic CNC Machining.

Main Limitations

You should know about the main problems too. Ceramics are very hard and break easily. You need special tools, like diamond or tungsten carbide, and these cost more money. The process is slow because machines take off material slowly.

Here are some common problems:

• The edges and parts can be weaker.

• There is a bigger chance of chips and cracks.

• It costs a lot to finish and process, even if the raw ceramic is cheap.

• It is harder to make very tricky shapes.

• Sometimes the quality of the parts is not the same.

• Tools can wear out fast and break without warning.

• Ceramics do not like quick changes in temperature.

You must watch the machining process closely. If you do not, tools can wear out and parts can fail. These things make Ceramic CNC Machining cost more and be harder than working with metals or plastics. Specialists at HRDJM utilize optimized cooling and toolpaths to mitigate these risks effectively.

Technical Challenges

Tool Wear and Brittleness

Machining ceramics is hard because they are tough but break easily. Tools can wear out quickly, and parts might crack or chip. You need special tools and ways to work with ceramics to get good results.

Making ceramics, especially sintered ceramics, is very hard. There is a big risk of cracks and breaks. Customers do not want any broken parts, says van Dingenen. At the same time, people want better accuracy and smoother surfaces now. The engineer says, "Today, customers want tolerances as small as 1 µm and surface flatness less than 2 µm on a 150 mm part. For some ceramics, we must get a surface quality less than Ra = 0.2 µm."

This table shows how ceramics and metals are different:

Ceramics like silicon carbide are much harder than metals. Metals such as titanium are tougher, but they wear out faster. When you machine ceramics, you have to watch for cracks and tool damage.

You can use these special ways to make ceramics less brittle:

Process Optimization

You can get better results by using smart process steps. Cooling and lubrication are very important. High-pressure coolant or minimum quantity lubrication (MQL) keeps tools cool and parts steady. Good lubrication lowers friction and stops small chips.

Here are some ways to make your process better:

1. Use flexible clamping to stop stress and cracks.

2. Try a small cut depth with a fast feed to keep forces low.

3. Plan gentle toolpaths, like round entry and exit, to avoid sudden hits.

You can also:

• Use air or mist cooling to stop thermal shock.

• Do not use flood cooling, because it can cause microcracks.

• Use dry machining for weak green ceramics.

If you plan your work and use machines to help, you can make more parts with fewer mistakes. You get better quality and save money over time.

Applications and Future Trends

Applications in Industry

Ceramic CNC Machining is used in many fields today. This process helps make parts that are strong and light. These parts must also be very exact. You can find them in electronics, cars, planes, and hospitals. Each field uses ceramics for different reasons.

Here is a table that shows where these parts are used and what they do:

Ceramics are chosen because they last a long time. They are not heavy and can handle heat well. Ceramics also stop electricity from passing through. These things make ceramics good for hard jobs. For example, ceramic insulators keep electricity safe in electronics. In cars, ceramic brakes work better and last longer when hot.

Note: Ceramics are safe to use in the body. Doctors use them for dental implants and fake joints.

Innovations and Outlook

Ceramic CNC Machining is changing fast. Machines are getting smarter and faster. Some machines use AI to make fewer mistakes. Multi-axis machines help make hard shapes in less time.

Here are some new things happening now:

• Machine technology is improving with AI, making work faster and more exact.

• Multi-axis machines help make tricky parts in fewer steps.

• Eco-friendly ceramics are being made for green projects.

• Nanoceramics are stronger and better for high-tech jobs.

Ceramics are starting to replace metals and plastics in many places. Scientists add graphene and nano-oxides to ceramics to make them tougher. These new ceramics move heat better too. Flexible ceramics are now used in tiny batteries and sensors.

1. Ceramics are taking over jobs from metals and plastics.

2. New materials like graphene and nano-oxides make ceramics stronger.

3. Flexible ceramics help build small batteries and sensors.

More industries want special ceramic parts. The need for Ceramic CNC Machining will keep growing. You will see more uses in planes, medical tools, and electronics. This means more skilled workers and better machines will be needed soon.

You now know that ceramic CNC machining uses computers and diamond tools to shape hard materials. This method helps make very exact parts for planes, hospitals, and electronics. Here are some ways it helps:

• Makes complicated ceramic parts with great accuracy.

• Cuts down on waste and works faster.

• Helps create new designs in modern factories.

Check out information from companies like Kyocera and Union Tool. You can also learn about grinding, lapping, and polishing. In the future, more jobs will use ceramics in electronics, planes, and cars.

FAQ

What tools do you need for ceramic CNC machining?

You need diamond-coated or carbide tools. These tools cut ceramics without breaking them. Regular steel tools wear out too fast. Always check your tool for damage before you start.

Can you machine all types of ceramics?

You can machine most technical ceramics like alumina, zirconia, and silicon carbide. Some ceramics are too brittle or soft. Always choose the right ceramic for your project.

Why do ceramics crack during machining?

Ceramics crack because they are hard but not tough. If you use too much force or the wrong speed, cracks can form. Use gentle cuts and the right coolant to help prevent this.

How do you get a smooth finish on ceramic parts?

You use fine grinding, polishing, and sometimes laser finishing. These steps remove tiny bumps. You get a surface that looks shiny and feels smooth.
