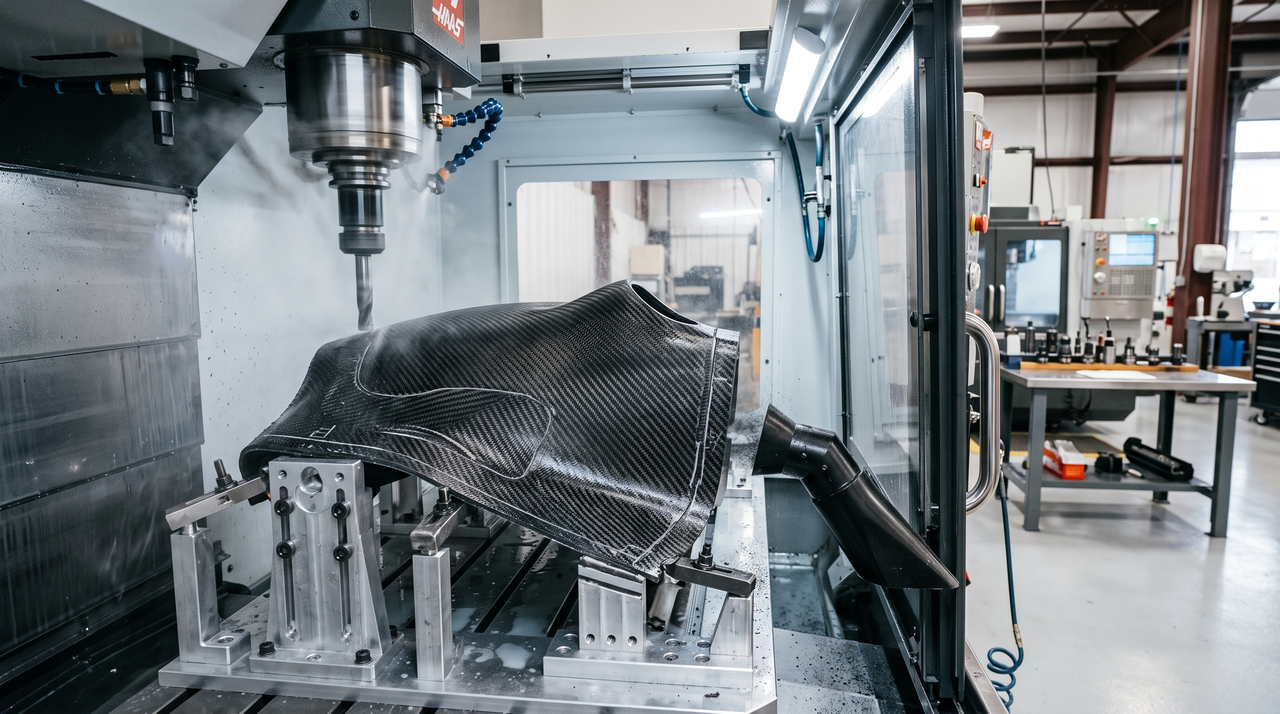

High-Speed Machining of Carbon Fiber Components for UAVs

The UAV Production Challenge: High Speed Without Composite Damage

UAV engineers routinely need lightweight structures with closely controlled holes, trimmed edges, aerodynamic surfaces, and repeatable mating interfaces. The difficulty is producing those features quickly without introducing delamination, frayed fibers, dimensional error, or hidden subsurface damage. Effective carbon fiber machining therefore requires a process built around the composite layup, part geometry, and functional requirements rather than borrowing conventional metal-cutting parameters and hoping for the best.

Carbon fiber reinforced polymer, commonly called CFRP, is heterogeneous and anisotropic. Hard, abrasive fibers are held within a comparatively soft polymer matrix, and cutting behavior changes with fiber orientation from pass to pass. Unlike aluminum, CFRP does not produce predictable ductile chips. Fibers may fracture, bend, pull out, or separate from adjacent layers, while excessive heat can soften or scorch the resin. These mechanisms make spindle speed alone a poor measure of machining productivity.

For UAV components the consequences extend well beyond cosmetic quality. Delamination around a fastener hole can reduce load-transfer performance, an inaccurate edge can disrupt assembly alignment, and loose conductive dust can threaten electronics or machine components. High-speed carbon fiber machining must balance cutting speed, feed per tooth, tool geometry, part support, dust extraction, and tool condition together. The best process meets drawing requirements consistently at the required production rate, not necessarily the one with the highest programmed RPM.

Why CFRP Behaves Differently Under a Cutting Edge

Each ply in a carbon fiber laminate has a defined fiber direction, so a single tool pass may encounter several cutting orientations. At some angles fibers shear cleanly; at others the cutting edge pushes fibers downward, lifts the top ply, or leaves unsupported strands at the trimmed edge. A multidirectional laminate can consequently show different surface characteristics around the same milled contour or drilled hole, which complicates any attempt to specify one universal parameter set.

The matrix adds another variable. Heat generated by rubbing, dull tools, or insufficient feed stays concentrated near the cutting zone because CFRP does not conduct heat away like most metals. Visible discoloration, resin smearing, and an unusual burnt odor can indicate excessive temperature, but damage often begins before obvious signs appear. Process development should focus on sharp cutting action and controlled engagement rather than relying on coolant to mask poor parameters.

Laminate construction also matters. Thin skins can vibrate, thick laminates retain more cutting heat, and sandwich panels demand support for both the face sheet and the core. Woven surfaces fray differently from unidirectional plies. Before programming, the machining team should review material thickness, layup orientation, resin system, cured condition, required surface finish, and whether the component includes honeycomb, foam, bonded inserts, or metallic layers that change how the tool engages.

Tool Selection for Clean Edges and Stable Tool Life

Carbon fibers are extremely abrasive, making wear resistance central to tool selection. Sharp solid carbide may be practical for prototypes and short runs, while diamond-coated carbide, chemical vapor deposition (CVD) diamond, or polycrystalline diamond (PCD) tools deliver far longer life in production. The correct choice depends on geometry, laminate type, batch size, acceptable edge condition, and the economics of tool replacement. Tool material should be validated through controlled trials rather than selected solely by purchase cost.

Geometry is equally important. Compression-style routers direct cutting forces toward the laminate interior and help protect both faces during trimming. Burr-style tools distribute cutting action across many small teeth, while purpose-designed composite drills reduce thrust and control breakout. Countersinks need sharp, rigid edges because chatter or excessive axial force causes splintering around the hole. A tool that trims a peripheral contour cleanly may be the wrong choice for drilling structural fastener holes, so features should be matched to dedicated tooling.

Tool wear must be treated as a measurable process variable. As the edge rounds, cutting forces and temperature rise, usually followed by increasing fuzz, breakout, or dimensional drift. A production plan can set tool-life limits using hole count, cumulative cutting distance, spindle load trends, or periodic edge inspection under magnification. Replacing a tool before defects become visible is nearly always more economical than sorting parts after an uncontrolled wear-related failure that scraps a batch.

How Cutting Parameters Control Heat and Delamination

High spindle speed supports clean cutting because it enables frequent, low-load fiber engagements, but it must be paired with an appropriate feed. Running at high RPM with an excessively low feed causes rubbing instead of efficient fiber fracture, which raises heat, accelerates wear, and smears the matrix. Engineers should treat surface speed, feed per tooth, axial and radial engagement, tool diameter, tooth count, and machine rigidity as one connected parameter set, not independent dials.

For edge milling, multiple controlled passes are often preferable to one aggressive cut when the laminate is thin, poorly supported, or held to tight finish requirements. A roughing pass leaves a small, consistent finishing allowance that stabilizes engagement against a near-net molded edge. However, unnecessary repeated passes add tool contact and heat exposure, so the strategy should minimize total cutting time while maintaining a stable final engagement and predictable chip load.

Drilling demands particular attention because axial thrust drives peel-up delamination at entry and push-out delamination at exit. A rigid backing plate, suitable point geometry, controlled feed, and a reduced feed at breakthrough all lower this risk. Helical interpolation can help for selected hole sizes and geometries, but it is not automatically superior to a dedicated composite drill. Structural holes should be validated for diameter, roundness, entry and exit condition, and any subsurface damage limit set by the applicable drawing or quality plan.

Secure Fixturing Without Distorting Thin UAV Structures

Lightweight UAV panels, ribs, covers, and airframe elements are often stiff in service yet vulnerable to localized clamping loads during manufacturing. Excessive pressure distorts a thin laminate, and the machined feature then moves out of tolerance after release. Fixtures should distribute clamping loads over broad areas, support the cutting zone, and locate the part from functional datums without forcing a naturally variable molded surface into an artificial shape that will spring back.

Vacuum fixtures provide uniform holding for broad panels, but the seal, available surface area, cutting path, and breakthrough locations all need consideration. Mechanical clamps are still useful for small or contoured parts. Sacrificial backing supports drilled exits and prevents the tool from cutting into the fixture itself. For complex UAV geometry, custom nests or soft jaws improve access and repeatability while protecting finished composite surfaces from marking.

Five-axis machining reduces refixturing when holes and trimmed boundaries lie on multiple planes, and it keeps the tool closer to a favorable orientation to shorten reach and improve stability. The setup still needs collision clearance, adequate dust extraction near changing tool angles, and datums that transfer reliably between composite and metallic mating components. Fewer setups are valuable only when they preserve inspection access and process control rather than trading them for convenience.

Carbon Dust Management Is Part of Process Quality

Machining CFRP creates fine, abrasive, electrically conductive dust. Allowing it to circulate contaminates guideways, spindle systems, electrical cabinets, sensors, and nearby assemblies. Effective source extraction should capture particles close to the cutting edge, while machine enclosures and suitable filtration prevent migration through the shop. Cleaning procedures should avoid blowing dust into inaccessible cavities with compressed air, which merely relocates the abrasive to bearings and electronics.

Worker exposure requires a documented risk assessment and controls appropriate to the facility, material, and local regulations. Depending on the process, these controls may include enclosure, local exhaust ventilation, approved vacuum systems, protective clothing, eye protection, and suitable respiratory protection. Personnel should follow the safety data supplied with the specific laminate and resin system rather than assuming every carbon composite produces identical hazards.

Wet machining can suppress airborne dust and carry heat away, but it is not universally appropriate. Fluids may affect certain cores, bonded structures, downstream adhesive operations, or waste-disposal requirements. If a wet process is considered, compatibility with the resin, fixture, machine, and subsequent finishing must be confirmed first. Dry machining with well-designed extraction is often the practical choice, provided capture performance and machine protection are verified and maintained.

Inspection Methods That Reveal More Than Surface Appearance

A visually clean component can still hide an oversized hole, tapered wall, local delamination, or distorted profile. Inspection planning should start with the drawing and identify characteristics tied to flight loads, assembly, sealing, aerodynamic fit, or sensor alignment. Typical checks include hole diameter and position, edge profile, laminate thickness, countersink geometry, flatness, perpendicularity, and surface condition, prioritized by function rather than measured indiscriminately.

Contact measurement must be applied carefully to thin parts because probe force and unsupported geometry distort results. Coordinate measuring machines, optical systems, dedicated gauges, and 3D scanning each have advantages depending on feature type and tolerance. Fixtures used during measurement should support the component in a defined, repeatable condition. For molded parts, the team should agree in advance whether profile is evaluated in a free state or restrained to assembly datums, because the two conditions can disagree.

When a design or customer specification requires evaluation below the surface, appropriate nondestructive inspection may be necessary. Ultrasonic, thermographic, radiographic, or other methods can be selected according to material construction and defect type, but each needs qualified procedures and defined acceptance criteria. For routine CNC production, a first-article report, in-process checks, tool-life records, and final inspection results provide a practical foundation for traceability and continuous process improvement.

From Prototype Validation to Repeatable UAV Production

A successful prototype demonstrates geometry, but it does not automatically establish a production process. Before scaling, supplier and customer should review datum strategy, critical-to-quality features, cosmetic expectations, edge-sealing requirements, tool-life assumptions, inspection frequency, and acceptable evidence of conformance. A small pilot batch reveals variation from laminate thickness, molded edge location, fixture loading, and progressive tool wear that never appears in a single showpiece part.

Design for manufacturability removes risk before cutting begins. Engineers should provide adequate edge distance around holes, avoid unnecessarily deep narrow features, define realistic tolerances by function, and specify which surfaces establish assembly alignment. Insert locations and bonded joints should account for machining access and load paths. Hybrid stacks combining CFRP with aluminum or titanium require extra planning, because each material favors different cutting conditions and may introduce burr, contamination, or galvanic-corrosion concerns at the interface.

When evaluating a precision machining supplier, procurement teams should ask how composite dust is contained, how tools are selected and monitored, how thin parts are supported, and how critical features are inspected. Complex UAV components benefit from coordinated 5-axis machining, rapid prototyping, surface treatment of mating metal parts, and low-volume production under one manufacturing plan. Clear technical communication, controlled first-article approval, and documented inspection are more meaningful indicators of capability than a promised spindle speed alone.

FAQ

What causes delamination when machining carbon fiber?

Delamination is commonly caused by excessive cutting or thrust force, dull tools, unsuitable geometry, inadequate support, vibration, or uncontrolled breakthrough during drilling. Layup orientation and laminate condition also strongly influence the result.

Is a higher spindle speed always better for CFRP machining?

No. High RPM must be matched with the correct feed per tooth and tool engagement. Excessive speed with insufficient feed creates rubbing, heat buildup, rapid tool wear, and possible resin damage rather than faster clean cutting.

Which tools are suitable for machining carbon fiber UAV parts?

Options include sharp solid carbide, diamond-coated carbide, CVD diamond, and PCD tools. Compression routers, composite drills, and specialized countersinks are selected according to the feature, laminate, production volume, and required edge quality.

Can standard metal-machining coolant be used on carbon fiber?

Not automatically. Fluid compatibility with the resin, core, bonded joints, machine, and downstream processes must be verified first. Many CFRP operations use dry machining with effective source extraction instead of flood coolant.

How should machined CFRP components be inspected?

Inspection may combine visual edge checks, dimensional gauges, CMM or optical measurement, and first-article reporting. When specifications require subsurface evaluation, an appropriate validated nondestructive inspection method can be added.

What information should be provided when requesting a machining quote?

Provide 3D models, dimensioned drawings, laminate type and thickness, critical tolerances, datum requirements, inspection expectations, quantity, surface or edge-sealing requirements, and details of any bonded inserts or metallic layers.
