Can Robot Milling Replace a Traditional CNC Machine?

When considering automation for your manufacturing process, you inevitably face a critical question: can a milling robot truly take the place of a traditional CNC machine?

The answer is not a simple yes or no. A robotic milling system is an excellent complement or alternative to a CNC machine for specific applications, but it is not a universal replacement. Robots excel in flexibility, large-scale work, and multitasking, making them ideal for prototyping and artistic fabrication. However, traditional CNC machines remain unmatched in their core strengths of high precision, rigidity, and speed for high-volume, high-tolerance production.

What Are the Core Differences in Performance and Capability?

When deciding between these two technologies, what are the fundamental trade-offs you need to consider in terms of how they perform?

A traditional CNC machine is built for high precision and stiffness, making it ideal for tasks requiring tight tolerances. In contrast, a robotic milling system offers superior flexibility and a much larger work area, excelling at machining large or complex-shaped parts where ultimate precision is not the primary goal.

This distinction in performance is not just a minor detail; it's the central factor that will guide your decision. Let's break down these core differences in detail.

Accuracy and Rigidity: The Decisive Factor for Precision

The most significant difference between a CNC machine and a milling robot comes down to two key concepts: accuracy and rigidity.

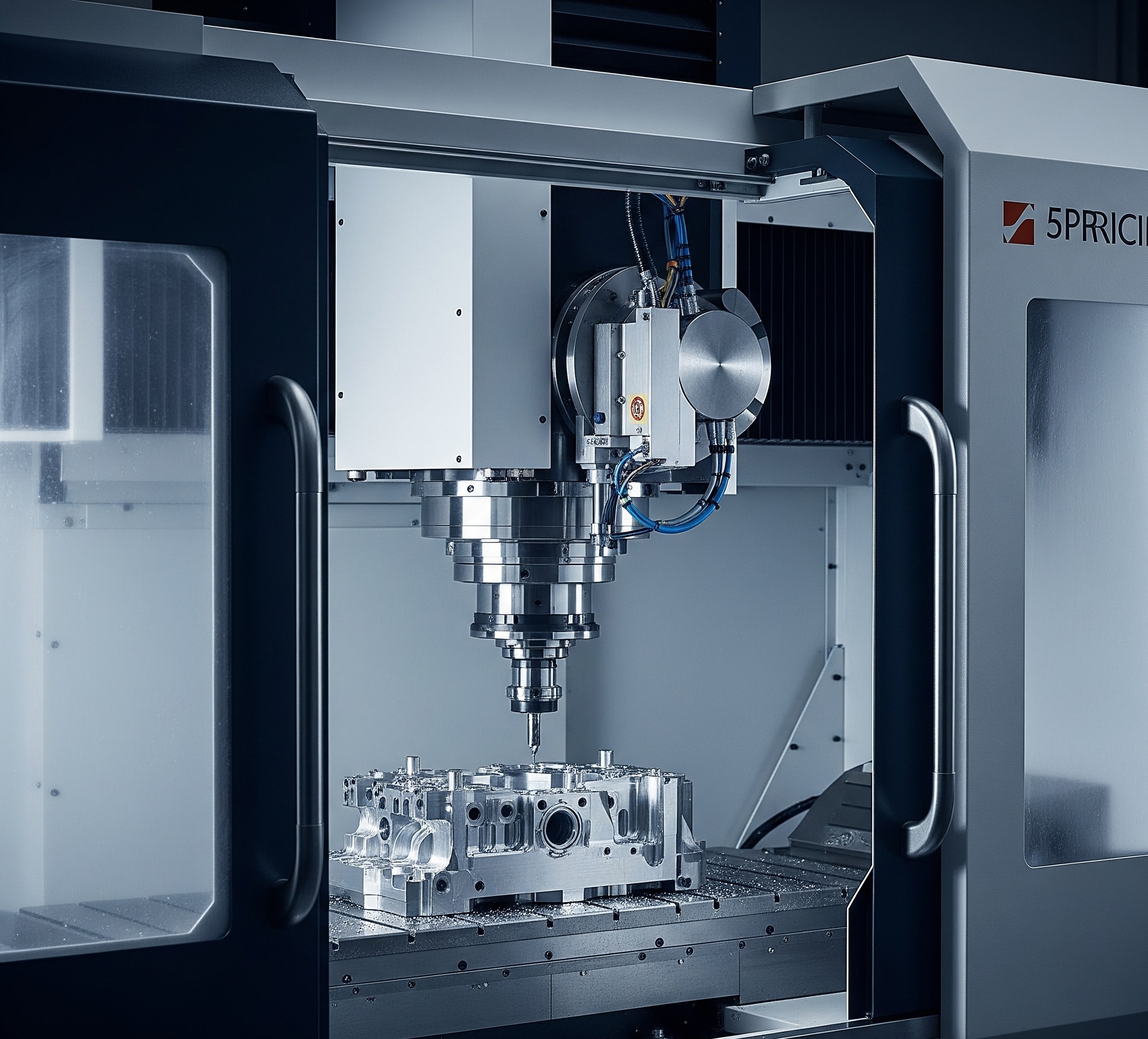

Think of a traditional CNC machine like a dedicated leg press machine at a gym. Its entire structure—a heavy, rigid frame, often made of cast iron—is designed for one purpose: to move a tool along a precise path with immense force and no deviation. This high rigidity minimizes vibrations and tool deflection during cutting.

A robotic arm, on the other hand, is more like a world-class athlete lifting free weights. It's incredibly flexible and strong, but its strength comes from a series of connected joints (the shoulder, elbow, and wrist). When it pushes a cutting tool against a hard material, each of those joints can have microscopic flexes and vibrations. While individually tiny, these movements add up, reducing the overall precision of the final cut.

This structural difference has a direct impact on achievable tolerances.

For example, manufacturing a turbine blade for a jet engine requires incredibly tight tolerances that only a high-precision CNC machine can deliver. Even a tiny error could have significant consequences. However, for carving a large architectural foam mold for a concrete facade, the slightly lower accuracy of a robot is perfectly acceptable and its other advantages come to the forefront.

It's important to remember that these accuracy figures can vary. Factors like the specific robot model, its payload capacity, and the use of secondary feedback systems (like laser trackers) can significantly improve a robot's precision. You should always consult with the equipment supplier for the exact specifications relevant to your needs.

Flexibility and Workspace: Where Robots Excel

While CNCs win on rigidity, robots are unmatched in flexibility and reach. A typical 6-axis articulated robot has a freedom of movement that a standard 3-axis or 5-axis CNC machine simply cannot replicate. Its arm can approach a workpiece from virtually any angle, which is a massive advantage in certain applications.

This flexibility translates directly into a much larger workspace, often called the "work envelope."

For instance, milling a full-scale car chassis prototype is a task tailor-made for a robot. A robot can be placed on a track to extend its reach, allowing it to machine the entire length of the chassis in one setup. Accomplishing the same task on a CNC machine would require an enormous gantry-style machine, which is significantly more expensive and requires a much larger facility footprint.

The key benefit here is the ability to machine parts that are much larger than the machine's own physical footprint. This makes robotic milling an excellent choice for industries like:

• Marine: Shaping boat hulls and plugs.

• Aerospace: Trimming large composite fuselage sections.

• Architecture: Creating custom molds and large-scale art installations.

Speed and Material Removal Rates

When we talk about speed, it's crucial to differentiate between two types: travel speed and cutting speed.

• Travel Speed: This is how fast the machine head can move from one point to another when it's not cutting. Robots are often very fast here.

• Cutting Speed & Material Removal Rate (MRR): This is how quickly the machine can cut through material. This is where rigidity becomes critical again.

So, is moving fast the same as cutting fast? Not at all.

Because a CNC machine is much more rigid, it can handle the immense forces required for aggressive, deep cuts in hard materials like steel or titanium. This allows it to achieve a high Material Removal Rate (MRR), which is essential for efficient production.

A robot, due to its lower rigidity, must often take shallower cuts at a slower speed to avoid tool chatter (vibrations that ruin the surface finish and can damage the tool). If it tries to cut too aggressively, the arm will deflect, leading to inaccuracies.

Therefore, the choice depends heavily on the material:

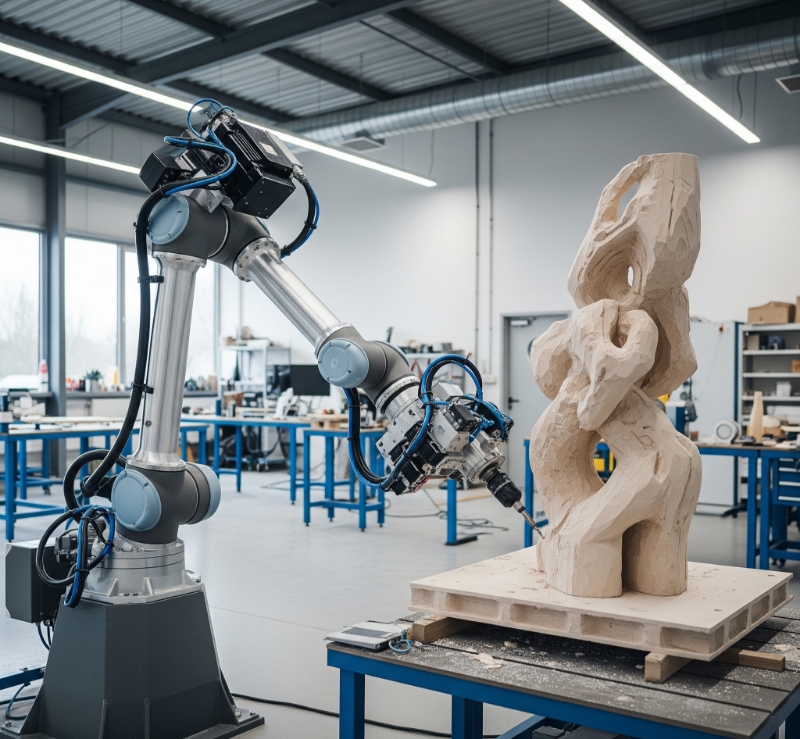

• For soft materials like foam, plastics, or wood, a robot's high travel speed and adequate cutting ability make it very efficient for tasks like sculpting, trimming, and pattern making.

• For hard materials like metals, a CNC machine will almost always provide a higher MRR and, therefore, a shorter cycle time for completing a part.

A Comparison of Cost, ROI, and Versatility

Beyond pure performance, the financial and operational trade-offs are critical. The decision often hinges on a balance between upfront investment, long-term value, and the machine's overall flexibility.

In general, a robotic milling system offers a lower initial investment for a large work area and provides exceptional versatility to perform many different tasks. Conversely, a traditional CNC machine requires a higher upfront cost but can deliver a stronger long-term return on investment (ROI) in dedicated, high-volume production environments due to its speed and precision.

Initial Investment vs. Long-term ROI

When you first look at price tags, robots can seem much more affordable, but the full picture is more complex. The initial purchase price is only the beginning of the financial story.

The Upfront Cost A key reason many businesses explore robotic milling is the lower barrier to entry for large-scale work. Let's consider a practical example: machining a part that is 10 feet long.

• A robotic system capable of handling this size might involve an initial hardware cost of $80,000 to $150,000 for the robot, spindle, and basic controller.

• A gantry-style 5-axis CNC machine with a similar work envelope could easily cost $400,000 to over $1,000,000.

This significant price difference makes robots an attractive option for startups, custom fabrication shops, and applications where the highest precision is not a strict requirement.

Calculating the Real ROI

However, a lower initial price doesn't automatically mean a better investment. The return on investment (ROI) depends entirely on how you use the machine.

ROI isn't just about what you pay today; it's about the value the machine generates over its entire lifespan.

A CNC machine, despite its high cost, often provides excellent ROI in the right setting. In a high-volume production line making thousands of identical, high-precision parts, its speed and reliability lead to a lower cost-per-part. Its low scrap rate and consistent output are predictable financial assets.

The ROI for a robot is calculated differently. Its value comes from its adaptability. A business might justify the investment based on the robot's ability to run multiple shifts performing different tasks, thereby reducing the need to buy other specialized equipment.

Here’s a breakdown of how to think about their long-term value:
