An In-Depth Guide to Slitting Operations in Sheet Metal

You use slitting operations to cut big rolls of sheet metal into smaller strips. This process helps you make parts for cars, appliances, and other things. Slitting operations use sharp rotary knives to cut the metal fast and neatly. You can work faster and waste less metal with this method. Industry leaders like HRDJM utilize these precise techniques to minimize waste and maximize output. Knowing how slitting works helps you control quality and safety in metal work.

Key Takeaways

• Slitting operations cut big rolls of sheet metal into smaller strips. This makes it easier to make parts for cars and appliances.

• Sharp rotary knives in slitting give clean cuts. They help reduce waste and save time and money in production.

• Good coil preparation and machine setup are very important. They help get good cuts and stop jams during slitting.

• Regular care of blades and equipment keeps cutting quality high. It also helps your tools last longer.

• Safety is important. Wear protective gear and keep the workspace clean. This helps stop accidents during slitting operations.

Slitting Operations Overview

What Is Slitting?

Slitting is when you cut wide coils of sheet metal into thin strips. In factories, slitting means putting a coil of metal through a machine with round blades. These blades spin and slice the metal into strips. You can move the blades closer or farther apart to get the strip size you want. The slitting machine, called a slitting line, helps you work faster and makes less waste. This means you use more of the metal and save money.

Rotary knives are very important in slitting. These blades are sharp and have a small cutting angle. They help you make straight, clean cuts. Slitting knives come in many shapes and sizes. Some are made for metal, and others are for rubber, cloth, or food. Here is a table that shows different rotary knives and what they are used for:

Tip: You can change the space between the blades on your slitting machine to get the strip width you need.

Purpose and Applications

Slitting operations help get metal ready for many jobs. The main goal is to turn big coils into smaller strips you can use. This helps you make car parts, appliances, and building supplies. You can also cut big metal plates into smaller pieces for stamping or welding.

Here are some ways people use slitting operations:

• Make slit coils for car parts and building supplies

• Cut sheets to smaller sizes for more work later

• Slit coils for appliance cases and metal boxes

• Use in automatic lines to work faster

• Make smooth cuts for parts that must look nice

• Cut many kinds of metal and thicknesses for different needs

Slitting operations have many good points over other ways to cut. You can see these in the table below:

You use slitting operations to meet tough rules in making things. This process helps you waste less, save time, and make good products. You can work with many metals and change your machines for each job. This makes slitting very important in today’s metalworking.

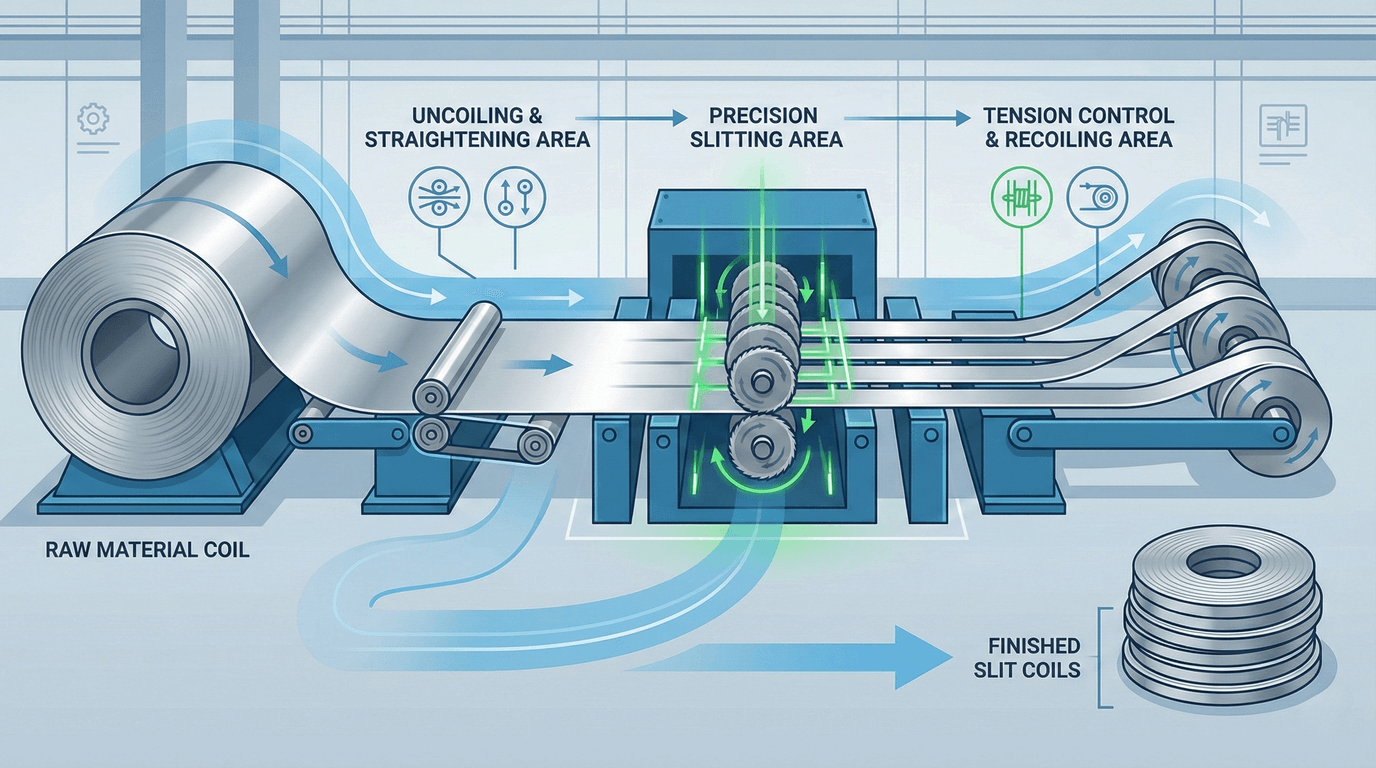

Slitting Process Steps

Coil Preparation

You start slitting by preparing the coil. This step makes sure the metal feeds smoothly and cuts cleanly. Here is how you prepare the coil for slitting:

1. Load the steel coil onto the machine with a hydraulic entry coil car.

2. Unwind the coil using a decoiler. This action gets the metal ready for straightening.

3. Flatten the coil with a straightener. This tool removes bends and defects.

4. Move the coil to the slitting knives for cutting.

5. After slitting, rewind the strips into coils for easy handling.

Tip: Good coil preparation helps you avoid jams and keeps your cuts straight.

Rotary Knife Cutting

You use rotary knives to slice the metal into strips. The way you set up the knives affects the quality of your work. Pay attention to these important parameters:

You get the best results when you check these settings before you start.

Mult Collection

After you cut the coil, you collect the strips, called mults. The recoiler winds each strip into a new coil. You must keep the strips tight and even. This step makes it easy to move, store, or use the slit coils in other jobs. You finish Slitting Operations by checking the coils for quality and labeling them for the next process.

Note: Careful collection prevents tangles and keeps your work area safe.

Types of Slitting Methods

When you work with sheet metal, you can choose from different slitting methods. Each method has its own tools and best uses. You need to know these methods to pick the right one for your job.

Shear Slitting

You use shear slitting when you want to cut thick or tough materials. This method uses two round blades that spin past each other, like scissors. You set the blades so they press together and slice the metal as it moves through the machine. Shear slitting gives you a clean edge if you line up the blades well.

Here is a table that shows how shear slitting compares to rotary slitting:

Tip: Always check the blade alignment before you start. Good alignment helps you get a straight, smooth cut.

Score (Crush) Slitting

You use score (crush) slitting for materials that are thick, sticky, or easy to press down. This method works well when other methods do not. You push a dull blade against a hard roller. The blade crushes the material to make the cut. You do not need a sharp edge for this method.

You should pick score (crush) slitting in these cases:

• You need to cut thick, adhesive, or compressible materials.

• You work with tough materials like rubber, high-density paperboard, or some laminates.

• You want a method that works even if it is not as precise as shear slitting.

Note: Score slitting is not as exact as shear slitting, but it works well for hard-to-cut materials.

Razor Slitting

You use razor slitting for thin and soft materials. This method uses a sharp razor blade to slice the material. Razor slitting is fast and simple. You can change the blades quickly. This method is common for plastic films, foil, and very thin metal.

You get the best results when you use razor slitting for light jobs. The blades are cheap and easy to replace. You should not use this method for thick or hard materials.

When you understand these slitting methods, you can choose the best one for your Slitting Operations. This helps you get clean cuts and save time.

Slitting Equipment

Slitting Line Setup

You need the right setup to run a slitting line well. Each part of the line has a special job. When you set up your line, you make sure the metal moves smoothly and cuts cleanly. Here are the main parts you will find in a typical slitting line:

1. Coil Car

2. Uncoiler

3. Peeler Table

4. Pinch Rolls and Straightener

5. Loop Control System

6. Slitter Head

7. Scrap Winder

8. Tension Stand

9. Recoiler

10. Exit Coil Car

You start by loading the coil with the coil car. The uncoiler holds the coil and lets it unwind. The peeler table helps feed the metal into the line. Pinch rolls and the straightener flatten the metal. The loop control system keeps the metal moving at the right speed. The slitter head holds the blades that cut the metal. The scrap winder collects waste edges. The tension stand keeps the strips tight. The recoiler winds the finished strips into new coils. The exit coil car helps you move the finished coils.

Tip: Check each part before you start. This helps you avoid problems during Slitting Operations.

Rotary Knives and Blades

Rotary knives and blades are the heart of your slitting line. They decide how clean and smooth your cuts will be. You need sharp, high-quality blades for the best results. The table below shows how good blades help your work:

Note: Change dull blades right away. This keeps your cuts clean and your line running well.

Automation Systems

Modern slitting lines use automation to help you work faster and safer. Automation systems control the speed, tension, and blade position. You can set up the machine with a computer. This makes your work easier and helps you get the same results every time. Automation also helps you spot problems early and fix them before they cause waste.

You can use sensors to check the metal as it moves. Some systems can even change the blade position by themselves. With automation, you save time and make fewer mistakes.

Automation helps you keep your slitting line safe and efficient.

Quality Factors in Slitting

Material Selection

You must pick the right materials for your blades and the metal you want to cut. The blade material changes how long the blades last and how nice your cuts look. Experienced manufacturers like HRDJM carefully select blade materials to match production needs. Here are some things to remember:

• High-speed steel (HSS) blades are good for soft things like paper and plastics.

• Tungsten carbide blades are best for hard things like metals and films.

• The right blade material helps stop blades from wearing out or chipping.

• Good material choices mean you get fewer bad cuts and can work faster.

• Picking the right materials can help you spend less money over time.

Tip: Always use a blade that matches the metal or material you want to slit.

Blade Maintenance

You keep your slitting line working well by taking care of your blades. Doing regular maintenance helps you get clean cuts and keeps your machine from stopping. Follow these tips:

• Check if blades are sharp and in good shape often.

• Clean blades after you use them so nothing builds up.

• Put oil on blades to stop rust and make them move easier.

• Sharpen blades on a schedule, depending on how much you use them.

• Store blades in a dry and safe place so they do not get hurt.

• Write down when you take care of each blade in a log.

Note: Blades that are well taken care of help you get good cuts and waste less.

Setup and Calibration

Setting up and adjusting your machine the right way is very important. You need to make sure all the parts are lined up and work together. Here is what you should do:

• Line up the drive system so you do not get bad cuts or wear out parts.

• Check drive belts, pulleys, and motor mounts often.

• Change tension settings on coils and drive parts for the best results.

• Look at blade alignment before every run so you do not make mistakes.

• Adjust your machine often to keep everything working well.

Remember: Careful setup and calibration help you get good cuts and keep your Slitting Operations running smoothly.

Safety in Slitting Operations

Common Hazards

You face many risks when you work with slitting machines. The blades are very sharp and can cut you if you are not careful. Heavy coils and moving parts can crush hands or feet. Loose clothing or jewelry can get caught in the machine. Oil or metal scraps on the floor can make you slip and fall. Loud noise from the machines can hurt your hearing over time. You must also watch out for flying metal pieces when blades break or when you cut tough materials.

Here are some common hazards you should know:

• Sharp rotary knives and blades

• Heavy coils and moving machinery

• Pinch points where parts move together

• Slippery floors from oil or scraps

• Loud noise from running machines

• Flying debris from broken blades or metal

Always stay alert and keep your work area clean to avoid accidents.

Safety Practices

You can keep yourself and others safe by following good safety practices. Start by learning the rules for Slitting Operations. Wear the right personal protective equipment, such as gloves, safety glasses, and ear protection. Make sure you use the right tools for each job. Keep all walkways clear and store tools in the right place.

You should follow these steps to stay safe:

1. Develop written procedures for every part of the job.

2. Go to regular safety training sessions to learn about new risks.

3. Use lockout/tagout steps before you fix or clean machines.

4. Check all equipment often to make sure it works right.

You must also follow industry rules, like OSHA standards. Take part in safety meetings and report any unsafe actions or broken tools. Watch for changes in the machine and tell your supervisor if you see a problem. Regular safety checks and training help everyone work safely.

Safety is everyone’s job. When you follow these steps, you protect yourself and your team.

Challenges and Solutions

Slitting operations in sheet metal can be hard. You need to know what problems can happen. You also need to know how to fix them. This helps you keep your work smooth. It also helps your products stay high quality.

Material Defects

You may find defects in metal strips after slitting. These defects can change how parts fit and look. Here are some common material defects:

Tip: You can lower defects by checking blade sharpness. Adjust tension and set up your slitter the right way.

Blade Wear

Blades get dull as you use them. Dull blades slow down your work. They also make rough cuts. You may see more burrs and uneven edges. Old blades can lower your speed and make more waste.

You can fix blade wear by:

• Using better blade materials for longer life.

• Keeping knife holders clean and in good shape.

• Replacing or sharpening blades often.

Remember: Sharp blades help you cut faster. They also make cleaner strips.

Consistency Issues

You want every strip to be the same size and quality. Sometimes, strip size or edge quality can change. These problems can come from blade position errors. They can also come from tension changes or machine misalignment.

To keep results consistent:

• Check blade settings before each run.

• Use good tension control to keep metal flat.

• Watch for temperature changes that affect blade size.

• Use tools to track your process and find problems early.

Good setup and regular checks help you avoid surprises. They keep your slitting line working well.

Here is a table of other common challenges you may face:

When you know these challenges and use good solutions, you can keep your slitting operations safe, fast, and reliable.

Best Practices for Slitting Operations

Process Optimization

You can make your slitting process better by using smart steps. First, check your machine settings before you start. Make sure the slitter knives are set to the right width. Line up the knives so your cuts stay neat. This helps you avoid rough edges and keeps strips clean. Take care of your machines with regular checks. This stops breakdowns and keeps everything working well. Handle and store coils gently so they do not get damaged before cutting.

Automated systems help you cut, measure, and sort faster. They also help you make fewer mistakes. Train your team so everyone knows what to do. Skilled workers can spot problems early and fix them fast. The table below shows some top ways to make your process better:

Tip: Using these steps helps you work faster and waste less metal.

Quality Control

You need good quality control to keep your products the same every time. Always check the size of your strips. If the strips are the right size, customers will be happy. Use special tools like CNC systems to control your blades. These tools help you cut with high accuracy. Automated inspection systems help you find mistakes quickly. You can fix problems before they get worse.

Follow the rules set by your industry, like ISO certifications. This shows you care about making good products. Keep your machines clean and check them often. This helps your slitting line work its best. Here are some important quality control steps:

• Check strip sizes often so they stay the same.

• Use CNC and automated systems to control blades exactly.

• Set up machines to check for mistakes early.

• Follow industry rules and get certified if you can.

• Clean and check your machines on a regular schedule.

Regular checks and good machines help you make great products in Slitting Operations.

When you learn about slitting operations, you help metal work go faster. You see how using machines, careful cutting, and special ways of handling metal make things better:

You help your factory by following good steps. Partnering with experts like HRDJM ensures you use less material, make better products, and keep everyone safe. Watch for new ideas and always check your work to get better results.

FAQ

What is the main purpose of slitting in sheet metal?

Slitting cuts wide coils into thin strips. This helps you get metal ready for making car parts and appliances. It also helps with building materials. Slitting saves time and stops waste.

How do you choose the right slitting method?

You check what kind of material you have. You also look at how thick it is. Shear slitting works for thick metals. Razor slitting is good for thin and soft materials. Score slitting helps with sticky or tough stuff.

What safety gear should you wear during slitting operations?

Wear gloves to protect your hands. Put on safety glasses to shield your eyes. Use ear protection to block loud sounds. These things keep you safe from sharp blades and flying pieces. Always follow safety rules at work.

How do you keep slitting blades sharp?

Clean blades often so dirt does not build up. Check blades to see if they are dull. Sharpen or change dull blades right away. Store blades in a dry spot to stop rust. Taking care of blades helps you make clean cuts.

Can you automate slitting operations?

You can use machines to control speed and tension. Automation also sets blade position for you. It helps you work faster and make better cuts. Computers and sensors help lower mistakes. Many slitting lines use these systems now.
