ABS vs Nylon: Which Plastic is Right for Your Prototype?

When you compare ABS vs Nylon for prototyping, your choice depends on what you need most. You will find ABS much easier to process and more cost-effective, with typical filament prices between $20 and $30 per kilogram. You can machine, sand, and paint ABS easily, which makes it great for quick prototypes. Nylon stands out for strength and flexibility, so you should pick it for parts that need to handle stress or heat. Choose ABS when you want speed and savings. Pick Nylon when you need high performance.

ABS

Properties

ABS is a strong plastic used for many prototypes. It feels tough but also a little flexible. This material does not break easily if dropped or hit. ABS can handle heat, so it does not bend out of shape. You can sand, machine, or paint ABS to finish your models. If you use 3D printing, ABS works well with FDM printers. The layers stick together, so your prints are strong. You can use acetone to make the surface shiny. ABS is recyclable, so it is better for the environment.

Tip: ABS makes up about 10% of all thermoplastics made in the world. About 30% of all ABS is used by the electronics industry.

Applications

ABS is used in many industries because it is strong, cheap, and easy to work with. Here are some ways people use ABS for prototypes:

• Functional prototypes to test how things fit and work

• End-use parts that do not break or bend easily

• Car parts like dashboards, door panels, and trims

• Cases for electronics like remote controls and game consoles

• Custom tools, jigs, and fixtures for factories

• Models for science and engineering classes

• Models for building designs

• Prototypes for planes that need to be strong and accurate

• Displays, signs, and marketing samples

• Toys, games, and puzzles

• Art sculptures and detailed art pieces

• Models of medical devices and surgical tools

• Parts for appliances like vacuum cleaner shells

• Parts for gardening tools and luggage

• Lighting parts that need to handle heat

ABS works for many things, from simple models to real working parts. This is why ABS is a great choice for your prototype projects.

Nylon

Properties

Nylon is a strong and flexible plastic. You will notice that it bends without breaking, which makes it great for parts that need to handle stress. Nylon can stretch a lot before it snaps. For example, 3D printed Nylon 12 can reach an elongation at break of up to 595.5%. This means your prototype can flex and return to shape. Nylon also has good tensile strength. Nylon 6/6, when dry, has a tensile strength of 12,000 psi. Even when it absorbs moisture, it keeps much of its strength and becomes even more flexible.

Note: The way you print Nylon affects its strength and flexibility. Thicker layers in 3D printing can increase the ultimate load and elongation, so you can adjust your process to get the properties you want.

Nylon resists heat and chemicals better than many other plastics. It does not melt or deform easily, so you can use it for parts that get hot. Nylon also absorbs some moisture from the air, which can change its flexibility. You should store it in a dry place to keep its best properties.

Here is a quick look at Nylon’s key properties:

Applications

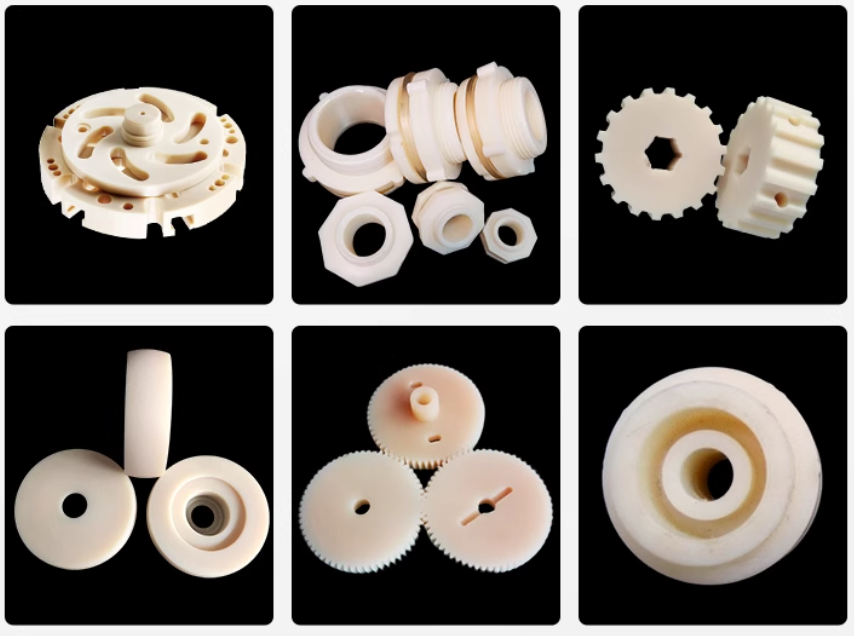

You can use Nylon for many types of prototypes. It works well for parts that need to be strong, light, and flexible. In factories, engineers use Nylon to make gears, bushings, and hinges. These parts must handle repeated movement and stress. Nylon is also popular for making functional prototypes that need to work like the final product.

If you use 3D printing, Nylon lets you create complex shapes that are hard to make with other materials. Many companies use carbon fiber reinforced Nylon for even stronger and lighter parts. This is common in automotive, aerospace, and robotics prototypes. You might also see Nylon in sports equipment, medical devices, and consumer products.

• Gears and moving parts

• Hinges and snap-fit joints

• Lightweight brackets and frames

• Functional end-use parts

• Prototypes for automotive and aerospace

• Robotics and machine components

Nylon gives you the freedom to test real-world performance in your prototypes. You can trust it for parts that need to bend, flex, and last under stress.

ABS vs Nylon Comparison

Mechanical

When you compare ABS vs Nylon for mechanical properties, you see clear differences. Nylon stands out for its strength and flexibility. It has a higher elastic modulus, which means it is stiffer and stronger than ABS. Nylon can stretch much more before breaking. For example, pure Nylon (PA6) can reach an elongation at break of over 60%, and some blends go even higher. ABS is tough and resists impact, but it does not stretch as much as Nylon.

You can see the differences in the table below:

Nylon gives you better performance if your prototype needs to bend or handle stress. ABS works well for parts that need to be tough but not very flexible. If you want a balance, some blends can combine the best features of both.

Tip: Choose Nylon for gears, hinges, or parts that must flex. Pick ABS for cases, covers, or parts that need to resist breaking when dropped.

Thermal & Chemical

ABS vs Nylon also shows big differences in how they handle heat and chemicals. Nylon resists heat better. It keeps its shape at higher temperatures, so you can use it for parts near engines or in hot environments. ABS can handle some heat, but it may deform if it gets too hot.

Nylon also stands up to many chemicals, including oils and fuels. This makes it a good choice for automotive and industrial prototypes. ABS resists acids and alkalis but does not do as well with solvents or fuels.

• Nylon: High heat resistance, good for hot or chemical-heavy settings.

• ABS: Moderate heat resistance, best for normal room temperatures.

Note: Nylon absorbs moisture from the air, which can change its flexibility. Store Nylon parts in a dry place to keep their best properties.

Processing

You will find ABS easier to process than Nylon. ABS melts at a lower temperature, so you can print, machine, or mold it with less effort. It sands and paints well, which helps you finish your prototypes quickly. ABS also works with most FDM 3D printers.

Nylon needs higher temperatures to melt and print. It can absorb water from the air, which may cause problems during printing. You must dry Nylon before use to get the best results. Nylon can be harder to sand or paint, but it gives you strong, flexible parts.

• ABS: Easy to print, sand, and paint. Good for fast prototyping.

• Nylon: Needs careful handling and drying. Best for strong, flexible parts.

Cost

Cost is a key factor in the ABS vs Nylon decision. ABS is usually cheaper. You can buy ABS filament for 3D printing for $20 to $30 per kilogram. Nylon costs more, often $40 or more per kilogram. Processing Nylon may also cost more because you need special care and equipment.

If you want to save money and make simple prototypes, ABS is the better choice. If your prototype needs to perform under stress or heat, Nylon is worth the extra cost.

Summary: ABS saves you money and time. Nylon gives you better performance for demanding prototypes.

Quick Reference: ABS vs Nylon

• Strength: Nylon > ABS

• Flexibility: Nylon > ABS

• Durability: Both are durable, but Nylon lasts longer under stress

• Heat Resistance: Nylon > ABS

• Chemical Resistance: Nylon > ABS

• Ease of Processing: ABS > Nylon

• Cost: ABS < Nylon

Pros and Cons

ABS Pros & Cons

ABS gives you many advantages when you build prototypes. You can shape it easily and finish it with sanding or painting. The cost stays low, so you can make many test parts without spending much. ABS resists impact, so your parts do not break easily if you drop them. You can use it with most 3D printers, which makes your work faster.

However, ABS has some limits. It does not handle high heat as well as Nylon. If you use ABS in a hot place, it may warp or lose its shape. ABS also does not resist chemicals as well as Nylon. If your prototype touches oils or fuels, ABS may not last long. Sometimes, ABS can give off fumes during printing, so you need good ventilation.

Tip: Choose ABS if you want quick, low-cost prototypes that do not need to handle high heat or harsh chemicals.

Nylon Pros & Cons

Nylon stands out for its strength and flexibility. You can use it for parts that bend or stretch without breaking. Nylon resists heat and chemicals better than ABS. Many engineers use Nylon for gears, hinges, and moving parts. You can also find Nylon in medical and automotive prototypes because it is biocompatible and works well with FDM 3D printing.

Research shows that Nylon absorbs moisture from the air, which can lower its strength and stiffness. If you want to keep Nylon strong, you need to store it in a dry place. Some studies found that adding coatings like polyurethane or silicone can help Nylon resist water, but these coatings may make the part less strong. Other research shows that mixing Nylon with materials like silicon carbide or aluminum oxide can make it last longer and resist wear, which helps you use Nylon for more demanding prototypes.

Note: Nylon works best for parts that need to flex, last under stress, or face heat and chemicals. Store it dry for best results.

Choosing the Right Material

When to Use ABS

Pick ABS if you want a plastic that is easy to shape. ABS is good for prototypes that need to be tough. It does not break easily. Many engineers use ABS for electronics and car parts. This plastic makes strong prototypes that can handle drops. You can sand and paint ABS for a smooth look.

A guide says ABS is best for electronics and cars. This is because it is strong and resists impacts. Use ABS for parts that need to survive rough use. In cars, ABS keeps its shape even when it is cold. One study found ABS parts made with FDM printing can be very strong. Some print patterns make them even stronger. ABS is a good choice for light and strong car parts like bumpers.

Use ABS if your prototype needs:

• High impact resistance

• Good surface finish for painting or sanding

• Fast and easy processing

• Lower material cost

• Testing for fit, form, and function in consumer products

• Parts that will not face high heat or harsh chemicals

Tip: If you want to test many designs fast, ABS saves time and money.

When to Use Nylon

Pick Nylon if your prototype must handle stress or heat. Nylon is stronger and more flexible than ABS. It works well for gears, hinges, and moving parts. Nylon lasts a long time. It also resists heat and chemicals better than ABS. Use Nylon for parts near engines or in tough places.

Nylon is smart for prototypes that need to bend but not break. Use it for parts that must return to shape after stretching. Many engineers use Nylon for robotics, cars, and planes. Nylon is also good for medical devices and sports gear. It is strong and safe for the body.

Use Nylon if your prototype needs:

• High strength and flexibility

• Good performance under stress or repeated movement

• Resistance to heat and chemicals

• Lightweight but durable parts

• Functional testing in real-world conditions

• Complex shapes made with 3D printing

Note: Keep Nylon dry to keep it strong and flexible. Dry Nylon before printing for the best results.

Quick Decision Table

When you compare ABS vs Nylon, think about what your prototype must do. ABS is fast and saves money for simple, tough parts. Nylon is better for hard jobs that need more strength. Pick the material that fits your needs for the best results.

When you look at ABS and Nylon, both have good points for prototypes. ABS keeps its fatigue strength steady for a long time. Nylon is strong at first but gets weaker faster with repeated use. The table below shows how they do in important ways:

Pick the plastic that fits what your prototype needs. If you are not sure, try both or ask someone who knows more.

FAQ

What is the main difference between ABS and Nylon for prototypes?

You will notice ABS is easier to shape and costs less. Nylon gives you more strength and flexibility. Choose ABS for quick, simple models. Pick Nylon for parts that must bend or handle stress.

Can you paint or finish both ABS and Nylon parts?

You can sand and paint ABS easily. Nylon does not hold paint as well. If you want a smooth, colorful finish, ABS works better. Nylon needs special coatings for painting.

Which material is safer to use with 3D printers at home?

ABS can release fumes when you print it, so you need good ventilation. Nylon also needs care, but it does not smell as strong. Always use a well-ventilated area for both.

Does moisture affect ABS and Nylon differently?

Nylon absorbs water from the air. This can change its strength and flexibility. ABS does not absorb much moisture. Store Nylon in a dry place to keep it strong.

When should you use a blend of ABS and Nylon?

You should use a blend if you want a balance of strength and easy processing. Blends can give you better flexibility than ABS and simpler printing than pure Nylon.
